High Quality Electric Industrial Pipe Tube Heating Elements Factory Supplier for Solar Water Heater

Inquire Now

Product Description Features Package delivery Download

Product Description

Hot sale stainless steel, incoloy 840 water heater heating elements

Available in single- or double-ended termination styles, the versatile and econmical HUHOT tubular heating element from lends itself to virtually the entire range of immersion and air heating applications. Electric heating tube shape without a standard, according to the different installation space and installation to design the shape of electric heating tube.

Usually Threaded or Flanged electric heating tube for heating liquid, Finned electric heating tube is particularly suitable for air. Flanged electric heating tube is easy to install, control and maintain, unique designer as your request. For corrosive environments, a titanium material or tubular heating element with an additional Teflon sleeve can be used.

Thread fitting size	M12* 1.5; M142.0; M162.5 etc
Tube diameter	Φ6mm - Φ 16mm
Tube Material	SS304, SS316L, SS321, SS310S and INCOLOY800, 840 etc
Insulation Material	99% Purity Mgo
Conductor Material	Nichrome Resistance Wire
Wattage Density	High/Middle/Low (5-25w/cm2)
Voltages available	60V- 600V Customized
Lead Connection Option	Threaded Terminal or Lead Wire
Option	Waterproof or with fins

Features

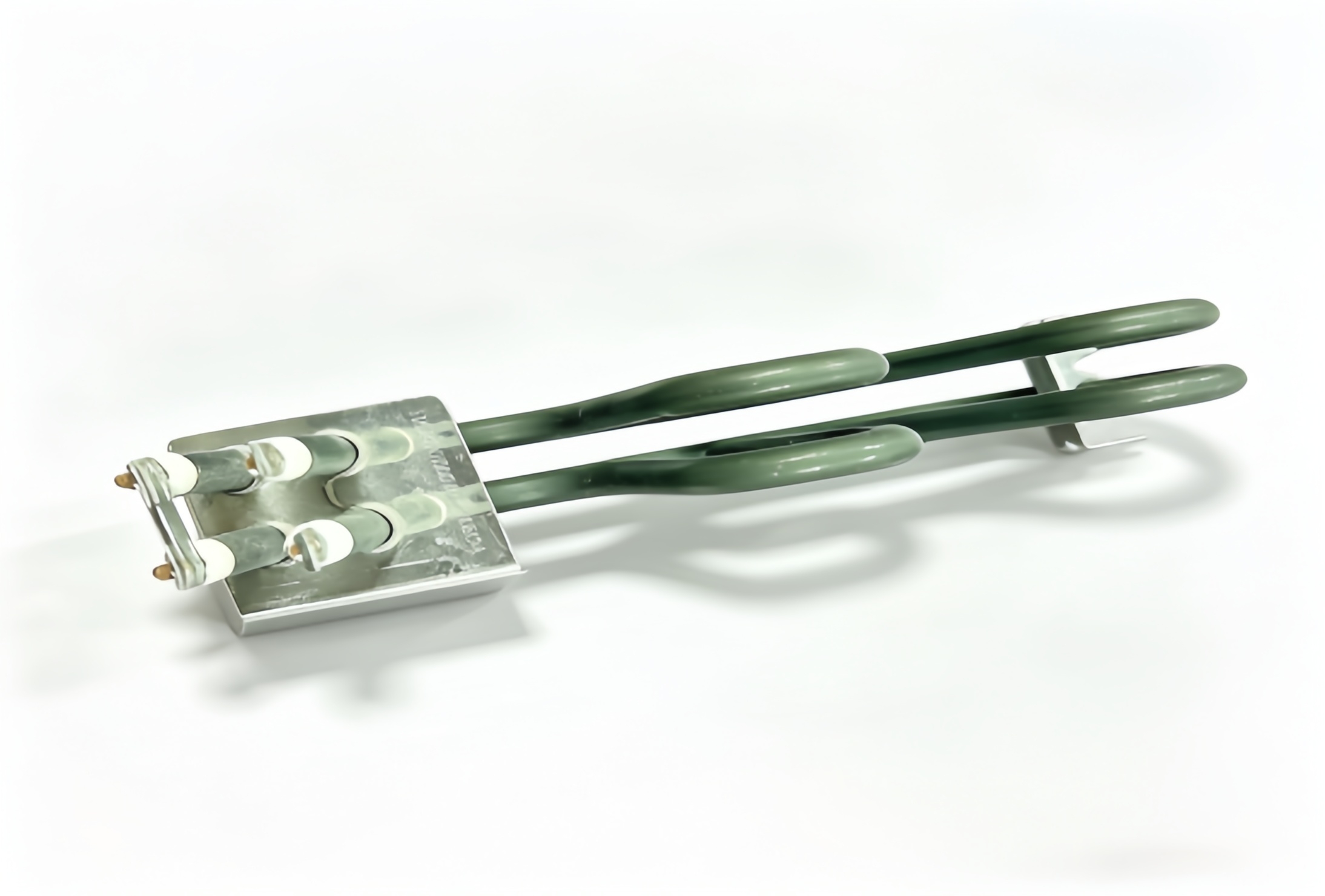

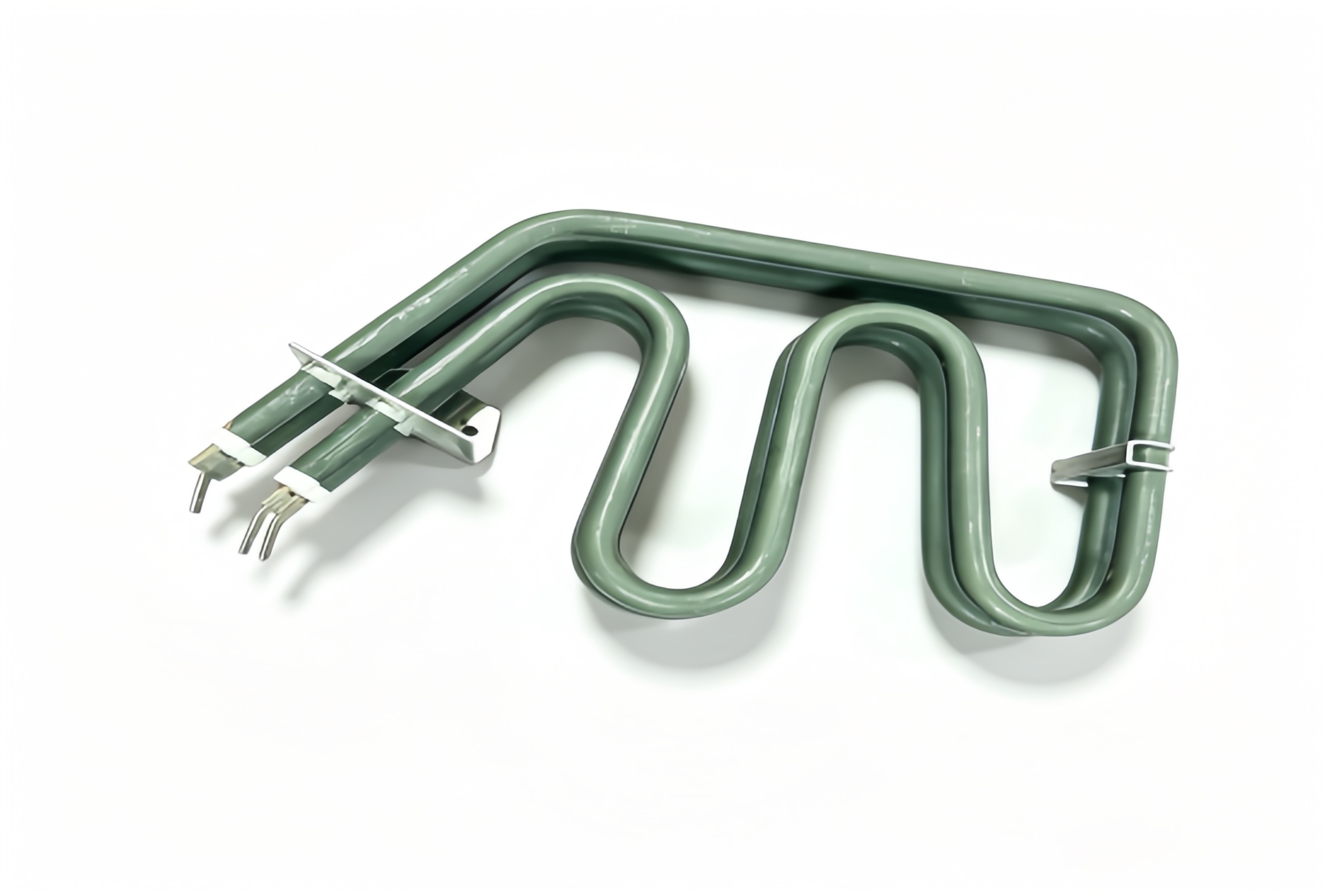

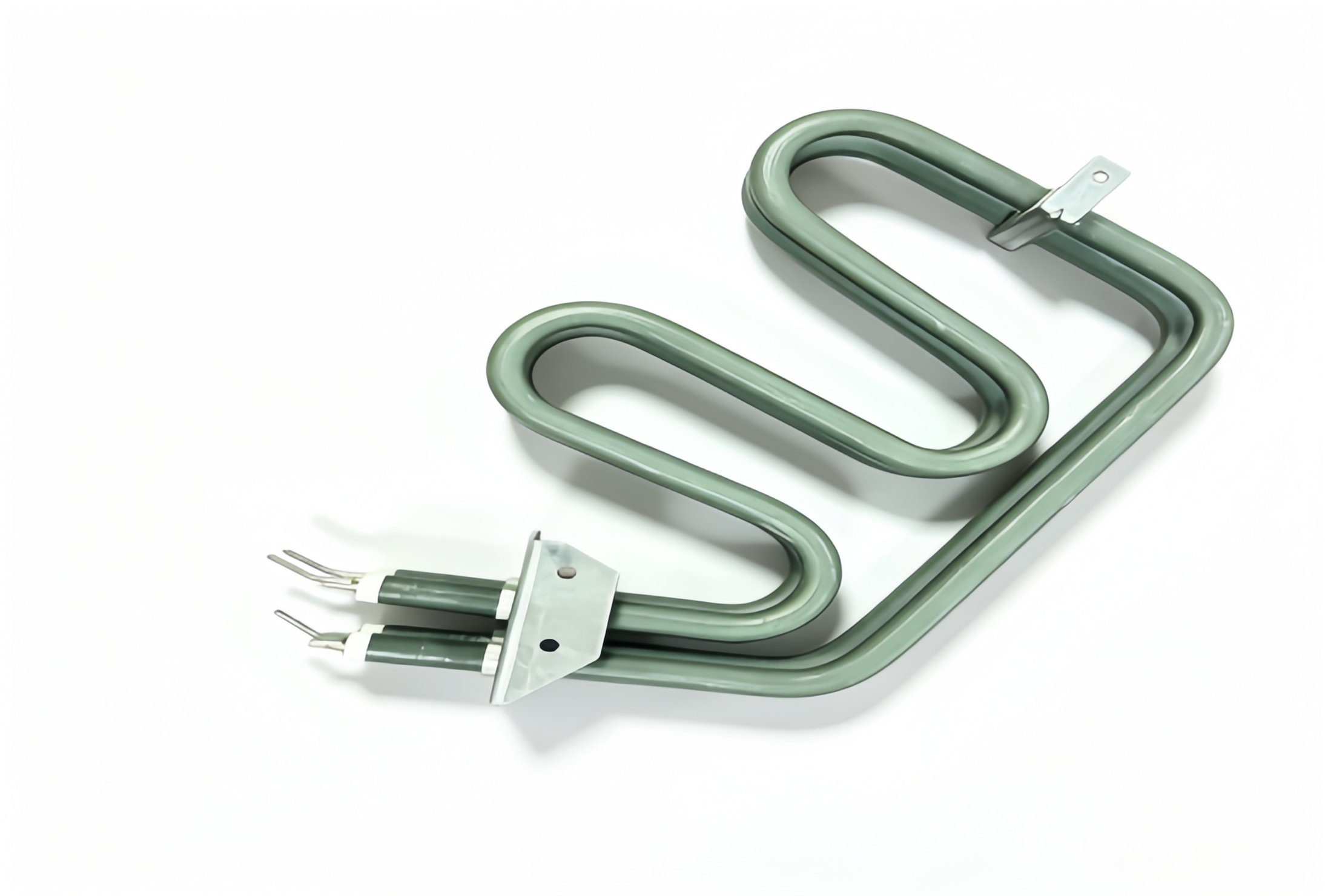

W‑shape bent tubular structure with metal mounting bracket
High‑temperature resistant green surface coating, anti‑oxidation
Large heating surface, fast heat‑up, even heat distribution
High‑purity MGO filled inside, good insulation & thermal conductivity
Terminal plug‑in design, simple installation and replacement
Excellent dry‑burn performance, long service life for oven and grill
Customizable shape, voltage and power to match different equipment

Package delivery

Packing

Each W‑shape heating element is wrapped by foam material to prevent tube deformation, scratch and coating damage. Packed into standard export carton. Custom packing is available.

Shipping

Small orders shipped by international courier such as DHL, FedEx. Bulk goods by sea or air freight. Support FOB, CIF and other trade terms.
