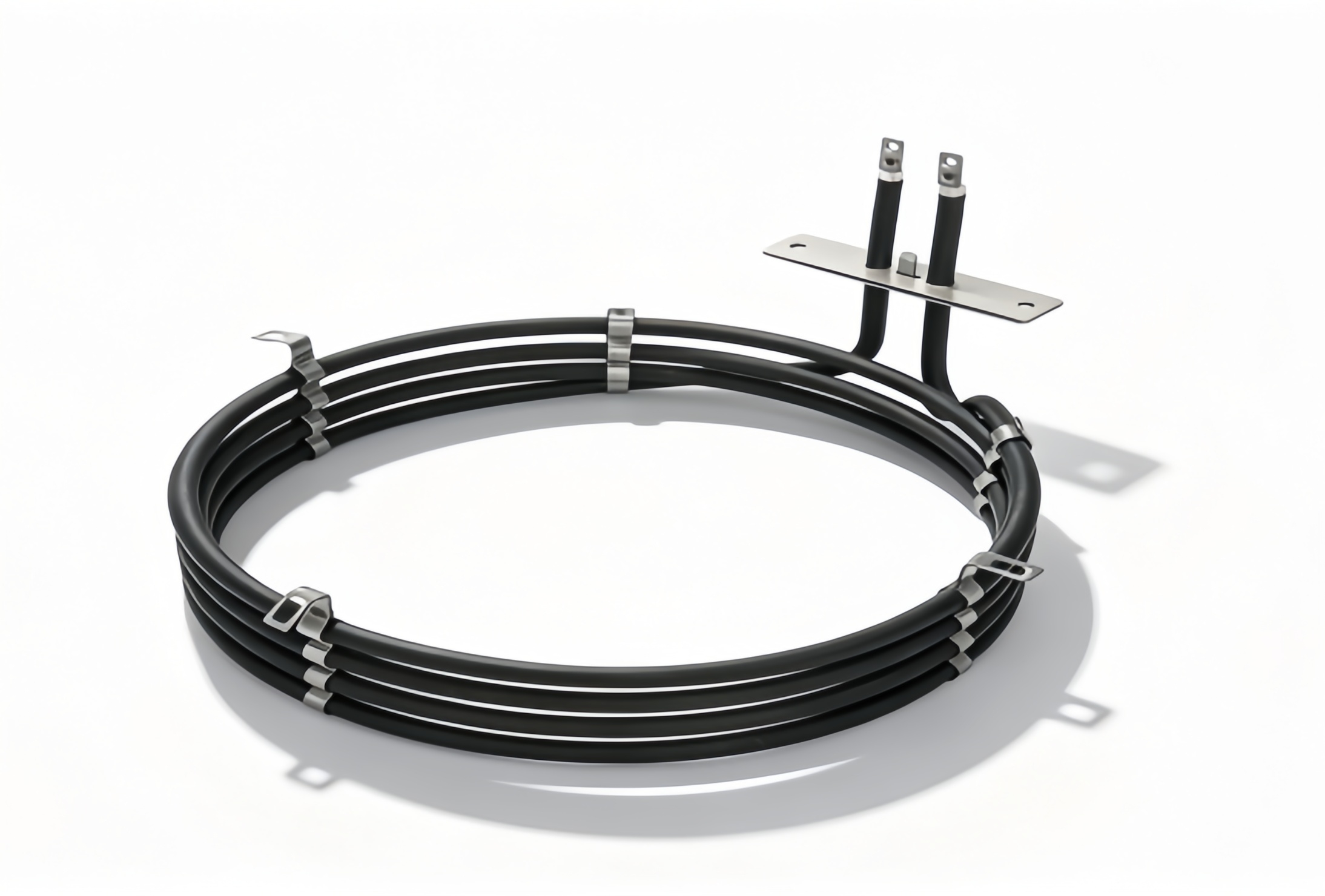

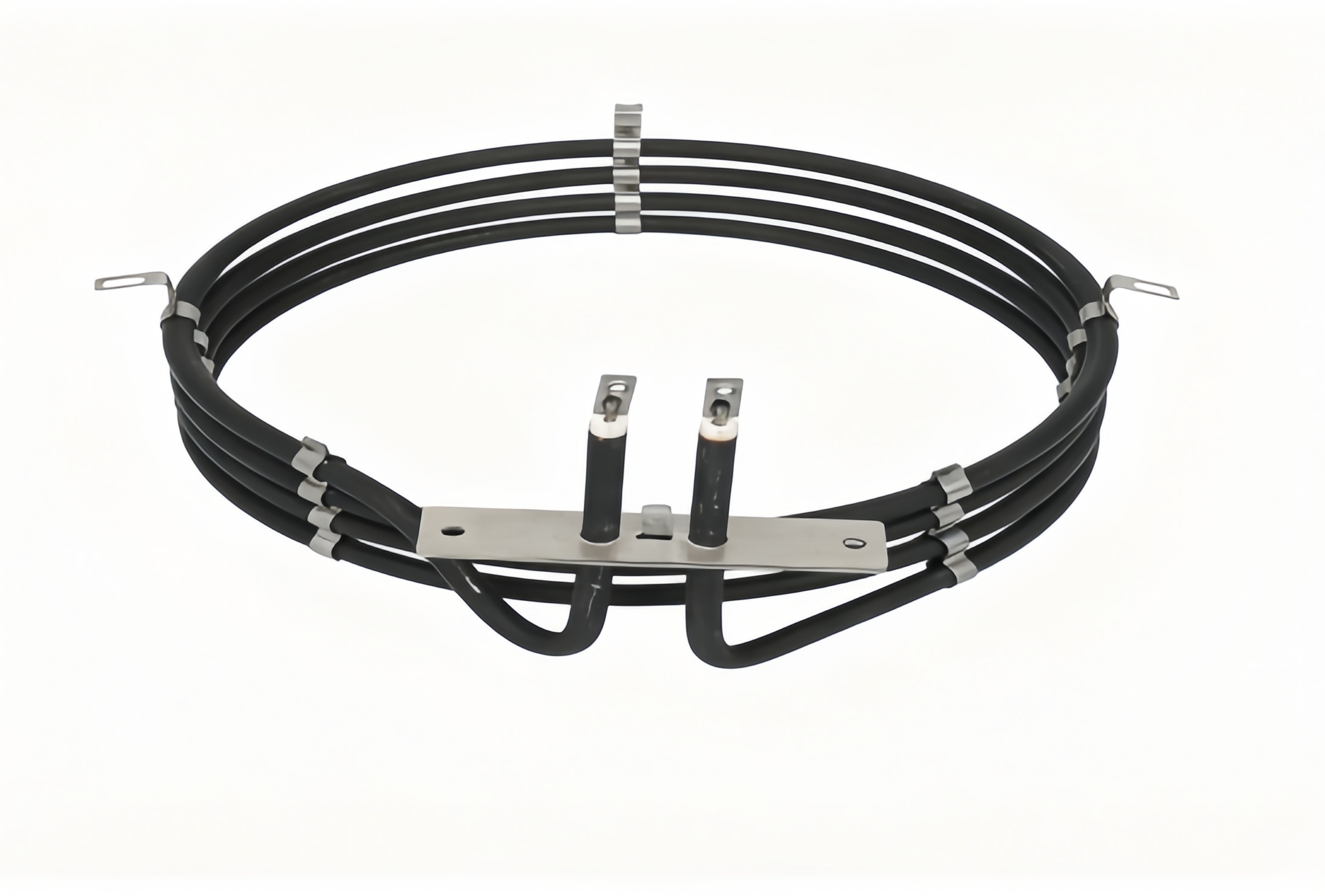

Circular Oven Tubular Heating Element With Mounting Brackets

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

Circular oven tubular heating element equipped with metal mounting brackets. It delivers uniform heat distribution for household and commercial ovens. High‑temperature resistant surface ensures stable dry‑burn performance. Custom diameter, voltage and power are supported.

Material: SUS304 stainless steel tube, high temp anti-oxidation black coating, Ni80Cr20 nichrome wire, high purity MgO powder, stainless steel bracket & clips	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: 4 concentric circular coiled heater with stainless mounting plate and fixing clips	Certification: CE, ISO9001, RoHS, CB, CCC
Shape:4 concentric flat circular ring shape with side metal mounting bracket	MGO: High-purity electrical grade MGO insulation filler
Voltage: Standard 110V, 220V, 240V, 380V; custom voltage acceptable	Tube Diameter: Standard 8mm / 10mm / 12mm, customized tube diameter acceptable
Power: 1000W–5000W standard, customizable wattage	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Product Name: Circular Oven Tubular Heating Element With Mounting Brackets	Application: Commercial bakery oven, hot air circulation oven, food drying equipment

Features

Circular bent tube design, uniform heating inside oven
Metal mounting brackets, easy and firm installation
High‑purity MGO filling powder, excellent insulation
Anti‑oxidation surface coating, high temperature resistance
Support custom diameter, voltage, power and terminals

Package delivery

Packaging

Each circular oven heating element is wrapped with bubble foam to avoid deformation and scratches, packed in separate inner box. Export carton with shock‑proof filler for bulk order.

Shipping

Sea freight, air freight and express delivery are optional. We can arrange shipment as per customer’s requirements.
