Thread Spiral Dry Burn Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

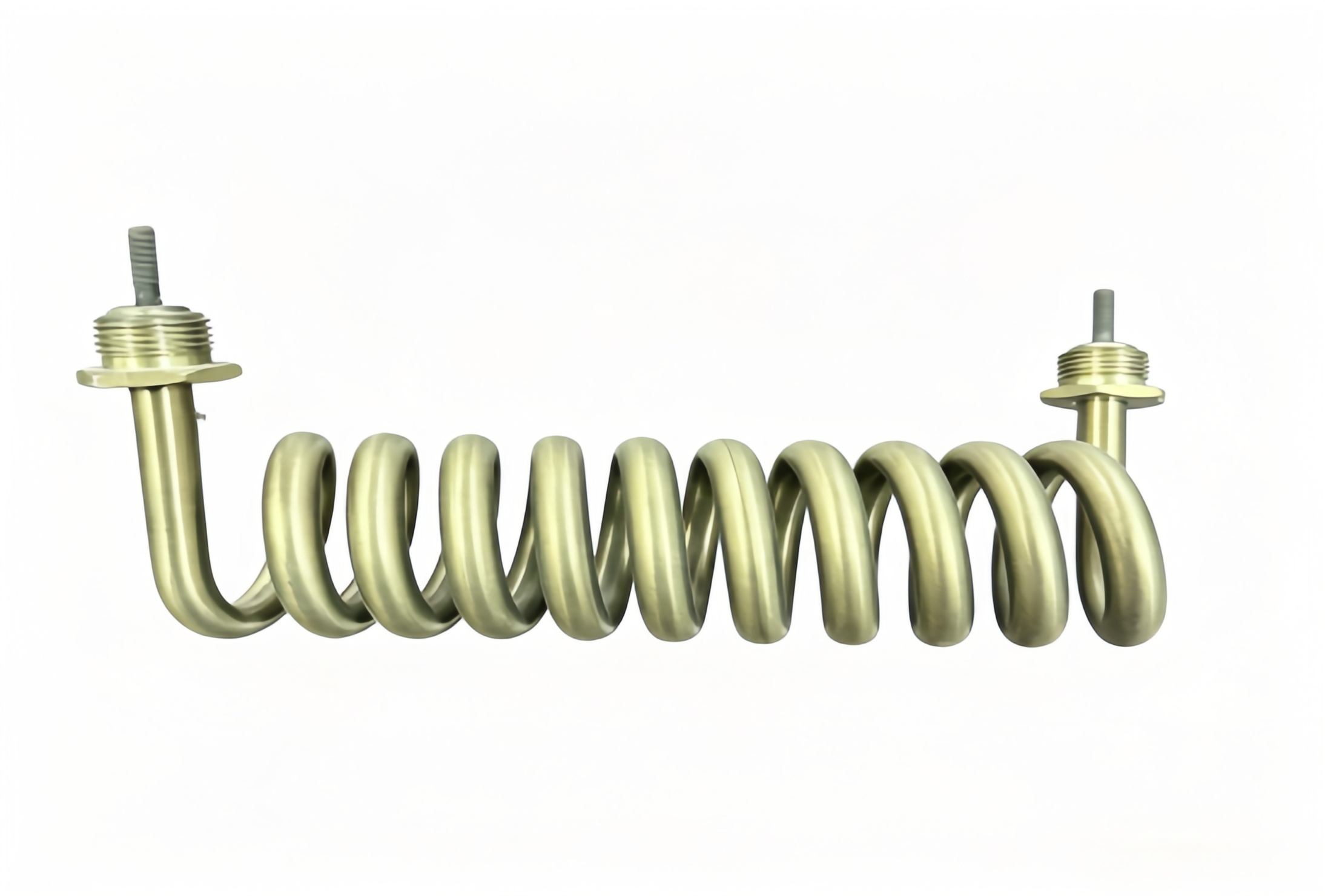

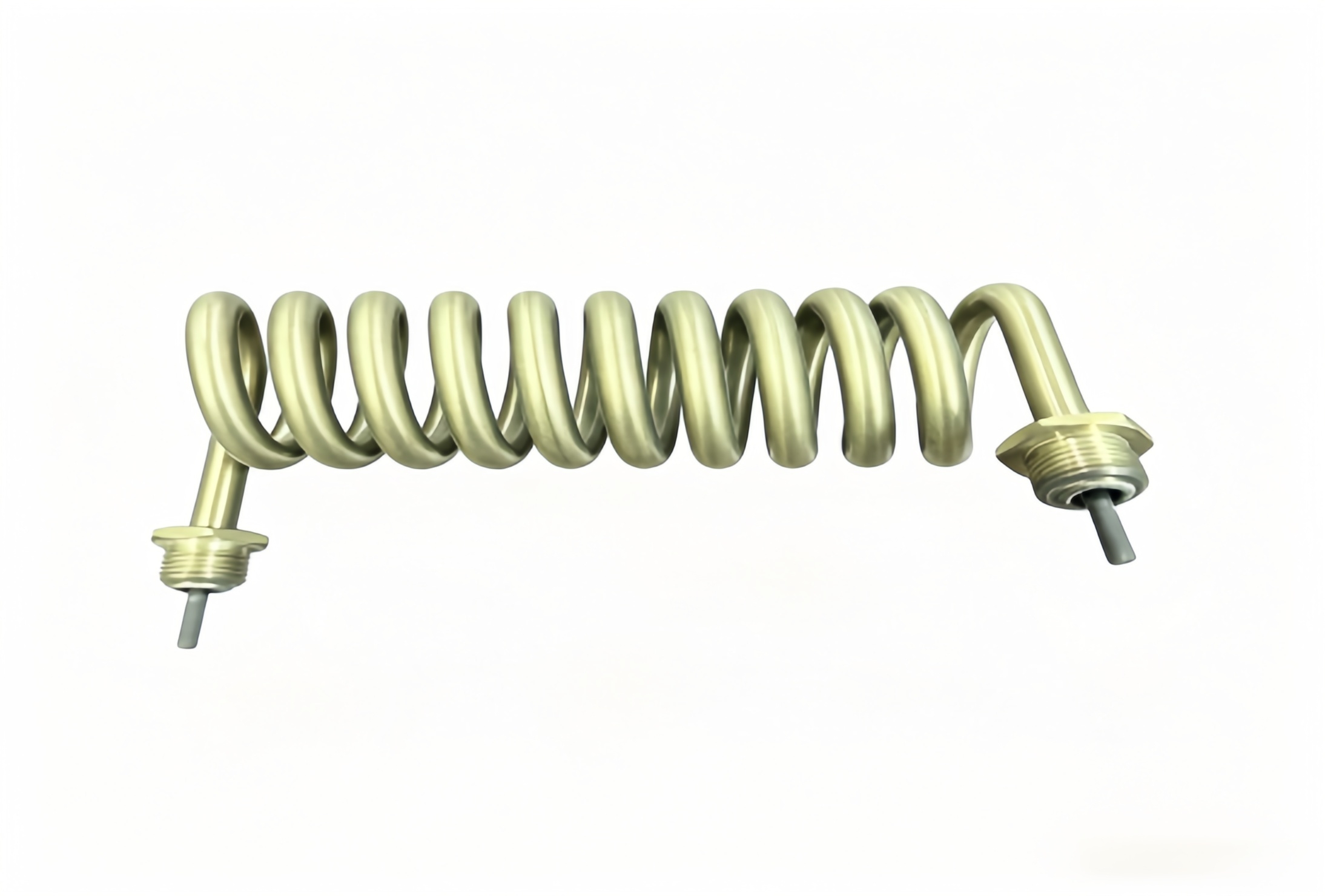

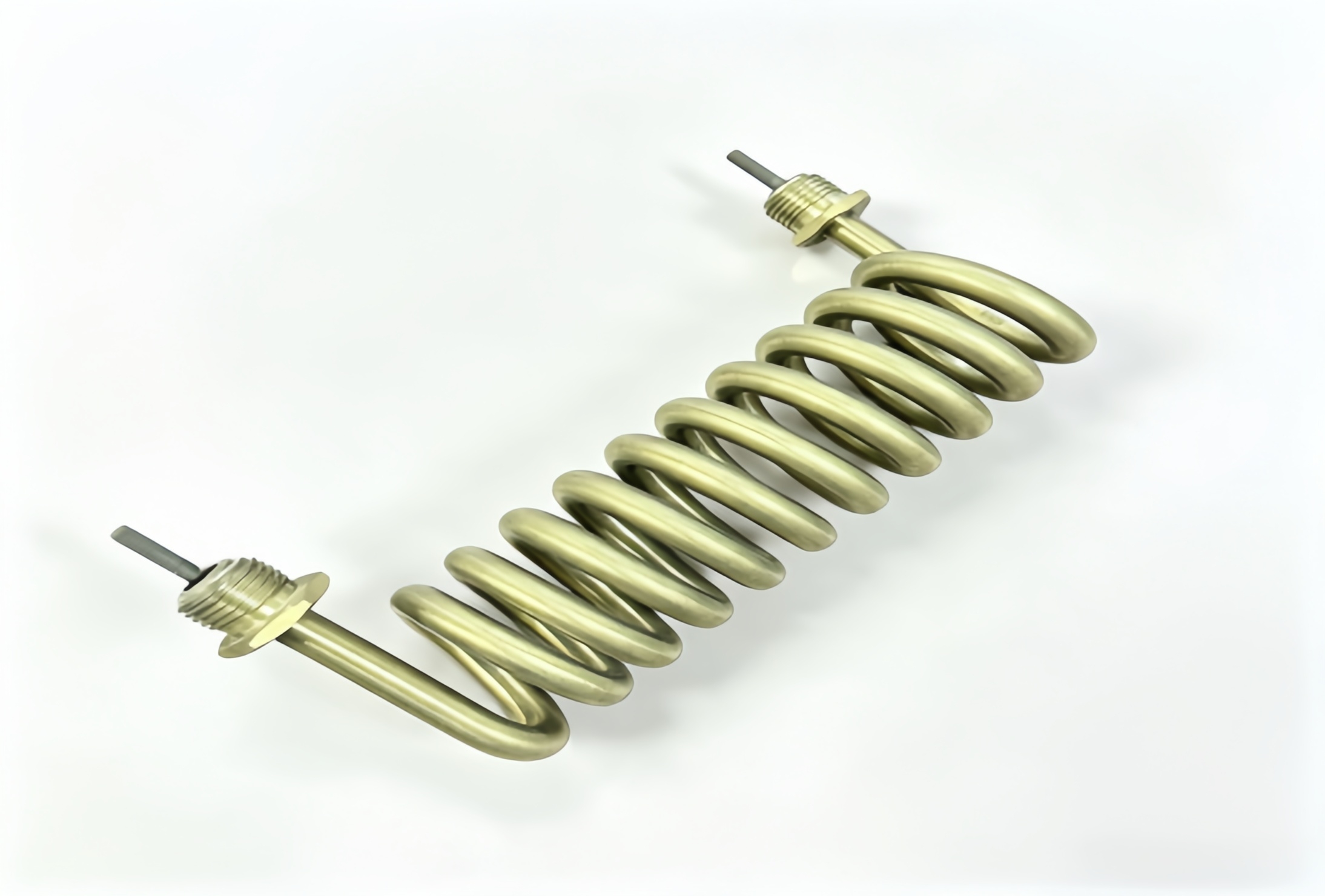

Threaded fitting spiral dry‑burn tubular heater comes with screw thread connector for quick mounting. Spiral coil structure provides large heating area for air dry‑burn working condition. Custom coil dimension, voltage and power are supported.

Material: SUS304 stainless steel, Ni80Cr20 wire, high purity MgO, high temp anti-oxidation coating	Transport Package:Carton Box with Foam Shockproof Protection
Form: Adopts continuous spiral coiled tubular structure, two bent extension leads at both ends equipped with square metal fixing brackets, threaded terminal bolts at the lead ends for wiring connection	Specification: Tube Dia 10/12/14mm, 500W–6000W, 110V/220V/380V, custom coil length & bracket size
Shape: Spiral coiled tubular shape	MGO:High purity magnesium oxide powder
Voltage: 110V/220V/230V/380V, customizable	Tube Diameter: 10mm / 12mm / 14mm,customizable
Watt: 500W–6000W, customizable	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Product Name: Thread Spiral Dry Burn Heater	Usage: Industrial oven, drying machine, bakery equipment, heating furnace

Features

Spiral coiled tubular structure, large heating area
Integrated threaded fitting, simple screw‑in installation
High temperature resistance for air dry‑burn condition
High‑purity MGO filling powder, reliable insulation
Custom thread size, dimension, voltage and power

Package delivery

Packaging

Each threaded spiral dry‑burn heater wrapped by bubble foam to prevent deformation and thread damage, packed in separate inner box. Export carton filled with shock‑proof filler for bulk orders.

Shipping

Sea freight, air freight and express are available. Shipment can be arranged as per customer’s request.
