Product Description
Insulation resistance:after putting the whole tube in water for 24 hours,insulation resistance≥100MΩ,after heating for 30min,the heated insulation resistance≥20MΩ.
Dielectric test of AC2000V and destine current 10mA and working for 2S,the tube does not have the flashover phenomenon.
Leakage current:leakage current under 1.15 times of rated power≤0.5mA.
Power tolerance:rated power of rated voltage +5%-10%.
Down-lead intension:after the test of 100N pill,the lead wire part does not get moved and ruptured
Applications of Aluminum Defrost Tube Heating Element
Apply to rated voltage bellow 250V,50-60Hz,related humidity≤90%,diffuse heat after conduct electricity in an environment temperature of -30℃-+50℃.
Aluminum Defrost heater is used for Refrigerator, Freezer ,Evaporator ,Unit cooler ,condenser and So on, Aluminum Defrost Heaters are produced aluminum sheath materials and also there is huge variety of selection of termination styles available.Defrost heater are custom designed in a various shapes to address client’s requirements.
1) Used to defrosting and heat preservation for refrigerator
2) Freezer as well as other electrical equipment
3) It will use in Range hood, Heat and Evaporate oil
Features

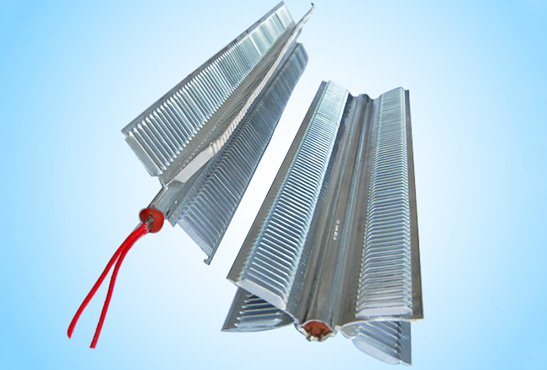

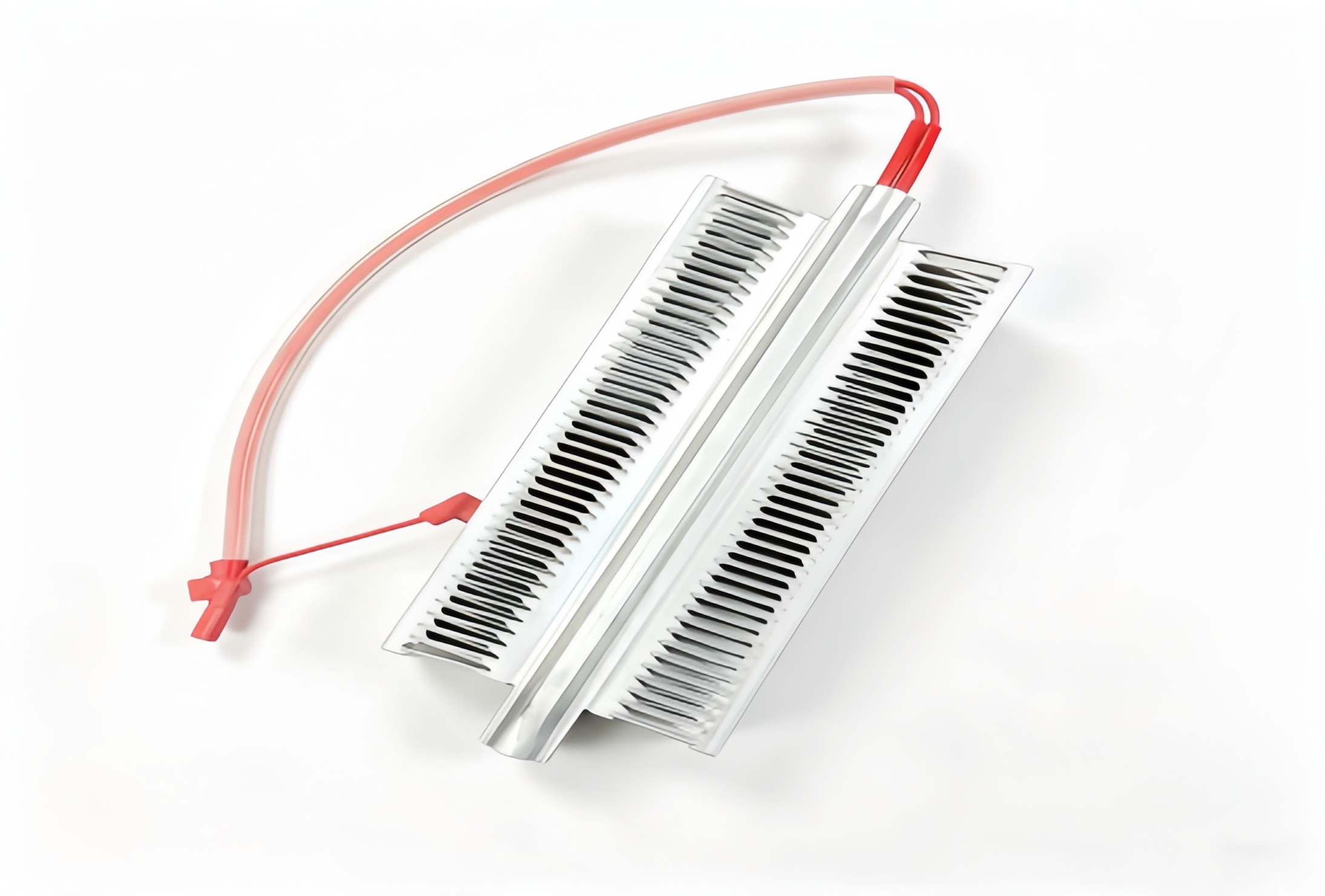

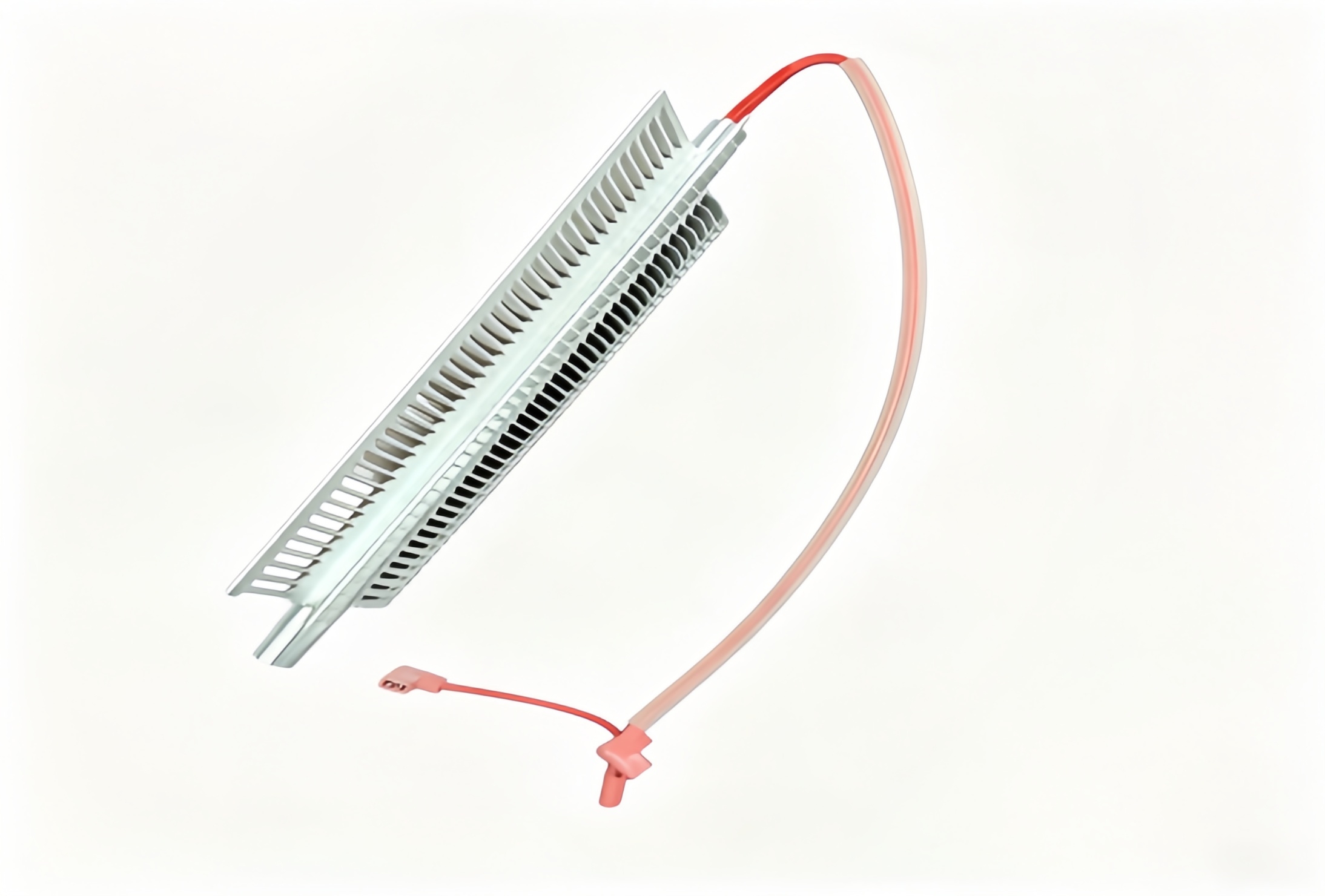

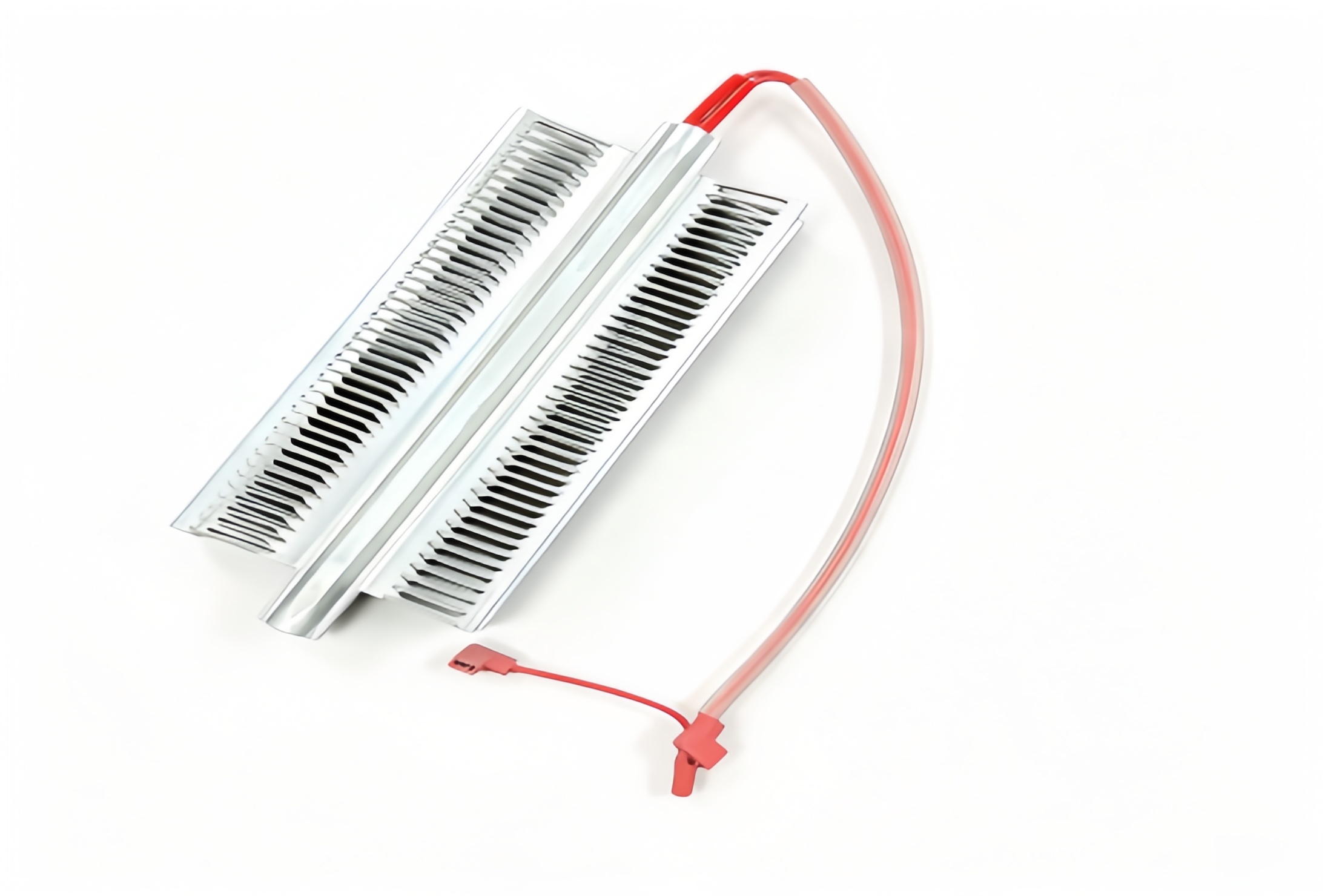

Aluminum fin structure provides large heat dissipation area, fast and even heating
PTC constant‑temperature heating feature, auto‑limit temperature, safe anti‑overheat
Low thermal resistance, high heat conversion efficiency, energy‑saving performance
Compact strip‑type design, easy to install inside equipment and cabinets
Insulated wiring harness with connector, convenient for quick connection
Customizable power, size and voltage to fit various air‑heating devices
Package delivery
Each unit wrapped with bubble bag, protect aluminum fins and wire harness from scratch and damage
Export carton filled with foam padding to avoid collision during transit
Custom shipping marks and special packaging requirements are acceptable
Support sea freight, air freight and international express delivery
