Oven Tubular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

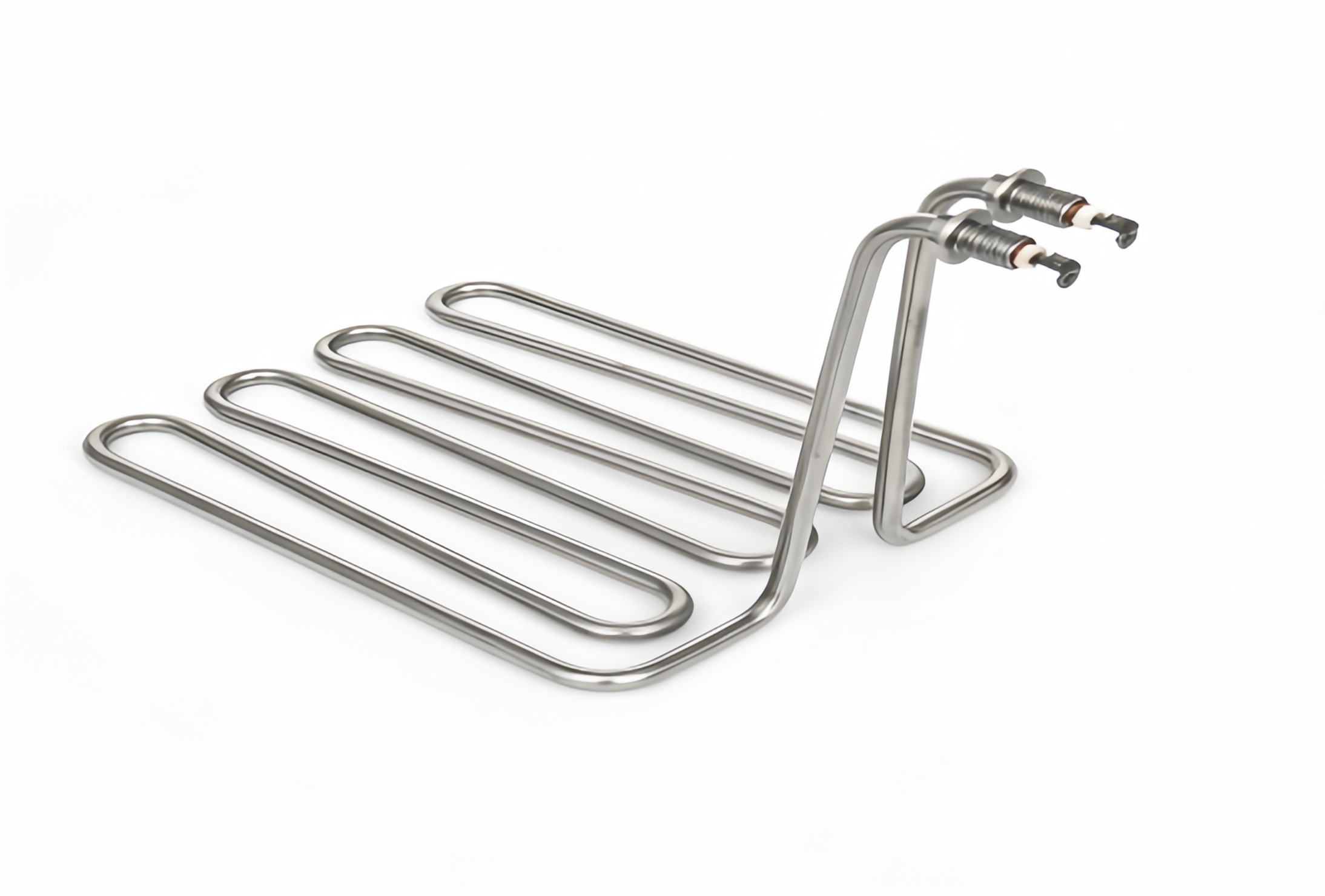

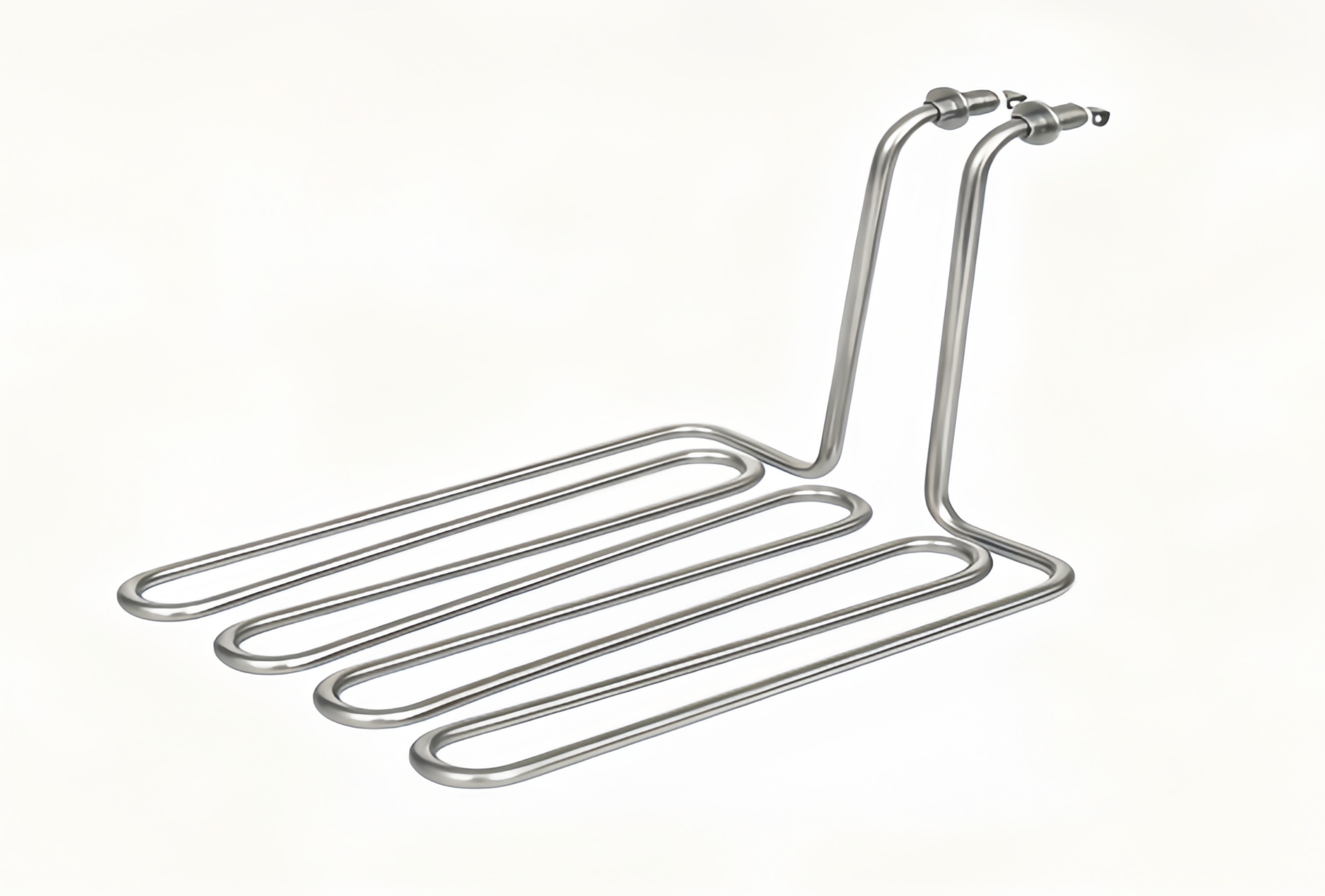

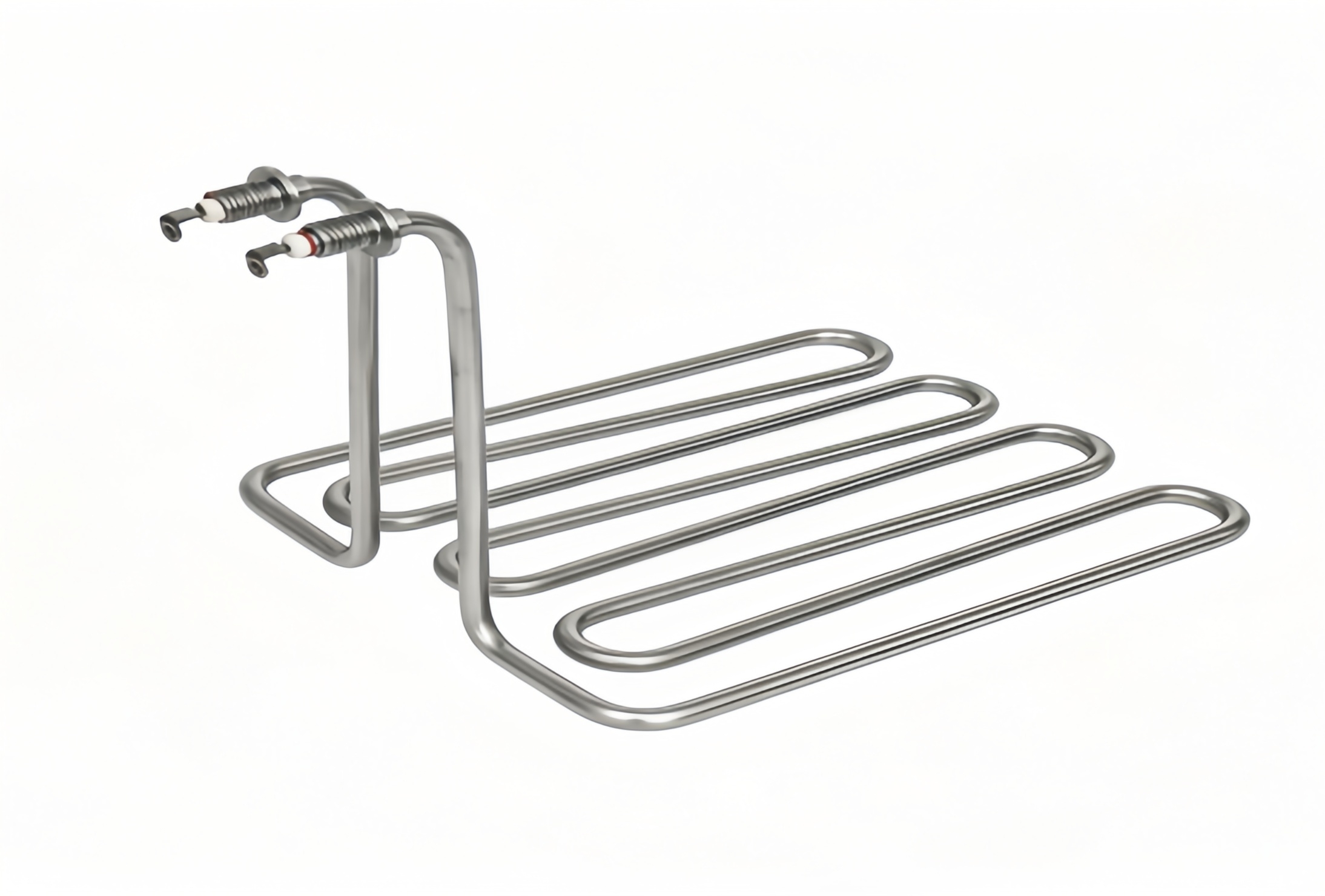

Oven rack heater is multi‑loop bent tubular heating element with threaded terminals, specially made for commercial bakery oven. Stable dry‑heat performance, even heating. Custom size, voltage and power available, OEM service acceptable.

Material: 304 stainless steel tube, Ni80Cr20 nichrome wire, high purity MgO, high temp silicone seal, nickel-plated brass terminal	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: 4 parallel U-loop M-shaped tubular heater with double vertical threaded mounting terminals	Specification: Tube Dia 8/10/12mm, power 800W–4000W, 110/220/230/380V, 4 parallel U-loop M-shape, double threaded terminals, customizable size
Shape: Flat M-shape with four parallel rectangular U loops & two vertical threaded terminals	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 110V/220V/230V single phase, 380V three phase, customizable	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 800W–4000W, customizable single power per unit	MGO: High purity magnesium oxide insulating powder
Product Name: Oven Tubular Heating Element	Application: Commercial bakery oven, household baking oven, small drying cabinet, food dehydrator

Features

Multi‑loop rack bent structure, large heating area
Stainless steel tube, anti‑oxidation for long dry‑heat service

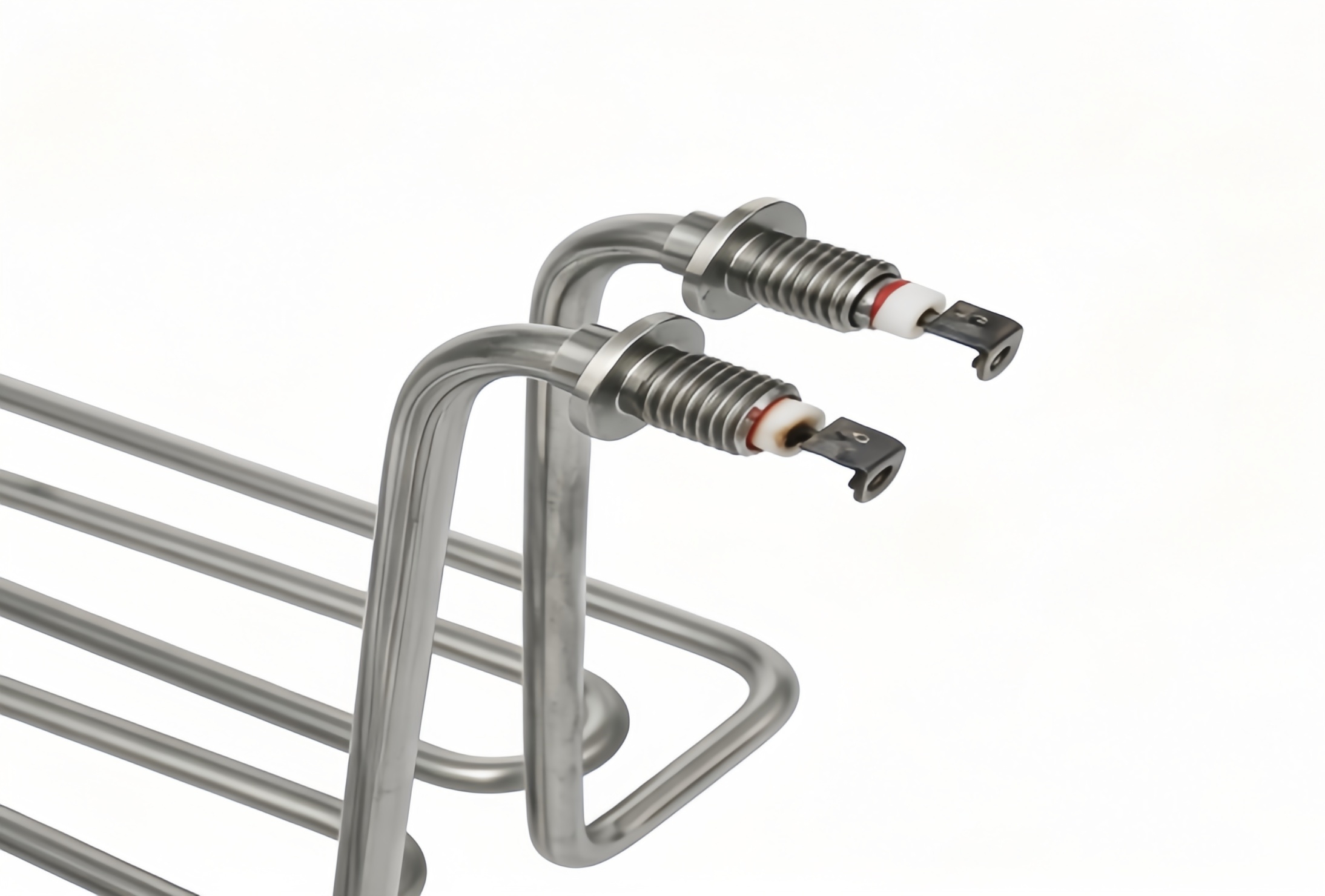

Threaded metal terminals, convenient installation and wiring
Filled with high‑purity MGO powder, good insulation performance
Uniform heat output, stable working under dry‑burn condition
Support custom bending size, tube diameter, voltage and power

Package delivery

Packing

Each oven rack heater is wrapped with foam to avoid deformation and scratch, then packed into standard export carton. Custom packing solution is acceptable.

Shipping

Small quantity shipped by DHL, FedEx or other international express. Bulk orders adopt sea freight or air freight. Support FOB, CIF and other trade terms.
