Product Description

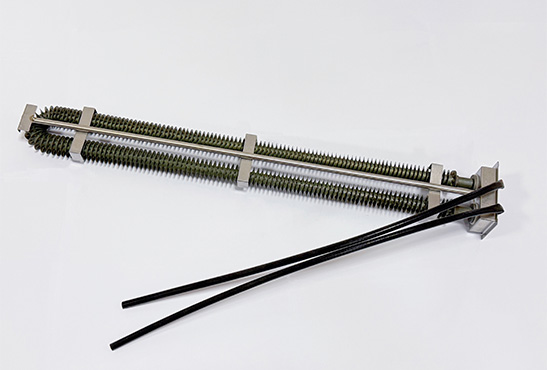

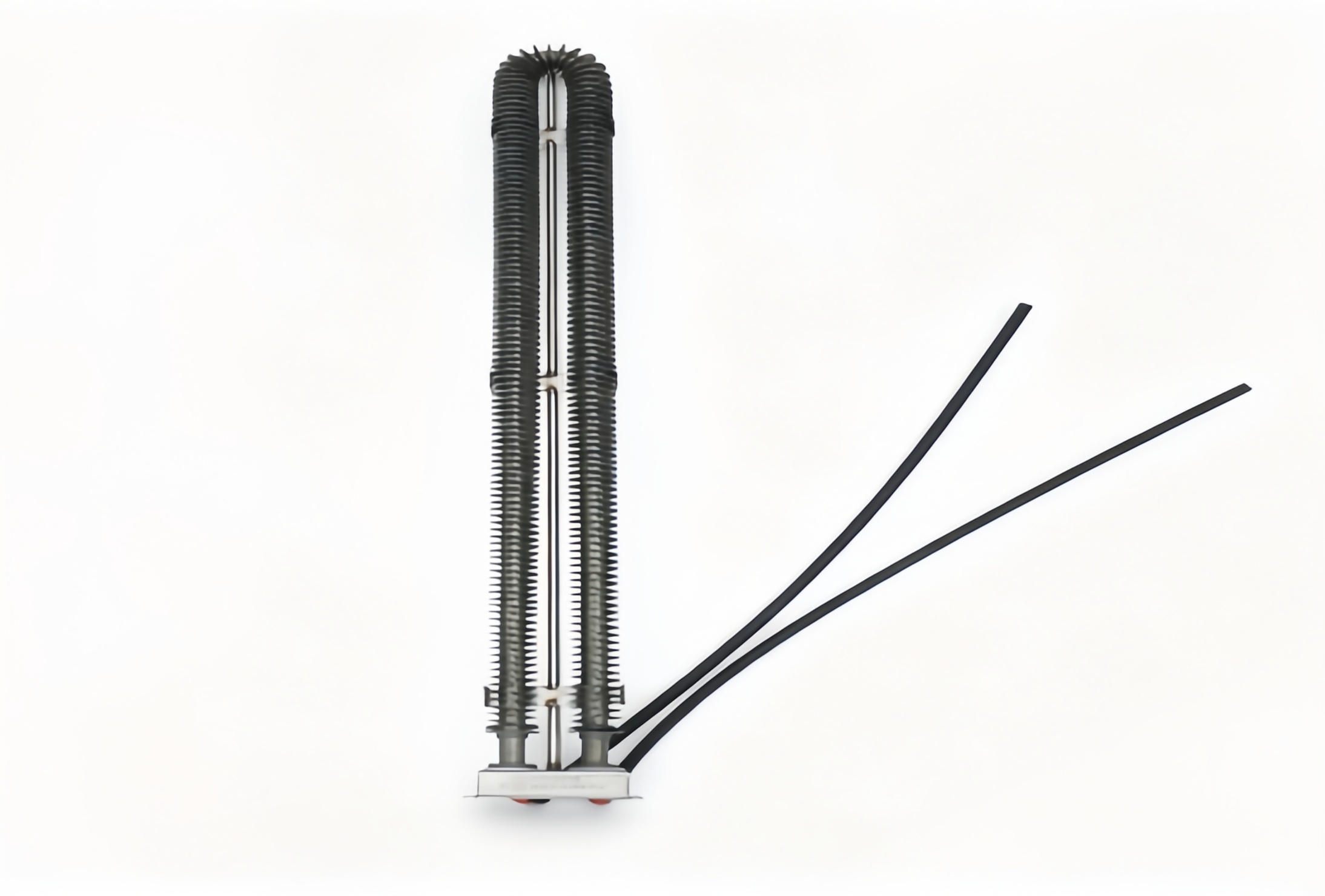

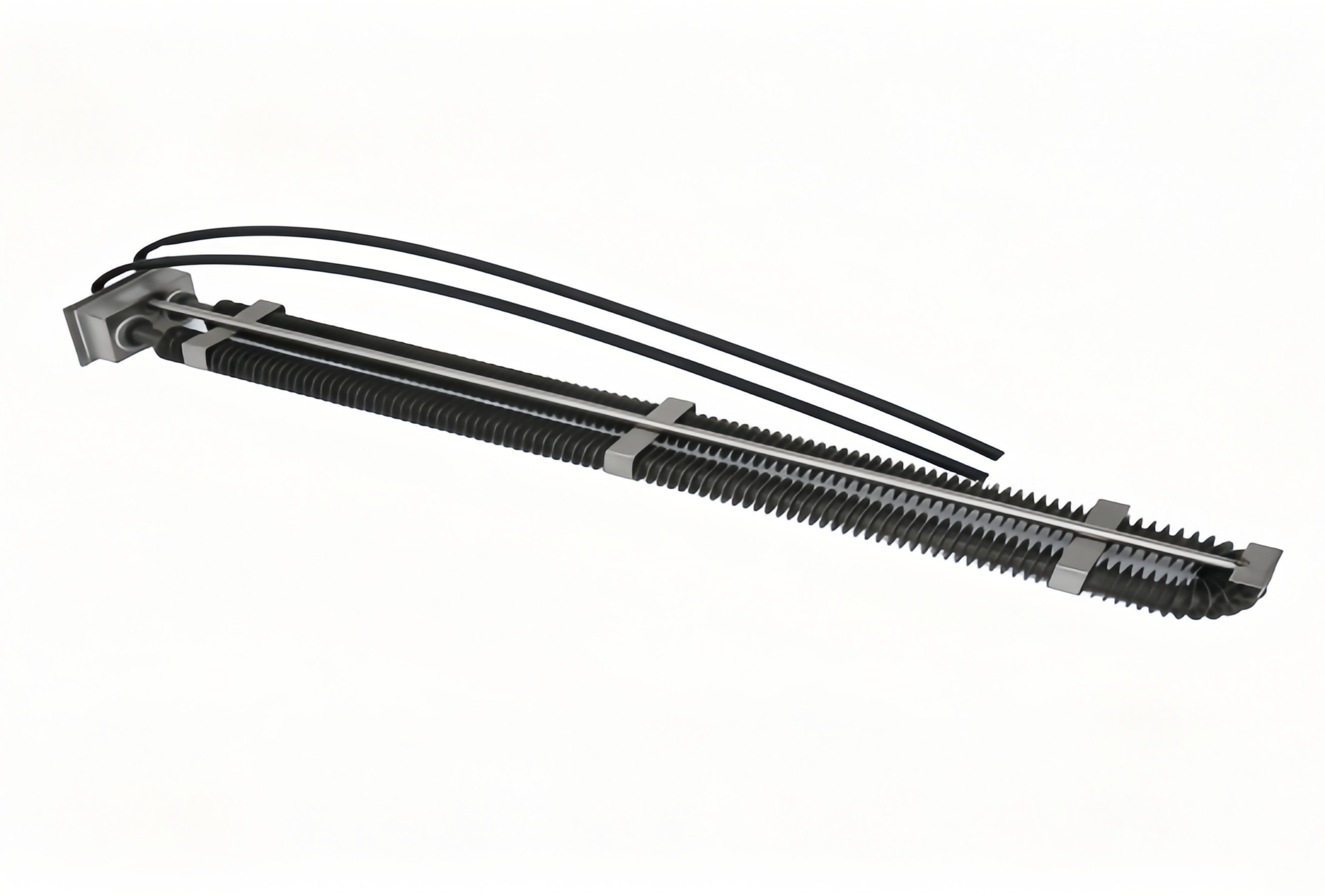

This is U‑type finned tubular heating element equipped with metal mounting bracket and high‑temperature lead wires. Fins are tightly wound on tube surface to enlarge heat dissipation area for efficient dry‑burn air heating. The fixed mounting bracket enables quick installation inside ovens, drying chambers and hot air circulation equipment. Size, bending form, voltage and power can be customized according to customer requirements.
| Material: 304 / 316L / Incoloy 800 Stainless Steel Tube, Ni-Cr Heating Wire, High Purity MgO Insulation | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Finned Tubular Heating Element (U/W Bend Custom Shape) | Specification: Fully Customizable per Drawings & Samples |
| Shape: Cylindrical Tube with Spiral Radiating Fins | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: 12V-380V, 110V / 220V / 240V / 380V or Customized | Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5 |
| Power: 10W-5000W, Customized on Demand | Tube Diameter: Φ6.6mm / Φ8.0mm / Φ8.5mm / Φ10.0mm, 3-30mm Customizable |
| Product Name: Industrial Finned Tubular Air Heating Element | Application: Industrial drying oven, air duct heating, packaging machinery, paint baking equipment, heating cabinet |
| MGO: High Grade Electric Grade Magnesium Oxide Insulation | |
Features
Finned tubular structure greatly enlarges heat‑dissipation area for high air‑heating efficiency
Integrated metal mounting bracket, convenient and fast installation
High‑temperature resistant lead wires, anti‑aging under long‑time high‑temperature working
High‑purity MGO insulation filling, stable performance and long service life
Excellent dry‑burn performance, suitable for circulating hot air heating
Customizable U‑bend dimension, voltage and power for different equipment
Package delivery
Each unit wrapped with bubble bag, protect fins, mounting bracket and high‑temperature wires against collision damage
Inner foam padding inside export carton to avoid shaking during transit
Custom shipping marks and special packing requirements are acceptable
Available for sea freight, air freight and international express delivery
