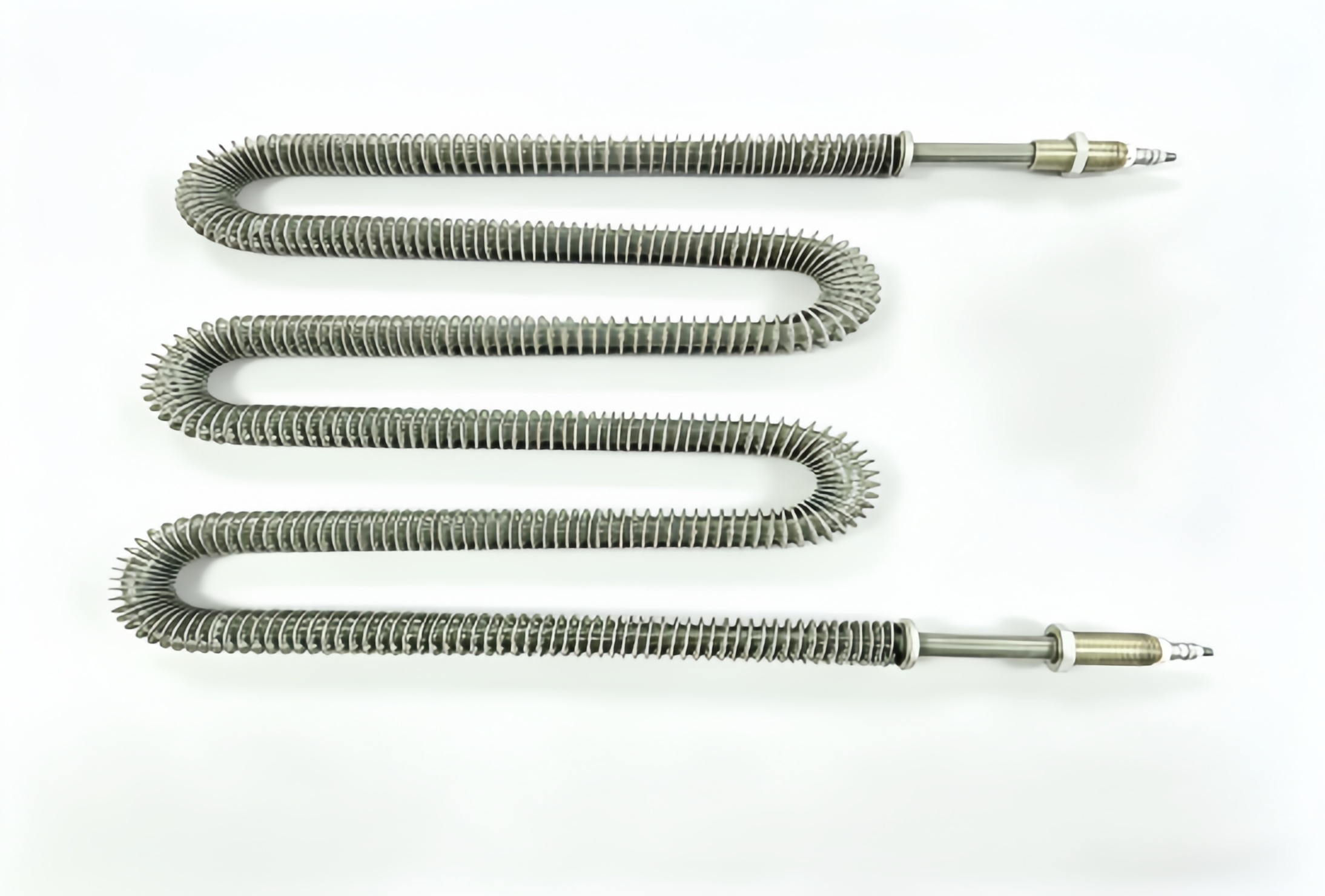

Heating tube with radiator

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

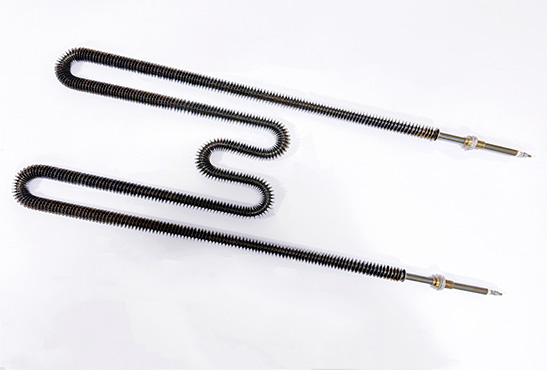

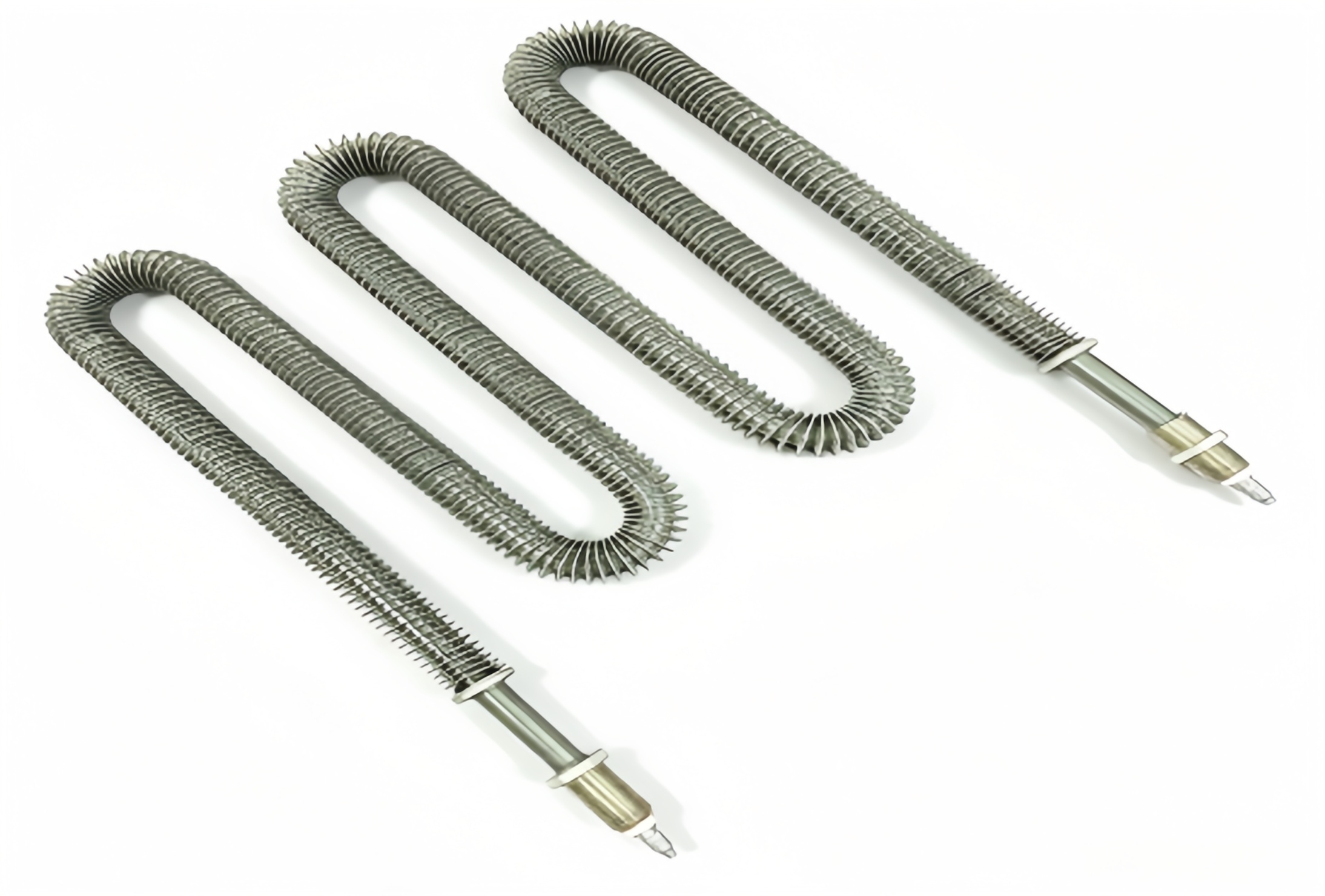

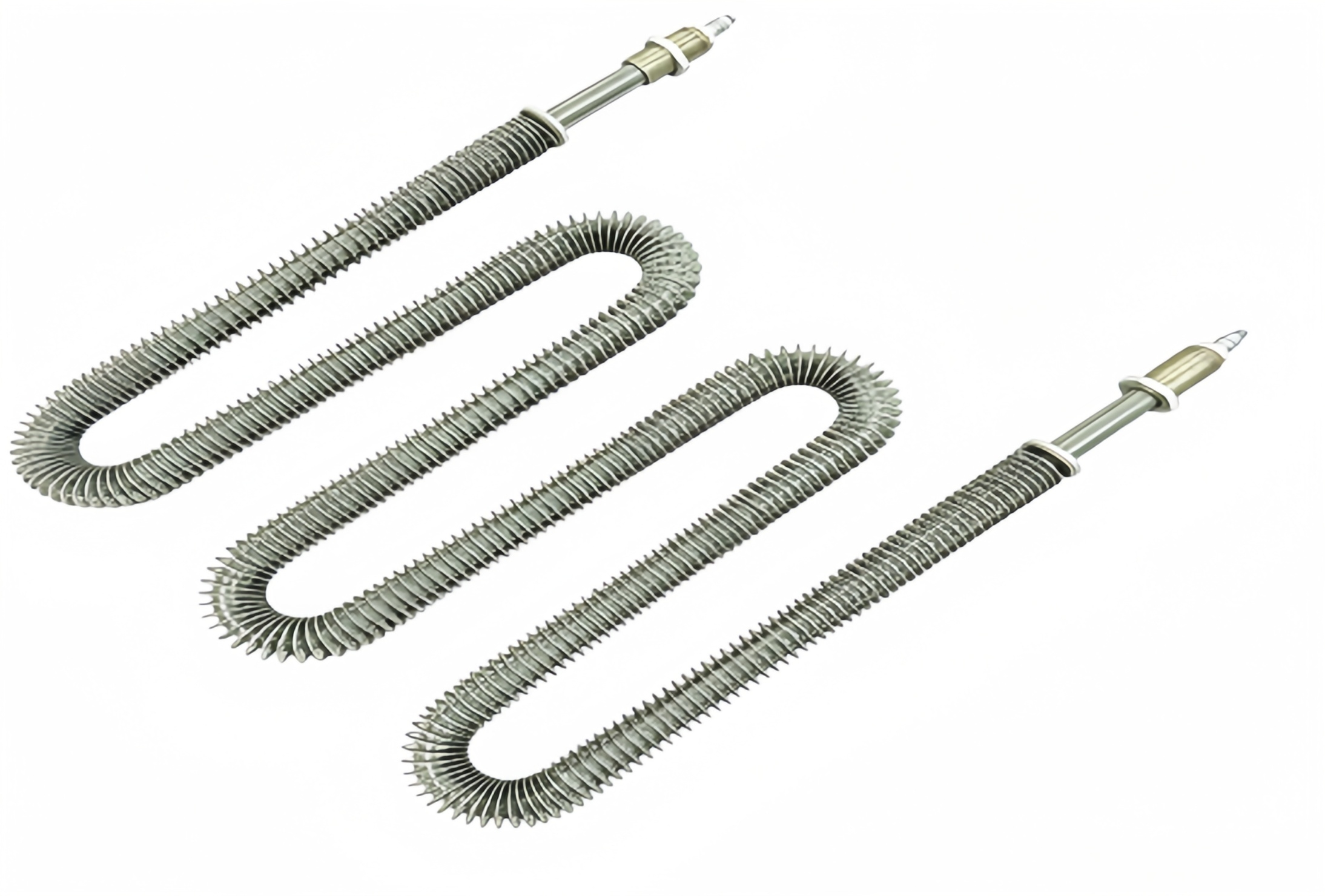

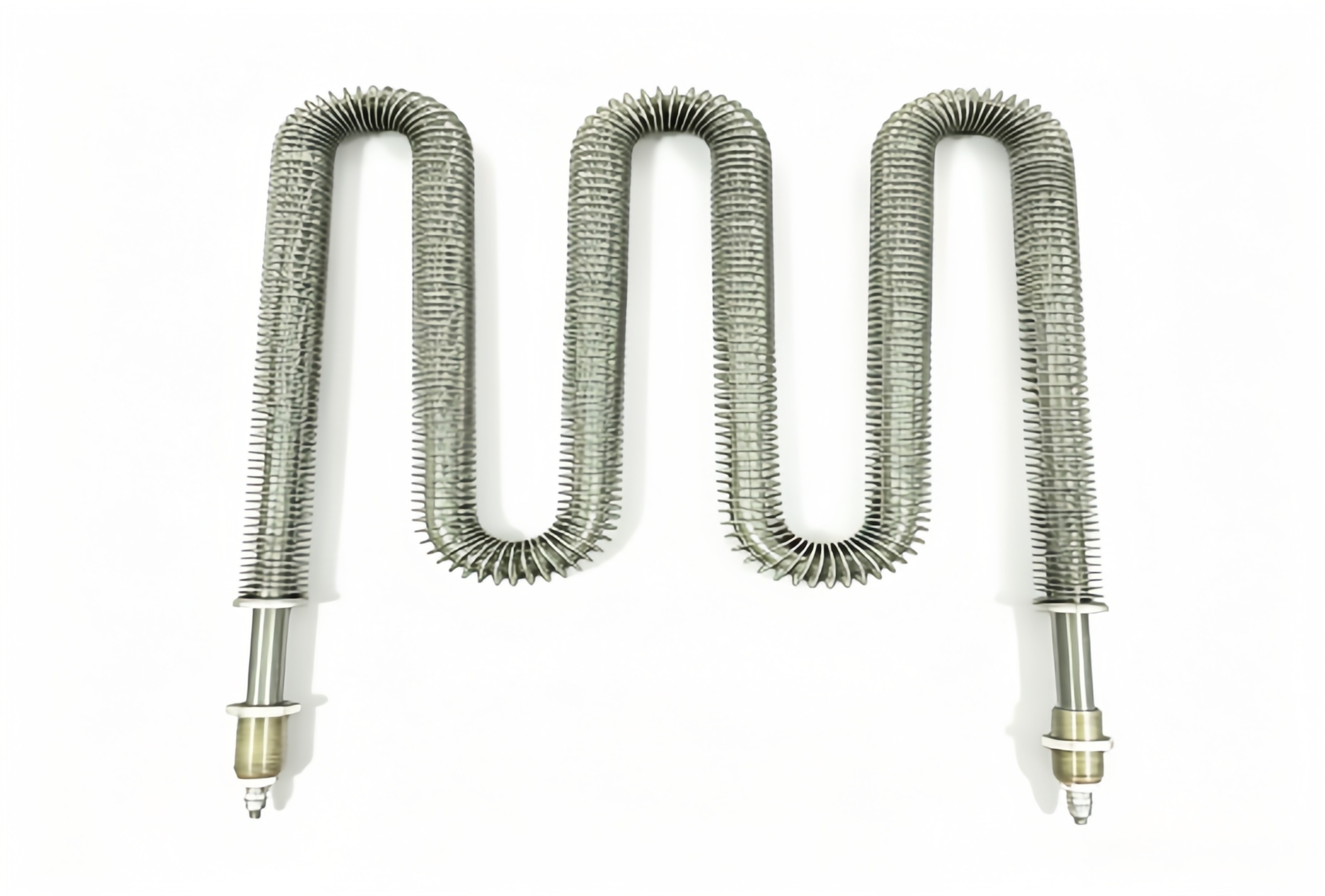

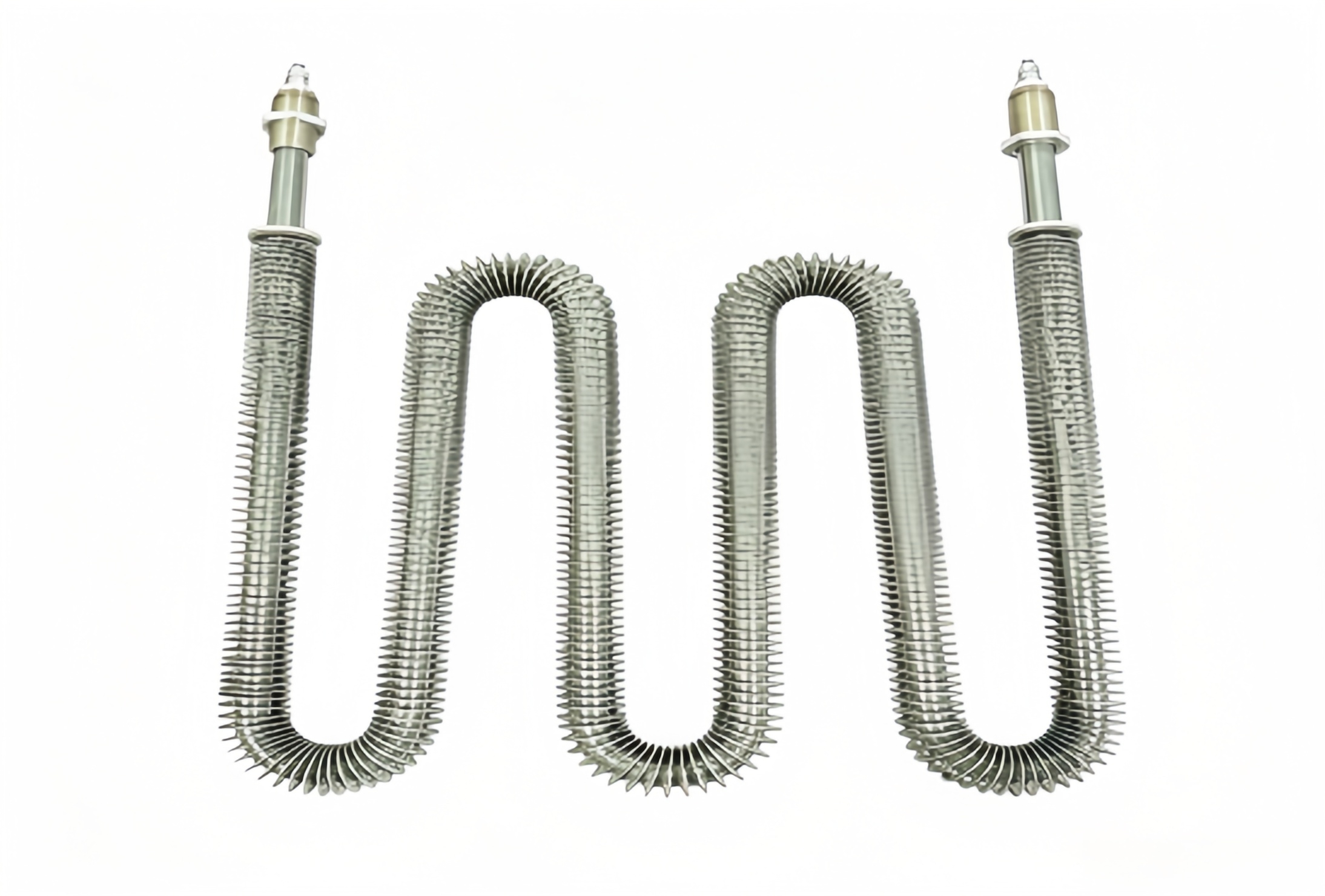

This is W‑shape finned tubular heating element for dry heating. Stainless steel fins are tightly wound on the tube surface to enlarge heat dissipation area. Multiple U‑bend W‑type structure saves installation space. It works for air heating in oven, drying chamber and industrial furnace. Various bending forms, voltage, power and tube size can be customized according to equipment requirements.

Material: 304 / 316L Stainless Steel Tube, Ni-Cr Heating Wire	Transport Package:Carton and Wooden Box
Form: Flange Immersion Tubular Element	Specification:Customized
Shape: Round Tubular	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110-240V or Customize	MGO:High Grade
Watt: Customized	Tube Diameter: 6.6mm,8.0mm,8.5mm,10.0mm or Customize
Product Name: High-temperature U Type Heater for Oil Heating with Lu-Chiuan Approved Spec	Usage: For water tank, boiler, liquid industrial heating equipment

Features

Wound stainless‑steel fins expand heat‑dissipation area, high heat‑exchange efficiency
W‑type multi‑U bent structure, save installation space for oven equipment
Excellent dry‑burn performance, stable operation under high‑temperature air heating
High‑purity MGO filling, good insulation property and long service life
Compact terminal end, easy for wiring and mounting
Customizable bending shape, voltage, power and tube diameter

Package delivery

Each heater wrapped with bubble bag to protect fins against deformation and scratches
Packed in 5‑ply export carton with inner buffer padding; wooden case is available for heavy‑duty shipment
Custom packing and shipping mark are acceptable
Support sea freight, air freight and international express delivery
