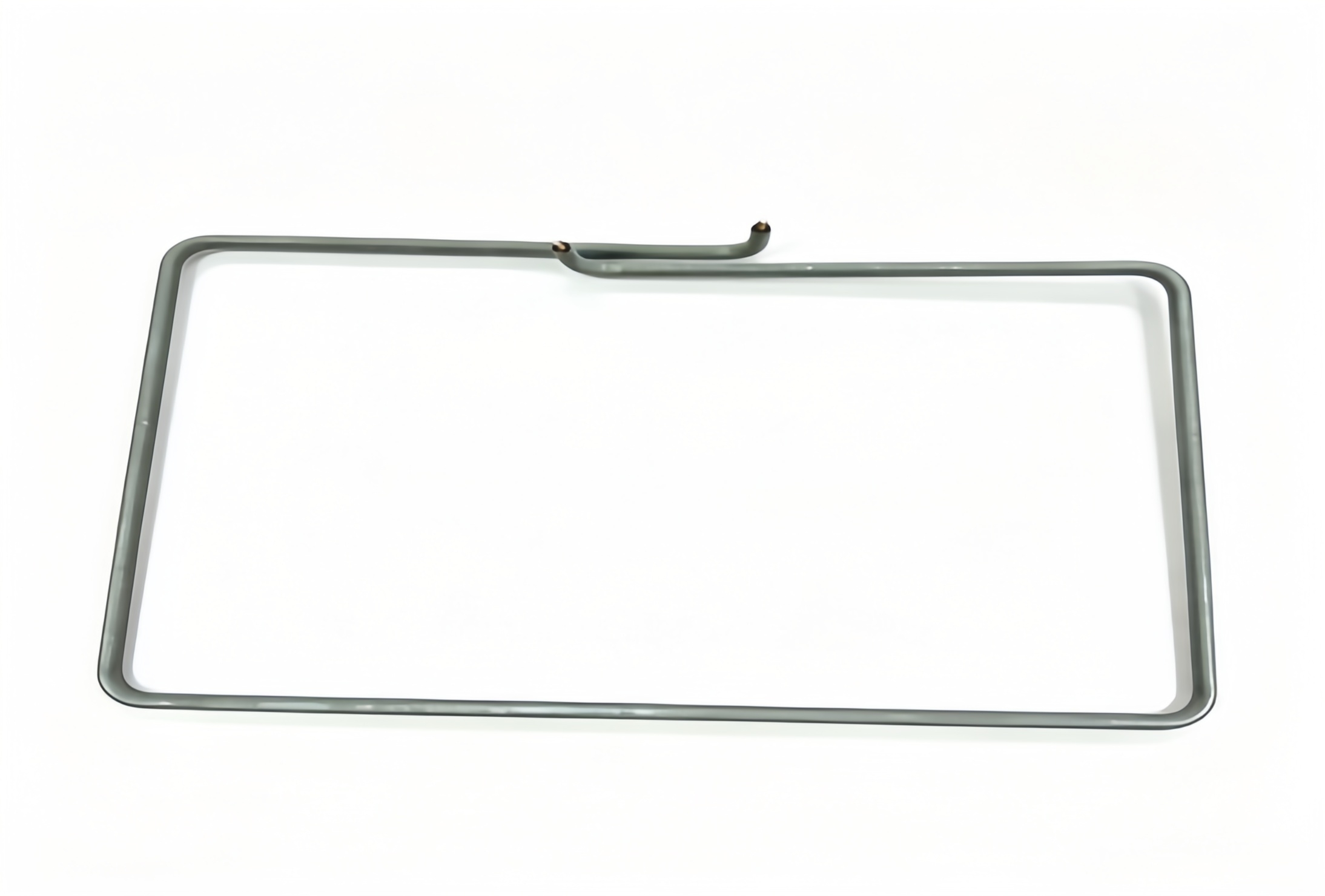

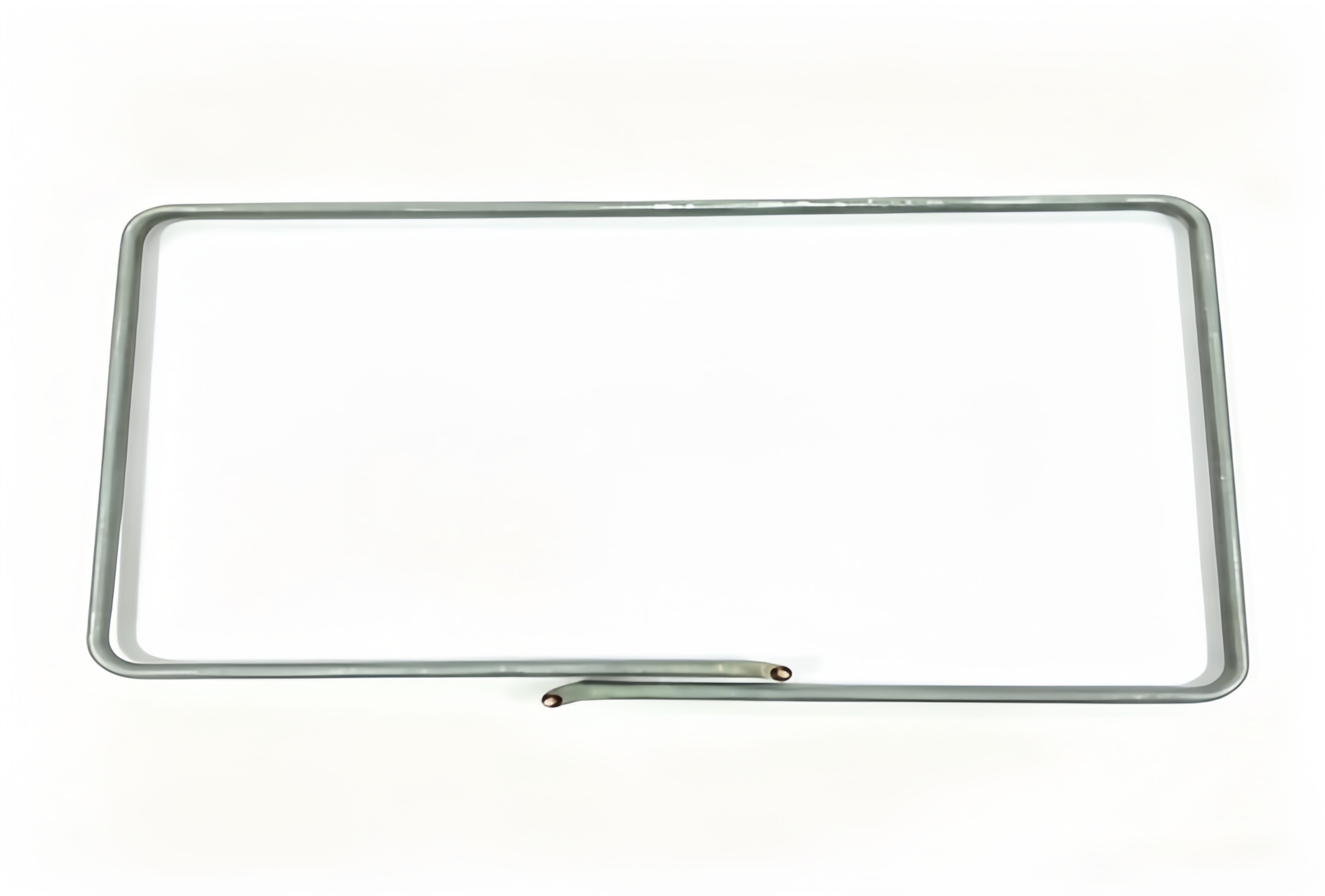

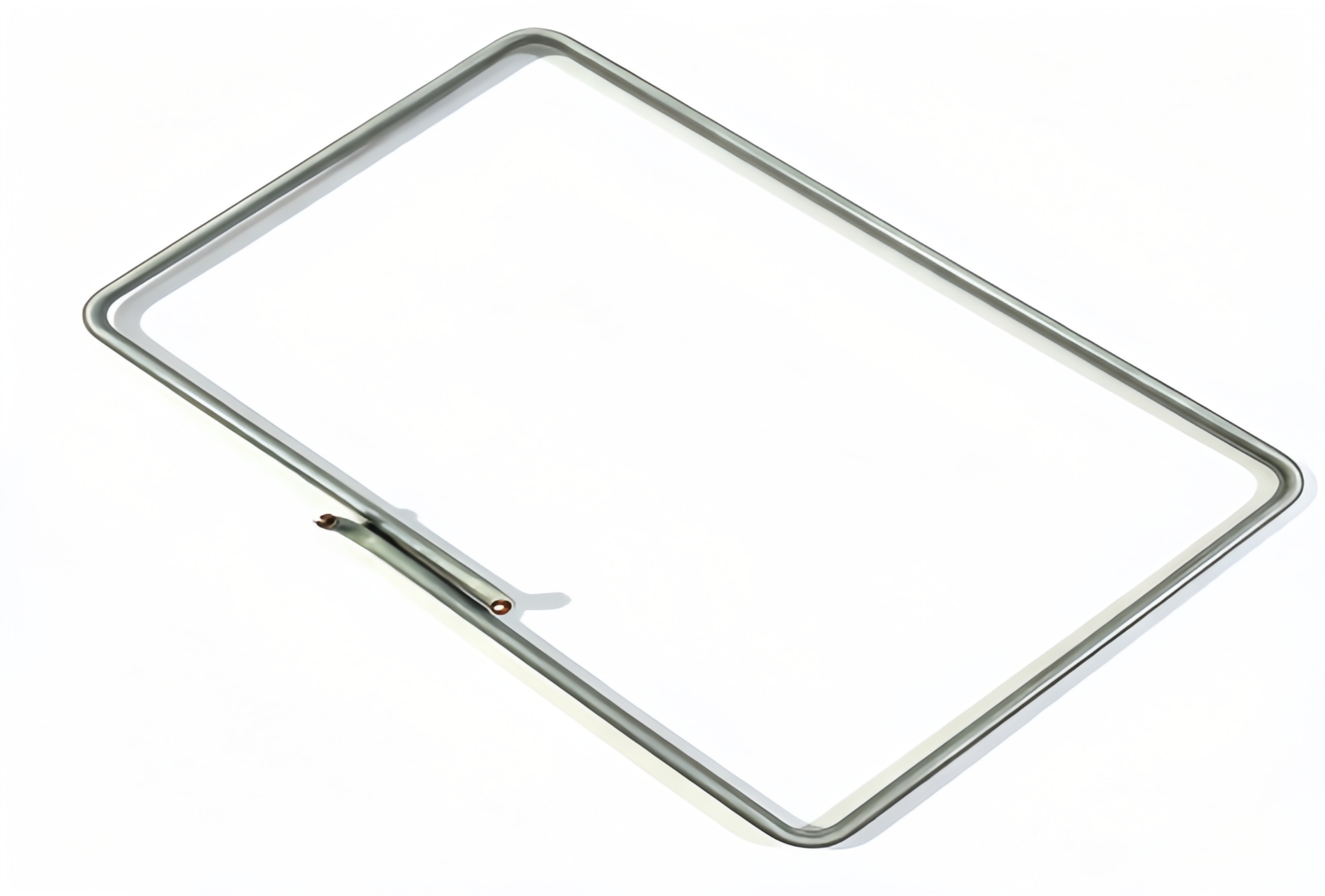

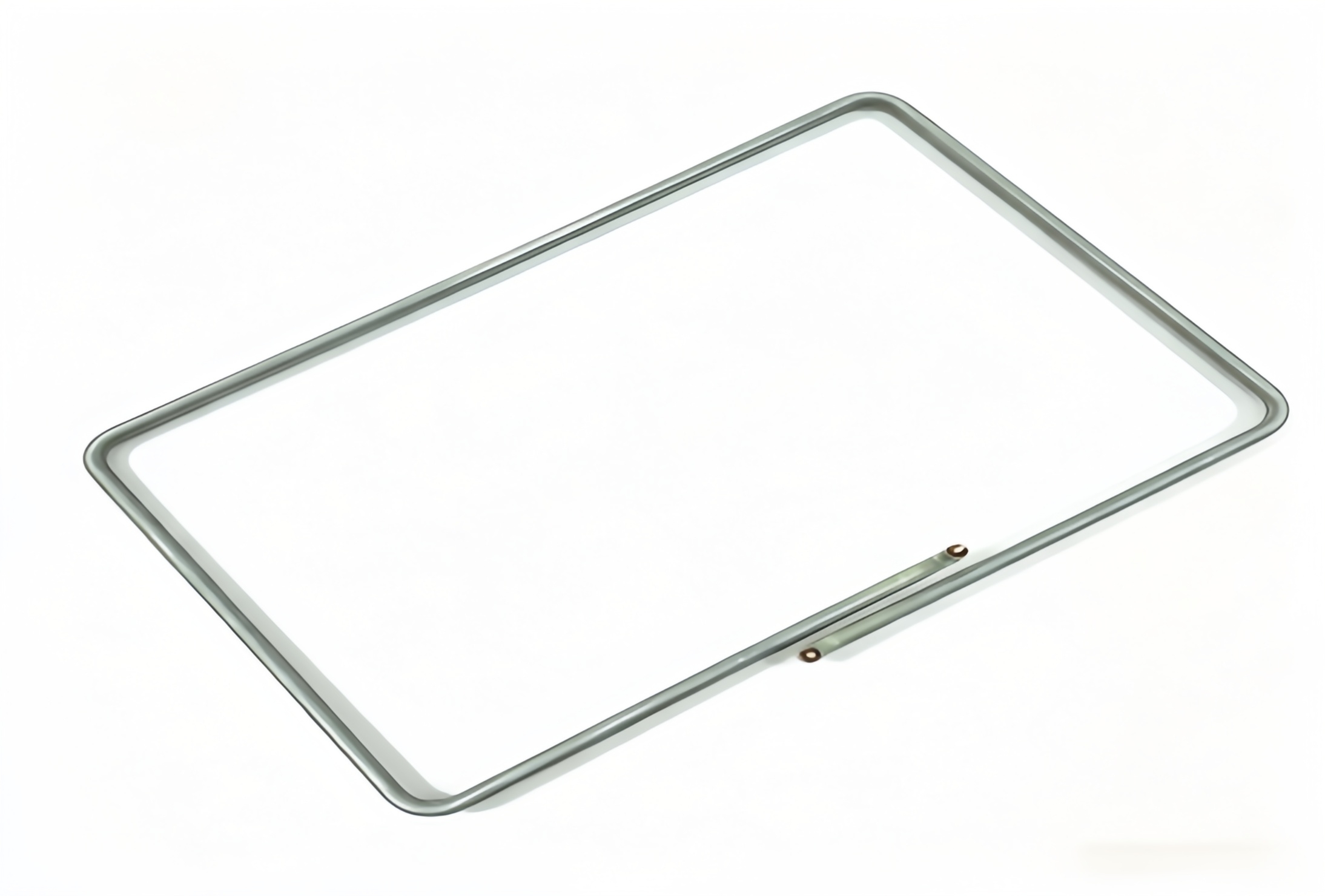

Rectangular Frame Air Dry‑Burn Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This rectangular frame tubular heater is specially designed for air dry‑burn working condition, without integrated mounting bracket. Made of stainless steel, support custom voltage, wattage and frame dimension for various air heating equipment.

Material: Outer tube: 304,316 stainless-steel / Incoloy 800 Resistance wire: Nickel-chromium alloy wire Insulating medium: High-purity MGO magnesium-oxide powder Terminals: Copper metal	Transport Package:Carton and Wooden Box
Form: Integral bent loop-type tubular heater with copper connecting terminals	Specification:Customized
Shape: Closed rectangular loop frame shape, one-piece bent tubular structure	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Optional working voltage:110V, 220V, 380V, 400V, customized-available	MGO: High-purity compact magnesium oxide powder
Watt: Custom-made power range: 500W-3500W, different wattage options on request	Tube Diameter: Available tube diameter: 8mm-12mm, custom-size supported
Product Name: Rectangular Frame Air Dry‑Burn Tubular Heater	Usage: Mainly used for industrial ovens, drying-oven equipment, bakery machinery, heating cabinets and other dry-burn heating devices

Features

Designed for air dry‑burn working condition
Rectangular frame bending shape, large heating area, uniform air heating
Without built‑in bracket, flexible for customer’s own fixing solution
Stainless steel sheath, high temperature and oxidation resistance
Fully customizable power, voltage and frame overall dimension

Package delivery

Packaging

Each heater wrapped by bubble film, packed into individual inner box; multiple boxes loaded into export outer carton with shock‑proof protection.

Shipping

Available for sea freight, air freight and express delivery as per customer requirements.
