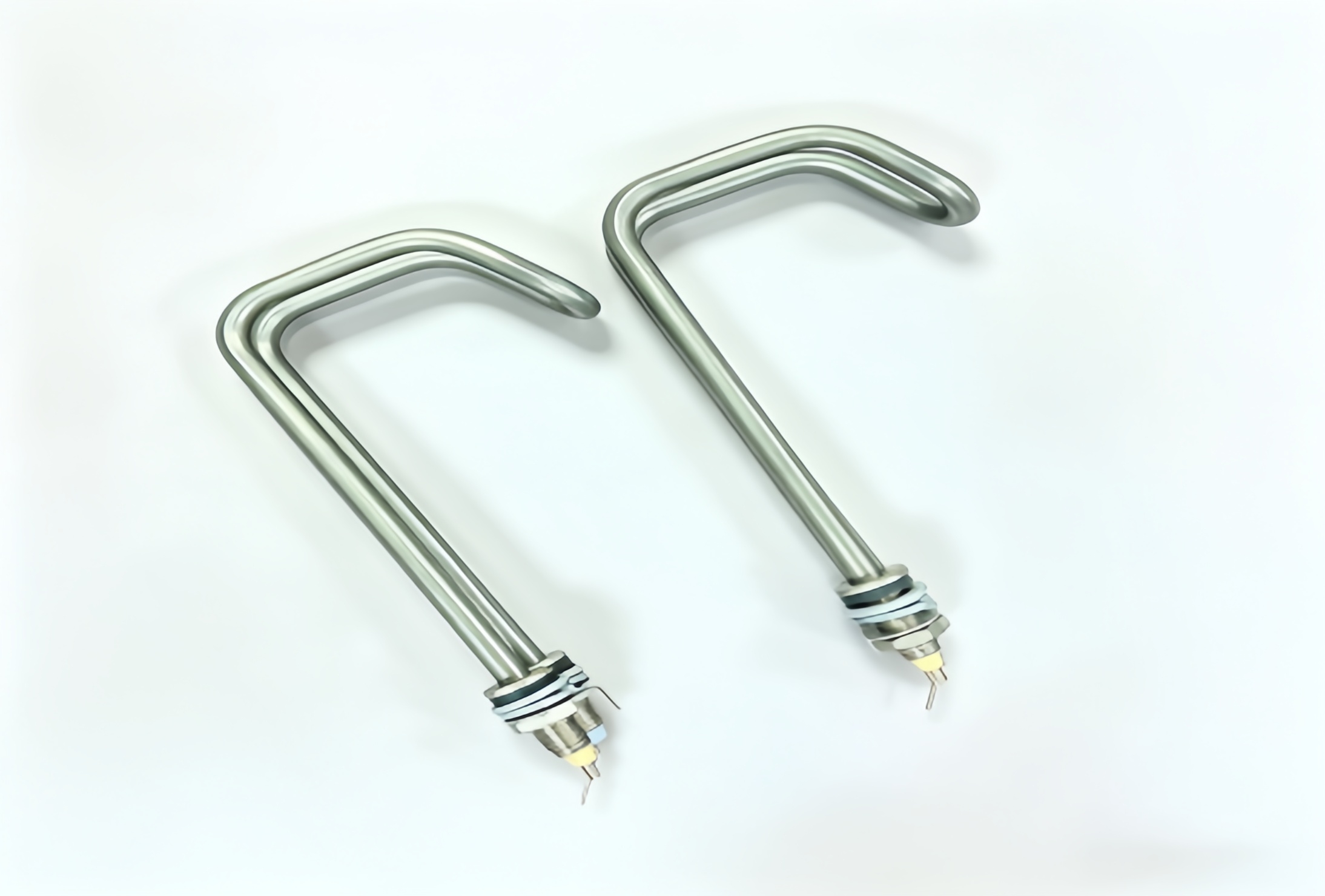

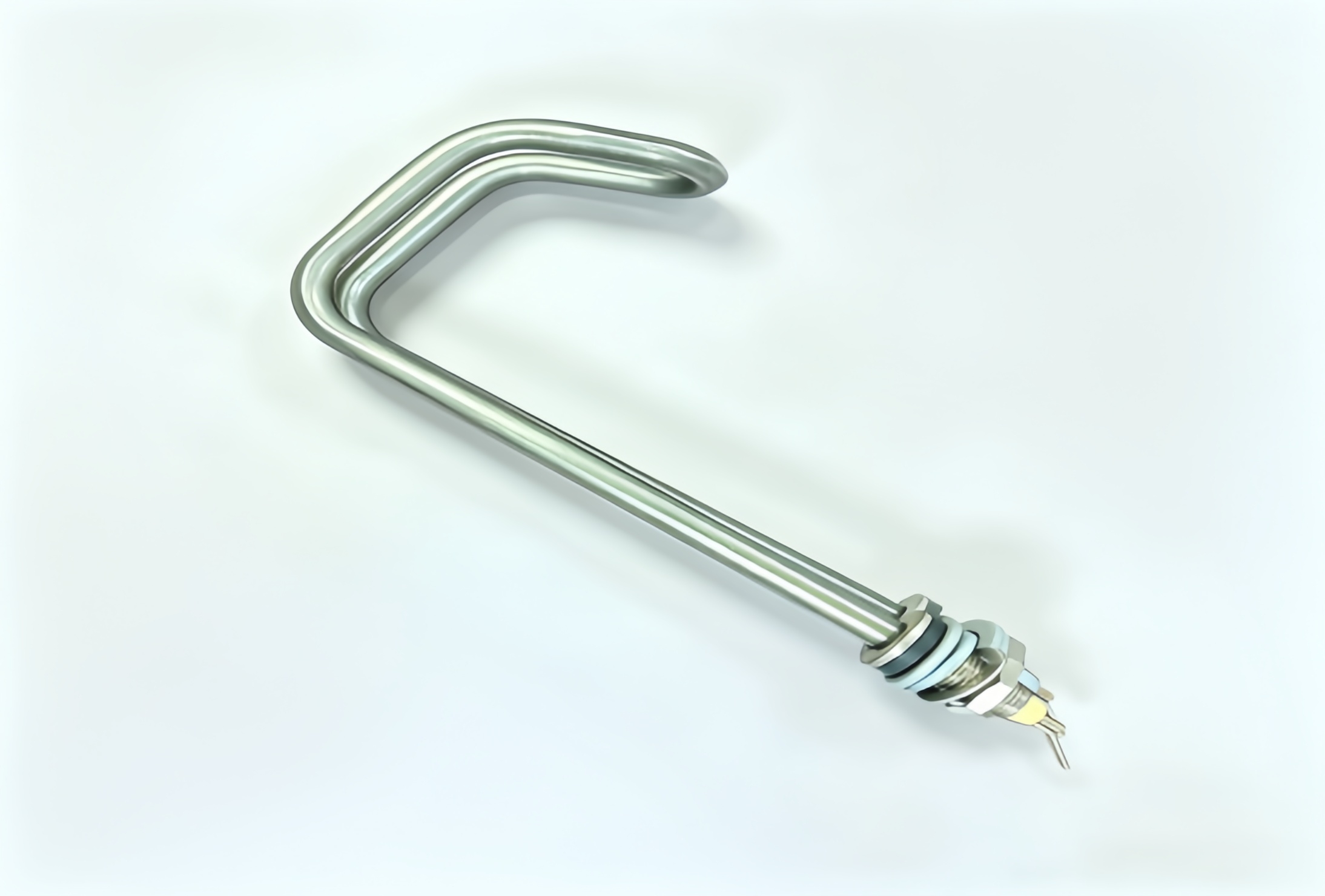

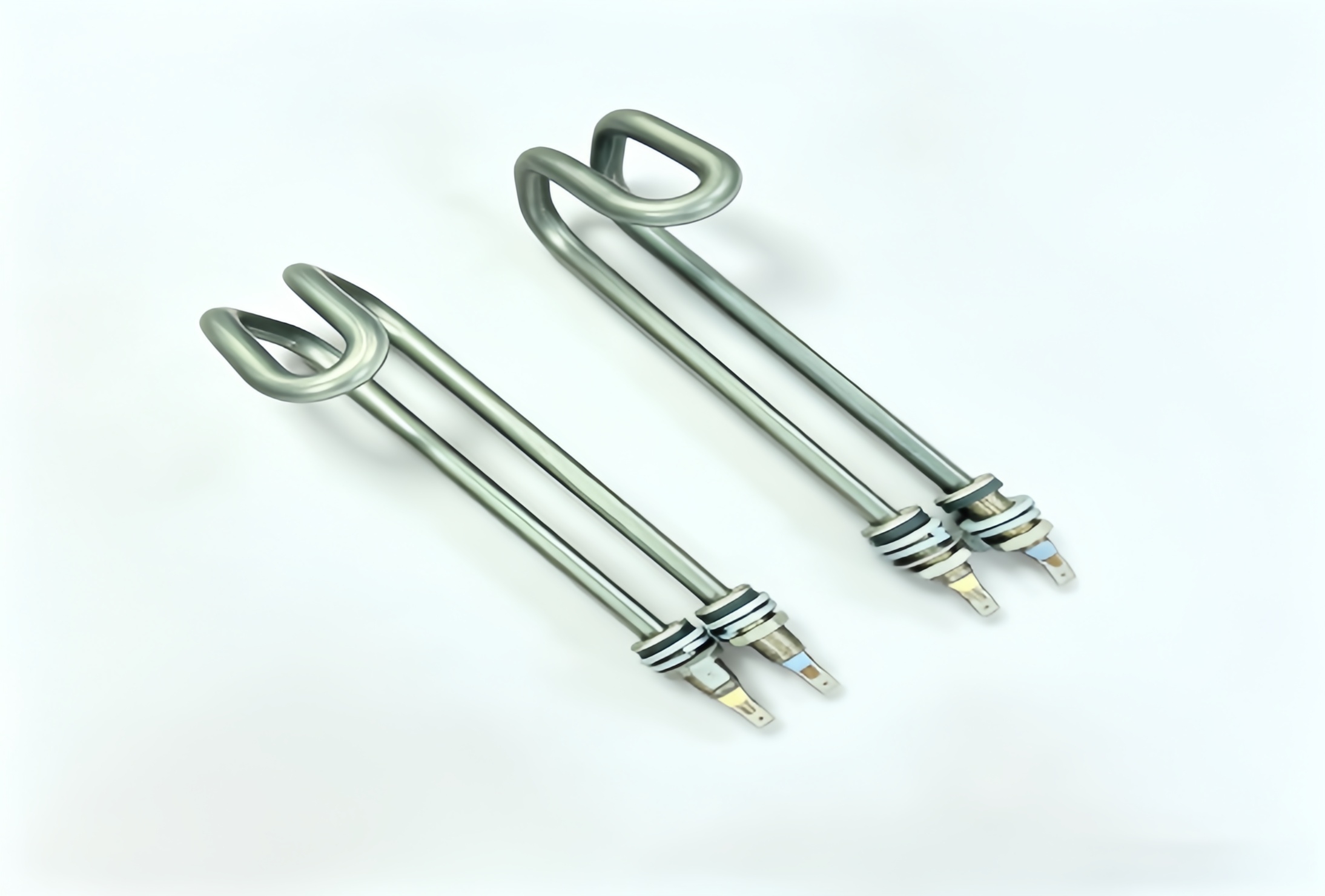

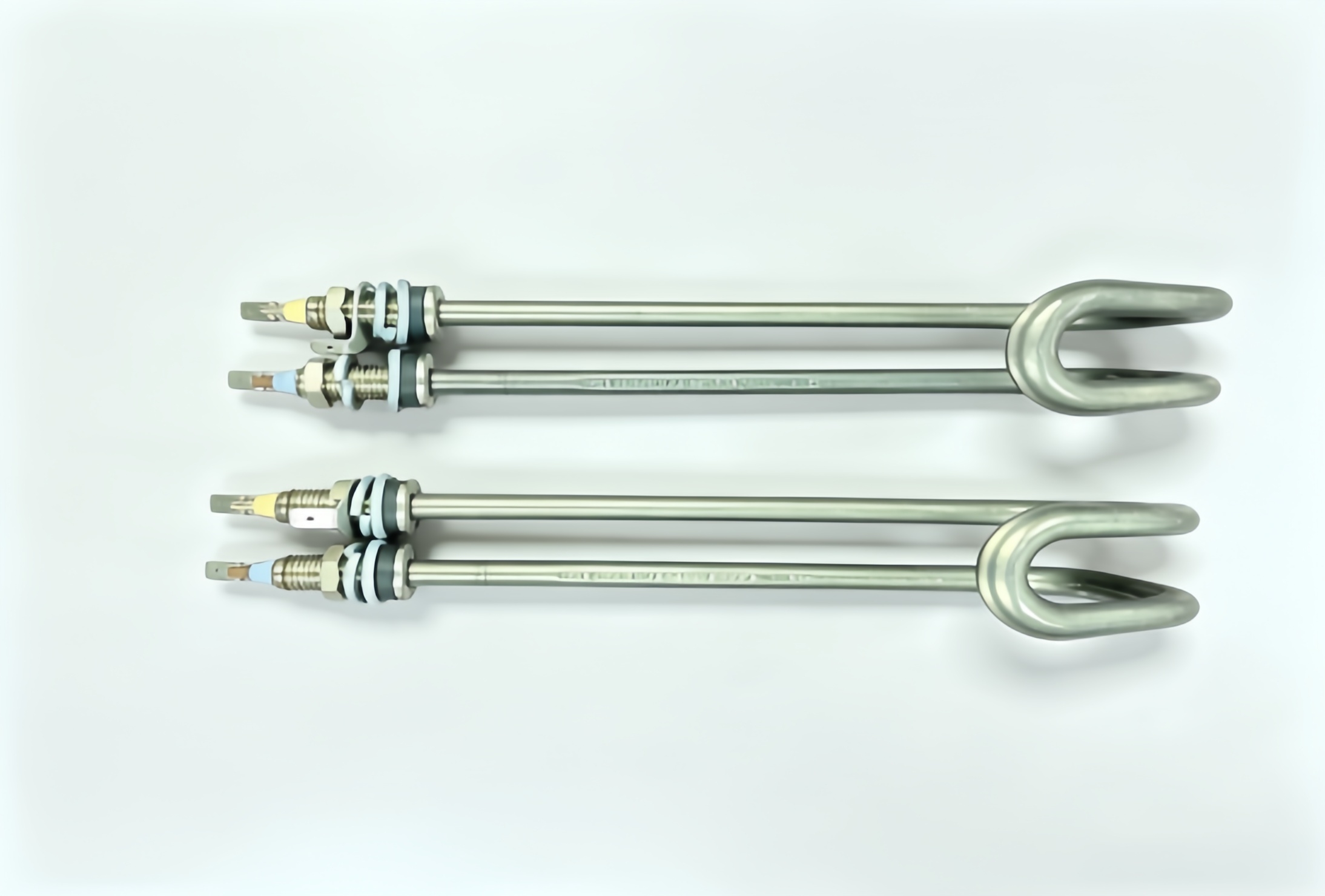

L‑shape Immersion Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This L‑shape screw‑in immersion tubular heater is specially designed for liquid heating applications. Unique L‑bend tube structure with thread fitting and multi‑layer sealing gaskets ensures leak‑proof installation on water tanks, boilers and various liquid heating equipment.

Constructed from stainless steel sheath and filled with high‑purity MGO magnesium oxide powder, this heating element provides fast heat transfer and excellent electrical insulation.

Custom voltage, power, bending size and tube diameter are available to match your working conditions. OEM and custom drawing orders are accepted.

Material: SUS304 tube, Ni80Cr20 wire, MgO filler, silicone seal, ceramic terminal	Transport Package: Carton and Wooden Box
Form: J-shaped double parallel bent tubular immersion heater, single thread mounting	Specification: J-shaped SUS304 immersion heater, 8/10/12mm tube, 110/220/380V, 500W-3500W, M16/M18/M20 thread
Shape: J-shape double parallel bent tubular shape	MGO: High Grade
Voltage: 110V, 220V, 230V, 380V Customizable	Resistance Wire: Ocr25al5 or Ni80cr20
Watt: 500W - 3500W Customizable	Tube Diameter: 8mm / 10mm / 12mm Customizable
Product Name: High temp J tubular heater for boiler with CE certified	Usage: Water tank, spa, small boiler, bathing equipment heating

Features

Special L‑bend tubular structure, perfect for limited installation space
Screw‑in thread design with multi‑layer sealing gaskets, leak‑proof without welding
Stainless steel sheath, good corrosion resistance for water and non‑corrosive liquid
Filled with high‑purity MGO powder, fast heat transfer and excellent insulation
Fully customizable: voltage, power, tube diameter, bending angle and overall dimension
Stable heating performance, long service life for industrial liquid heating equipment

Package delivery

Packing

Each L‑shape immersion heater is wrapped with bubble bag individually to avoid scratch and impact damage.

Units are packed into standard export carton box with inner shock‑proof foam filling.

Custom packing requirements are acceptable.

Shipping

Small quantity orders: Express delivery via FedEx, DHL, UPS.

Bulk orders: Sea freight or air freight.

We support FOB, CIF, DAP and other international trade terms.
