Spiral Tubular Heater for Air Heating Lu-Chiuan CE

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

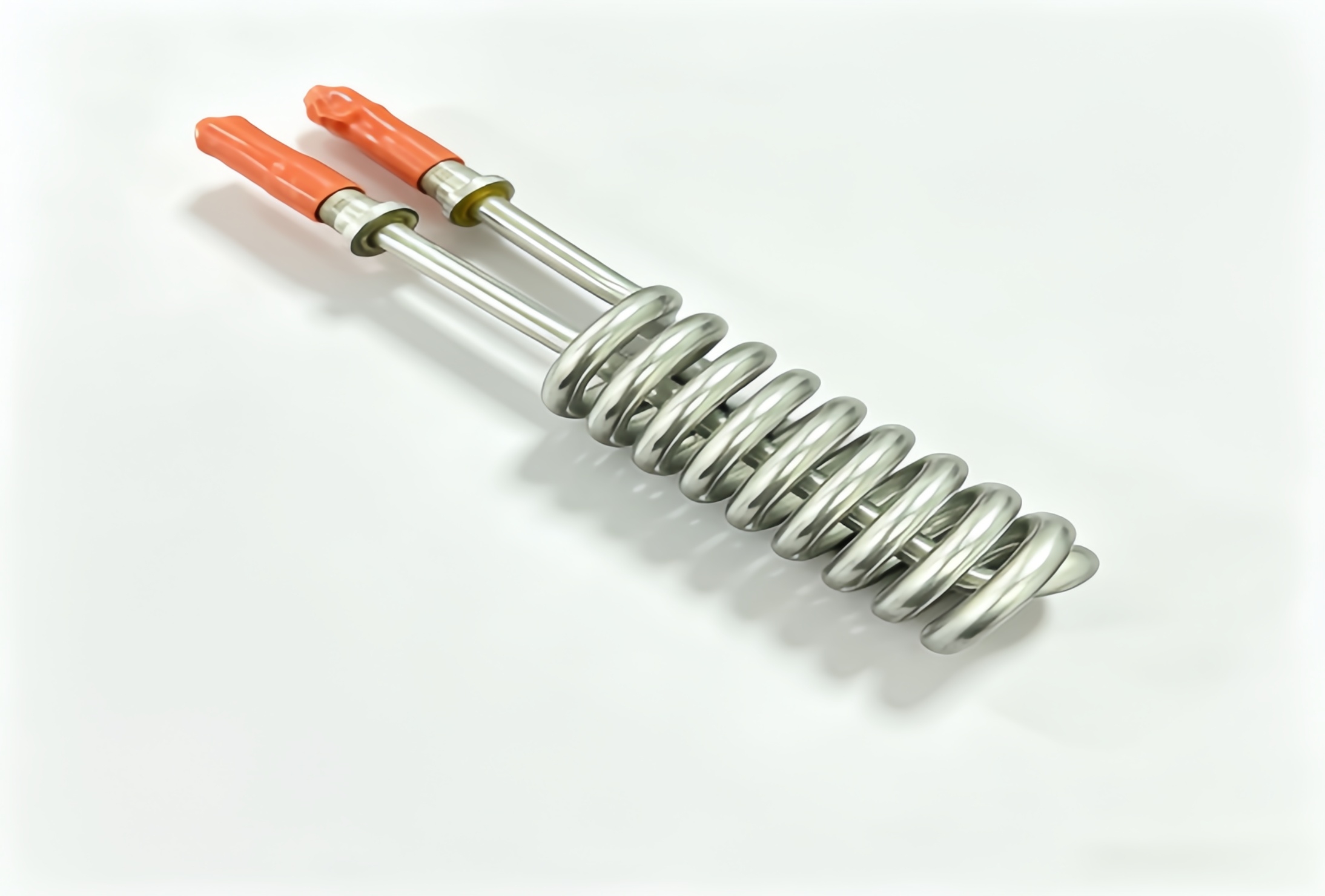

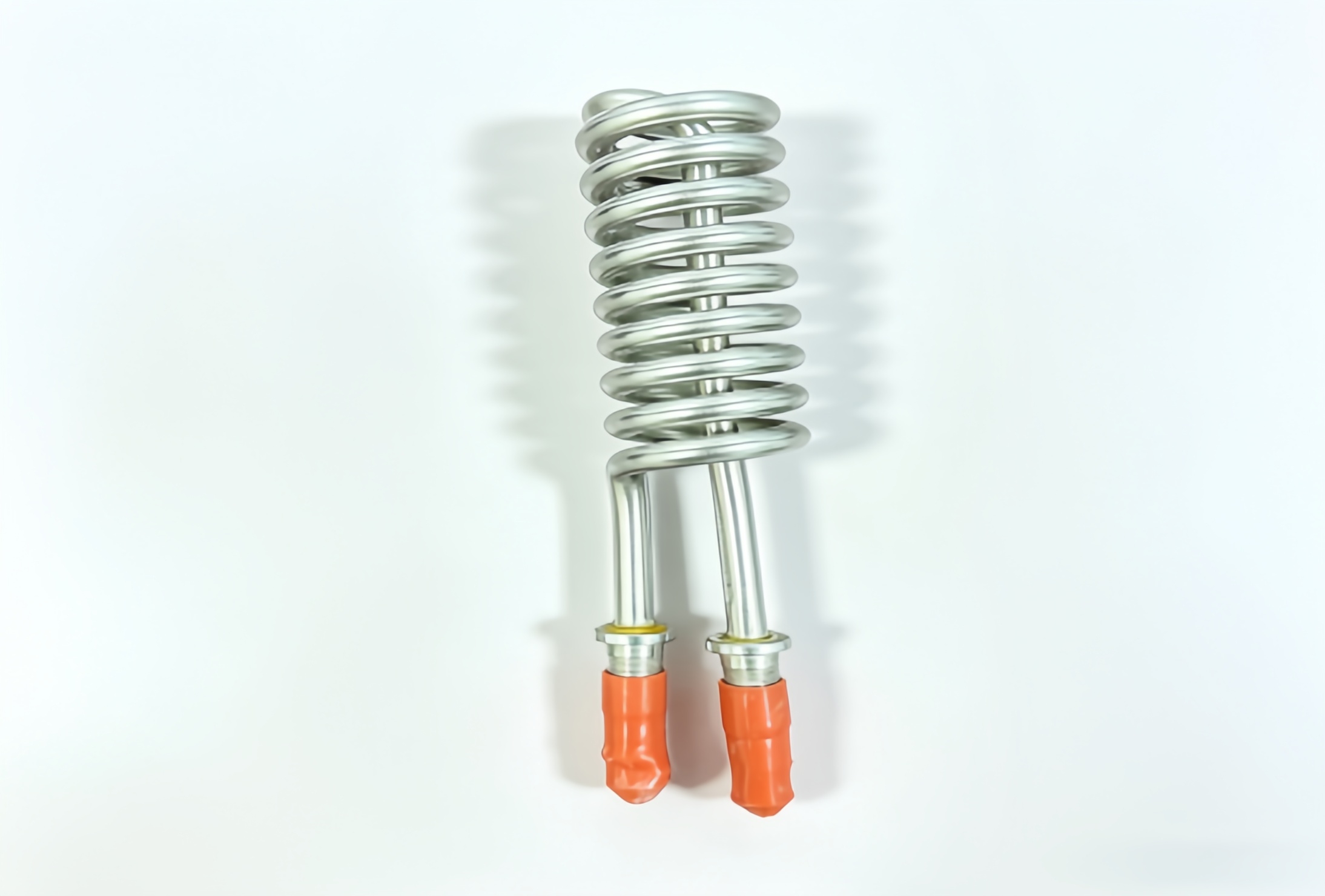

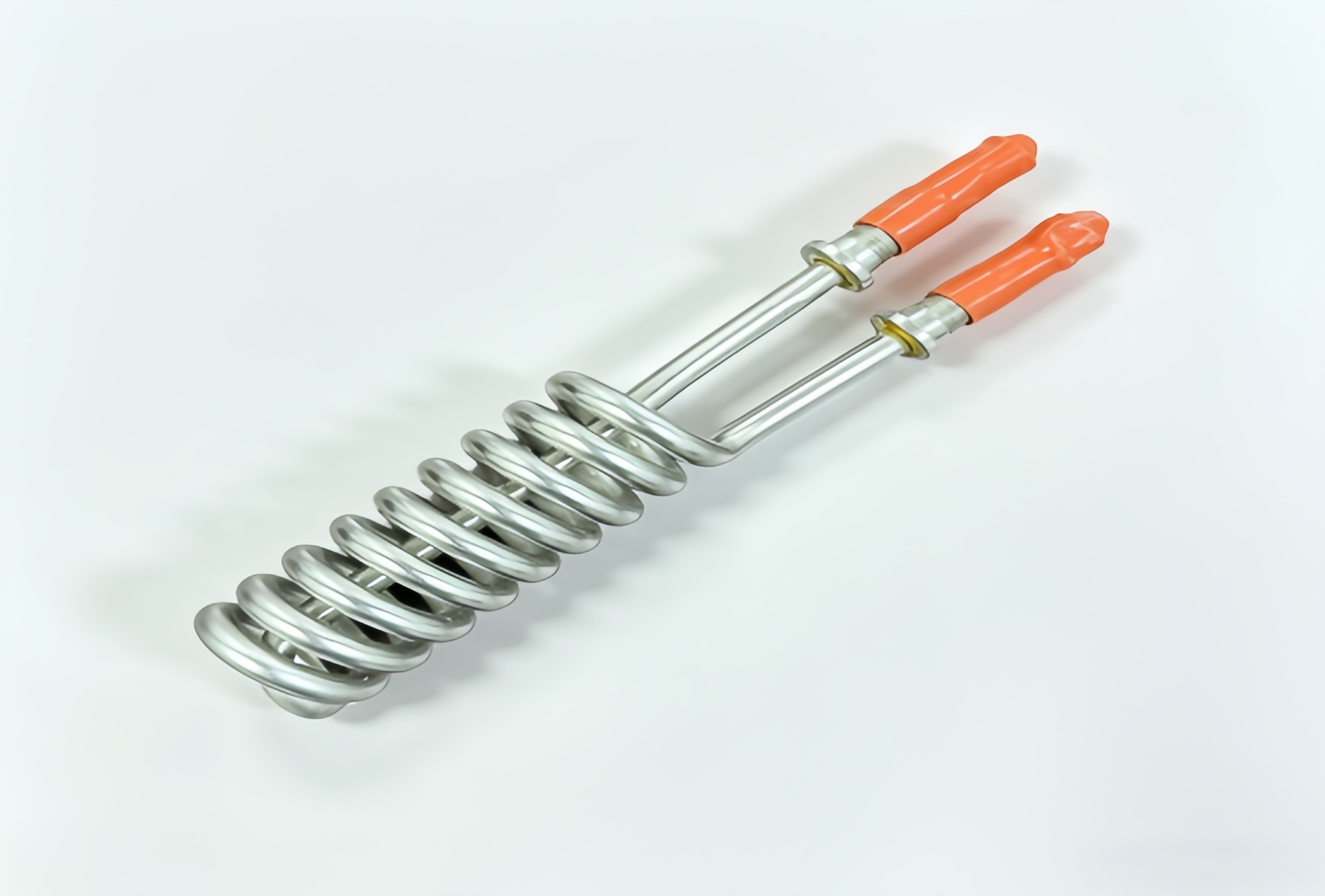

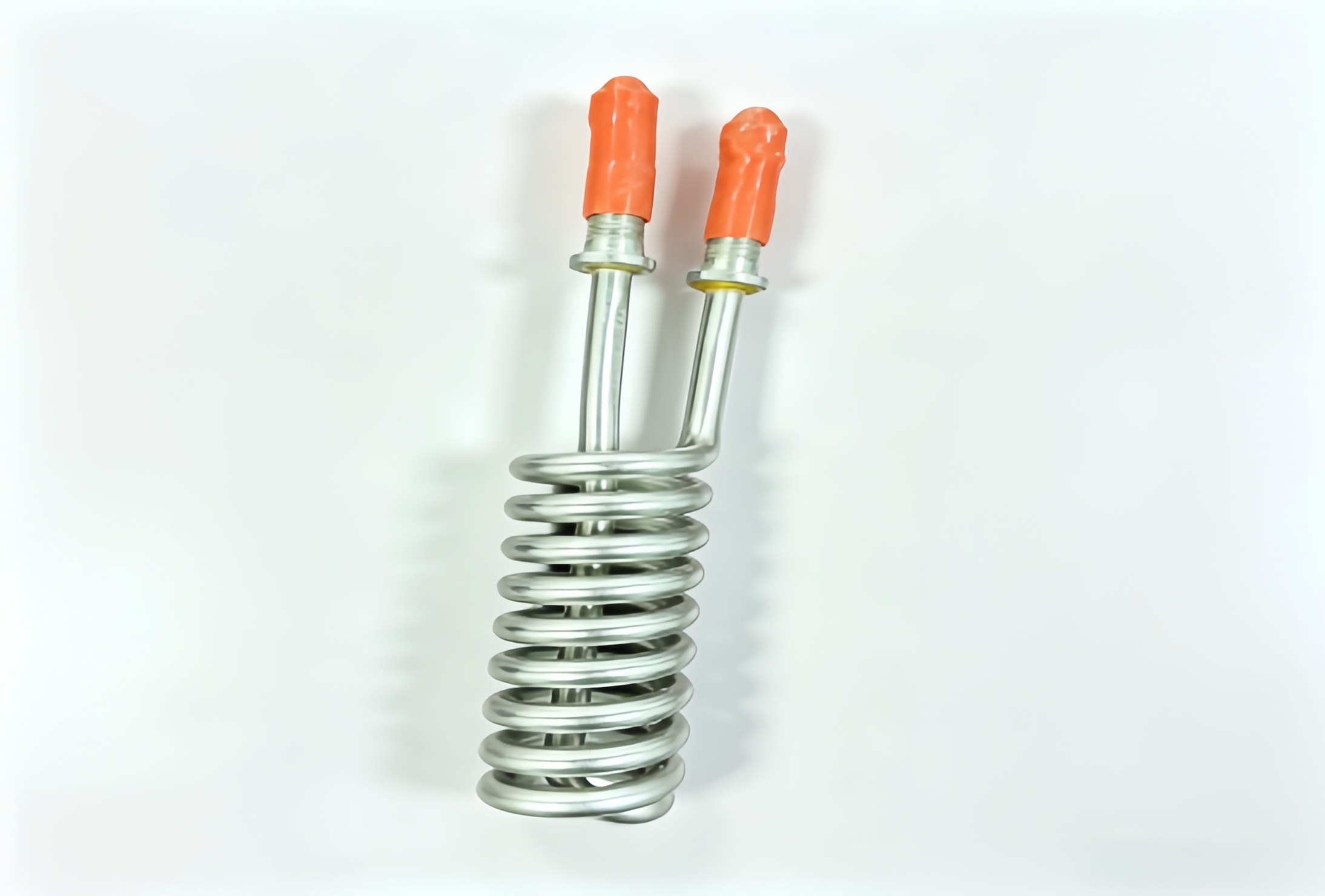

LQ‑SC‑09 spiral coil immersion heater from Lu‑chiuan. Compact coiled stainless‑steel heating element for tank liquid heating. Custom power, voltage and coil size are available.

Material: Outer Tube: Enamel coated stainless steel Filler: High-purity MgO (Magnesium Oxide) powder Heating Wire: Ni-Cr / FeCrAl alloy resistance wire Terminals: Brass / Stainless steel	Transport Package:Carton Box with Foam Shockproof Protection
Form: Spiral coiled spring tubular shape with bent threaded terminal pins, dry heating tubular element	Specification: AC 220V, 1500/2000/3000W, 8mm/10mm Tube, Spiral Coil, MgO Insulation, Dry Use Only
Shape: Spring spiral coiled tubular shape, bent threaded terminals	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Voltage: AC 220V (customizable: 110V, 380V, etc.)	MGO: High Purity MgO
Watt: 1500W / 2000W / 3000W (customizable wattage available)	Tube Diameter: 8 mm / 10 mm (customizable upon request)
Product Name: Spiral Tubular Heater for Air Heating lu-chiuan CE	Usage: Dry air heating for ovens & industrial dryers (not for water immersion)

Features

Compact spiral coil structure, large heating area in small space
Stainless steel tube, good anti‑corrosion for liquid heating
Custom coil size, power, voltage and tube dimension
High thermal efficiency, fast heating performance
Thread connector for easy installation
Support OEM & ODM customization

Package delivery

Each unit wrapped with bubble foam, packed in sturdy export carton.

Small orders: express delivery. Bulk orders: air or sea freight.

Custom packing is acceptable for large orders.

Download

None
