Triple‑U Tubular Heater With Bent Screw Terminals

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

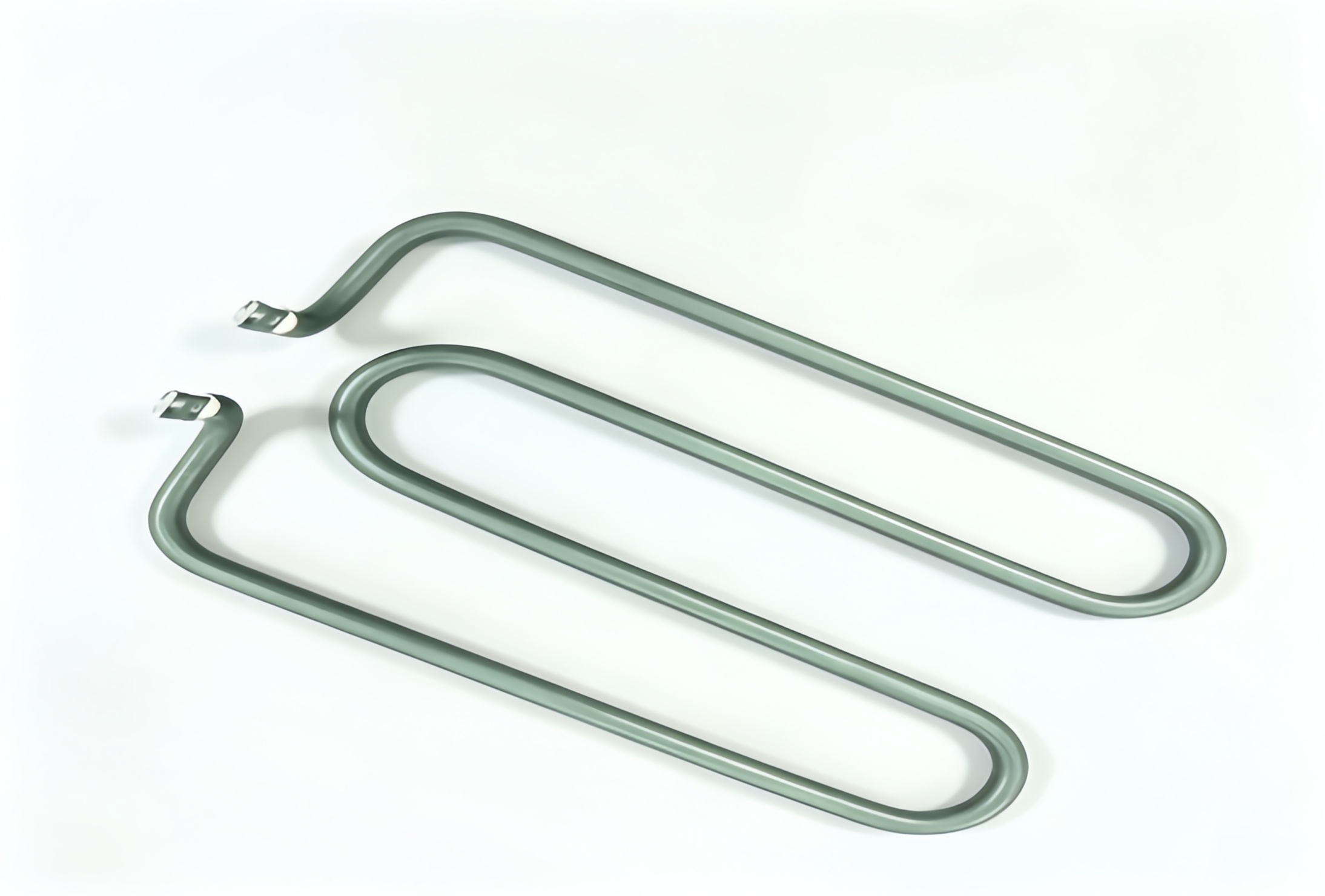

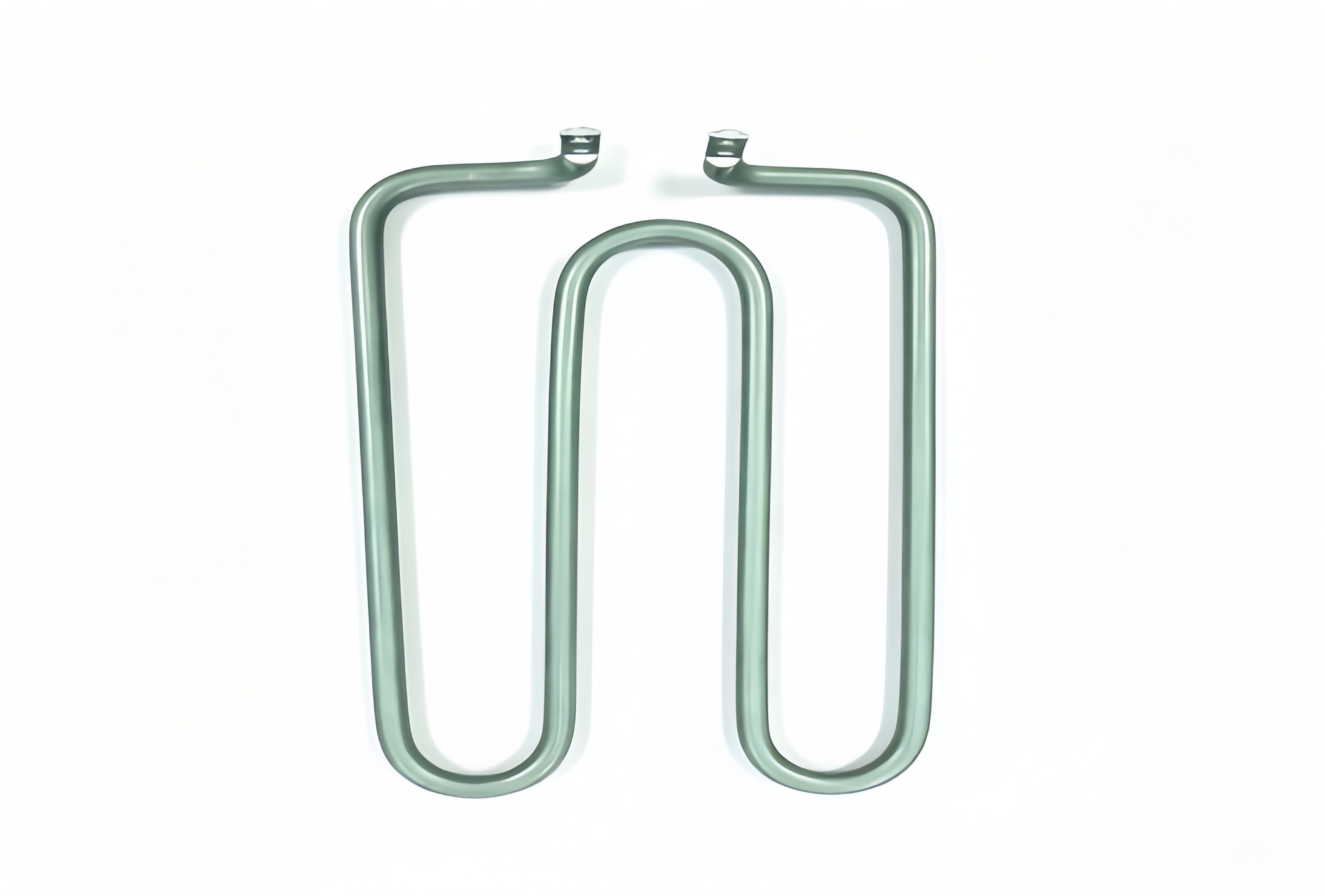

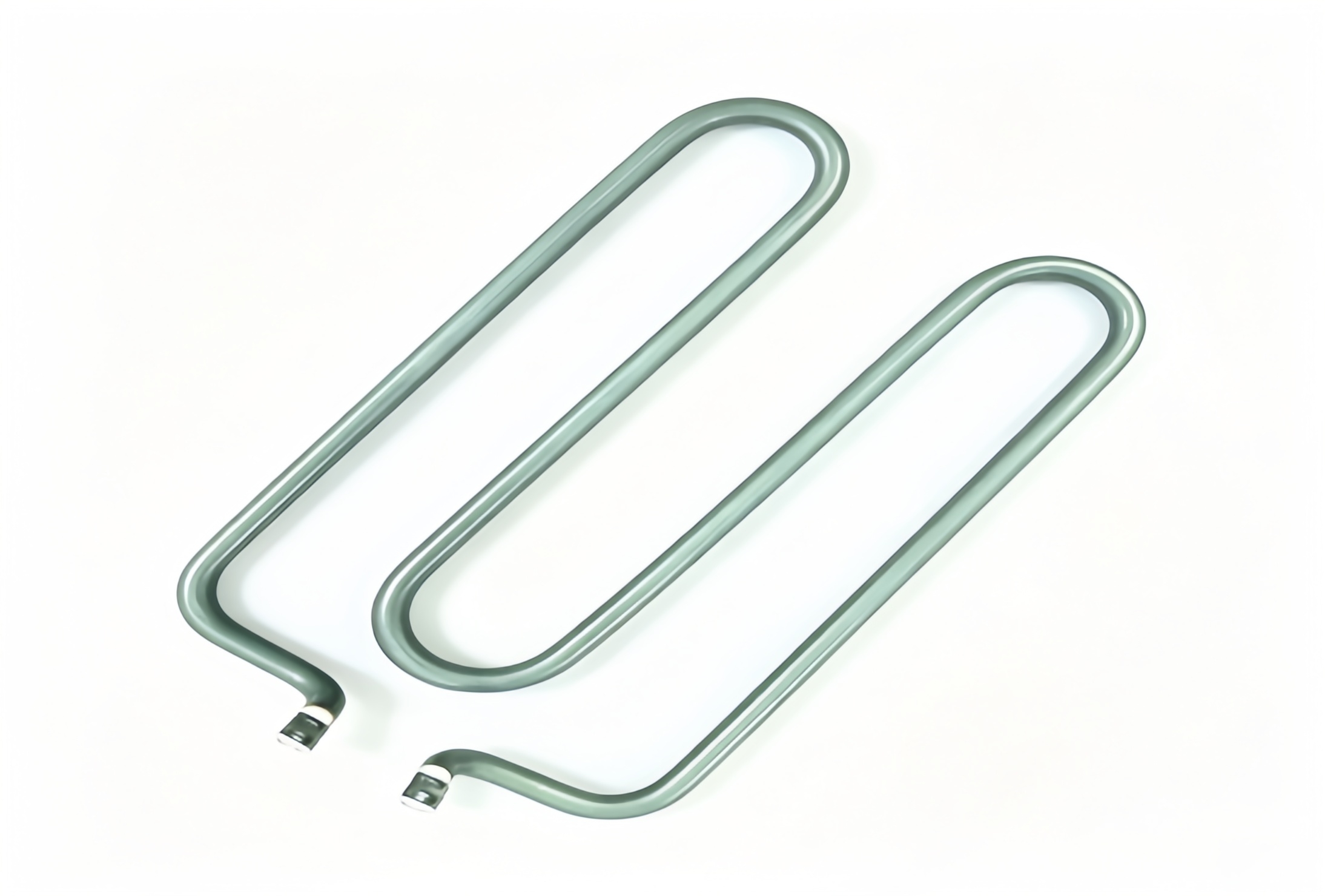

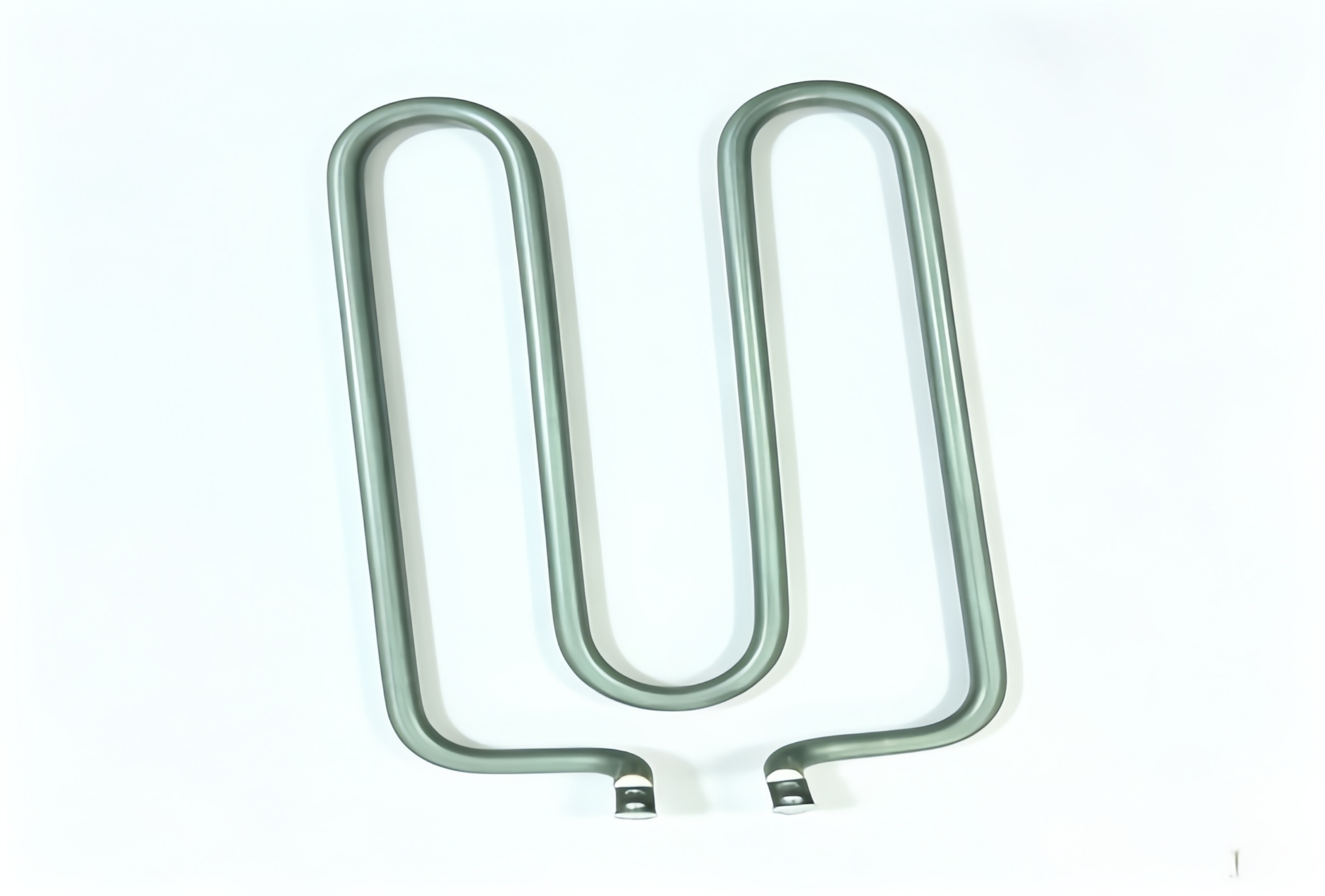

This green‑coated triple‑U tubular heater is a dry‑burn heating element for air heating. It is equipped with green anti‑oxidation sheath, nickel‑chromium resistance wire and high‑purity magnesium oxide filler. Bent screw‑in terminal studs provide stable wiring and easy installation. Widely suitable for ovens, drying cabinets and industrial heating equipment. Voltage, power and tube dimension can be fully customized.

Material: High-quality stainless steel tube, Ni-Cr resistance wire, high-purity magnesium oxide filler, high-temperature anti-oxidation outer coating	Transport Package: Carton Box with Foam Shockproof Protection
Form: M-shaped bent tubular heating element for dry-burn air heating	Specification: Voltage, power, tube diameter, overall length and bending dimensions can be fully customized
Shape: M-shaped double-loop bent tubular shape	Resistance Wire: Ni-Cr alloy wire
Voltage: Voltage customizable	MGO: High-purity magnesium oxide (MGO), excellent thermal conductivity and insulation performance
Watt: Power customizable	Tube Diameter: Outer tube diameter can be customized as customer's requirements
Product Name: Triple‑U Tubular Heater With Bent Screw Terminals	Usage: Suitable for dry-burn air heating, industrial ovens, drying cabinets and other heating-related equipment

Features

Precise triple‑U bending design, large heating area for fast and uniform heat distribution
Green high‑temperature anti‑oxidation coating, excellent oxidation‑resistance for long‑time dry‑burn operation
Bent screw‑in terminal studs, space‑saving installation and stable wiring connection
Nickel‑chromium resistance wire, steady and consistent heat output
Fully customizable voltage, power, tube dimension and triple‑U span size

Package delivery

Each green‑coated triple‑U tubular heater is wrapped with bubble film to avoid surface scratches and bending deformation, then packed into an individual small carton. 12 pieces are packed in one export outer carton. Shock‑absorbing packaging can well protect the heating tubes during long‑distance sea, air or express shipment. We can arrange sea freight, air freight or courier delivery according to your requirements.
