Commercial kitchen heating tube

Inquire Now

Product Description Features Package delivery Download

Product Description

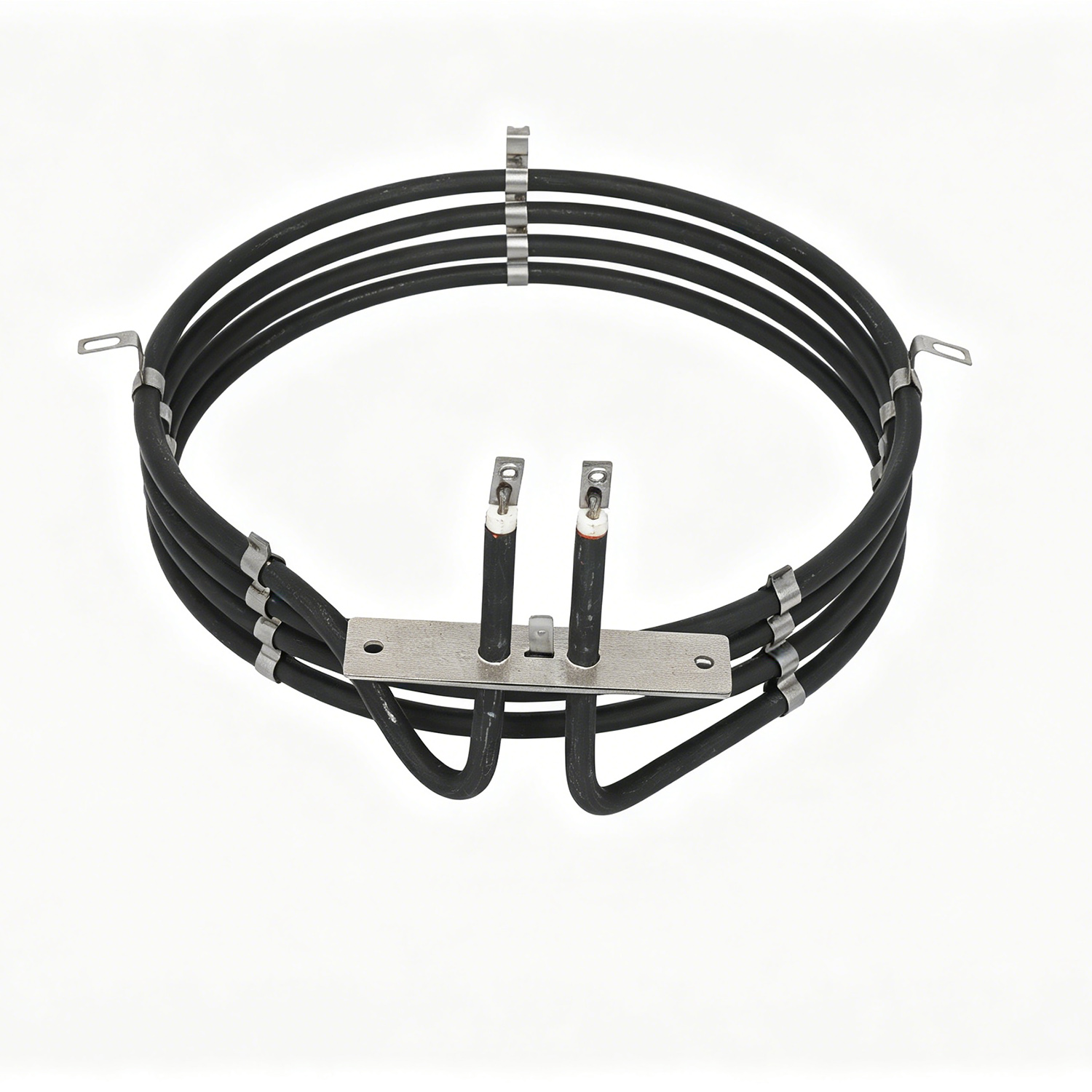

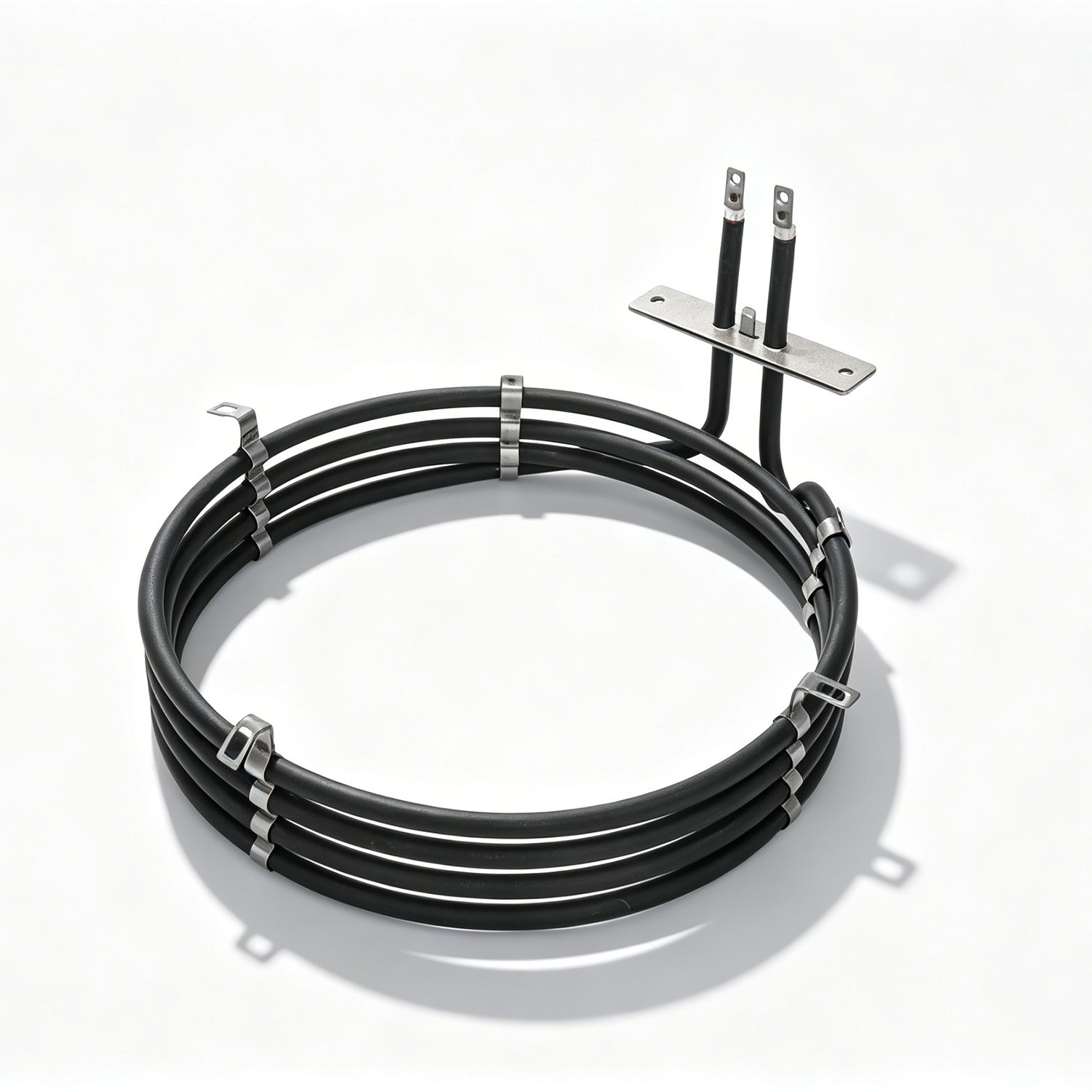

This ring‑type tubular heating element features high‑temperature black anti‑oxidation coating on the tube surface. Equipped with metal fixing bracket and mounting tabs for easy installation. Designed for fan‑assisted convection ovens, circulating hot air heating. Stable thermal performance, anti‑oxidation, long service life. Custom voltage, power and dimension are available for different oven models.

Material: SUS304 stainless steel tube, high temp anti-oxidation black coating, Ni80Cr20 nichrome wire, high purity MgO powder, stainless steel bracket & clips	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: 4 concentric circular coiled heater with stainless mounting plate and fixing clips	Certification: CE, ISO9001, RoHS, CB, CCC
Shape:4 concentric flat circular ring shape with side metal mounting bracket	Tube Diameter: Standard 8mm / 10mm / 12mm, customized tube diameter acceptable
Voltage: Standard 110V, 220V, 240V, 380V; custom voltage acceptable	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Power: 1000W–5000W standard, customizable wattage	MGO: High-purity electrical grade MGO insulation filler
Product Name: Circular Heating Element for Oven with LQ CE UL Certified	Application: Commercial bakery oven, hot air circulation oven, food drying equipment

Features

Black high‑temp anti‑oxidation coating, anti‑rust for long dry‑burn use
Multi‑loop ring design, delivers uniform heat inside convection oven
Built‑in metal mounting bracket, quick and firm installation
Ni‑Cr wire & high‑purity MGO filler, stable heating and good insulation
Resist thermal shock, withstand frequent start‑stop cycles
Customizable voltage, power and ring size for different ovens

Package delivery

Each unit is individually protected by bubble bag to prevent scratches and deformation.
Packed into standard export carton, with inner cushion for shock‑proof.
Custom carton packing is acceptable based on customer requirement.
Suitable for sea freight, air freight and express delivery.
