Cast‑Aluminum Griddle Heating Plate

Inquire Now

Product Description Features Package delivery Download

Product Description

This custom cast‑aluminum griddle heating plate is manufactured by die‑casting process, with tubular heating elements fully cast inside the aluminum base. It achieves excellent thermal conductivity and uniform surface temperature, ideal for continuous commercial cooking operation.

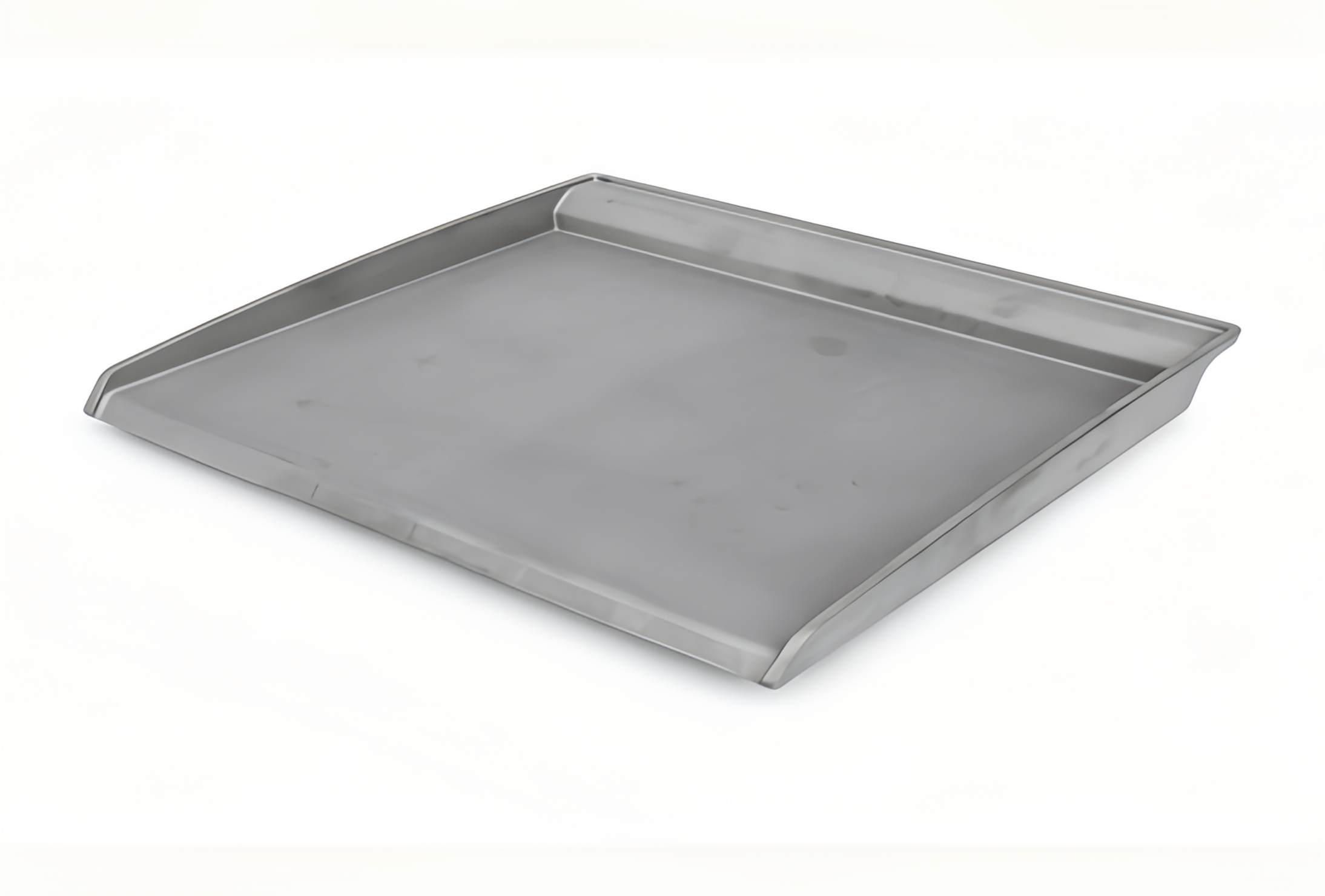

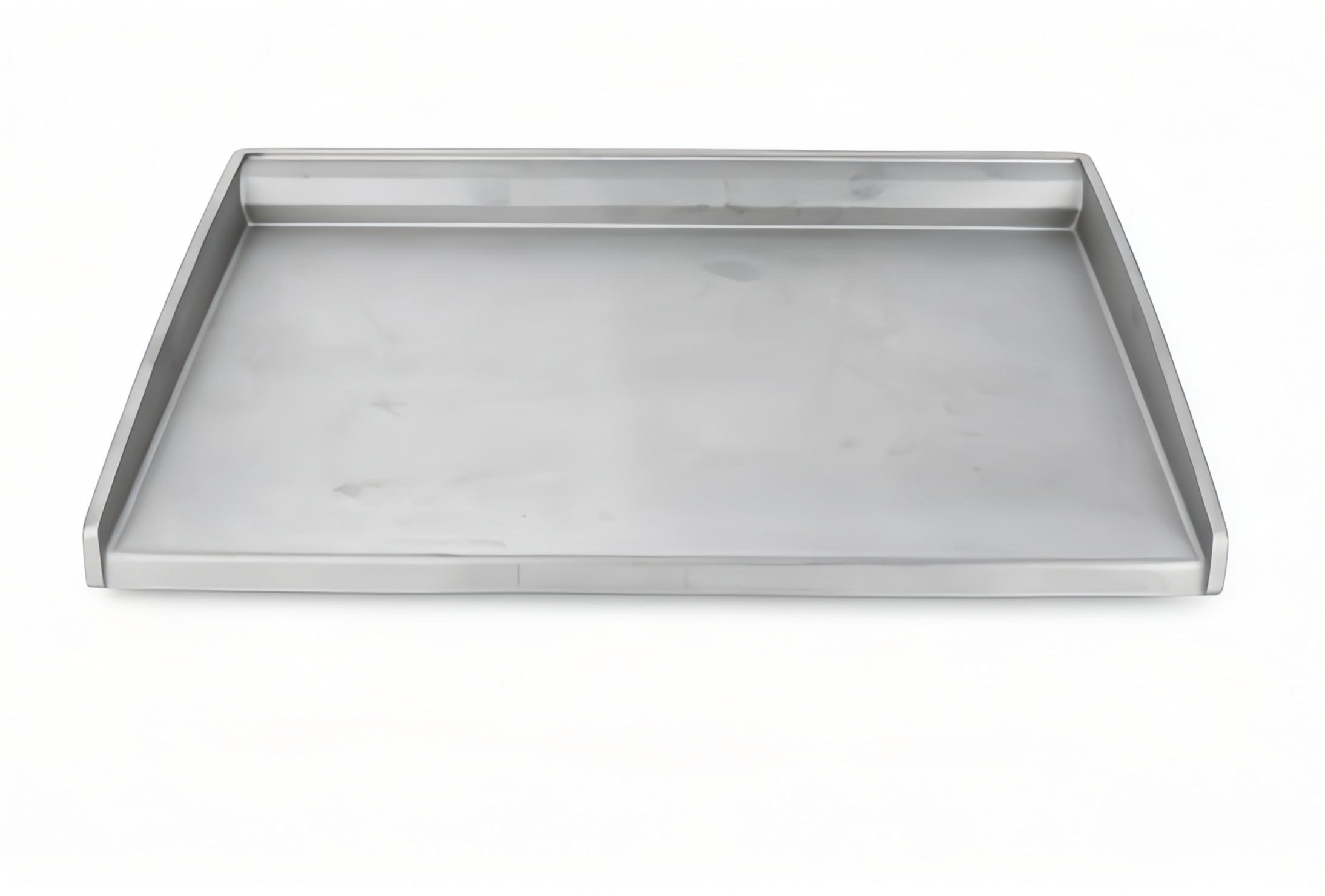

The working surface is designed with surrounding oil‑retaining rim to stop grease overflow and simplify daily cleaning. Pre‑reserved mounting holes enable quick installation onto griddle, flat grill and panini machines.

All key parameters including plate dimension, voltage, power, mounting hole location can be customized based on your drawings or samples. OEM service is supported. As a professional heating element manufacturer, we strictly control product quality for commercial kitchen equipment applications.

Material: ADC12 Die-cast Aluminum Alloy, food-grade PTFE coating optional, customizable	Transport Package: Carton and Wooden Box, with shockproof protection
Form: Serpentine tubular plate heater	Specification: Fully customized according to drawings
Shape: Square shape	Resistance Wire: Ocr25Al5 or Ni80Cr20
Voltage: 110V / 220V / 380V or Customized	MGO: High Grade (internal insulation filler)
Watt: Customized	Tube Diameter: 300mm - 600mm or Customized
Product Name: Cast‑Aluminum Griddle Heating Plate	Usage: For electric BBQ grill, oven, commercial griddle, food baking equipment

Features

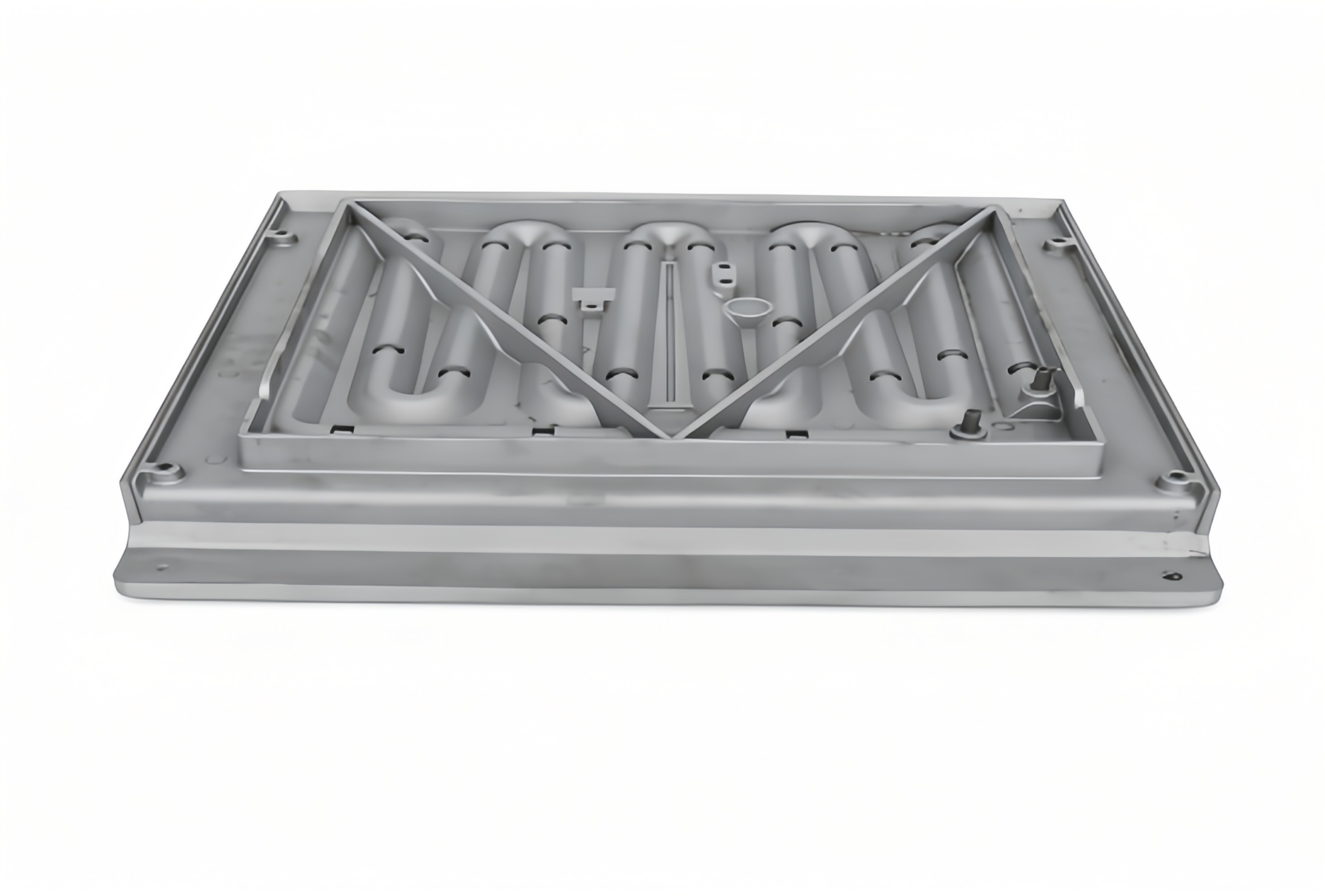

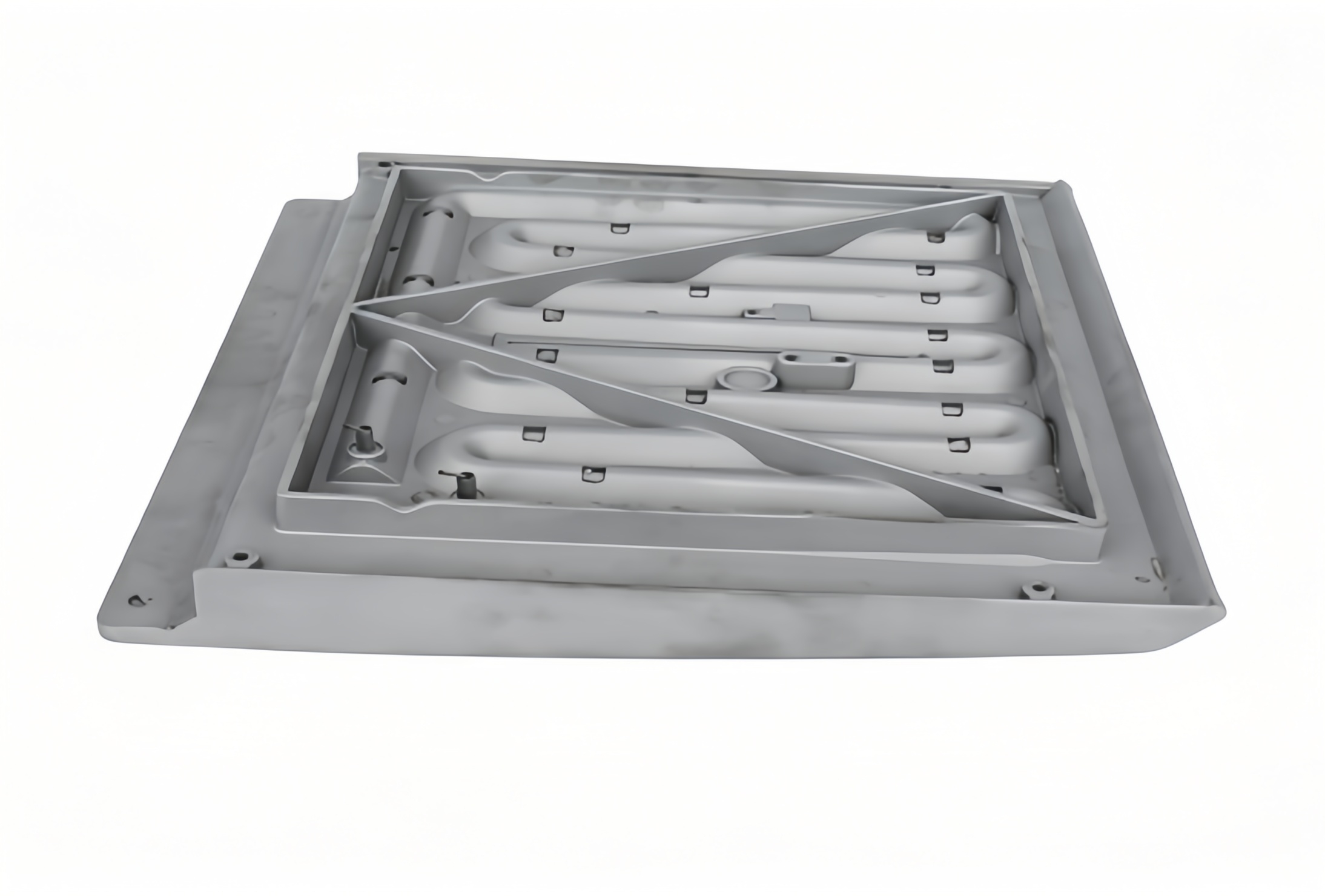

Tubular heating elements fully die‑cast inside aluminum body
Excellent uniform surface temperature, less hot‑spot
Integrated oil‑retaining rim design, prevent grease overflow, easy to clean
Die‑cast aluminum one‑piece structure, sturdy and durable, anti‑vibration
Pre‑drilled mounting holes for quick assembly
Full customization: dimension, voltage, wattage, mounting position
Reserve installation space for thermostat / temperature sensor
OEM & private label service available

Package delivery

Each cast‑aluminum griddle heating plate is wrapped with anti‑scratch plastic film, protected by foam padding. Then packed into individual carton box. Multiple cartons will be loaded into export‑standard plywood case for sea shipment to avoid damage during transit. Custom packing requirements are acceptable.
