C‑Shape Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

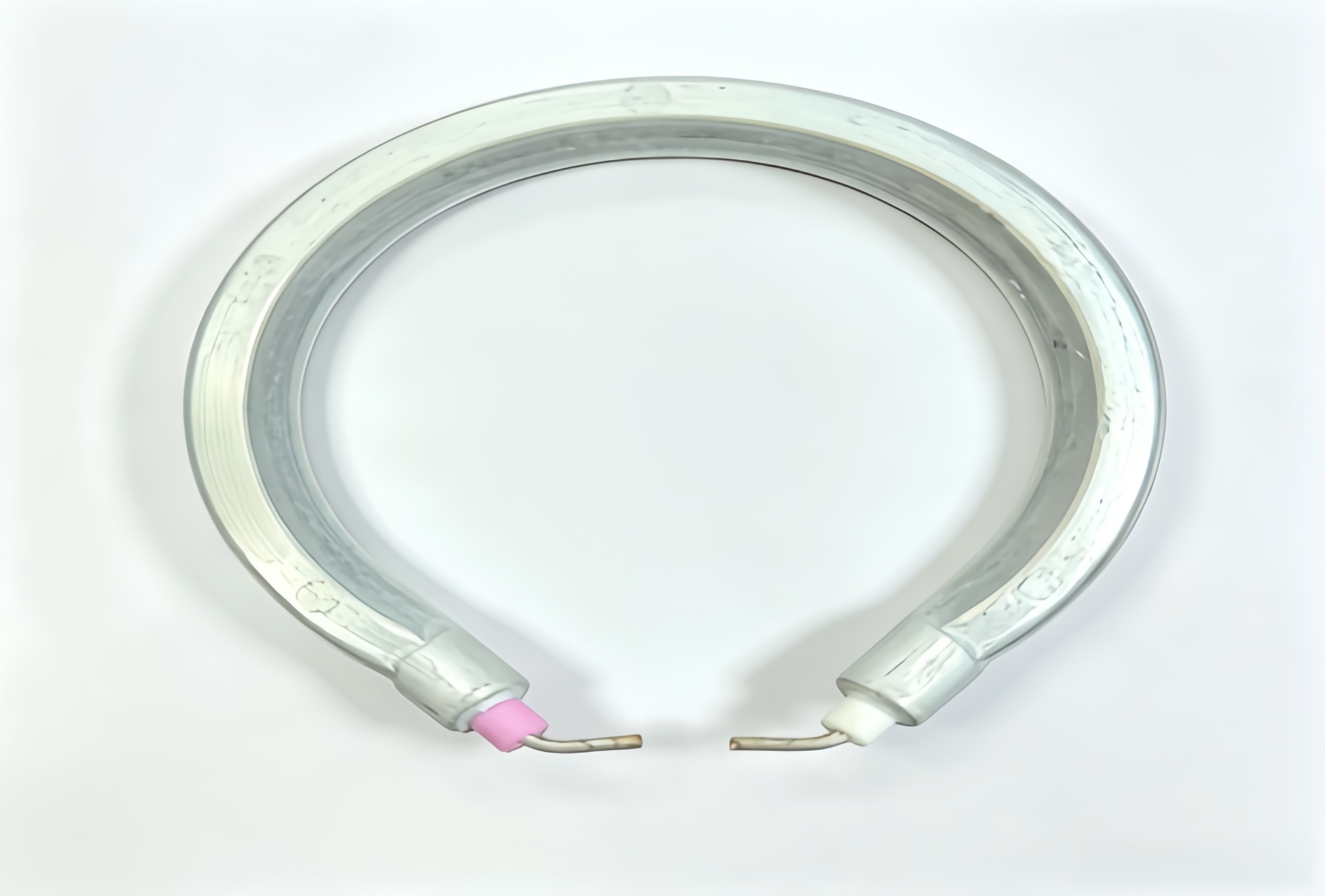

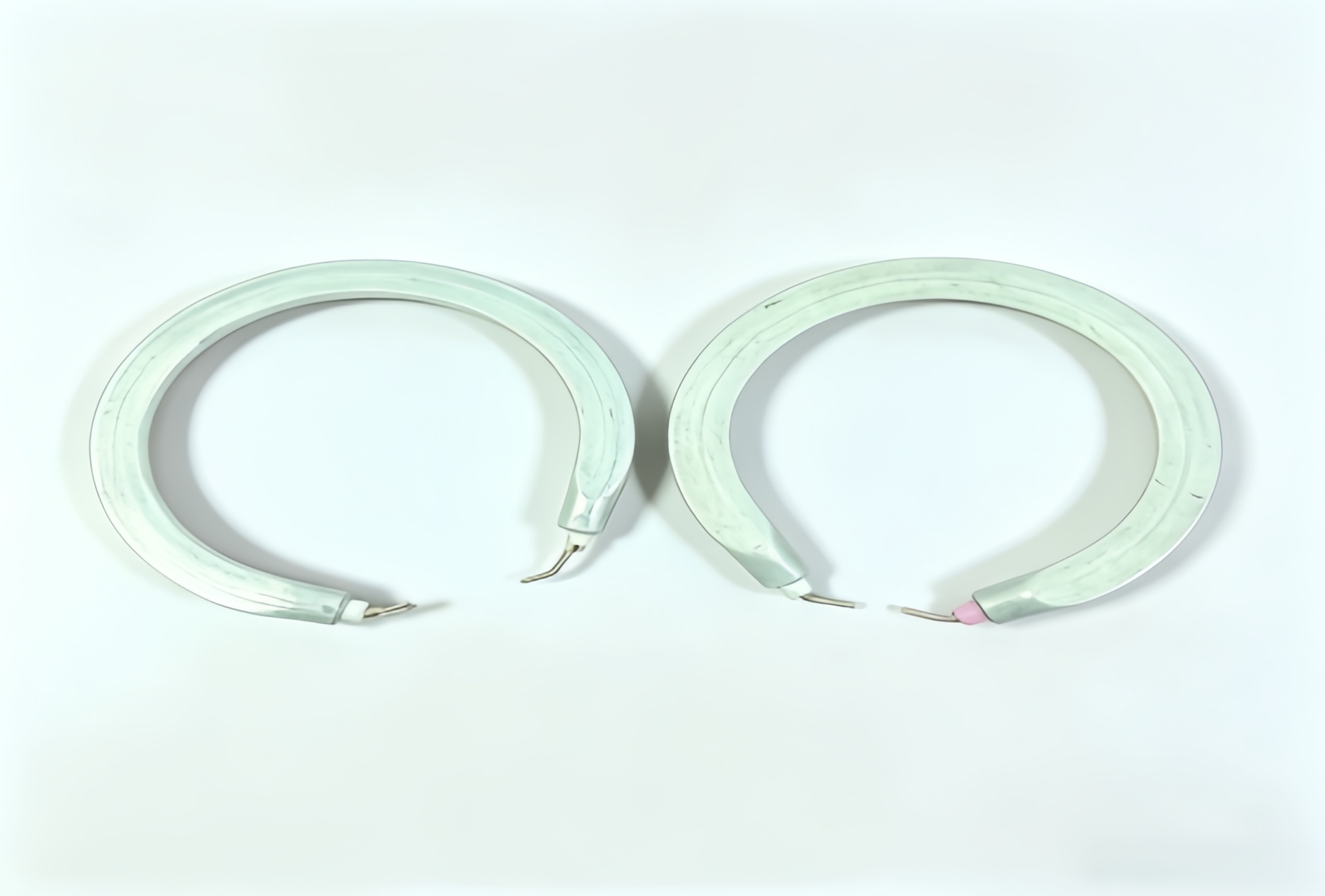

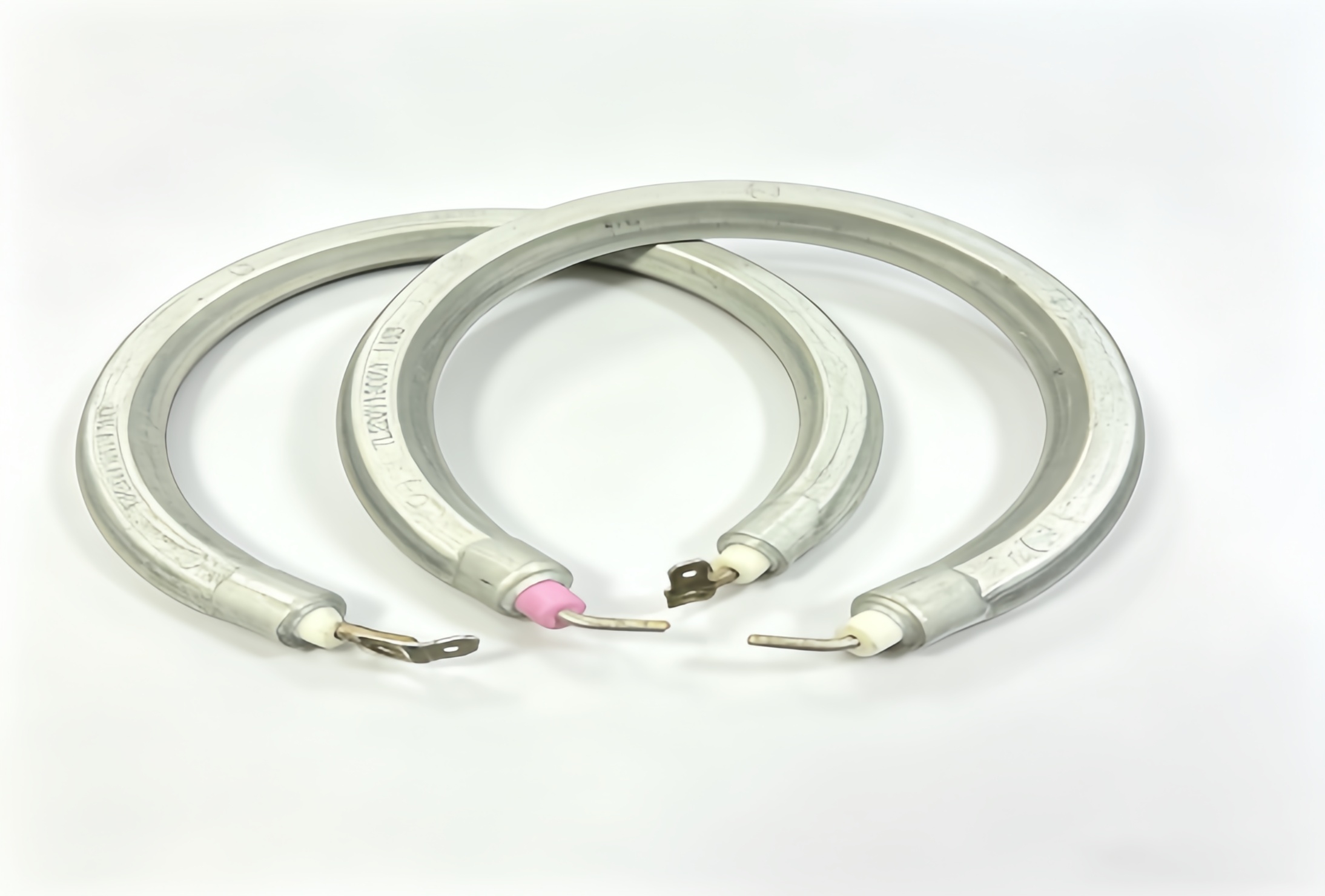

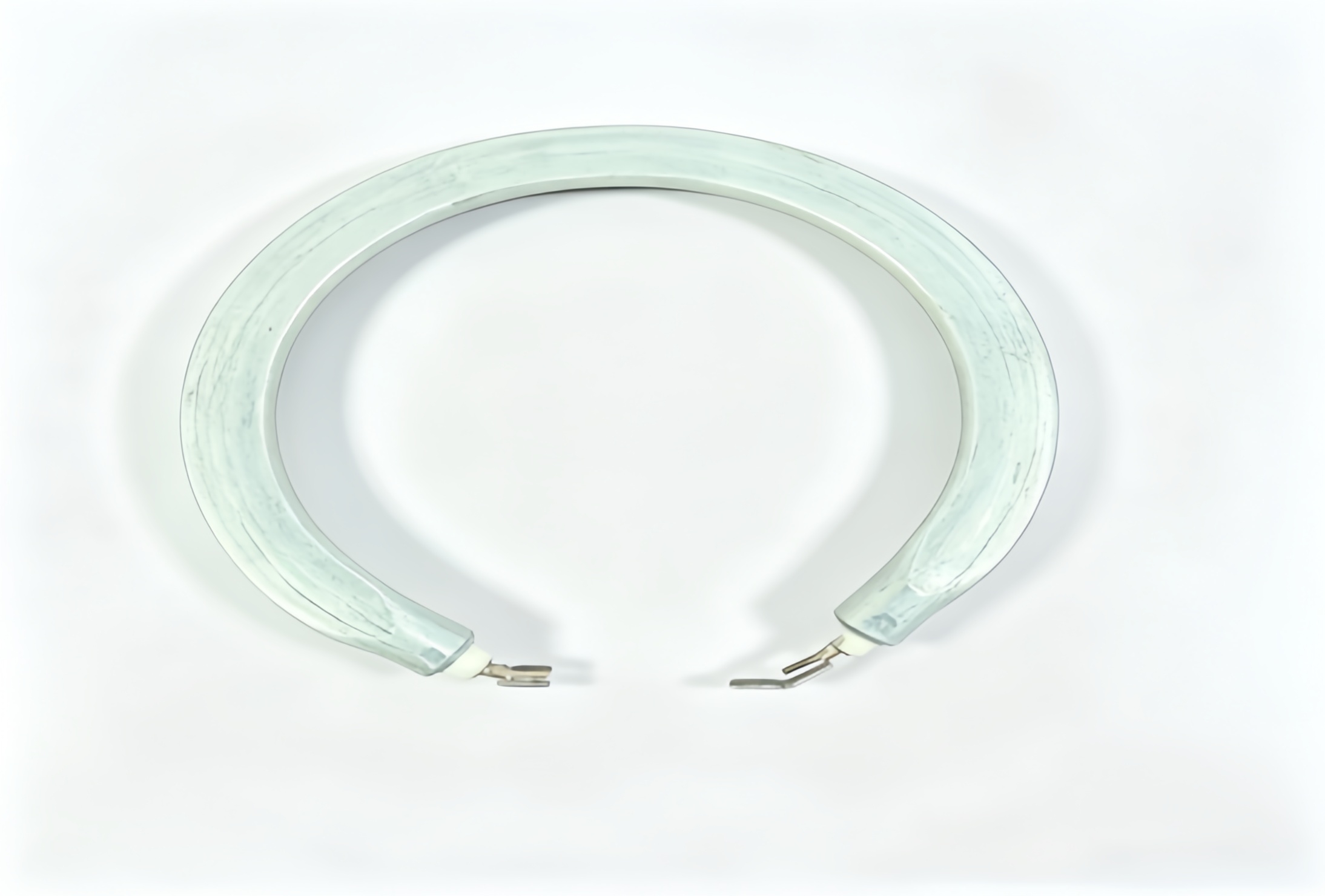

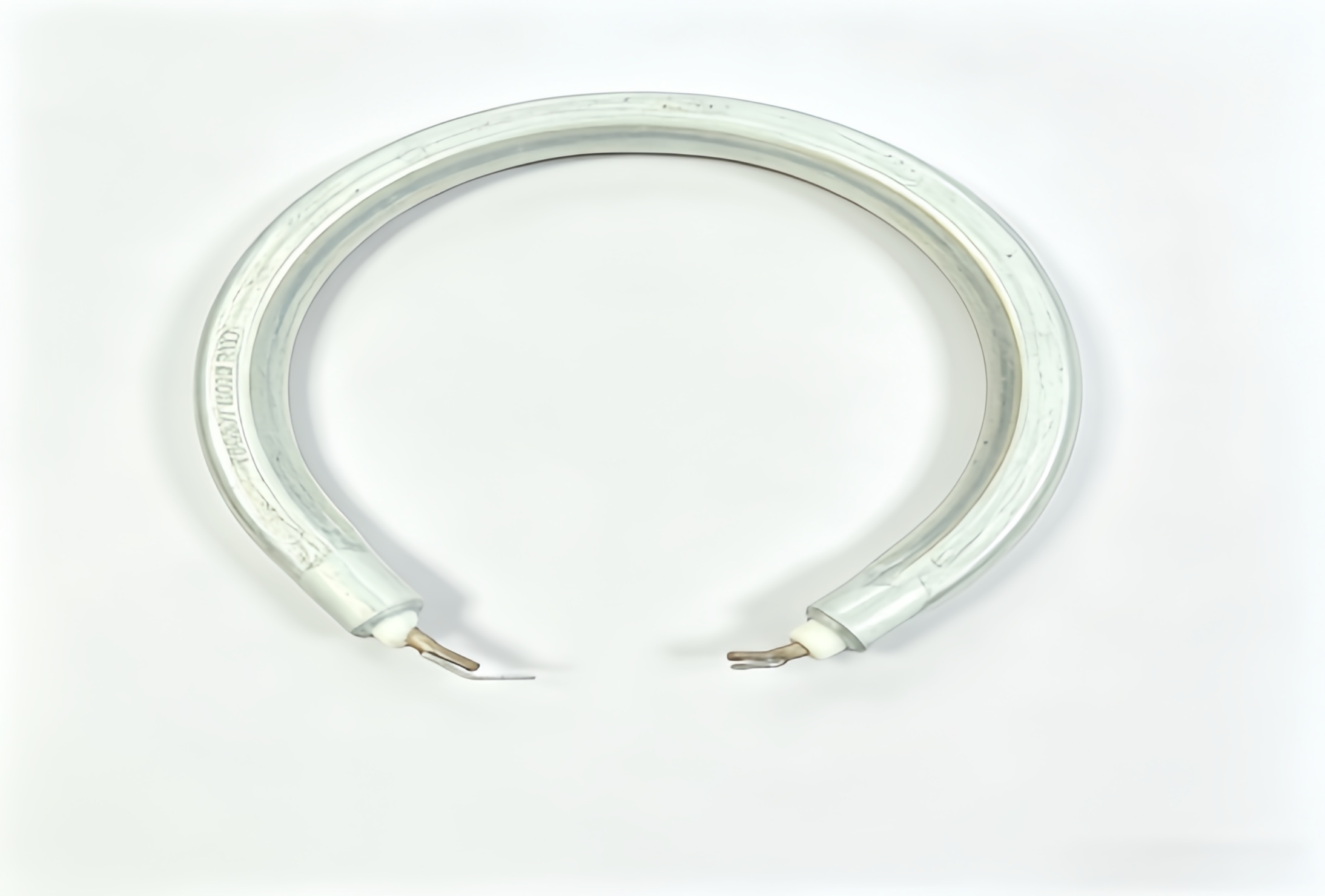

This C‑ring tubular heating element is an open‑C‑shape metal heating part, designed for kitchen appliances such as rice cookers and food warmers. It delivers uniform heat output, reliable performance and supports OEM customization on voltage, power and size.

Material: Outer Shell: Metal Alloy / Cast Heating Tube Resistance Wire: Nickel-Chromium Alloy Wire (Ni-Cr Wire) Insulation Filler: High-Purity Magnesium Oxide (MGO) Powder Terminal & Insulation Parts: High-temperature Ceramic / Insulating	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Circular ring dry tubular heating element with pin terminals	Specification: Type: Circular Ring Dry Heating Element Model: CH220-1500
Shape: Open circular ring (C-shaped) tubular structure	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 110V, 230V, 240V (customizable)	Resistance Wire: Nickel-Chromium Alloy Wire (Ni-Cr Alloy Wire)
Power: 1200W, 1600W, 1800W, 2000W (customizable)	MGO: Electrical insulation and thermal conduction inside the heating tube
Tube Diameter: 10mm / 8mm (customizable)	Application: Household electric ovens, baking grills, dry heating kitchen appliances

Features

Open C‑ring shape structure, easy wiring and installation
Metal outer shell, good mechanical strength
Filled with high‑purity MGO powder, excellent insulation & thermal conductivity
Uniform heat distribution, fast temperature rise
Stable working performance, long service lifespan
Support OEM: voltage, power, ring diameter and thickness
Strict electrical test for every unit before shipment

Package delivery

Each element foam‑protected, packed in export carton with divider. Support express, air and sea shipment. Custom packing is available.
