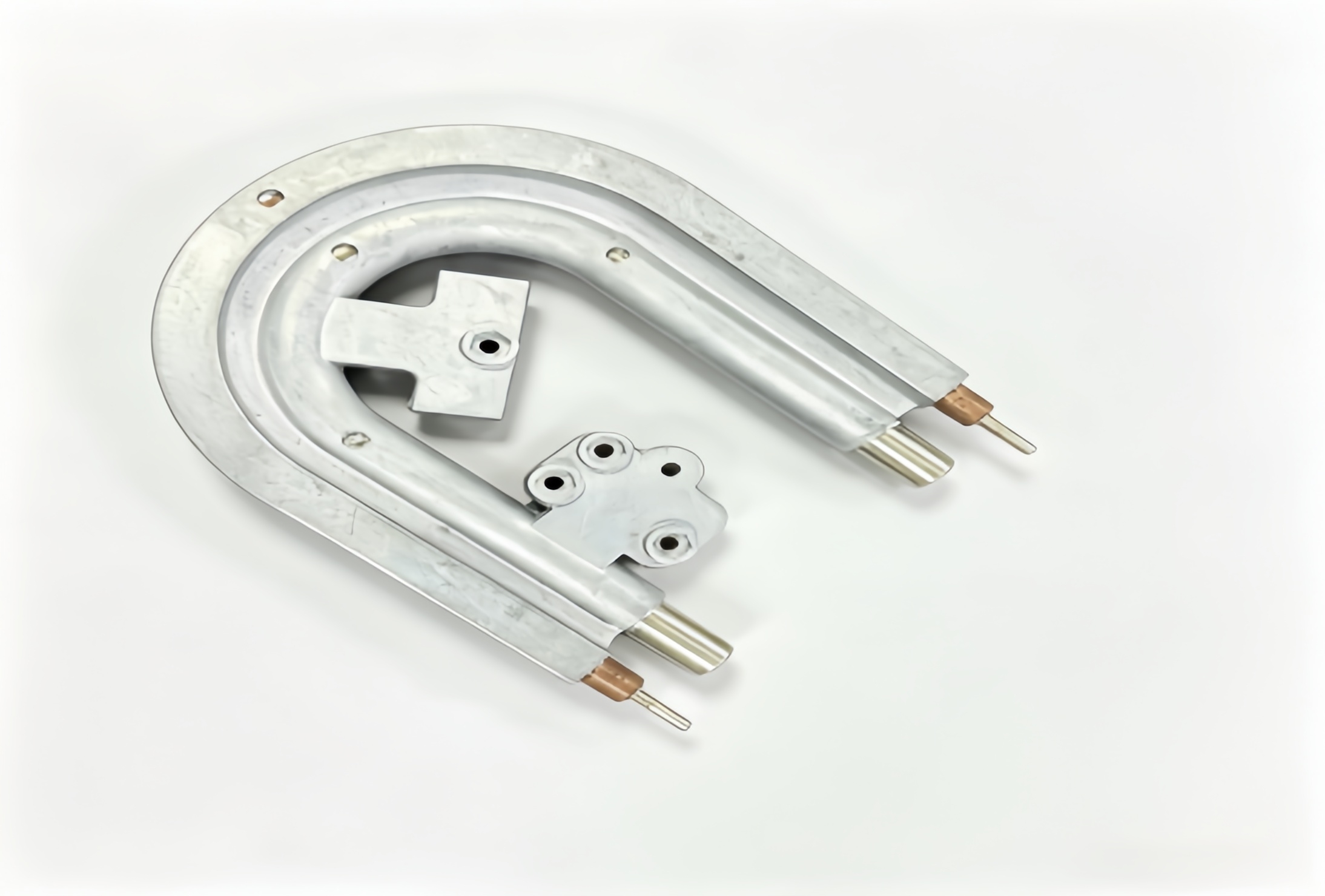

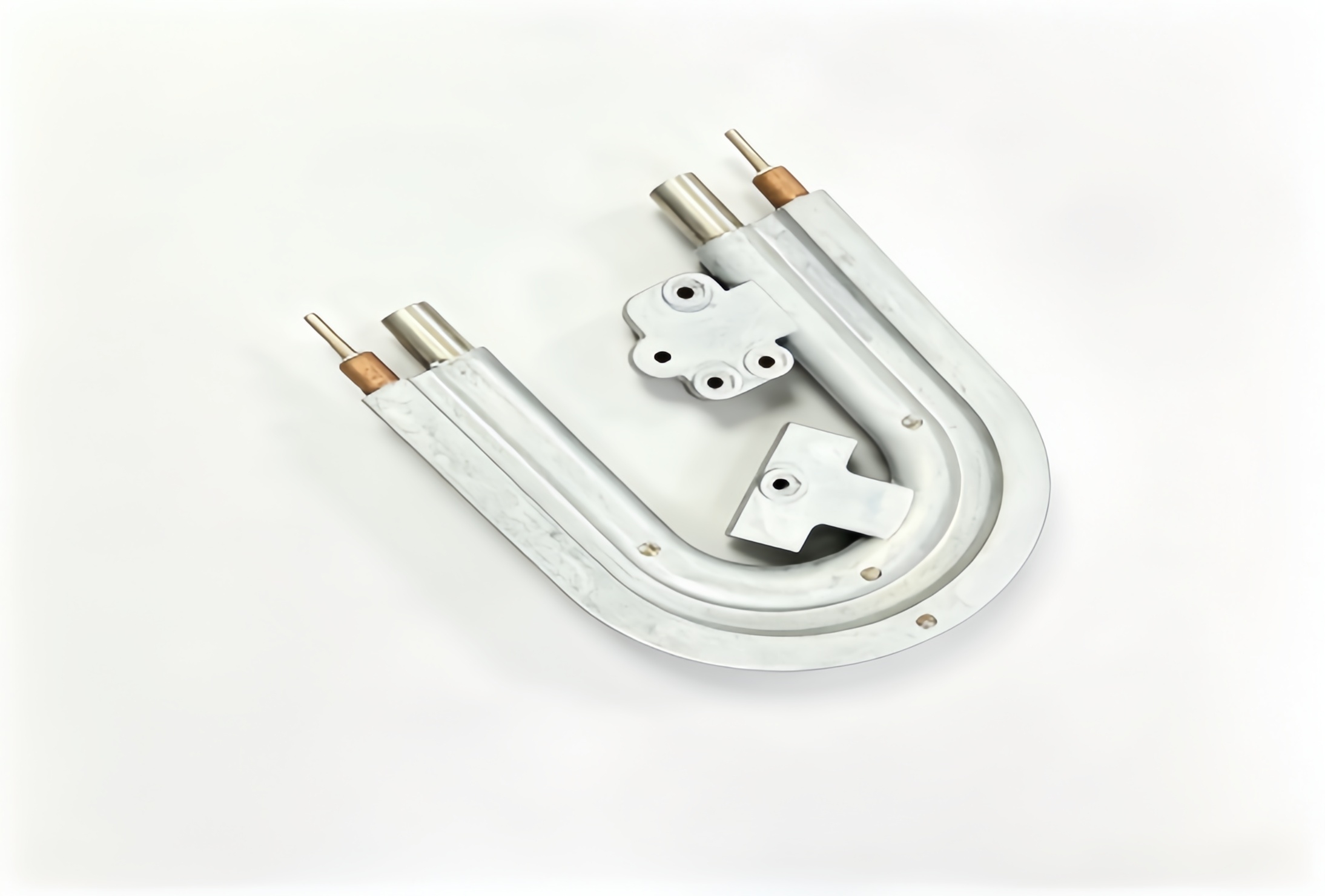

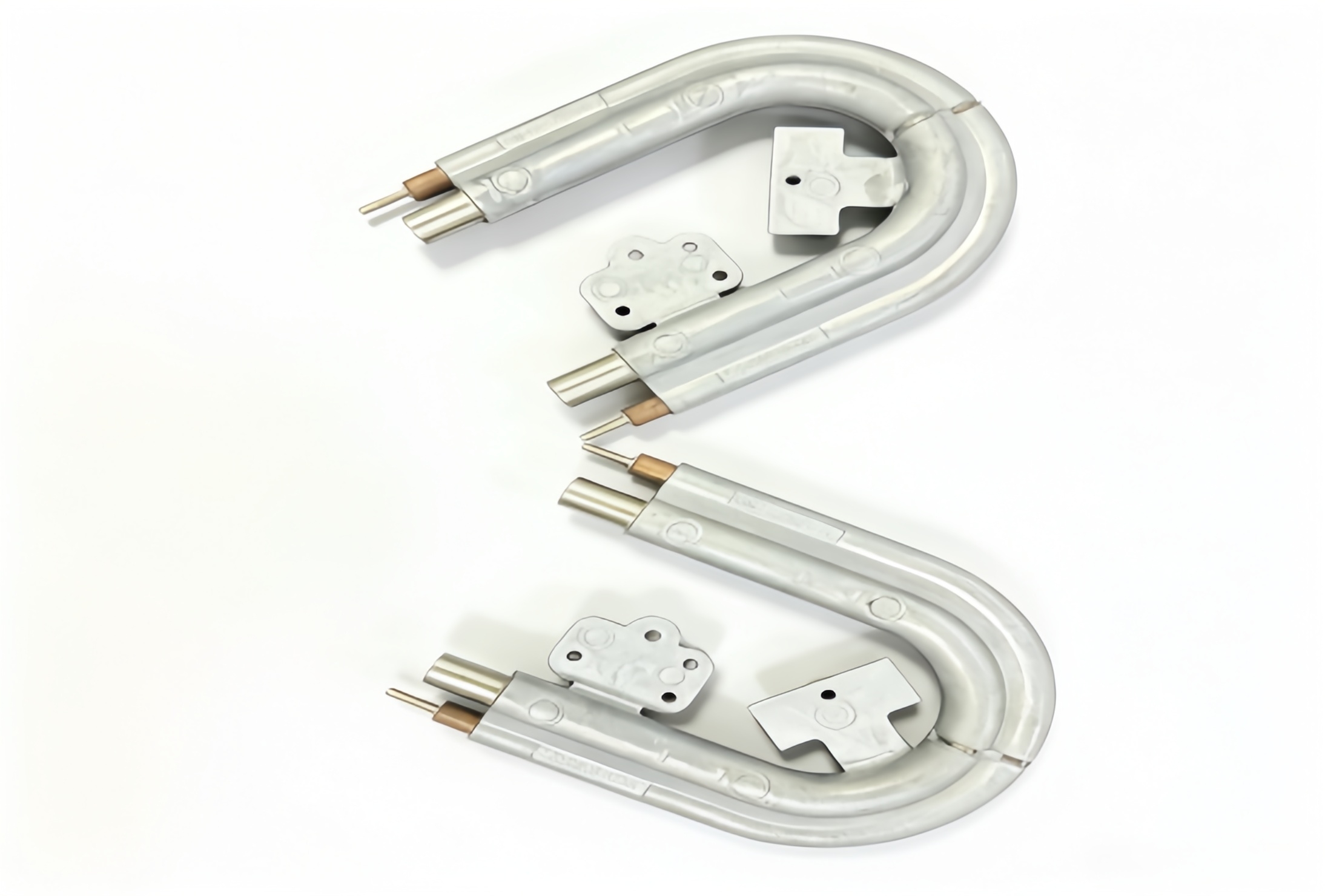

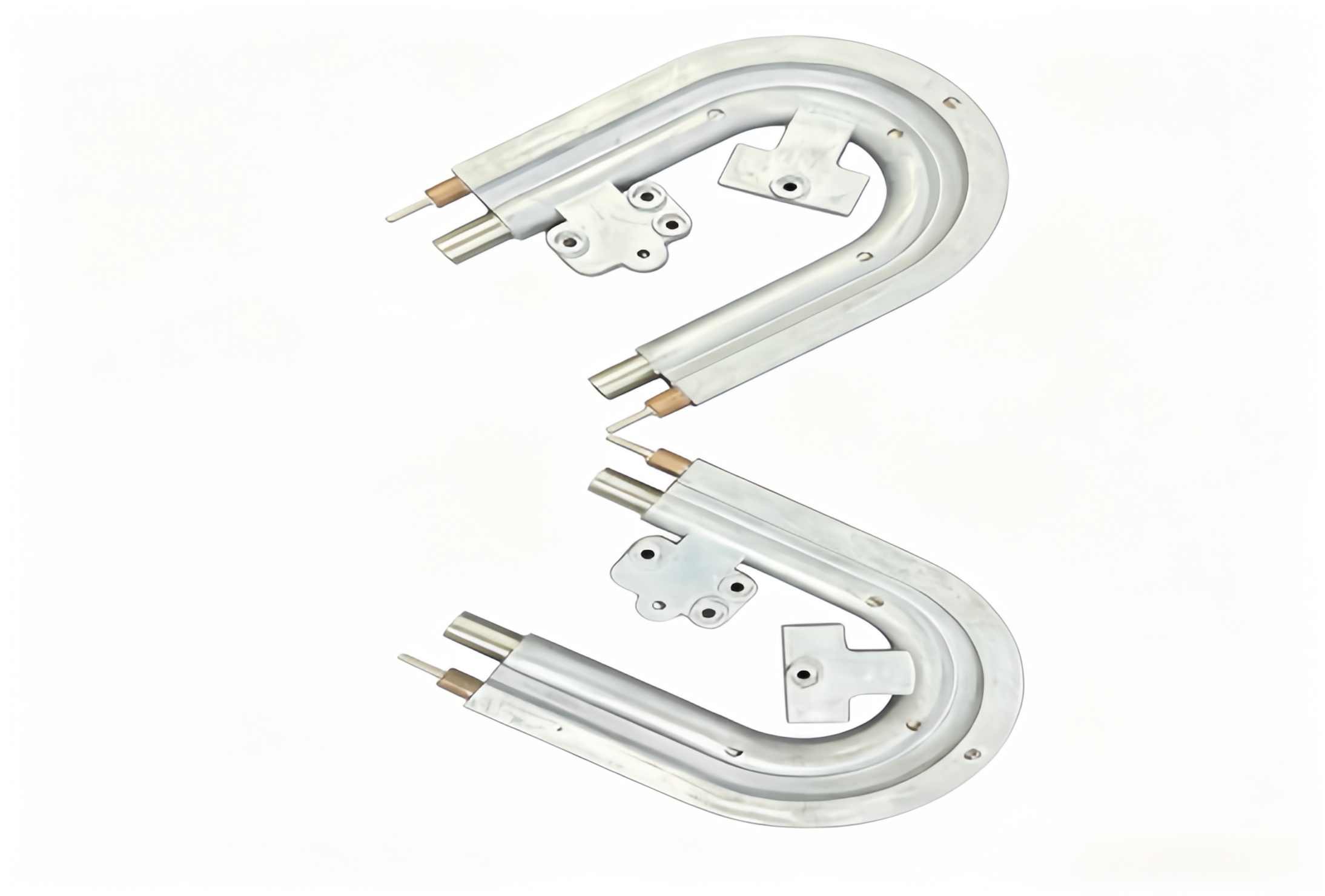

U‑form tubular heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

U‑shape tubular heating element with welded mounting brackets for commercial griddle and flat‑top grill. Stainless steel sheath for dry‑burn application. Uniform heating, sturdy terminals for heavy‑current use. Custom size, voltage and power are available. OEM is acceptable.

Material: Die-cast aluminum body, stainless steel tube, Cr20Ni80 nichrome wire, magnesium oxide insulation, copper terminal pins	Transport Package: Carton and Wooden Box, with shockproof protection
Form: U-shaped integrated die-cast aluminum structure with embedded heating tube	Specification: U cast aluminum heater, 220V, 800-2200W, 8mm tube, Cr20Ni80 wire, MGO insulation, CE&UL with Lu-Chiuan patent, custom size/power for baking ovens
Shape: U curved shape with integrated casting structure	Resistance Wire: Cr20Ni80 nichrome heating wire, high temperature resistant
Voltage: Standard 220V; Customizable 110V/120V/230V/240V	MGO: High purity magnesium oxide insulation powder
Watt: Standard 800W-2200W, custom wattage available	Tube Diameter: Standard tube diameter 8mm, custom sizes available
Product Name: U‑form tubular heater	Usage: For commercial baking ovens, bakery and toaster heating equipment

Features

U‑bent integrated forming structure, uniform heat output, fit for commercial griddle dry‑burn working
Multiple sheath material optional: SUS304 / SUS321 / SUS316 stainless steel, high temperature oxidation‑resistant
Pre‑welded mounting brackets with pre‑drilled fixing holes for quick and easy equipment assembly
High‑purity magnesium oxide filler inside, good insulation performance & fast heat conduction
Reinforced power terminals, stable connection under heavy‑current, not easy to loose after long‑time running
Fully customizable: tube diameter, overall dimension, voltage, wattage, bracket shape and terminal style
Compact structure, save internal installation space of cooking equipment
OEM & custom‑made service available according to customer drawings or samples

Package delivery

Each U‑shape tubular heating element is wrapped with protective plastic bag, separated by foam padding to avoid bending, scratching and collision. Packed into individual export carton box. For bulk orders, cartons will be loaded into export‑standard plywood case to protect the bent shape during transit. Custom packing and shipping marks are acceptable.
