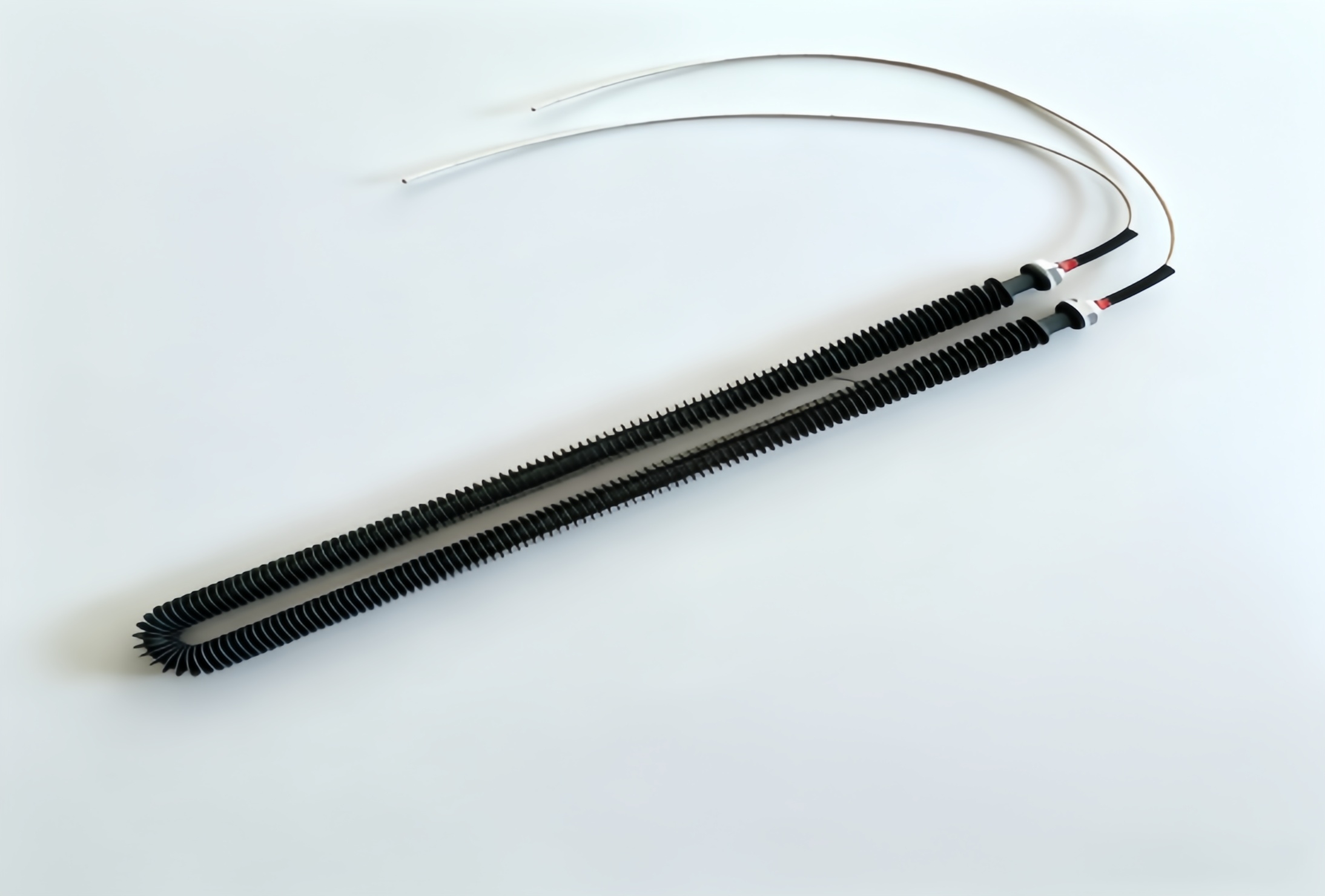

U‑Shape Finned Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

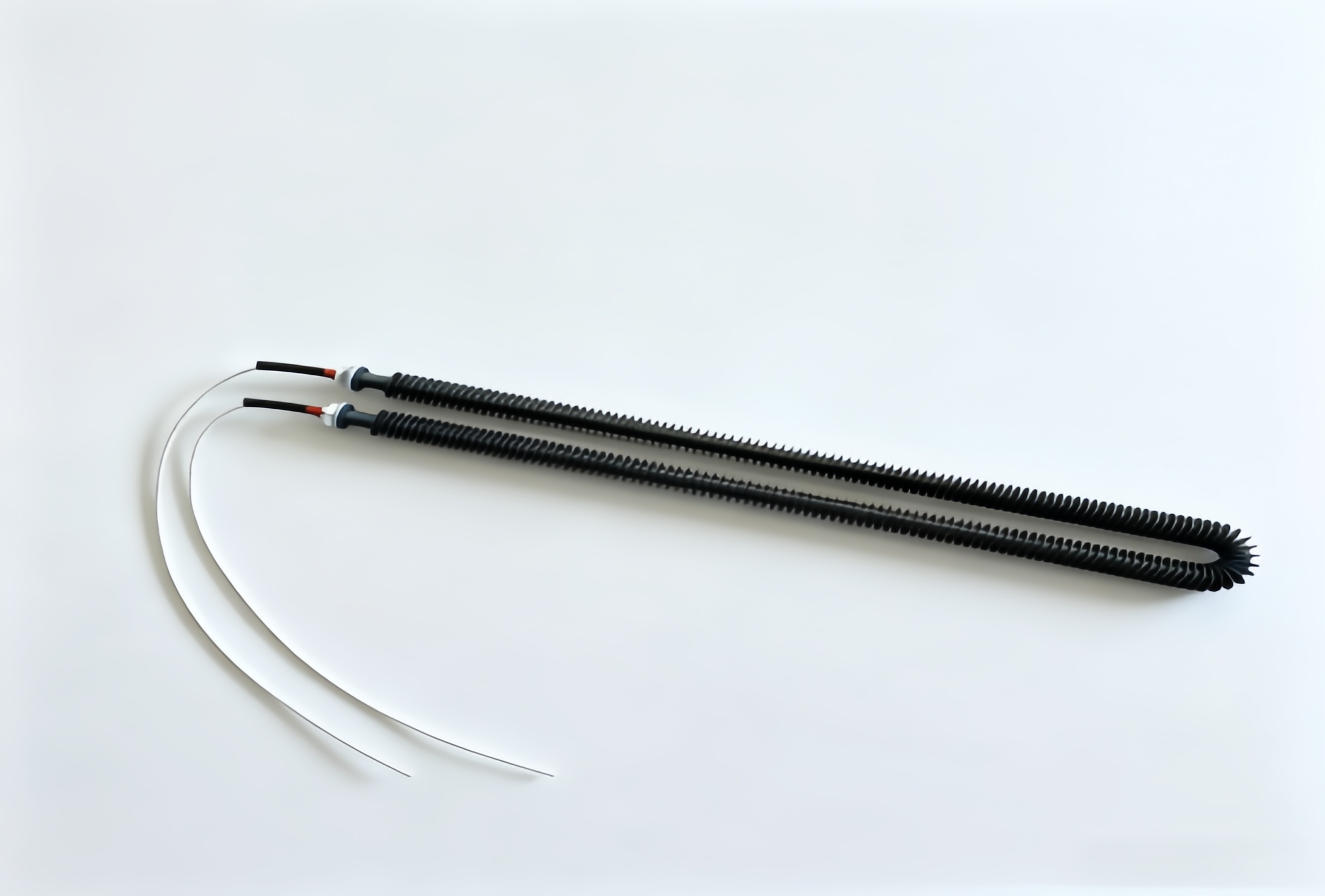

This U‑shape finned heating tube with long high‑temperature lead wire is specially made for air dry‑burn heating. The finned surface improves heating efficiency. Extended lead wire makes wiring convenient and flexible. All specifications can be customized for ovens, dryers and hot‑air circulation systems.

Material: Tube: SUS304/316L/Incoloy 800; Filler: High purity MGO; Wire: Ni80Cr20; Coating: Black anti-corrosion high temp paint	Transport Package:Carton and Wooden Box
Form: U-bend double tubular form with spiral radiating fins, dry air heating structure	Specification: Tube Dia:10/12/14/16mm, Length:300-1500mm, Volt:110/220/380V, Watt:3-12KW, U spiral fin shape
Shape: U-shaped double tube covered with spiral cooling fins	MGO: High purity MGO insulation powder inside tube
Voltage: 110V / 220V / 380V, customized available	Resistance Wire: Ni80Cr20 Nichrome Alloy, high temperature resistant, long service life
Watt: 3000W to 12000W, custom wattage supported	Tube Diameter: 10mm,12mm,14mm,16mm, customizable
Product Name: U‑Shape Finned Tubular Heater	Usage: Industrial oven, dryer, air duct heater, baking & drying equipment

Features

U‑shaped finned design for larger heat‑dissipation area
Long high‑temperature lead wire for flexible wiring
High heating efficiency and fast temperature rise
Stable performance for long‑time air dry‑burn operation
Customizable voltage, power and lead‑wire length

Package delivery

Each heating tube is wrapped with bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.

Packing: Bubble wrap + export carton

Carton Qty: 12 pcs

Gross Weight: 6.0 kg

Package Size: 65cm × 25cm × 15cm

Volume: 0.0244 CBM
