Product Description

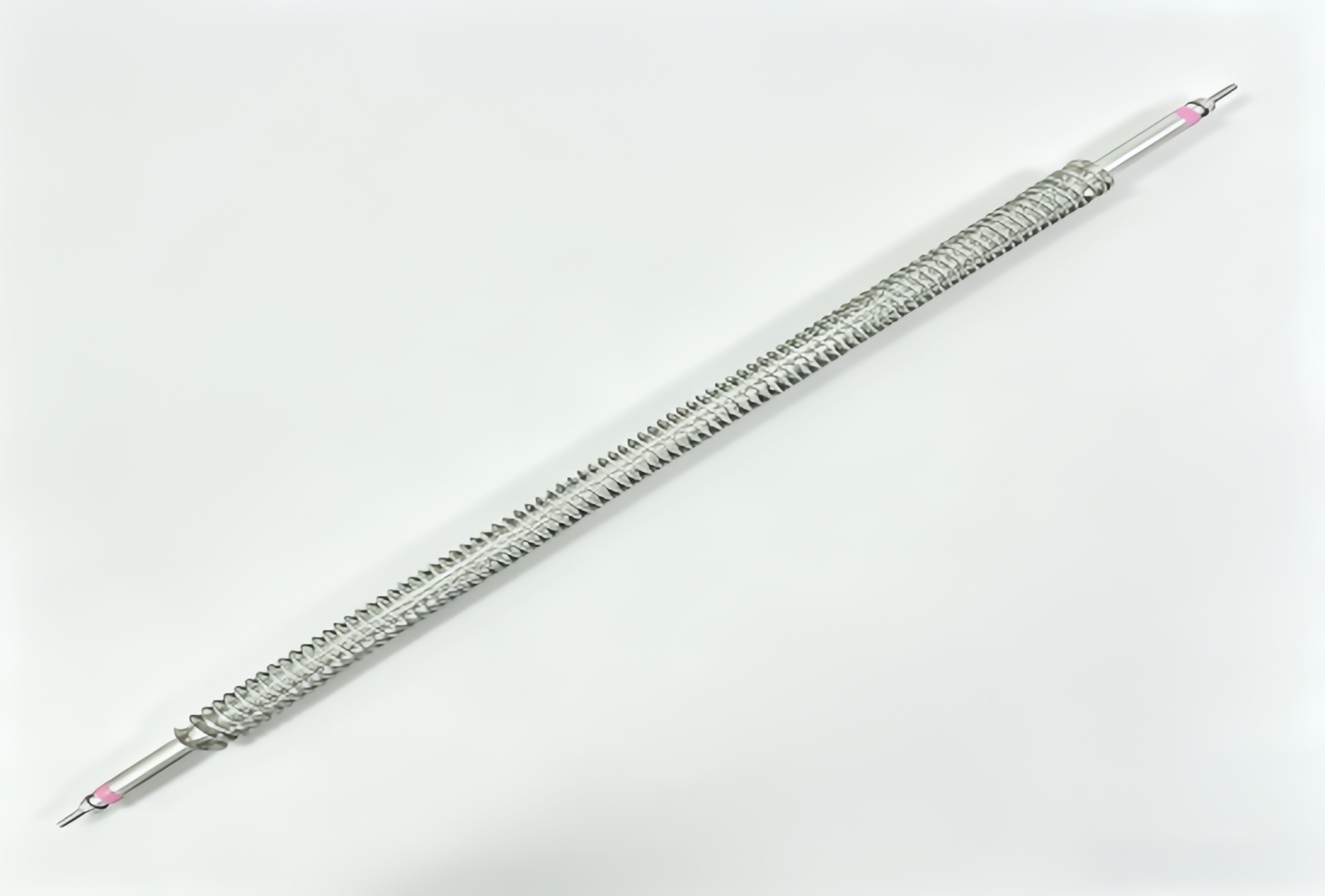

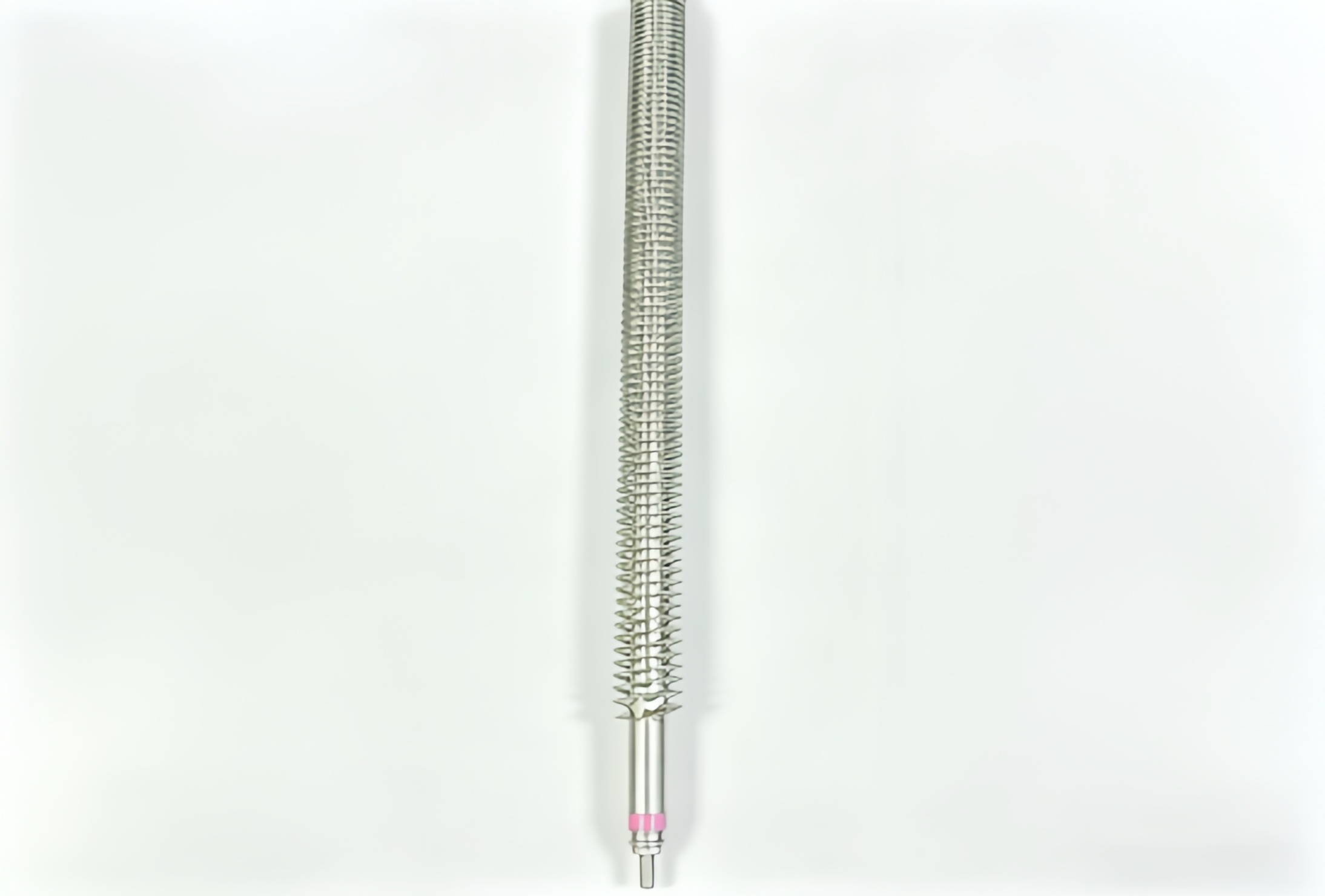

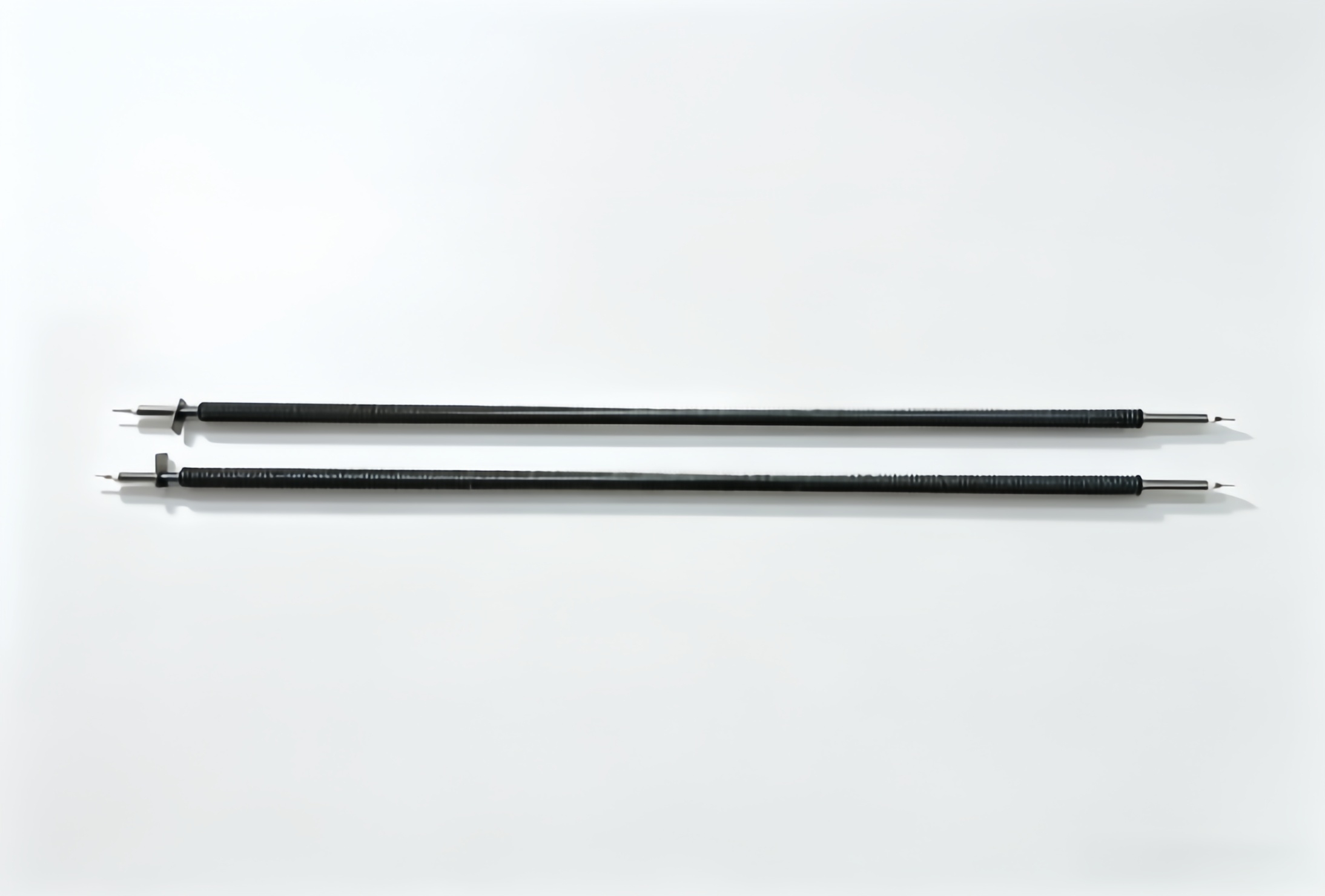

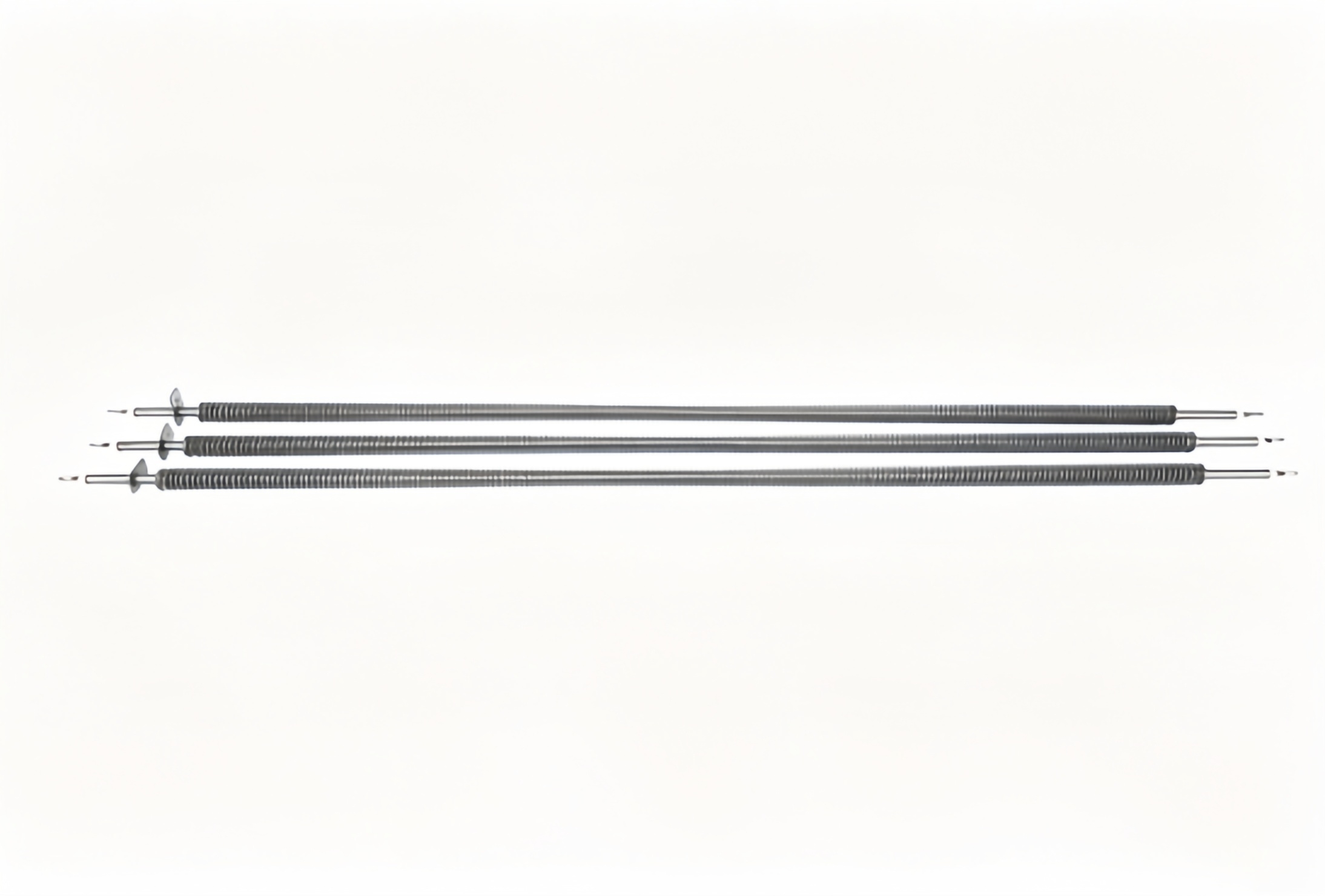

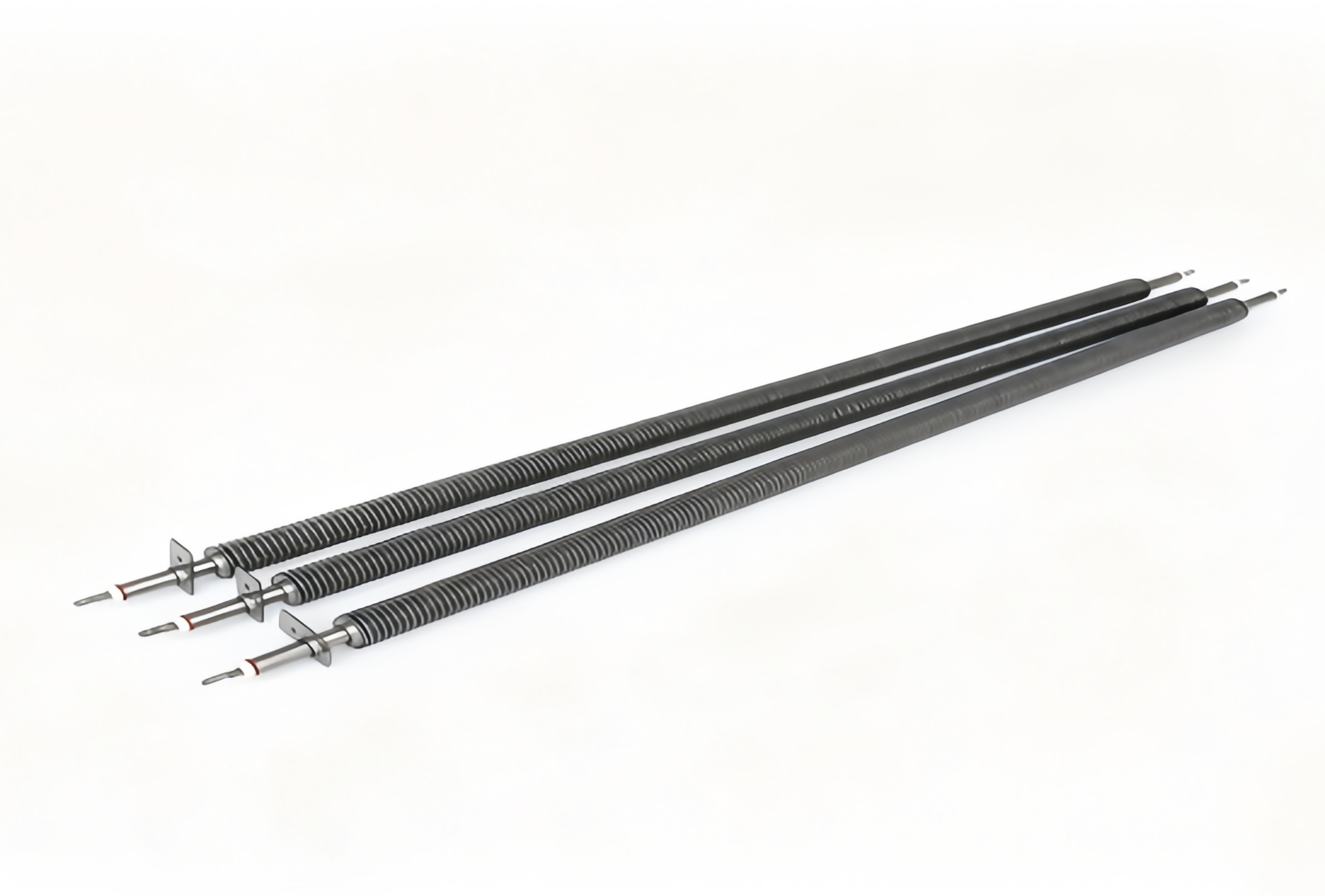

This straight finned heating tube with fixing plate is designed for air dry‑burn heating. Fins greatly increase heat‑dissipation area and improve heating efficiency. The mounting bracket enables fast and secure installation. All specifications can be customized for ovens, dryers and hot air systems.
| Material: Outer Tube: SUS304 / SUS310S stainless steel Cooling Fins: Rolled stainless steel spiral fins Heating Wire: Nickel-chromium alloy resistance wire Insulation Filler: High-purity magnesium oxide powder Mounting Bracket & Terminal Plate: Stainless steel | Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately. |
| Form: Straight tubular structure, continuous spiral fins wrapped outside the tube body, fixed mounting flange at one end for installation, exposed terminal pins for wiring connection. | Certification: CE, ISO9001, RoHS, CB, CCC |
| Shape: Straight cylindrical heating tube, spiral fins wound around the tube surface, square flat mounting flange on one end. | MGO: Insulating filler inside the heating tube, high purity magnesium oxide powder. Excellent thermal conductivity & electrical insulation performance. Effectively transfer heat from resistance wire to outer tube, prevent short circuit and leakage. |
| Voltage: 110V/220V/230V/380V, customizable | Resistance Wire: Nickel-chromium alloy resistance wire (Ni80Cr20) |
| Power: 500W–6000W, customizable | Tube Diameter: 10mm / 12mm / 14mm / 16mm / 20mm,customizable |
| Product Name: Straight Finned Heating Tube With Mounting Bracket | Application: Drying oven, air duct, industrial heater, bakery equipment, curing machine |
Features
Straight finned structure for large heat‑dissipation area
Built‑in mounting bracket for quick and firm installation
High heating efficiency, fast temperature rising speed
Excellent thermal stability for long‑time dry‑burn service
Customizable voltage, power and overall length
Package delivery
Each heating tube is wrapped with bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.
Packing: Bubble wrap + export carton
Carton Qty: 12 pcs
GrossWeight: 6.0 kg
Package Size: 65cm × 25cm × 15cm
Volume: 0.0244 CBM
