Coiled Spiral Finned Heating Tube With Mounting Plate

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

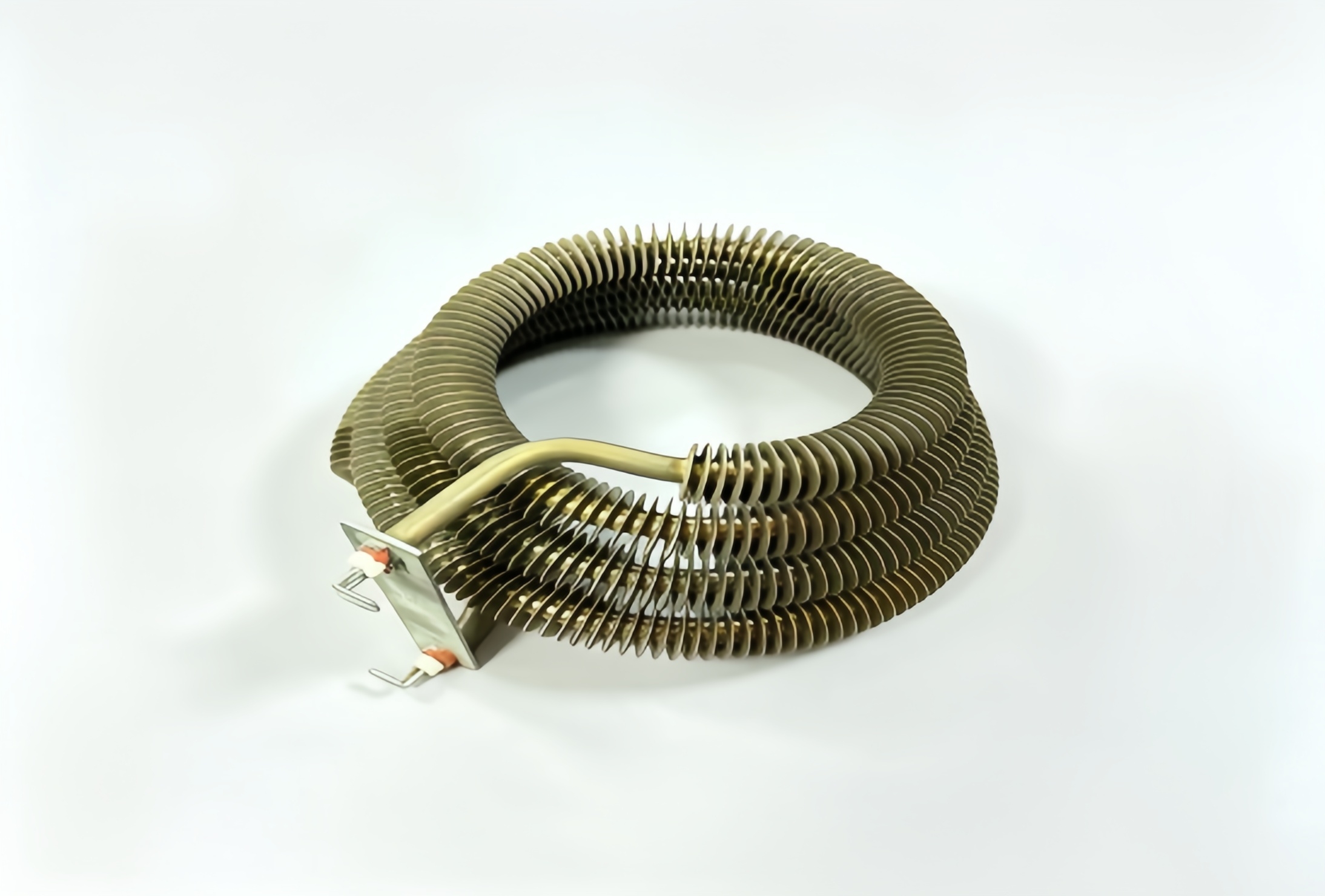

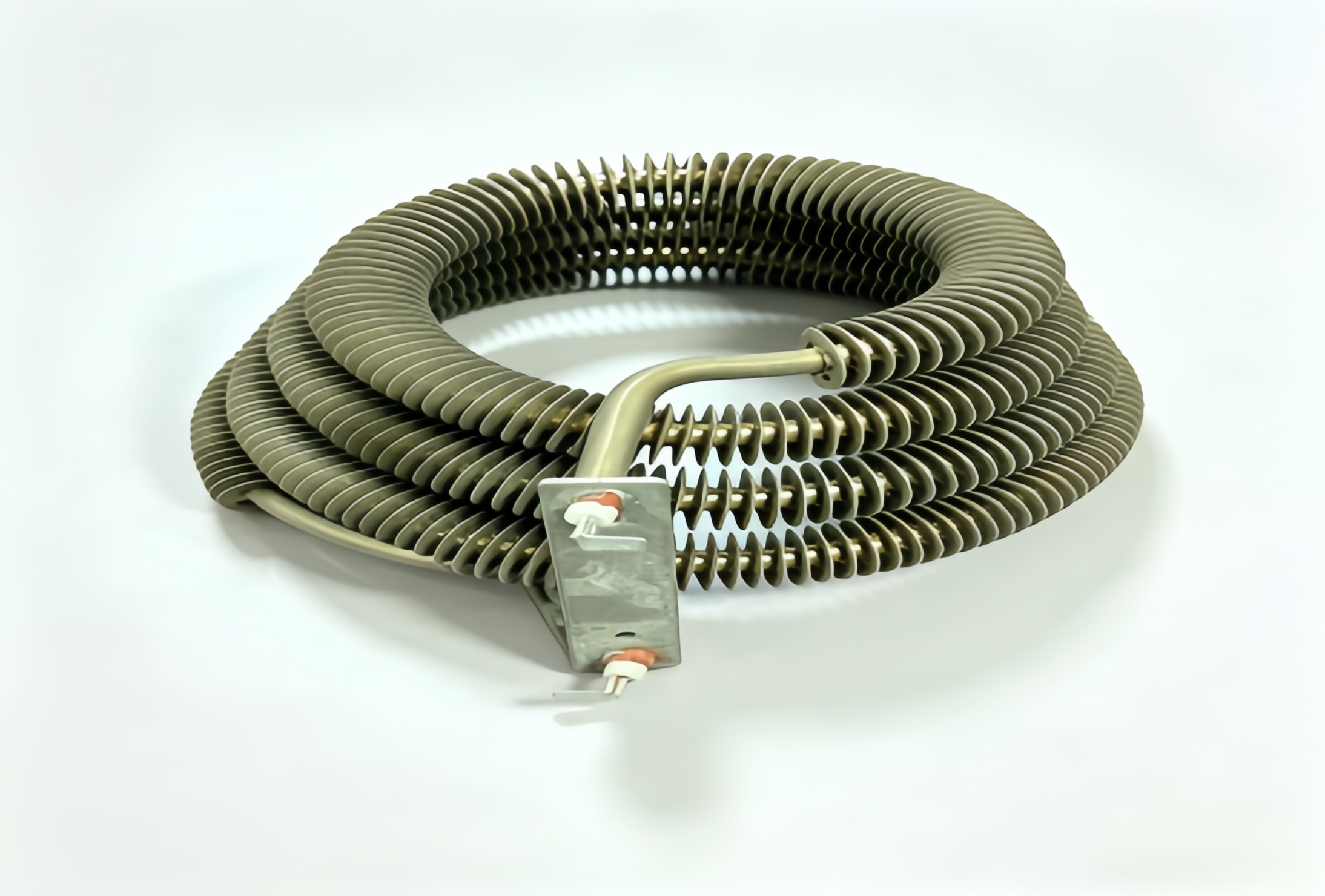

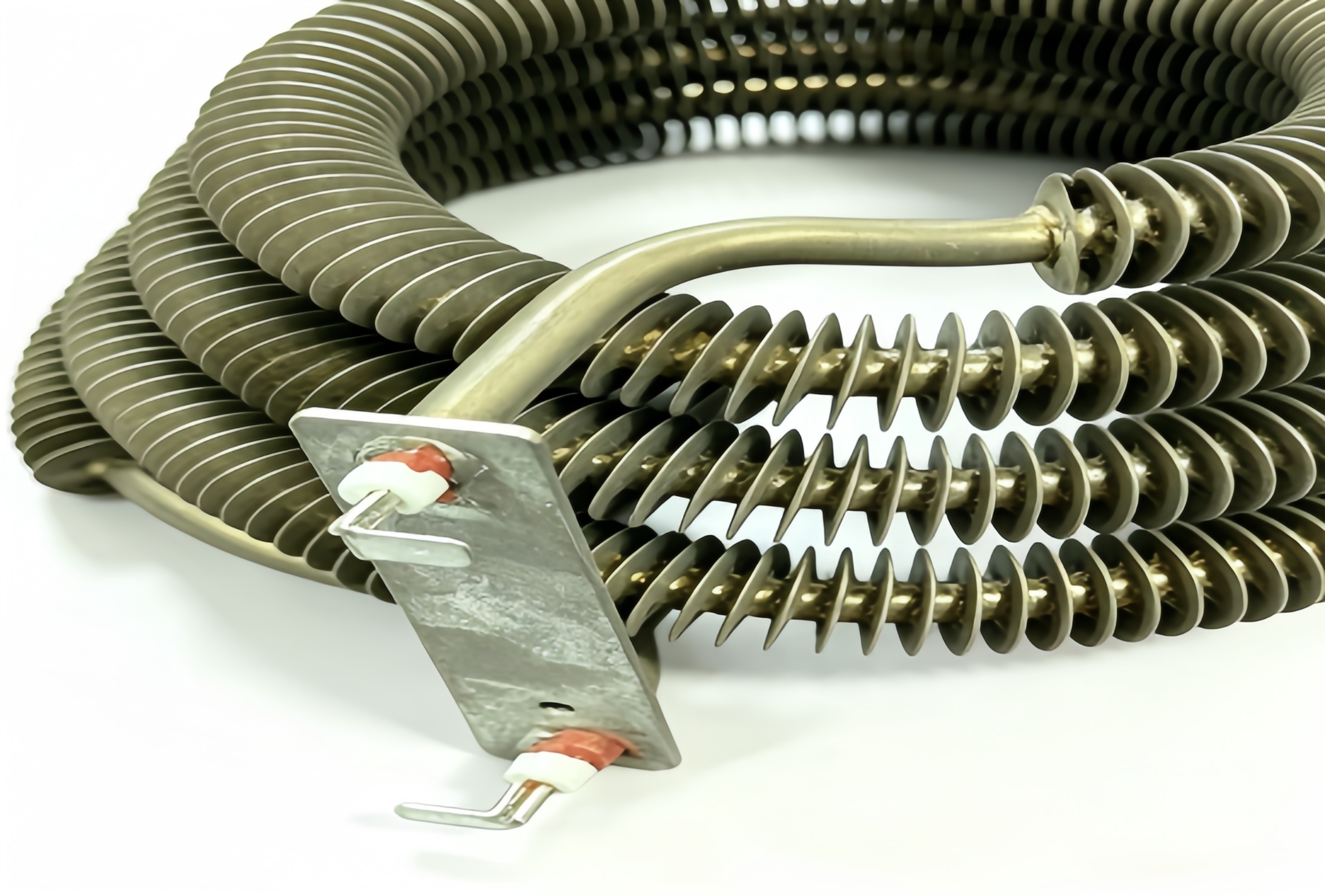

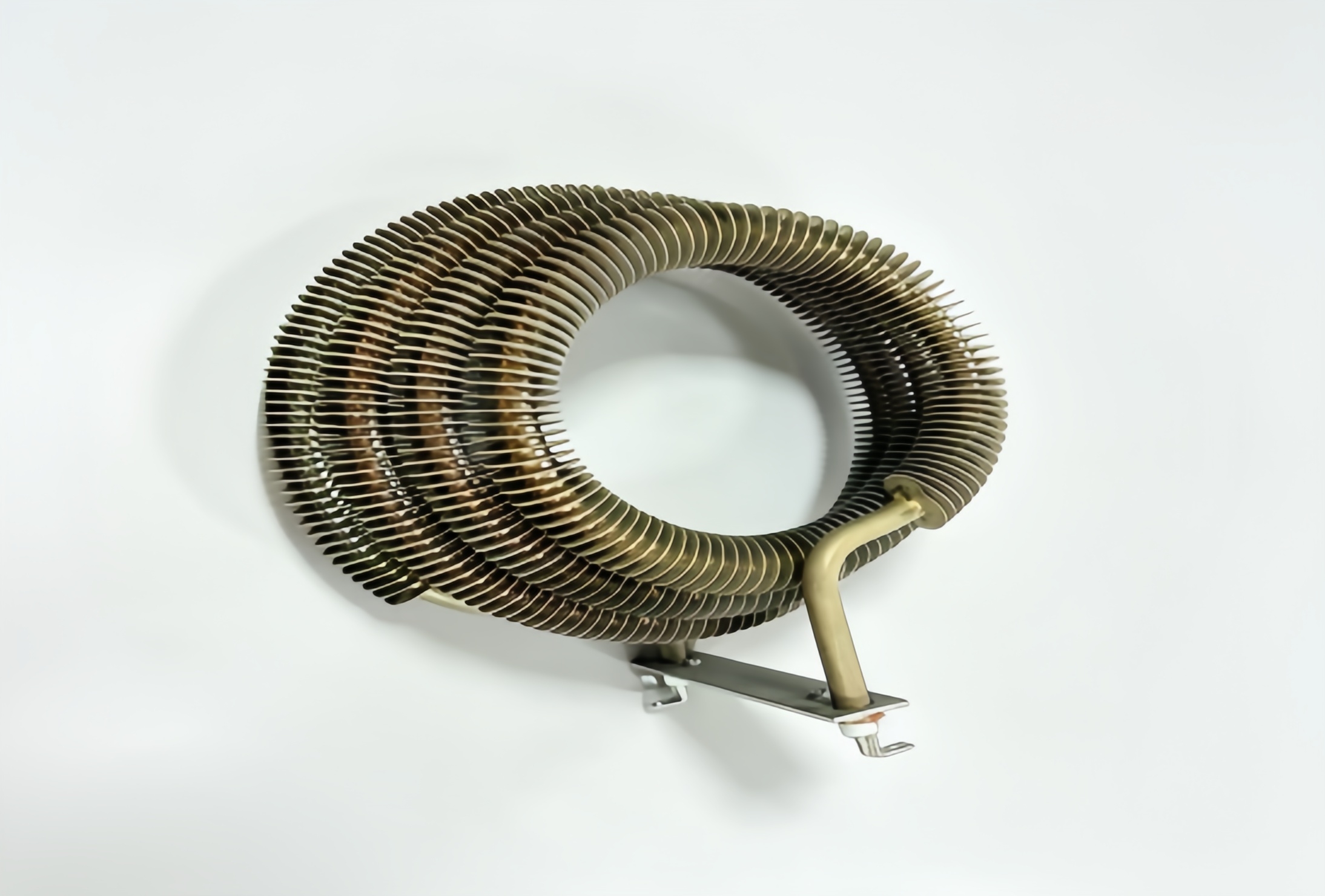

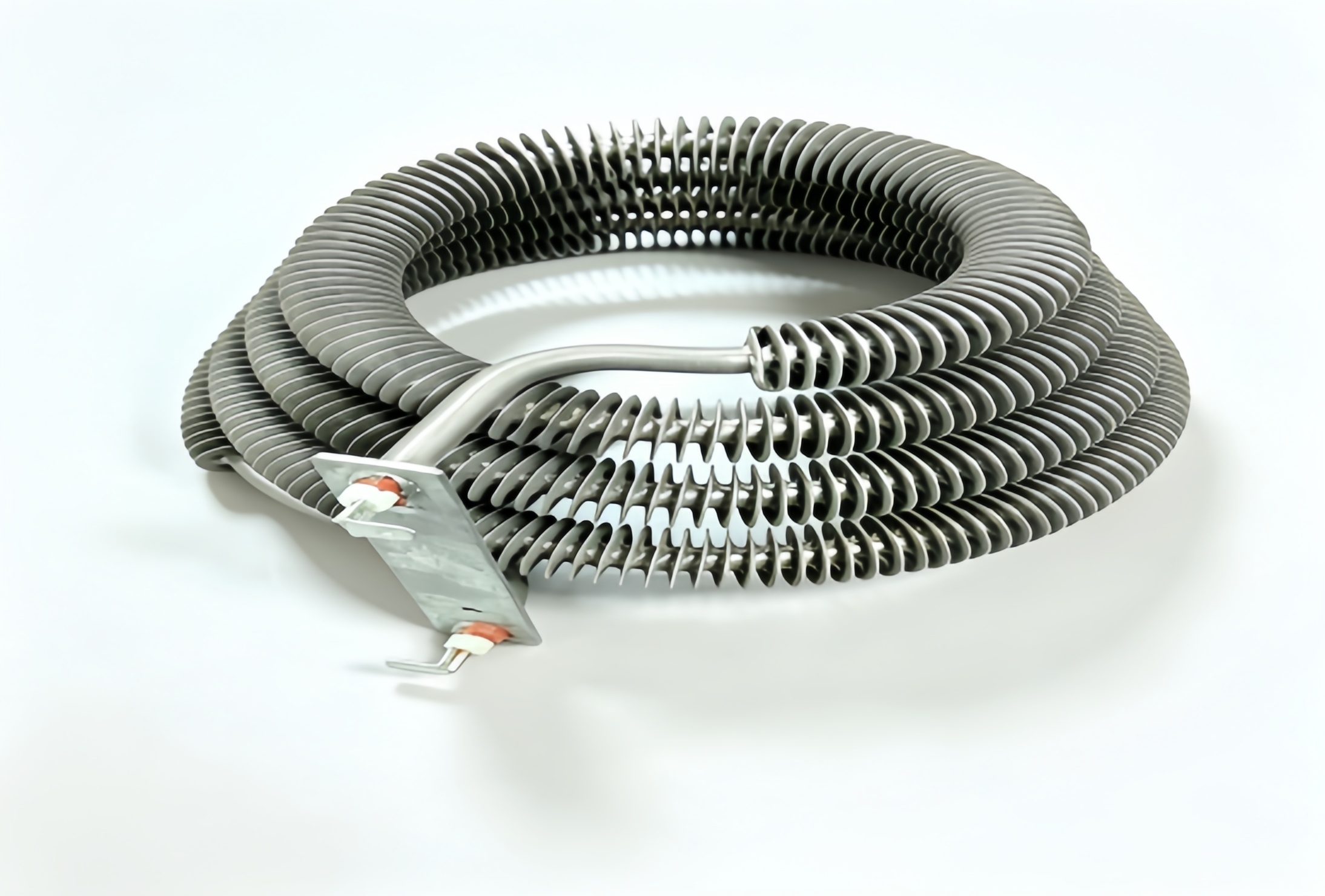

This spiral‑coiled finned heating tube with fixing plate is designed for air dry‑burn heating. The circular coiled‑finned structure maximizes heat‑dissipation area. Built‑in mounting plate enables quick and stable installation. All specifications can be customized for ovens, dryers and hot‑air circulation equipment.

Material: SUS304 / Incoloy 800 tube, stainless fin, high purity MGO insulation	Transport Package:Carton and Wooden Box
Form: Spiral coiled finned tubular heater with fixed mounting bracket and ceramic terminals	Specification:Customized
Shape: Spiral circular coil shape with layered cooling fins	Resistance Wire: Cr20Ni80 nickel-chromium resistance wire, high temperature resistant
Voltage: 110V, 220V, 230V, 380V Custom voltage available upon request	MGO: High purity MGO insulation powder inside tube
Watt: 3KW, 4.5KW, 6KW, 9KW Custom wattage supported according to customer drawings	Tube Diameter: 10mm, 12mm Custom tube size is acceptable
Product Name: Coiled Spiral Finned Heating Tube With Mounting Plate	Usage: Mainly used for commercial convection ovens, bakery ovens, rotary ovens, air circulation drying equipment, food baking machinery.

Features

Spiral‑coiled finned structure for ultra‑large heat‑dissipation area
Mounting plate for stable and convenient installation
High thermal efficiency, rapid and uniform temperature rise
Reliable performance for long‑time air dry‑burn working
Customizable voltage, power and spiral coil dimension

Package delivery

Each heating tube is wrapped with bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.

Packing: Bubble wrap + export carton

Carton Qty: 12 pcs

Gross Weight: 6.0 kg

Package Size: 65cm × 25cm × 15cm

Volume: 0.0244 CBM
