Circular Finned Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

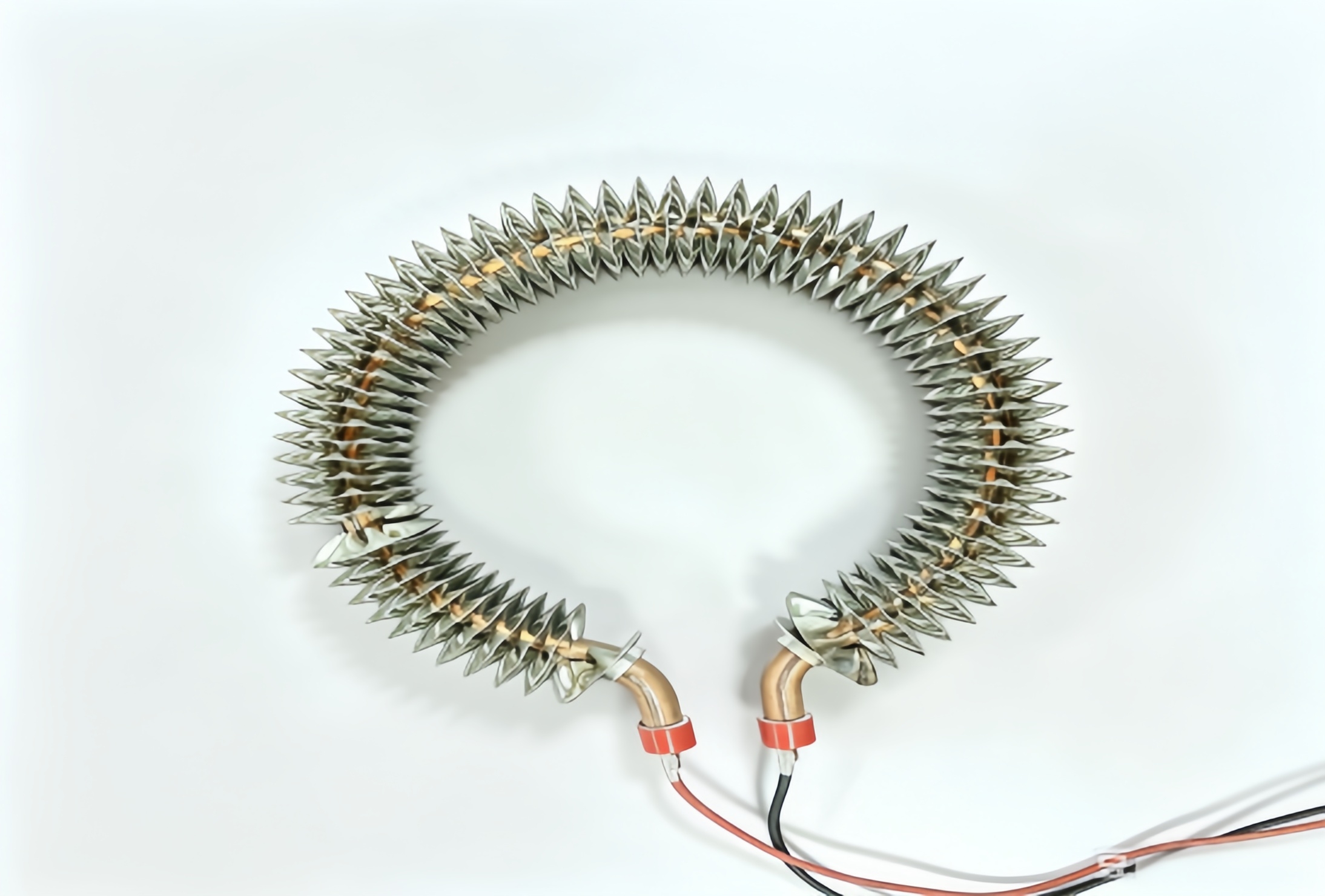

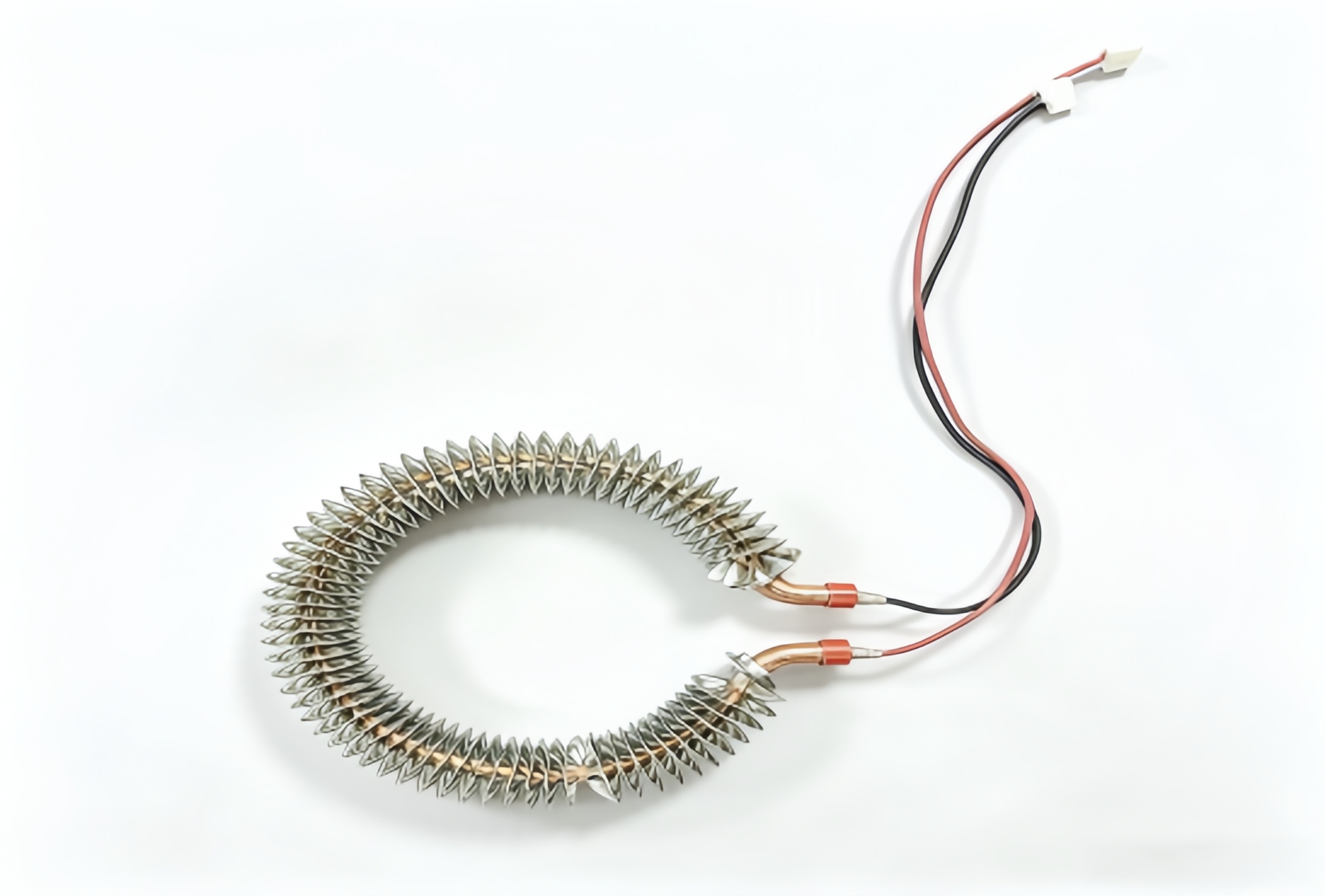

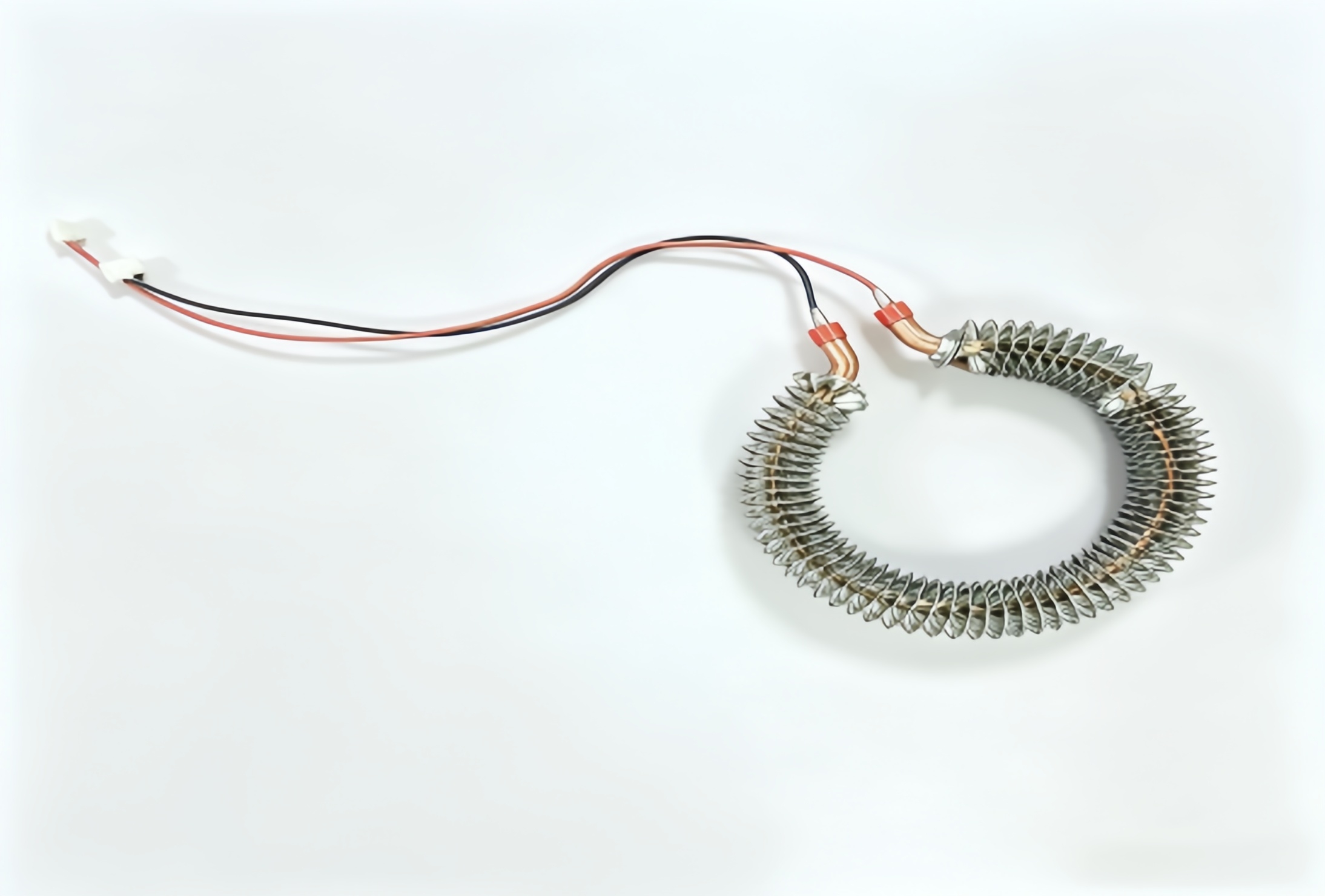

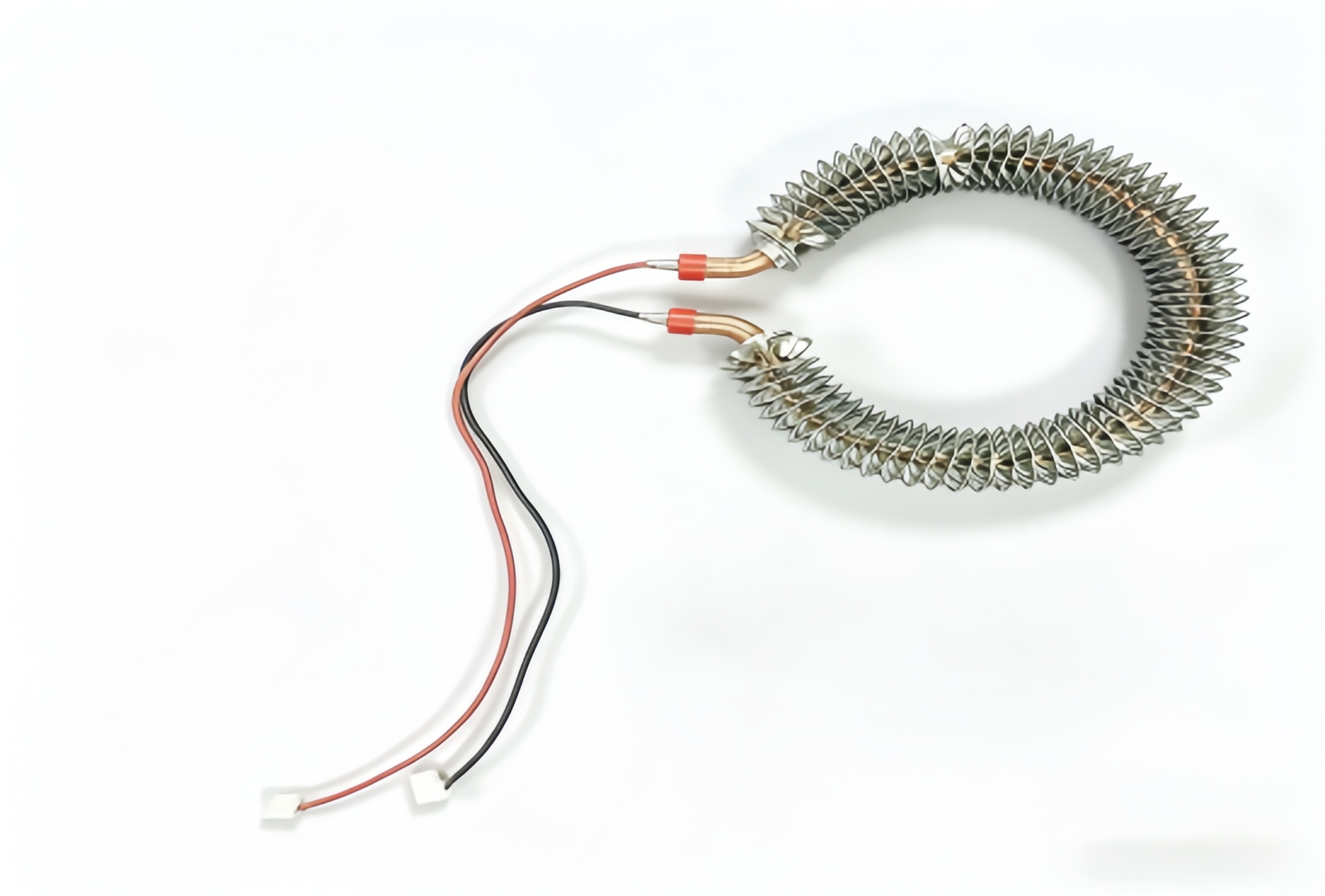

This circular finned tubular heater is a loop‑shaped air dry‑burning heating element. Dense metal fins greatly enlarge heat‑dissipation area and improve heating efficiency. It comes with high‑temperature resistant lead wires and plug‑in connector for quick installation, suitable for ovens, hot‑air dryers and other air‑heating devices. Voltage, power and size can be fully customized.

Material: Heating Tube: SUS304 stainless steel / SUS316L stainless steel / Incoloy 800 alloy Heat Dissipation Fin: Stainless steel Lead Wire: High-temperature fiberglass silicone wire Insulating Sleeve: High temperature silicone Terminal Connector: Plastic flame-retardant plug	Transport Package: Standard Export Carton, Reinforced Plywood Case for Large Size
Form: Closed circular ring shape with spiral stainless steel fins, pre-wired with plug wires for air heating	Specification: Voltage: 110V/220V/380V, customizable Power: 500W-6000W, customizable Tube Diameter: Φ8/Φ10/Φ12mm, customizable Shape: Closed circular ring with spiral stainless steel fins Material: SUS304 / SUS316L / Incoloy 800 tube, stainless steel fins Standard wire length: 300mm, extendable
Shape: Closed circular ring tube with spiral cooling fins	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 110V, 220V, 380V customizable	MGO: No MGO filling, mica sheet insulation instead
Power: 500W - 6000W, customizable	Tube Diameter: Φ8mm, Φ10mm, Φ12mm, customizable
Product Name: Circular Finned Tubular Heater	Application: Fan heater, air dryer, circulating air oven, hot air circulation equipment

Features

Circular loop‑shaped finned structure, large heat‑dissipation area
High thermal efficiency, fast and uniform heating for air dry‑burning
Nickel‑chromium wire & MGO insulation, stable performance & long service life
Pre‑fitted high‑temperature wire & connector, easy wiring and installation
Fully customizable: voltage, power, tube diameter and loop size

Package delivery

Each loop finned heater is wrapped by bubble film to protect fins against deformation, then packed into sturdy export cartons. 12 pieces per carton. Custom‑packaging service is offered. Sea freight, air freight and courier delivery are all available.

Download

None
