S‑Shaped Finned Heating Tube

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

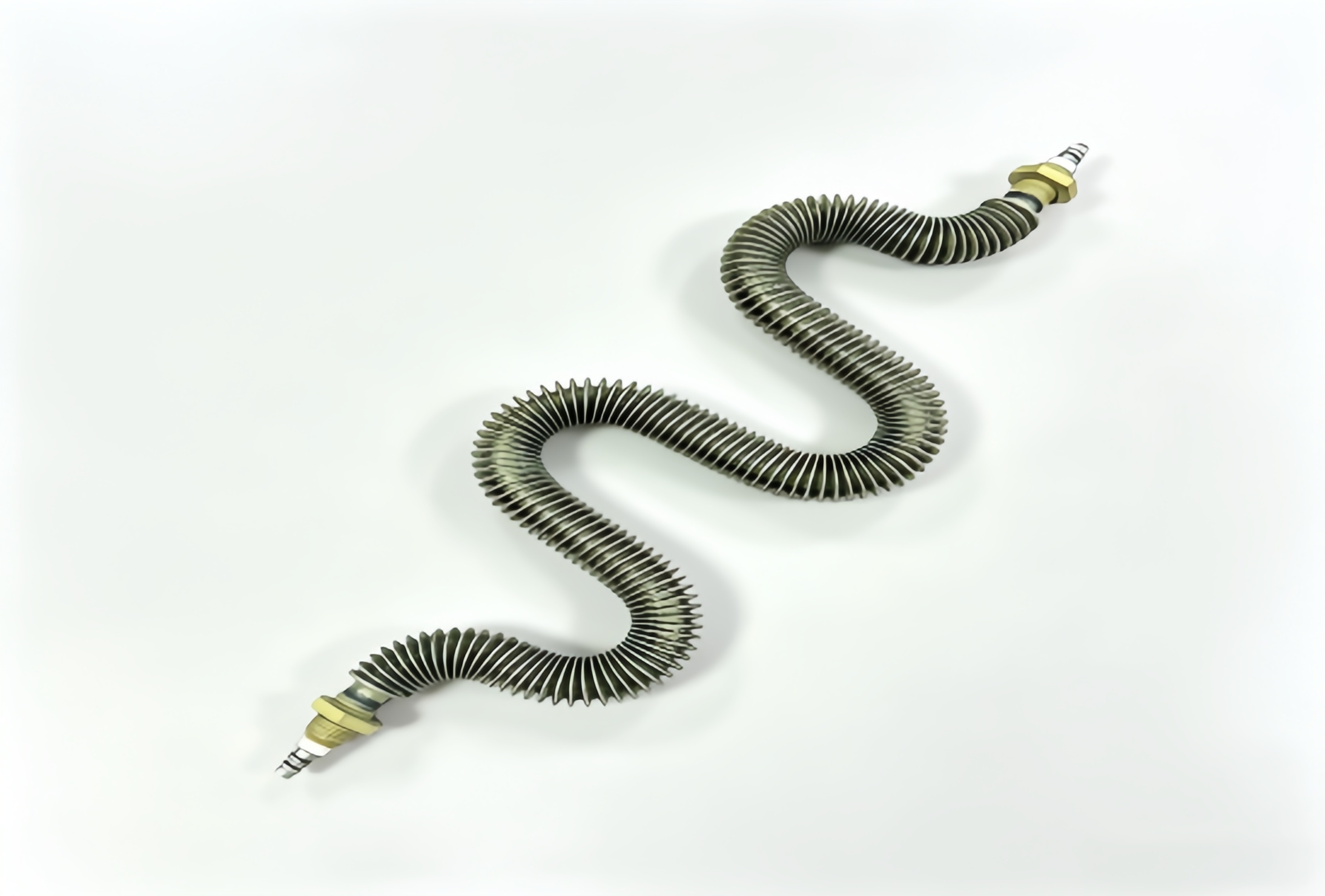

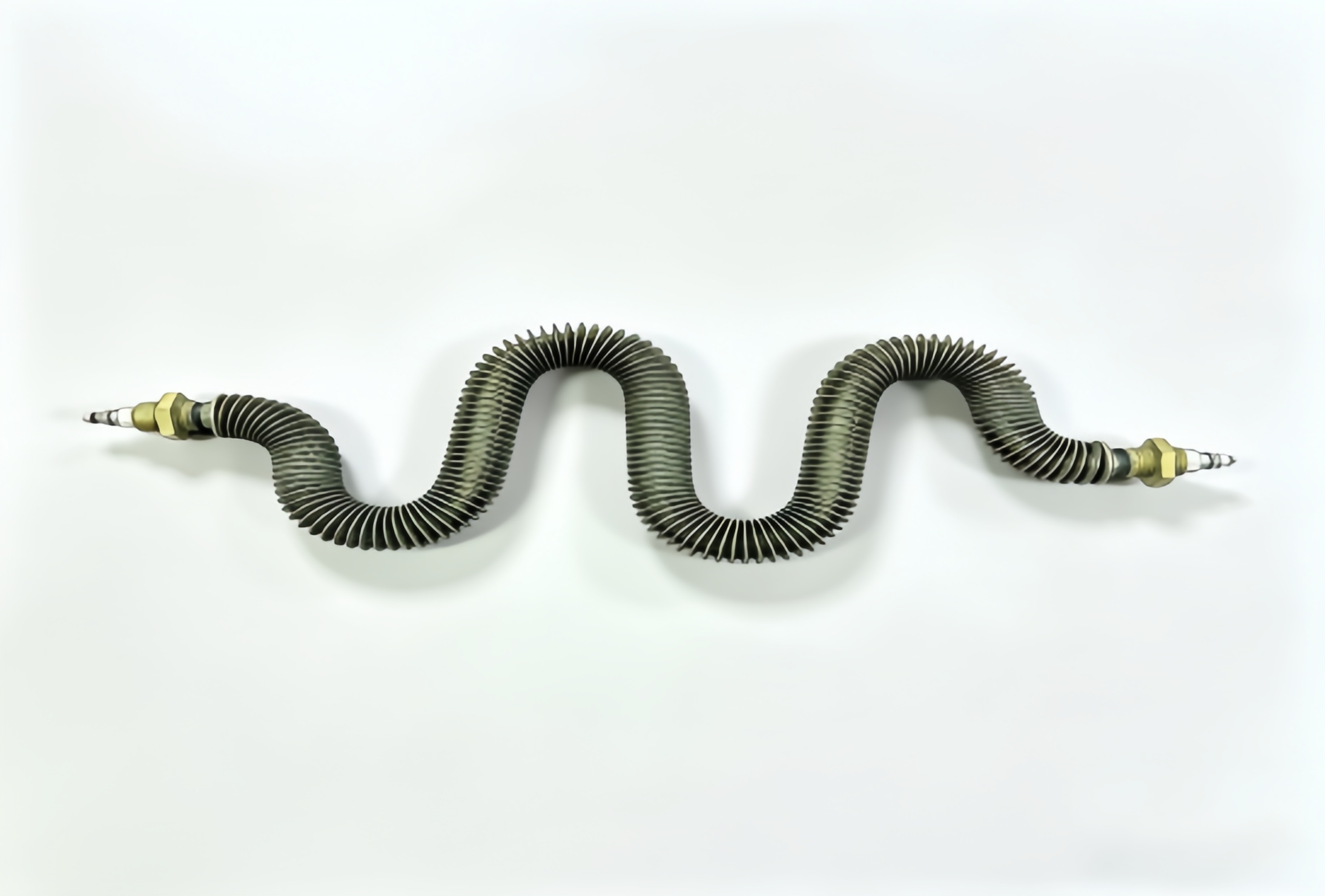

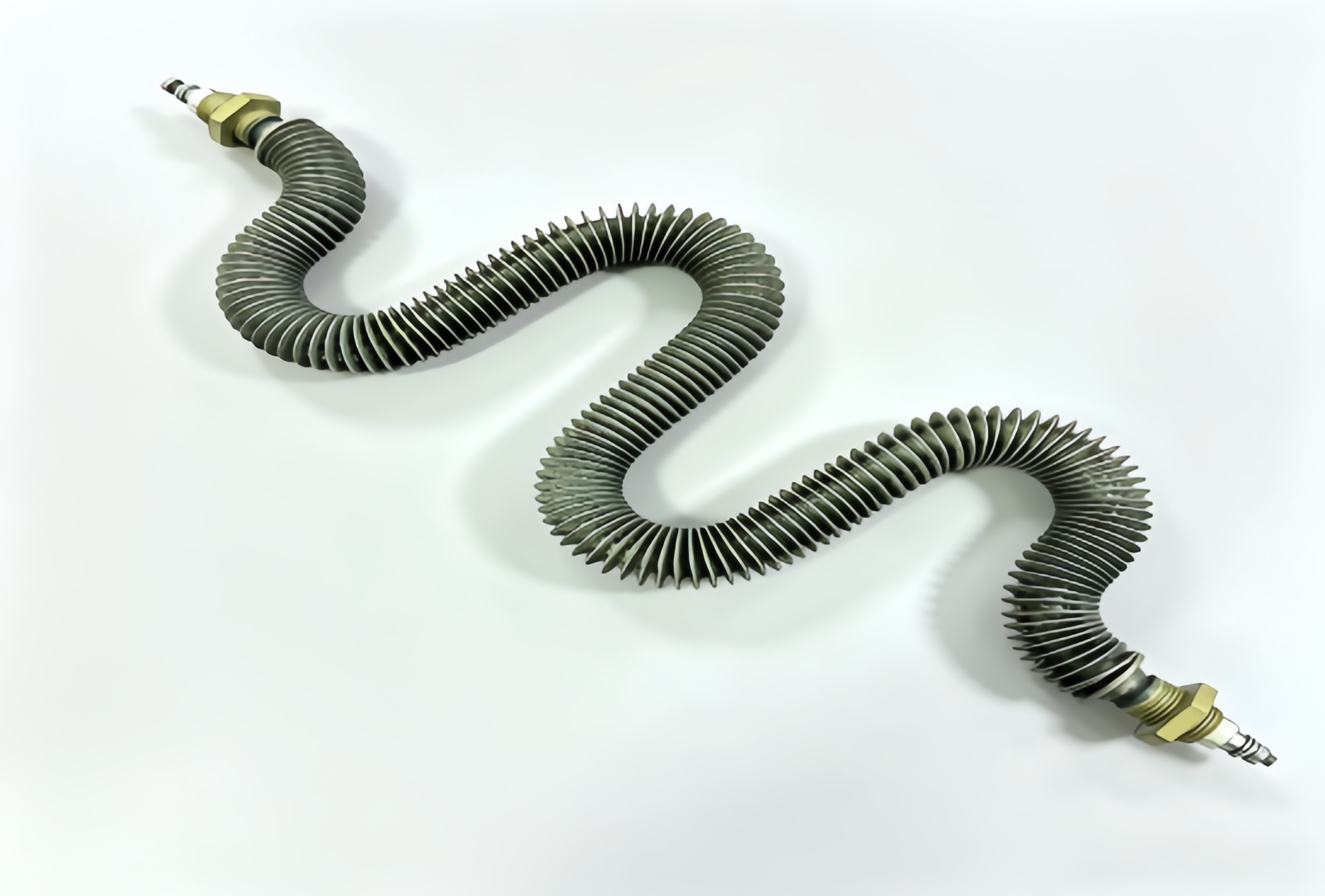

This S‑shape finned heating tube is an air dry‑burn electric heater. Welded fins greatly enlarge the heat‑dissipation area for rapid, uniform heating. Threaded brass terminals provide convenient and firm wiring connection. All specifications and bending shapes are customizable for industrial ovens and drying machinery

Material: Stainless Steel Tube, Stainless Steel Fin, Nickel-chromium Wire, High Purity MGO Powder	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Bent Finned Tubular	Specification: Customized on voltage, power, tube diameter, overall length and bending shape
Shape: Multi-wave W bent tubular shape	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: Customized (110V, 220V, 230V, 380V optional)	Resistance Wire: Ni80Cr20 nickel-chromium alloy wire
Power: Customized, range from 300W to 6000W	MGO: High purity magnesium oxide (MGO) insulation filler
Tube Diameter: Customized (8mm,10mm,12mm,14mm optional)	Application: Industrial Oven, Drying Machine, Air Duct Heating Equipment

Features

Unique S‑wave bent shape, fit for special‑space installation
Spiral finned structure, larger heat‑dissipation area and high efficiency
Brass threaded terminals, firm connection and easy wiring
Good high‑temperature resistance, stable performance for long‑time dry‑burn
Fully‑customized bending shape, voltage, power and size

Package delivery

Each heater is wrapped by bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.

Packing: Bubble wrap + export carton

Carton Qty: 10 pcs

Gross Weight: 5.5 kg

Package Size: 70cm × 25cm × 15cm

Volume: 0.0263 CBM
