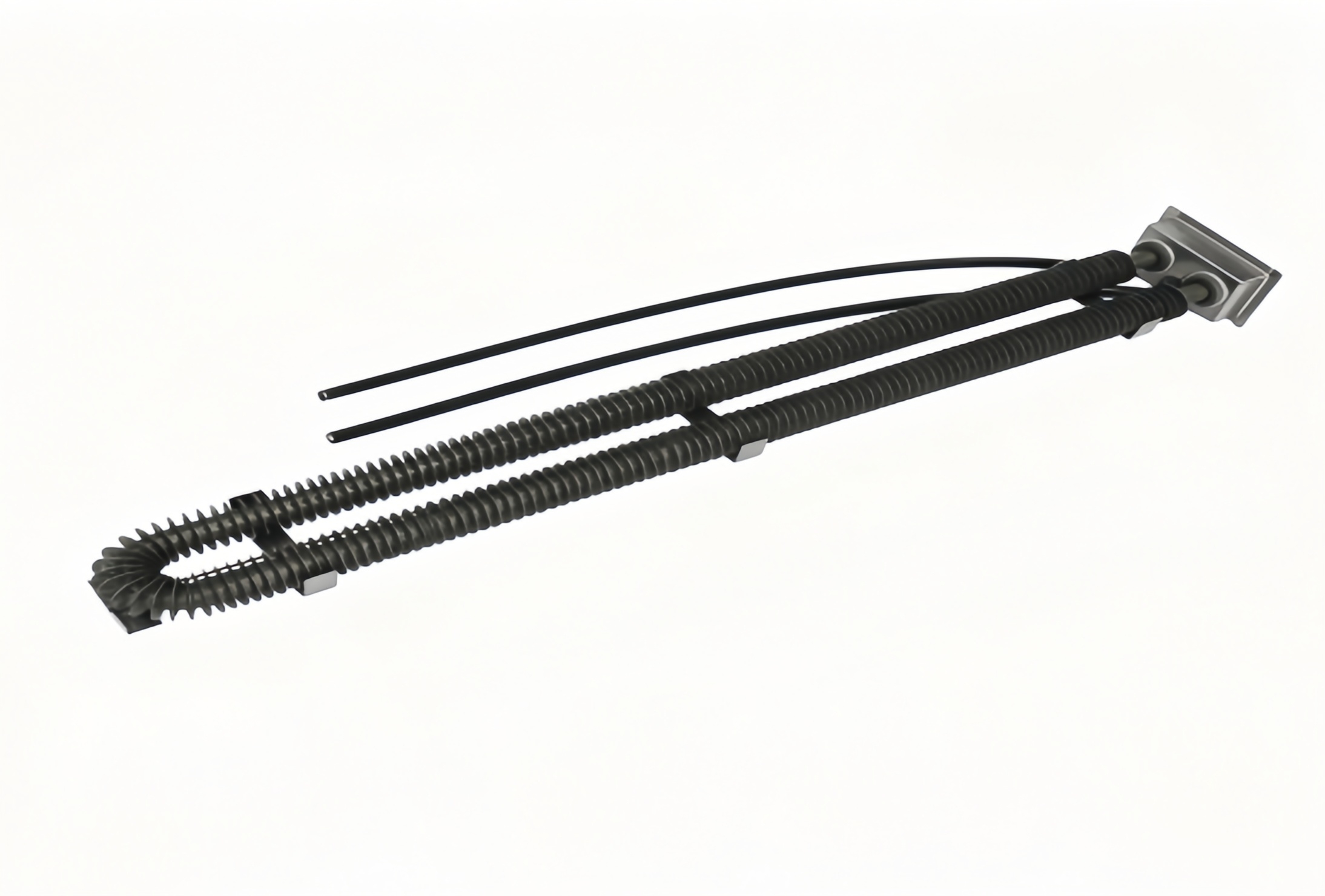

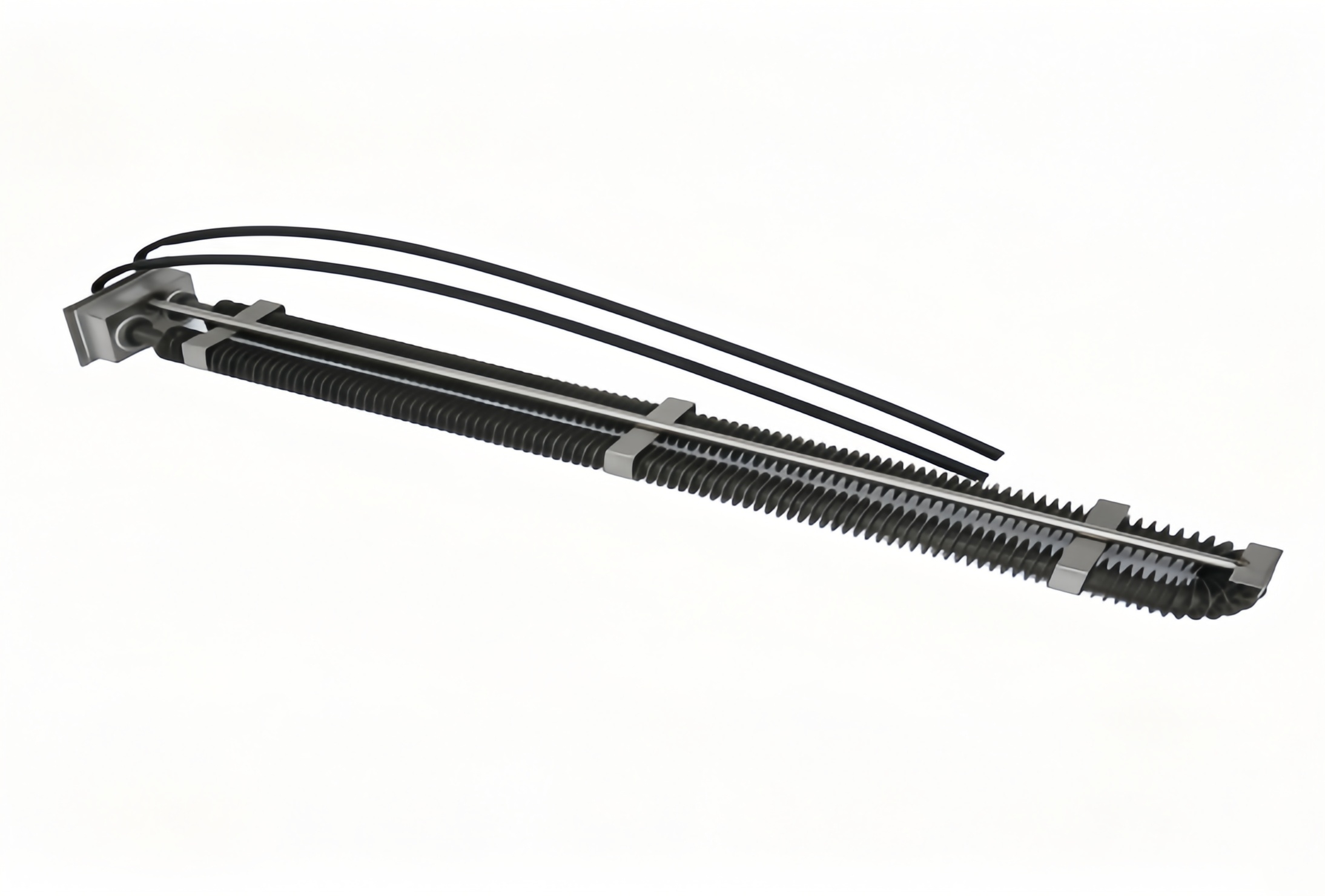

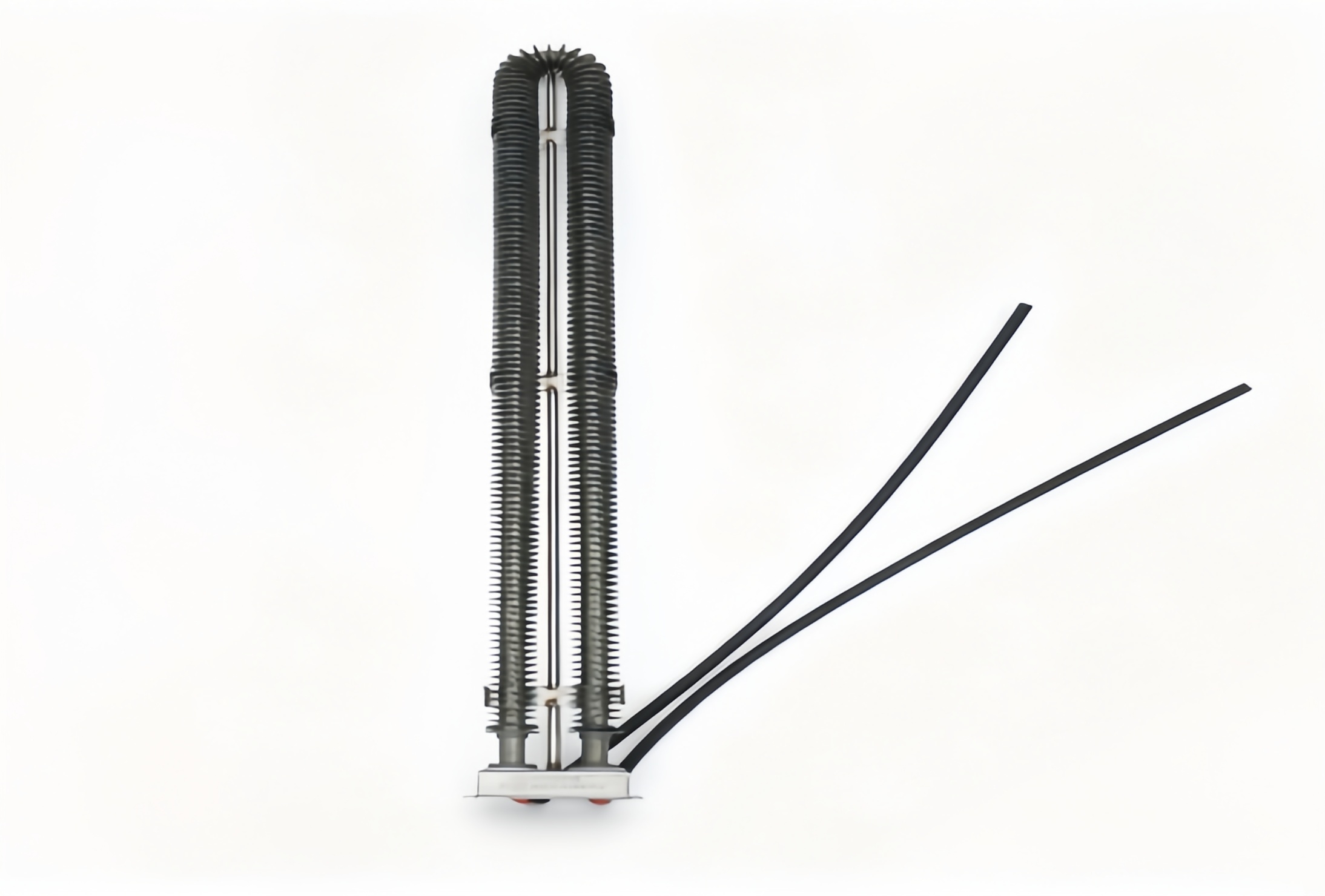

U‑Shape Finned Heating Tube With Terminal Box

Inquire Now

Product Description Features Package delivery Download

Product Description

This U‑shape finned heating tube with terminal box is specially made for air dry‑burn applications. Fins greatly improve heating efficiency. Built‑in lead wires and terminal box make installation quick and convenient. All specifications are customizable for ovens and drying equipment

Material: 304 / 316L / Incoloy 800 Stainless Steel Tube, Ni-Cr Heating Wire, High Purity MgO Insulation	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Finned Tubular Heating Element (U/W Bend Custom Shape)	Specification: Fully Customizable per Drawings & Samples
Shape: Cylindrical Tube with Spiral Radiating Fins	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 12V-380V, 110V / 220V / 240V / 380V or Customized	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 10W-5000W, Customized on Demand	MGO: High Grade Electric Grade Magnesium Oxide Insulation
Tube Diameter: Φ6.6mm / Φ8.0mm / Φ8.5mm / Φ10.0mm, 3-30mm Customizable	Application: Industrial drying oven, air duct heating, packaging machinery, paint baking equipment, heating cabinet

Features

U‑shape finned design for larger heat dissipation area
Terminal‑box structure for easy wiring and installation
High heating efficiency, fast temperature rise
Stable performance for long‑time dry‑burn working
Customizable voltage, power and overall dimension

Package delivery

Each finned heating tube is wrapped with bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.
