U‑Shaped Finned Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

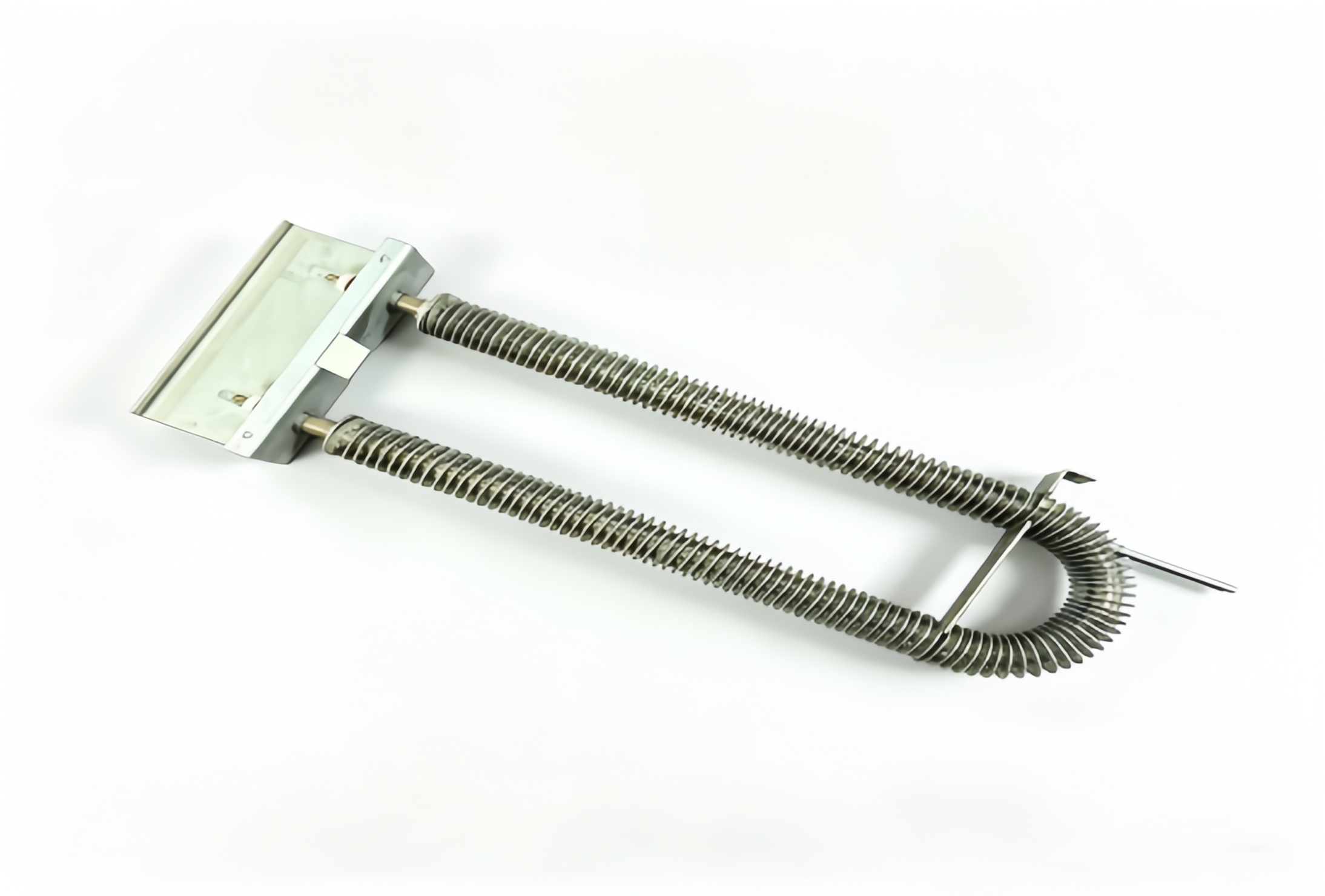

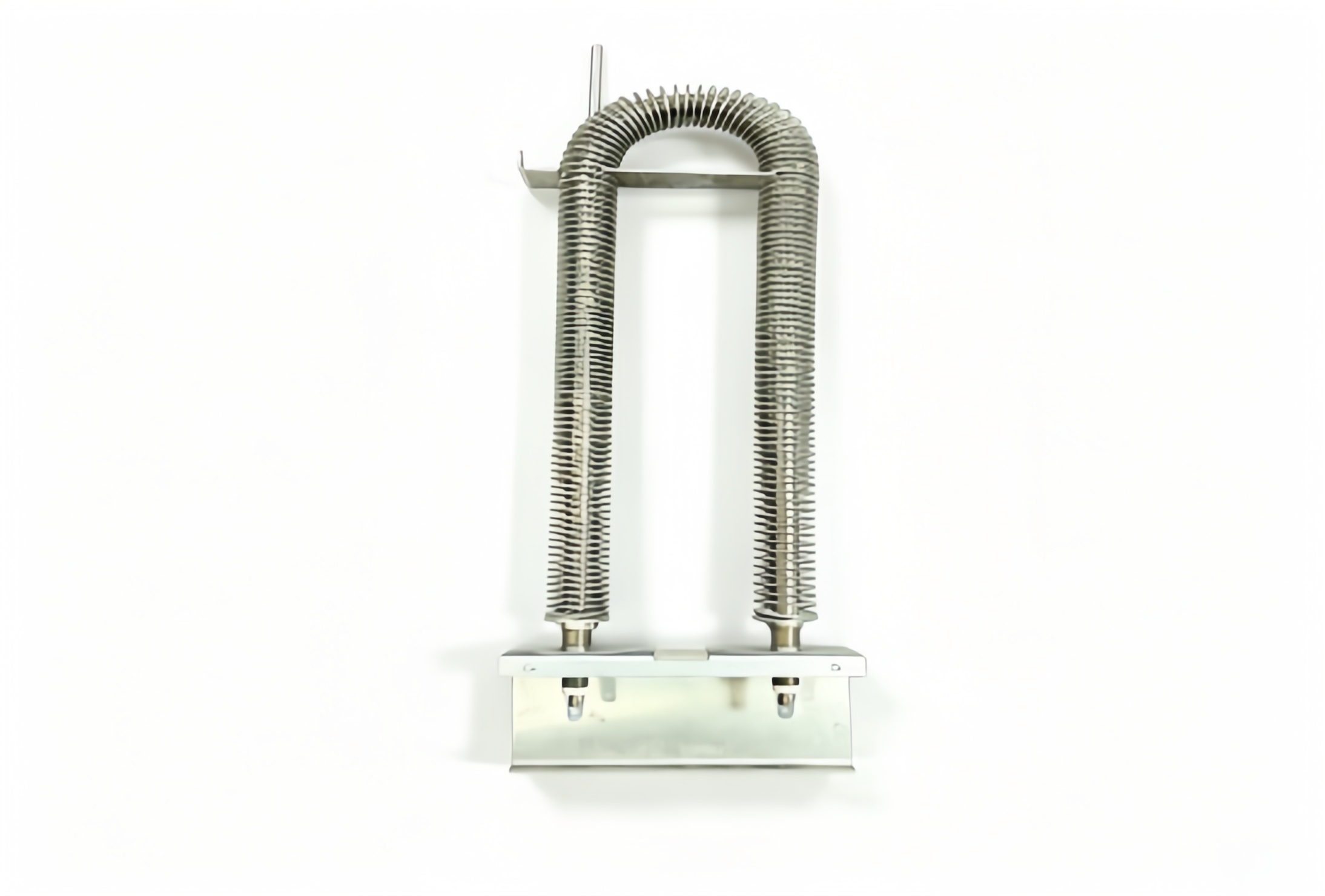

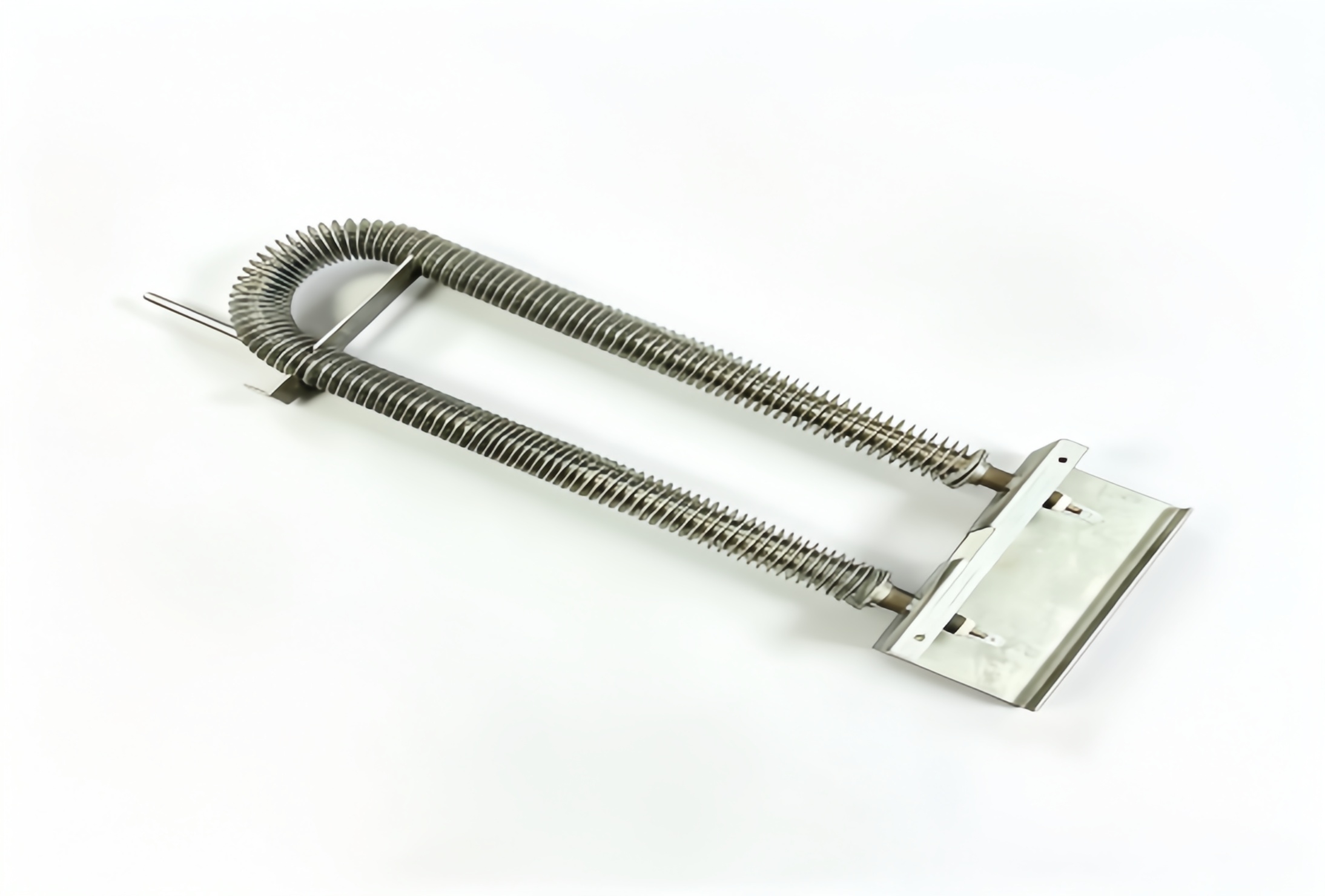

This U‑shape double finned heating tube with terminal mounting plate is specially designed for air dry‑burn heating. Double finned tubes provide large heat‑dissipation area for fast heating. The metal mounting plate enables simple and firm installation. All specifications can be customized for ovens, dryers and hot‑air circulation systems

Material: SUS304 Stainless Steel SUS316 Stainless Steel Fe-Cr-Al Alloy (High Temperature)	Transport Package:Carton and Wooden Box
Form: U-shaped tubular structure Spiral wound fin type With integrated mounting bracket Single U double tube layout Optional positioning support pin Pre-punched fixed installation plate	Specification:Customized
Shape: U shape main body	MGO: High purity MGO insulation powder inside tube
Voltage: 110V, 220V, 230V, 380V Custom voltage available upon request	Resistance Wire: Cr20Ni80 nickel-chromium resistance wire, high temperature resistant
Watt: 3KW, 4.5KW, 6KW, 9KW Custom wattage supported according to customer drawings	Tube Diameter: Standard sizes: 8mm, 10mm, 12mm, 14mm Custom tube diameter available on request
Product Name: U‑Shaped Finned Tubular Heater	Usage: Suitable for medium and high temperature dry-burning heating in all kinds of air circulation drying equipment.

Features

U‑shaped double‑tube finned design for larger heat‑dissipation area
Integrated metal mounting plate for easy wiring and stable installation
High heating efficiency, fast and even temperature rise
Excellent heat resistance, suitable for long‑time air dry‑burn work
Fully customizable voltage, power and overall size

Package delivery

Each heating tube is wrapped with bubble film for anti‑collision protection, then packed into a sturdy export carton. Suitable for sea freight and air shipment.

Packing: Bubble wrap + export carton

Carton Qty: 12 pcs

Gross Weight: 6.0 kg

Package Size: 65cm × 25cm × 15cm

Volume: 0.0244 CBM
