Stainless Immersion Element for Water Boiler with Lu-Chiuan TUV Report

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This thread flange immersion heater is made of high‑quality stainless steel. Thread‑in structure enables quick installation and reliable sealing on tanks and boilers.

It is widely used for heating water, oil and other industrial liquids. Power, voltage, thread size and tube length can be customized according to working requirements. Featuring fast heating, high efficiency and long service life, OEM and ODM orders are accepted.

Material: SUS304/SUS316L/Incoloy 800 stainless steel, Ni80Cr20 heating wire, high purity MgO powder	Transport Package:Carton and Wooden Box

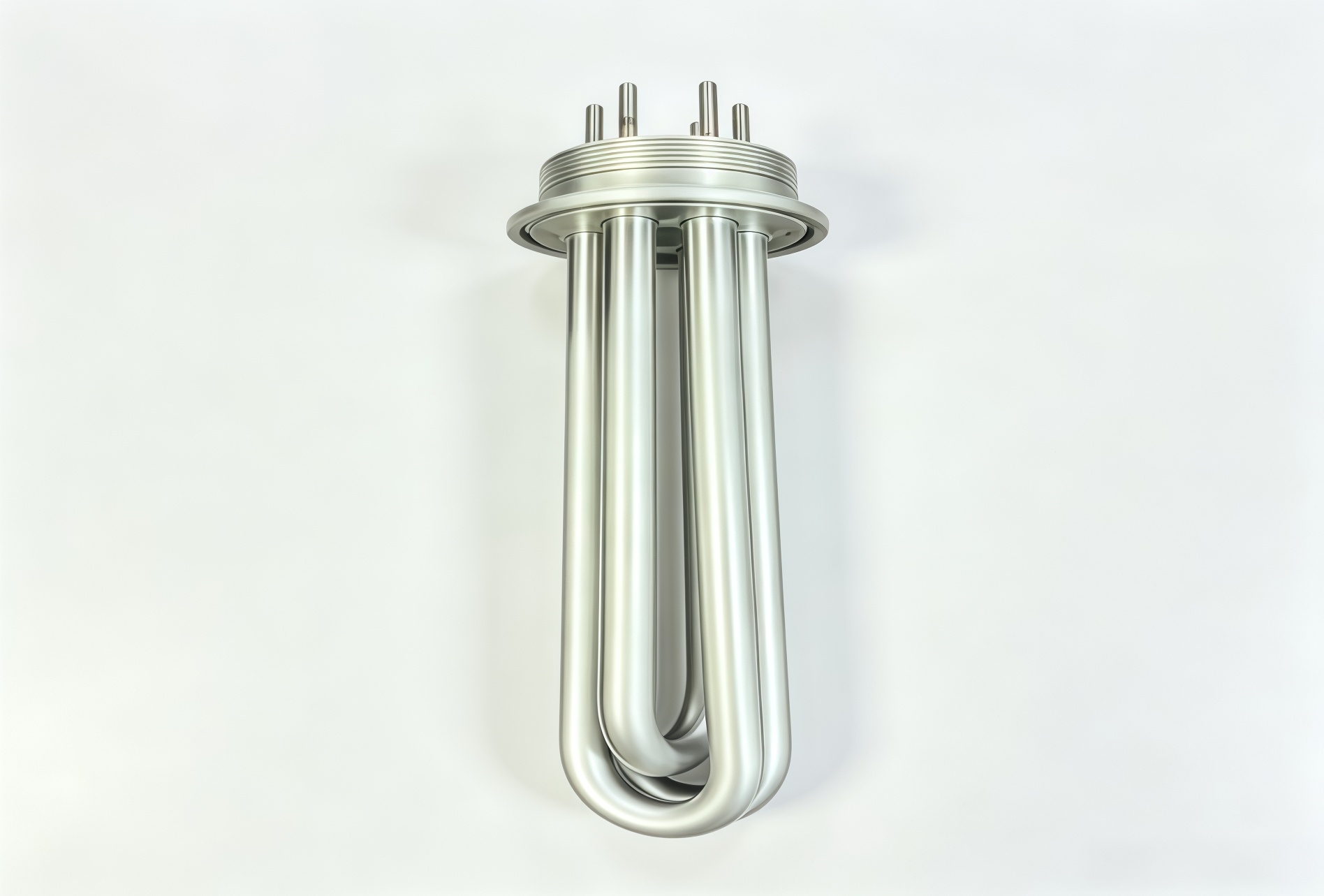

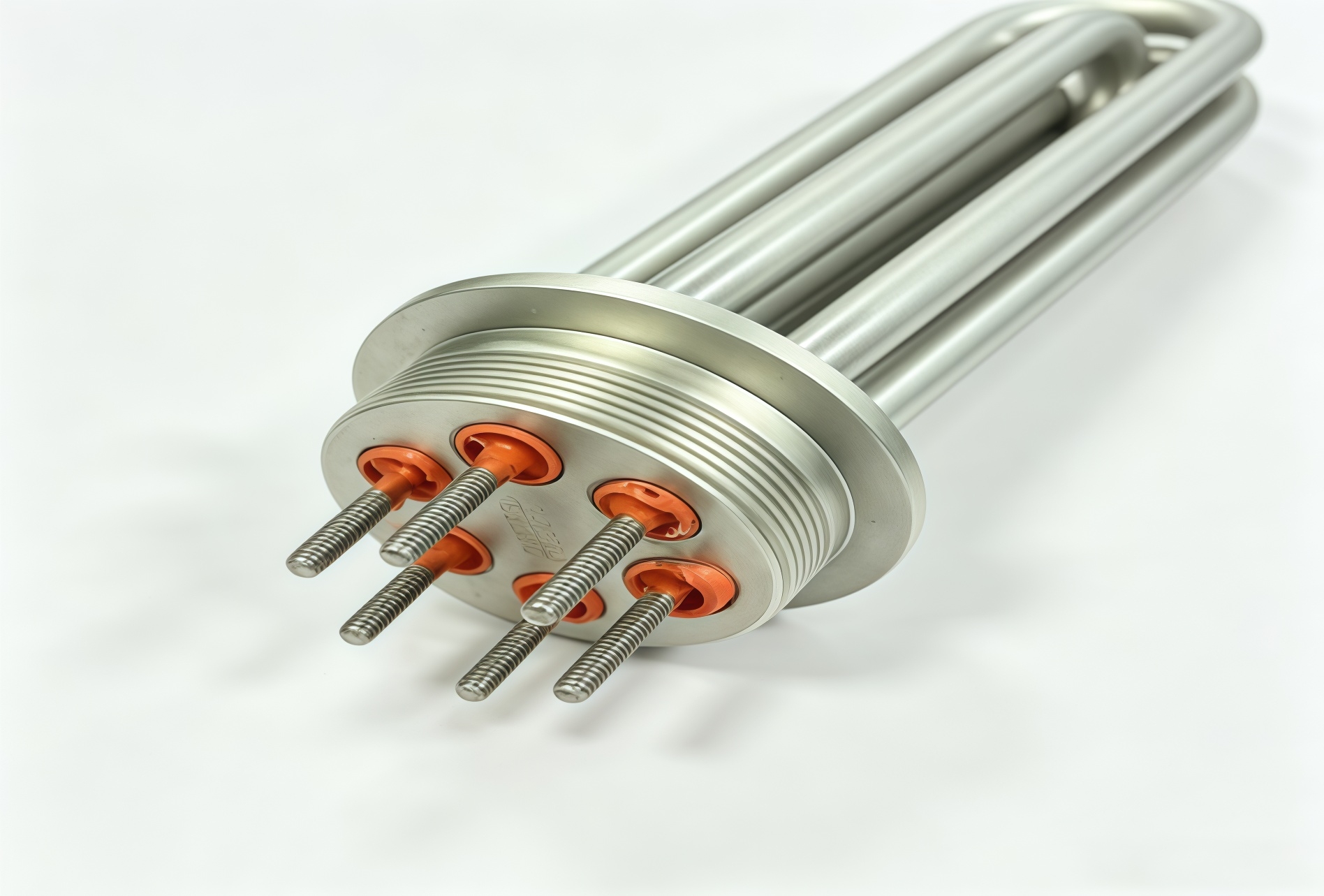

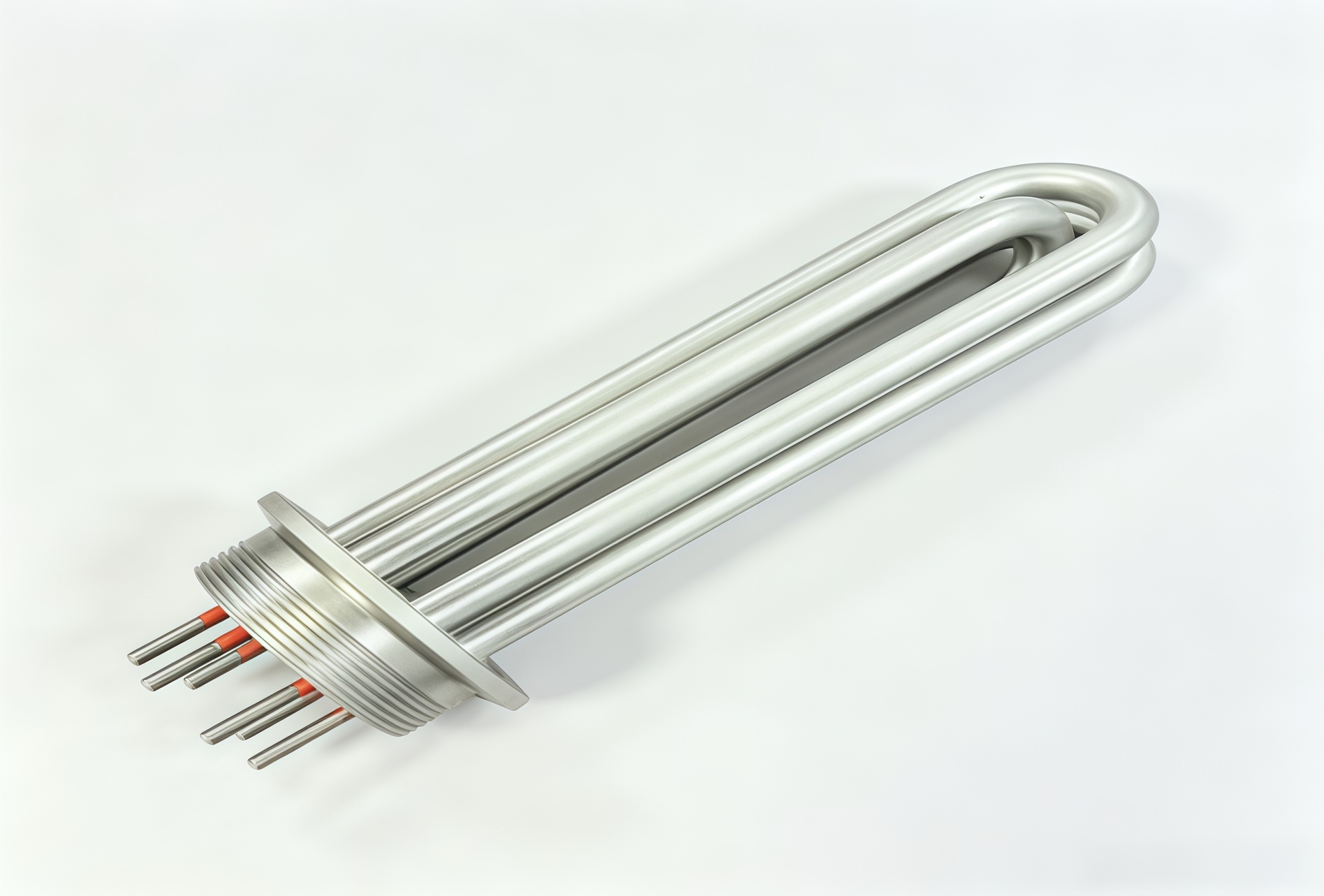

Form: Multi U-loop immersion heater with threaded stainless steel flange and multi brass terminals	Specification: Multi U-loop flange immersion heating tube, customizable voltage, wattage, flange and tube length
Shape: Multi U-loop bent cylindrical heating tubes with circular threaded flange	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Single phase 110V/220V/230V, three phase 380V/415V, customizable	MGO:High Grade
Watt: 3kW – 60kW, adjustable & fully customizable	Tube Diameter: Φ8mm, Φ10mm, Φ12mm, custom diameters available
Product Name: Stainless immersion element for water boiler with Lu-Chiuan TUV report	Usage: Water boiler, hot water tank, oil tank, chemical liquid heating equipment

Features

Thread‑in flange for quick installation and tight sealing
High‑grade stainless steel tube, corrosion resistant
Custom thread size, power, voltage and tube length
Fast heating speed with high thermal efficiency
Stable performance and long working life
Suitable for water, oil and industrial liquid media
OEM & ODM customization available

Package delivery

Protected by foam padding against impact
Individual reinforced carton for each unit
Custom brand labels are acceptable
Support sea freight, air freight and express delivery
Suitable for long‑distance overseas transportation
