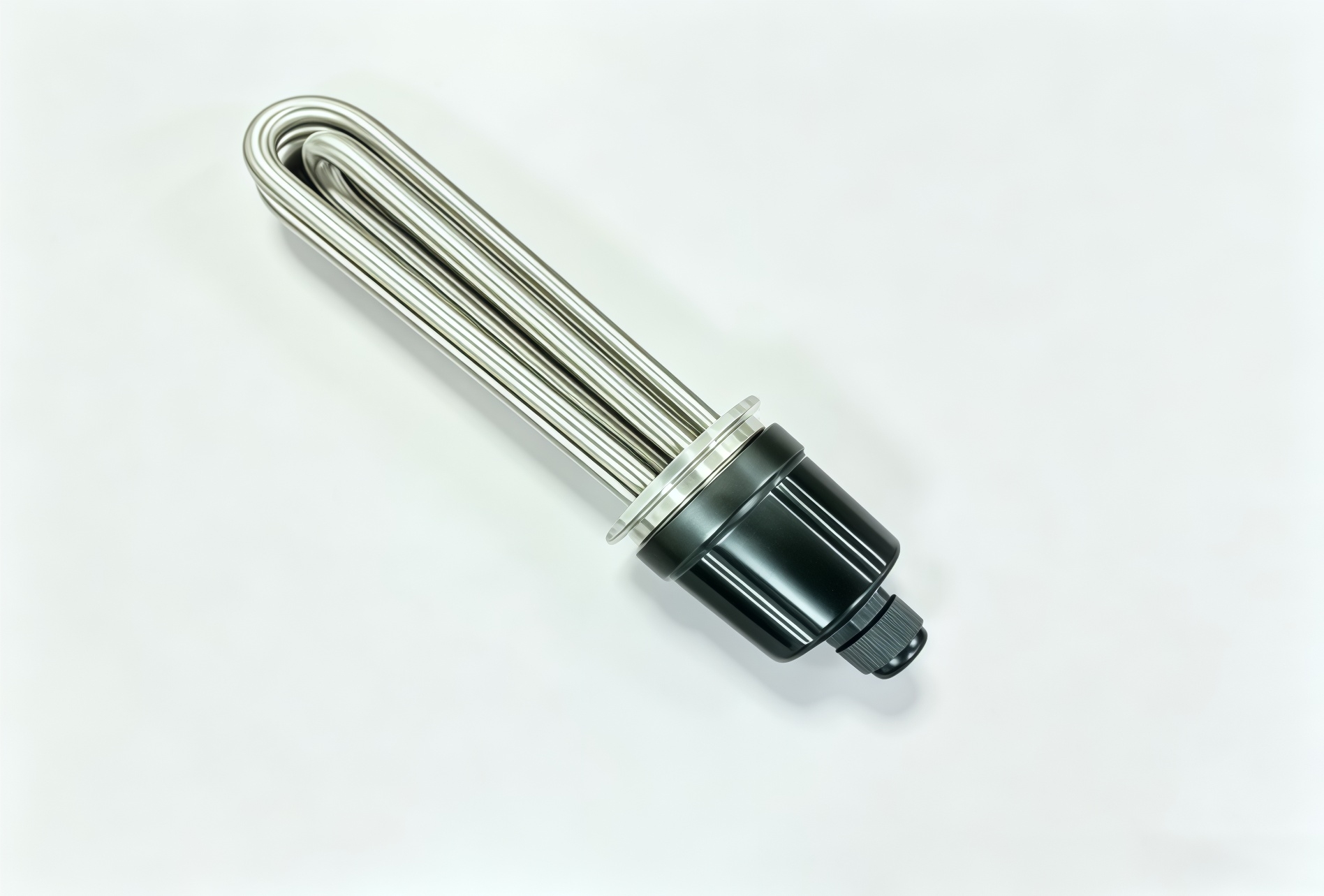

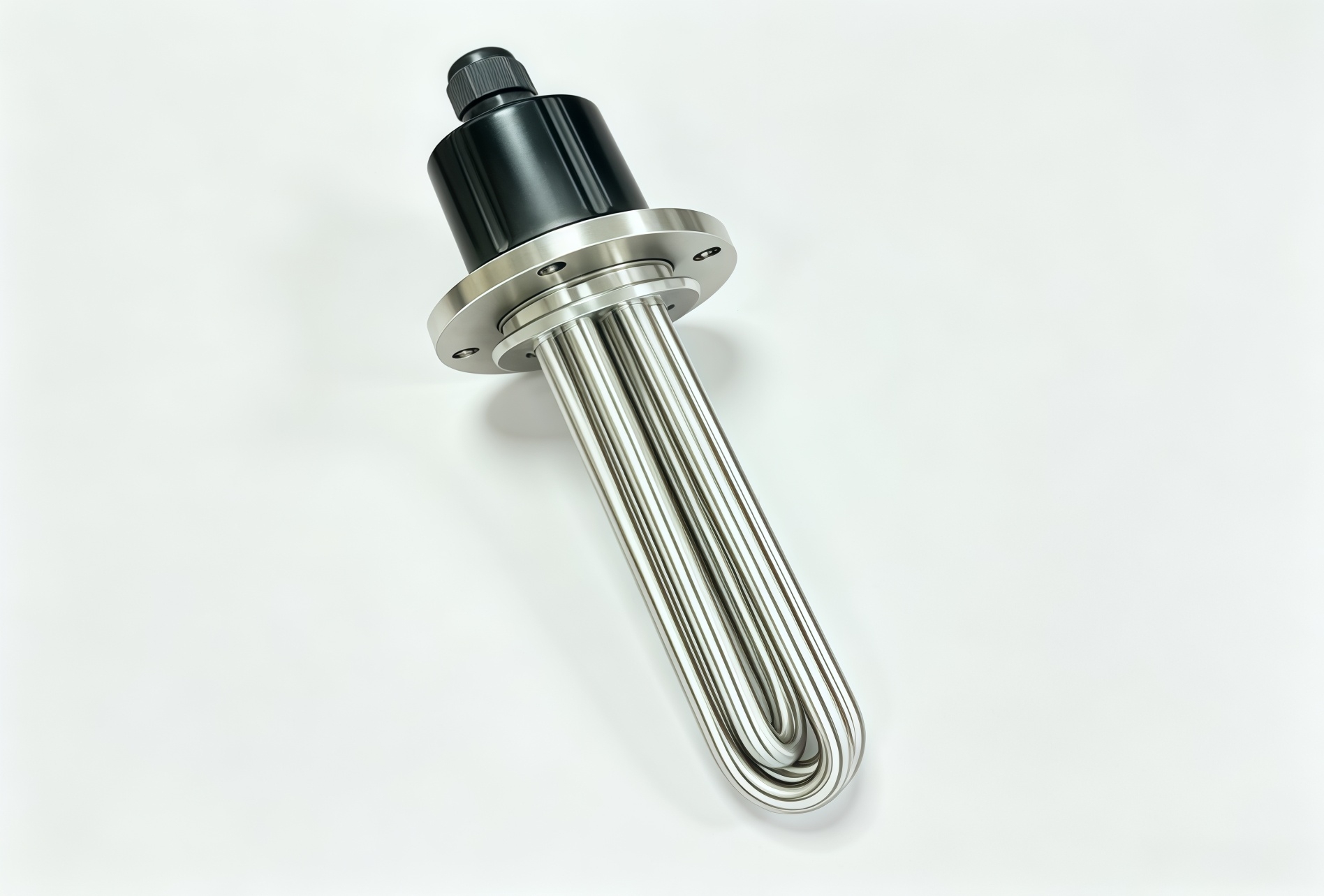

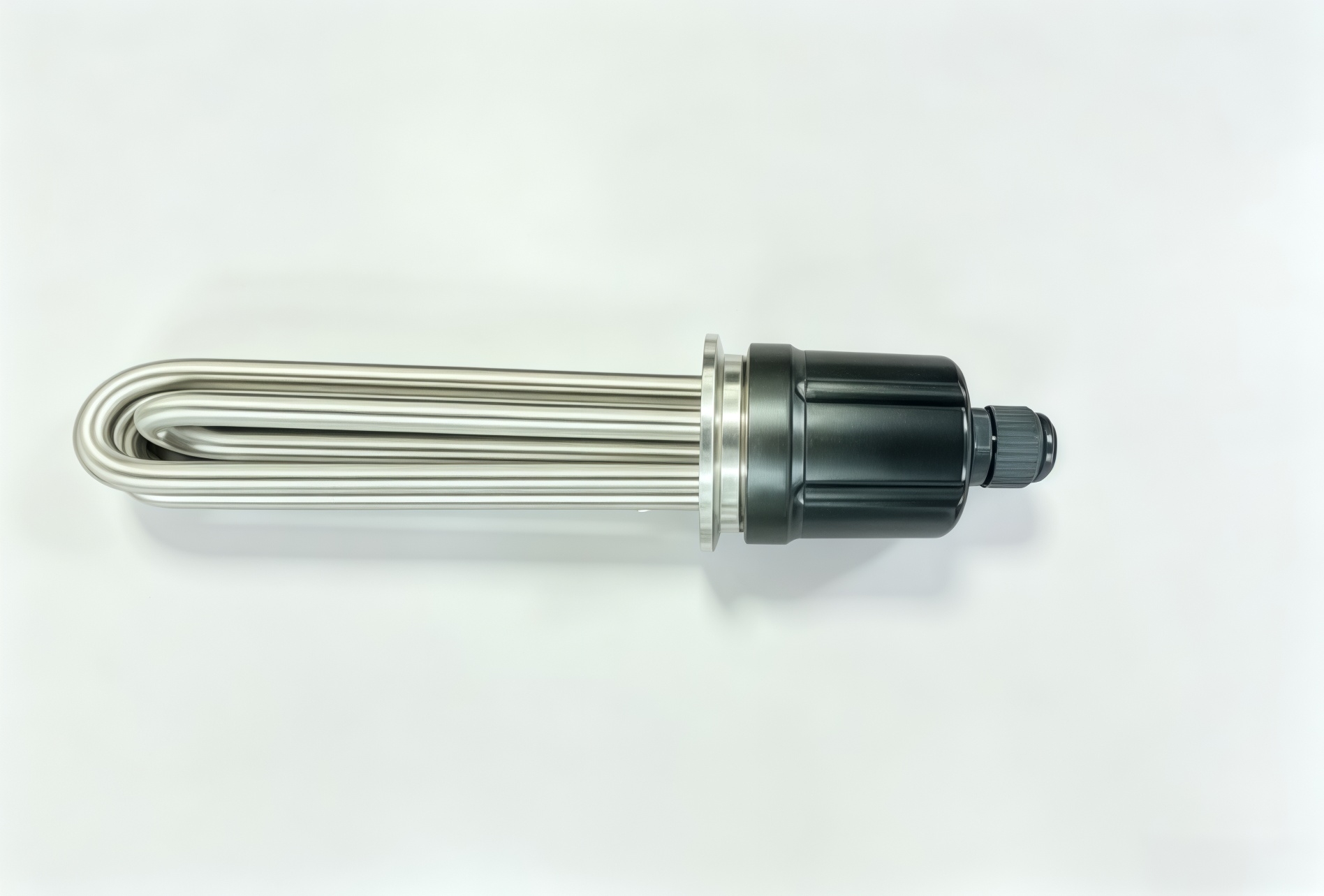

Waterproof Threaded Immersion Heater for Water Tank with Lu-Chiuan CE Certification

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

Stainless steel flange immersion heater for liquid heating. Fast heat‑up, easy installation, custom power & voltage, CE certified for industrial tanks, water and oil heating.

Material: SUS304/SUS316L/Incoloy 800 stainless steel, Ni80Cr20 heating wire, high purity MgO powder	Transport Package:Carton and Wooden Box
Form: Multi U-loop immersion heater with threaded stainless steel flange and multi brass terminals	Specification: Multi U-loop flange immersion heating tube, customizable voltage, wattage, flange and tube length
Shape: Multi U-loop bent cylindrical heating tubes with circular threaded flange	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Single phase 110V/220V/230V, three phase 380V/415V, customizable	Tube Diameter: Φ8mm, Φ10mm, Φ12mm, custom diameters available
Watt: 3kW – 60kW, adjustable & fully customizable	MGO:High Grade
Product Name: Waterproof Threaded Immersion Heater for Water Tank with LU-CHIUAN CE Certification	Usage: Water boiler, hot water tank, oil tank, chemical liquid heating equipment

Features

Flange‑mount design for easy installation and reliable sealing
Stainless steel construction, corrosion‑resistant for various liquids
Customizable power, voltage and tube length available
Waterproof terminal housing for harsh industrial environments
High thermal efficiency, stable performance and long service life

Package delivery

Each unit packed with foam protection to avoid collision damage
Individual carton box for single product
Reinforced outer carton for bulk order shipment
Shock‑resistant packaging for long‑distance sea or air transport
Custom packing label with model, spec and brand marking supported
Available for FCL and LCL sea freight, air freight, express delivery
