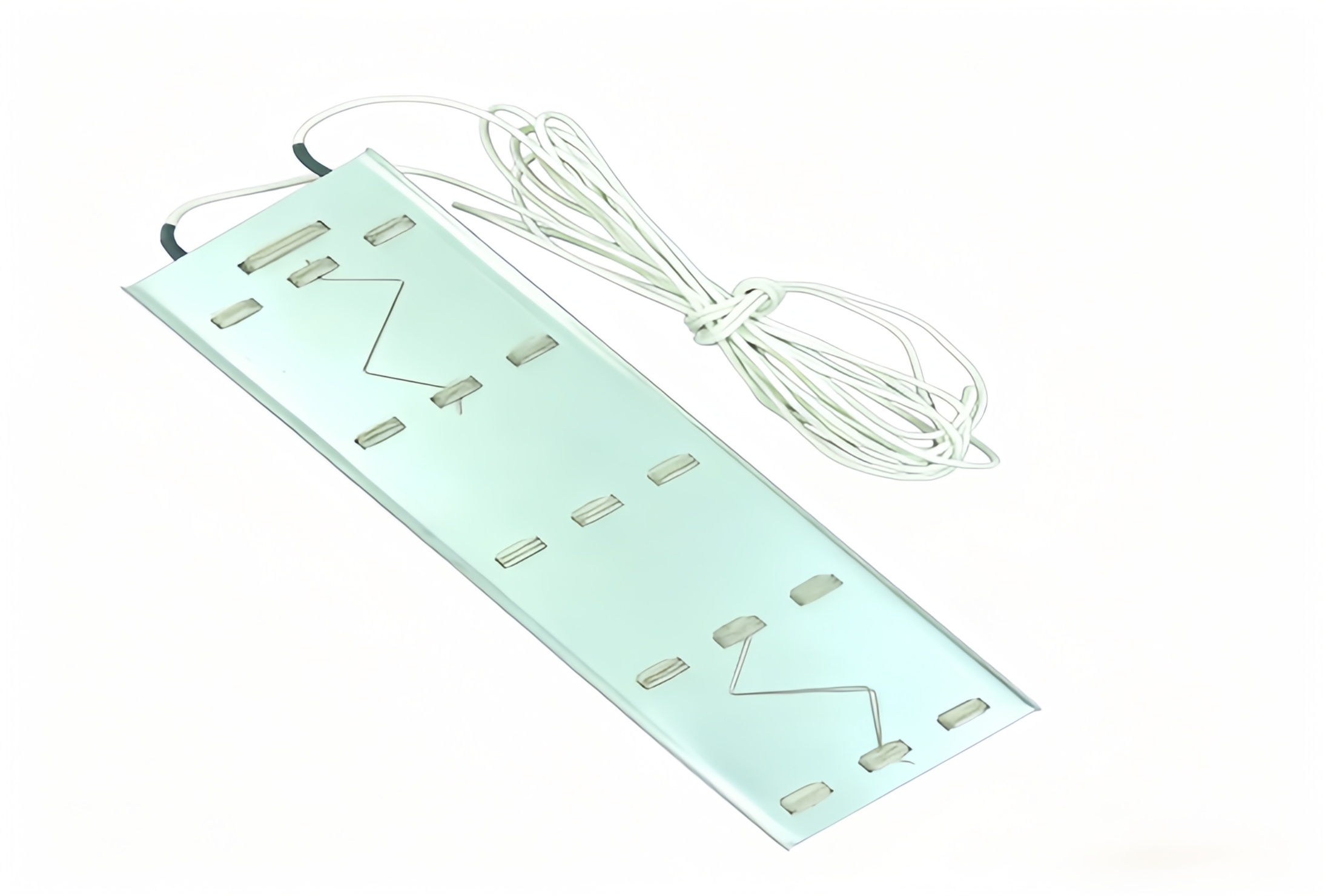

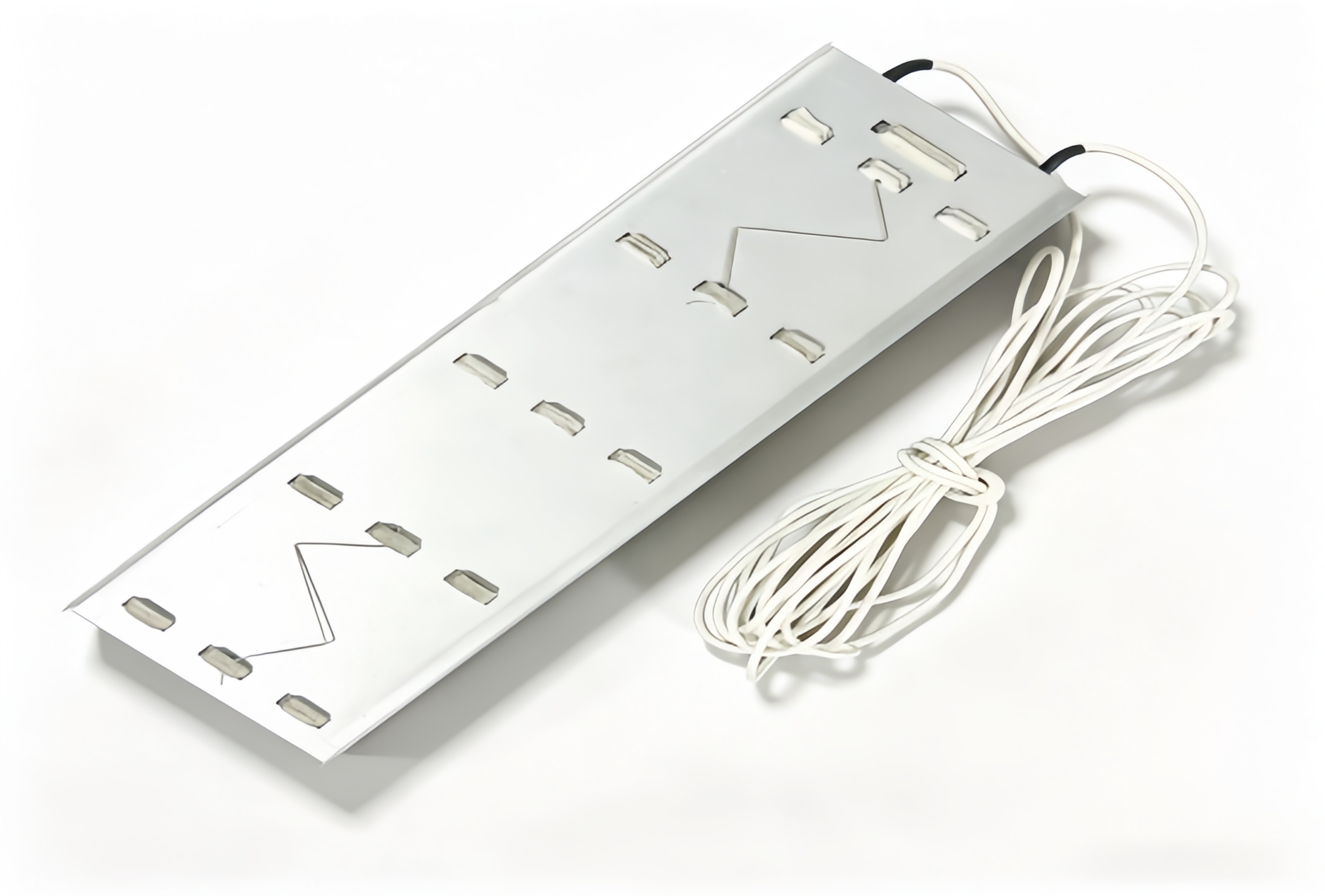

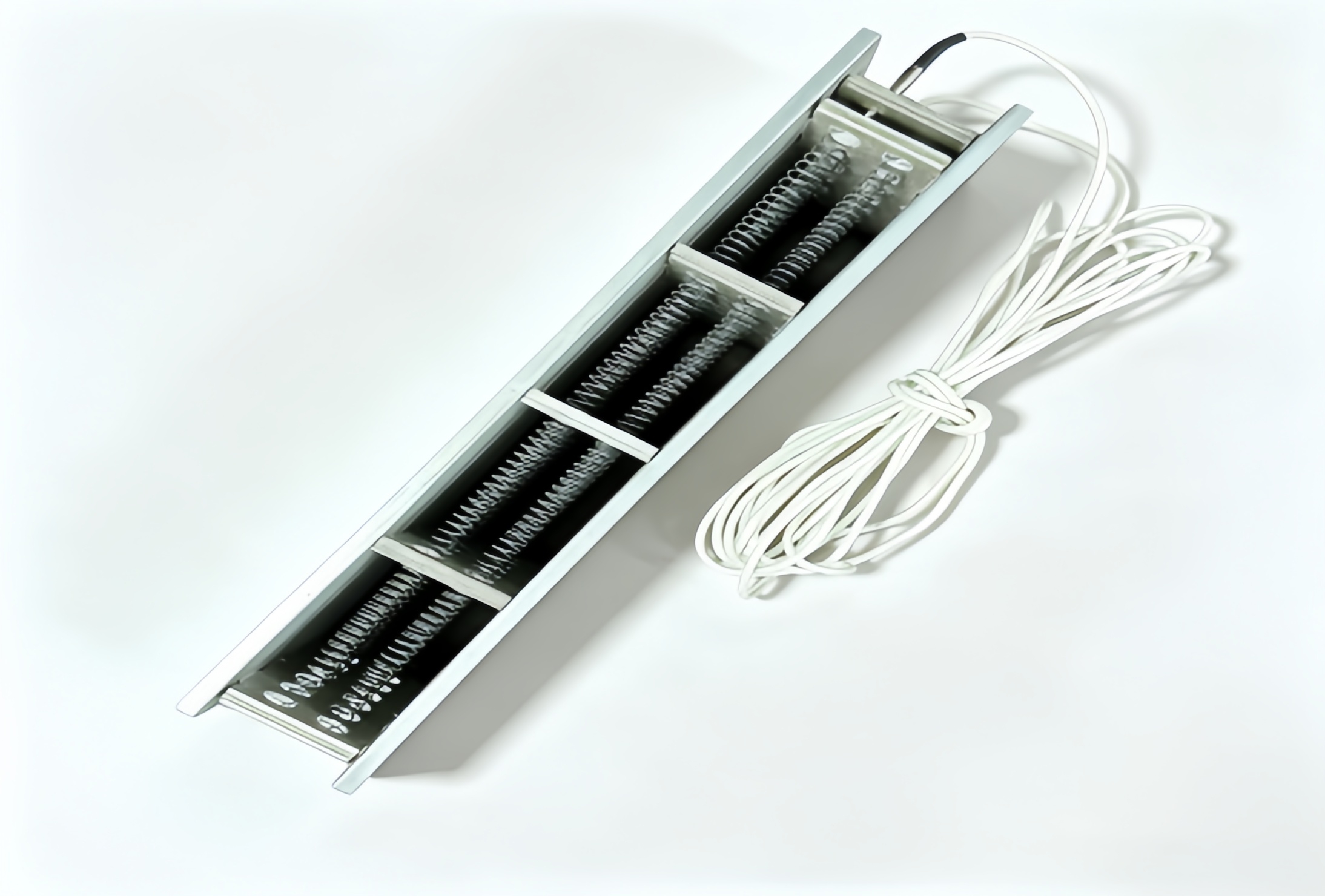

Open‑coil Mica Heating Strip

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This open‑coil mica heating strip is an exposed spring‑wire electric heating element for dry‑burn application. It heats up rapidly with high thermal efficiency. Built‑in long high‑temperature resistant lead wires make installation easy. Custom dimensions, voltage and power are supported for industrial ovens and drying equipment.

Material: Shell: Aluminum Alloy Heating Core: FeCrAl Alloy (Iron-Chromium-Aluminum Alloy) Insulation Layer: Mica / High-temperature Insulating Material Lead Wire: High-temperature Fiberglass Braided Wire	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: Rectangular flat aluminum strip heater with coiled spring heating core	Certification: CE, ISO9001, RoHS, CB, CCC
Shape: Long flat rectangular strip shape	Resistance Wire: FeCrAl Alloy (Iron-Chromium-Aluminum Alloy Wire)
Voltage: Rated Voltage: AC 220V Optional: 110V, 380V, other custom voltages available	MGO: N/A (Main insulation: Mica board, not pure MgO powder filled tubular type)
Power: 600W / 800W / 1000W (Custom wattage available)	Tube Diameter: N/A (Flat Strip Aluminum Heater, Not Tubular Type)
Product Name: Open‑coil Mica Heating Strip	Application: Industrial drying lines Electric ovens & baking equipment Food & packaging machinery Plastic & mold heating Dehumidifiers & thermal forming machines

Features

Open‑coil spring wire design, fast heating speed and high thermal efficiency
Mica‑based insulation, excellent high‑temperature & dry‑burn resistance
Stable heating output, suitable for long‑time continuous working
Long high‑temperature resistant lead wires, easy and flexible installation
Fully customizable in size, voltage, power and wire length

Package delivery

Each open‑coil mica heating strip is wrapped with bubble film separately, then packed into hard carton boxes to avoid deformation and collision damage during transit. Sea, air and express delivery are all acceptable.
