Aluminum Mica Heating Plate

Inquire Now

Product Description Features Package delivery Download

Product Description

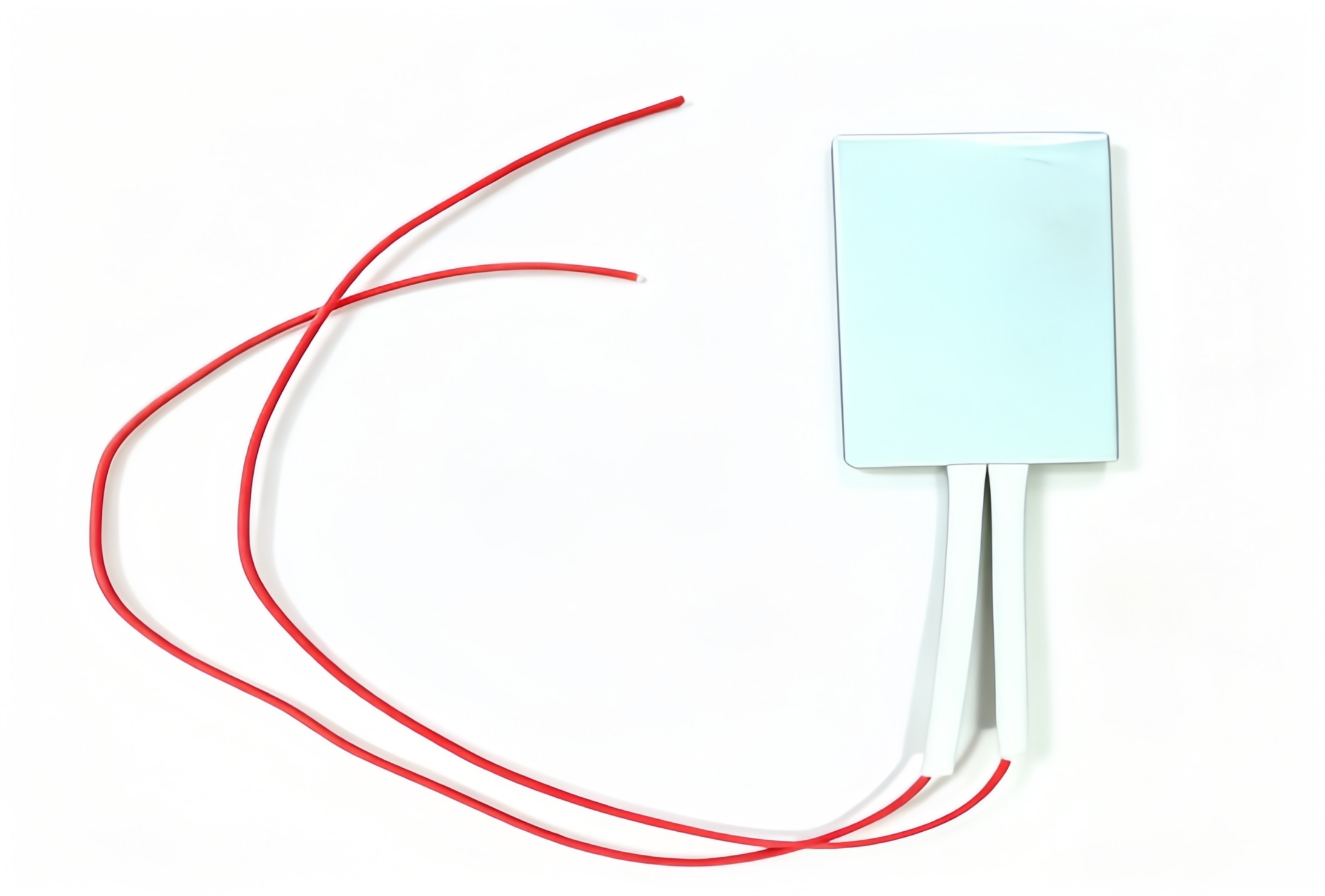

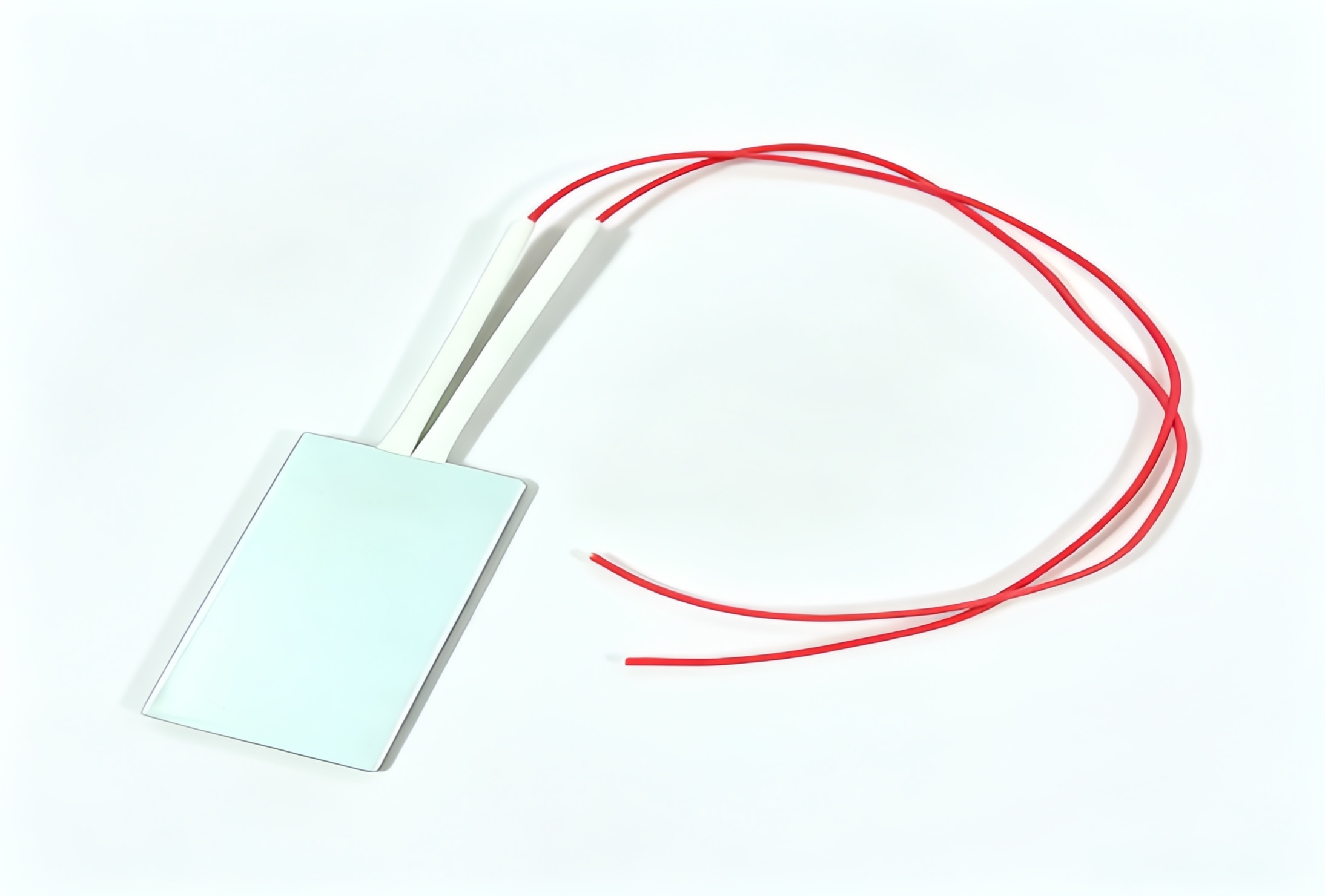

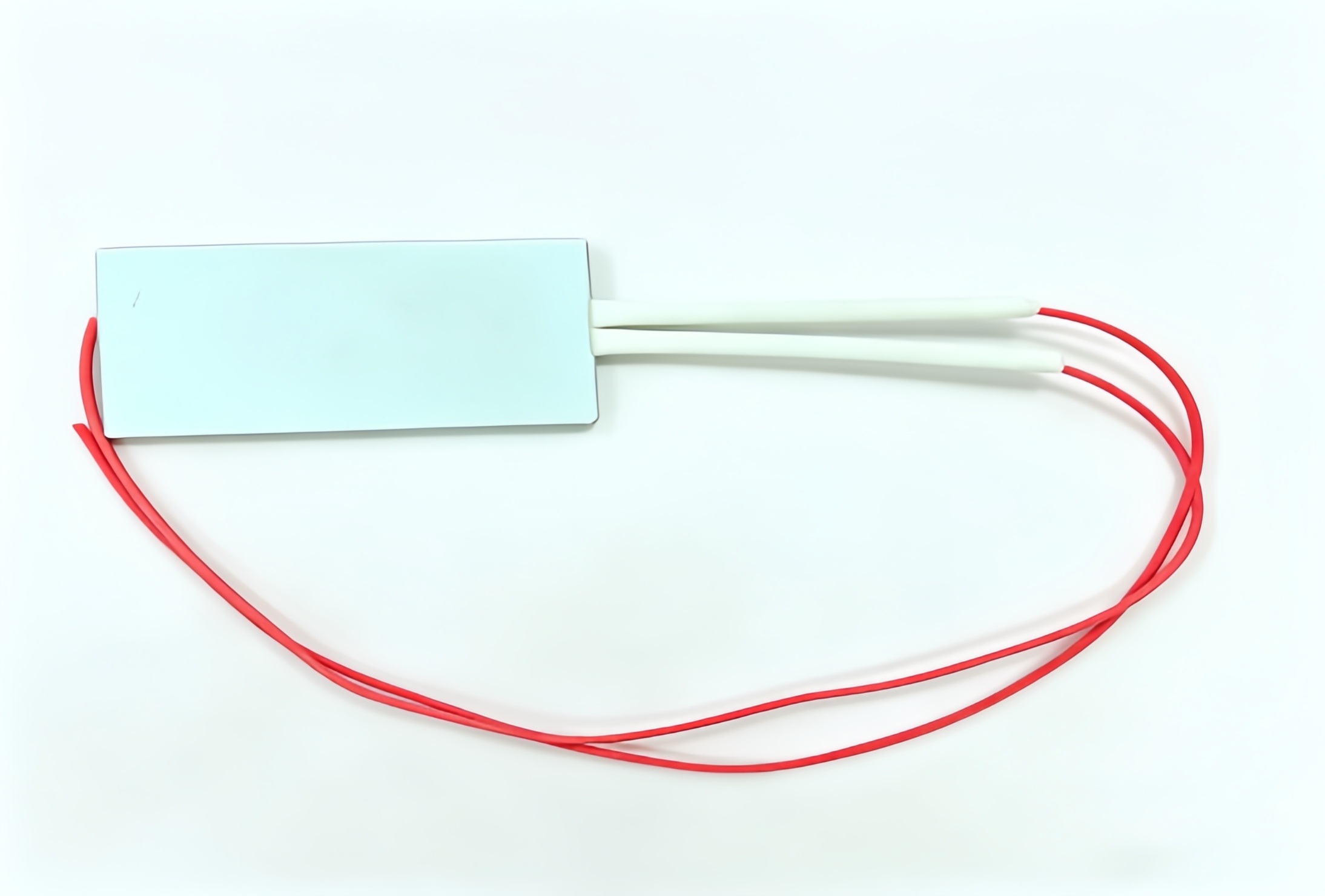

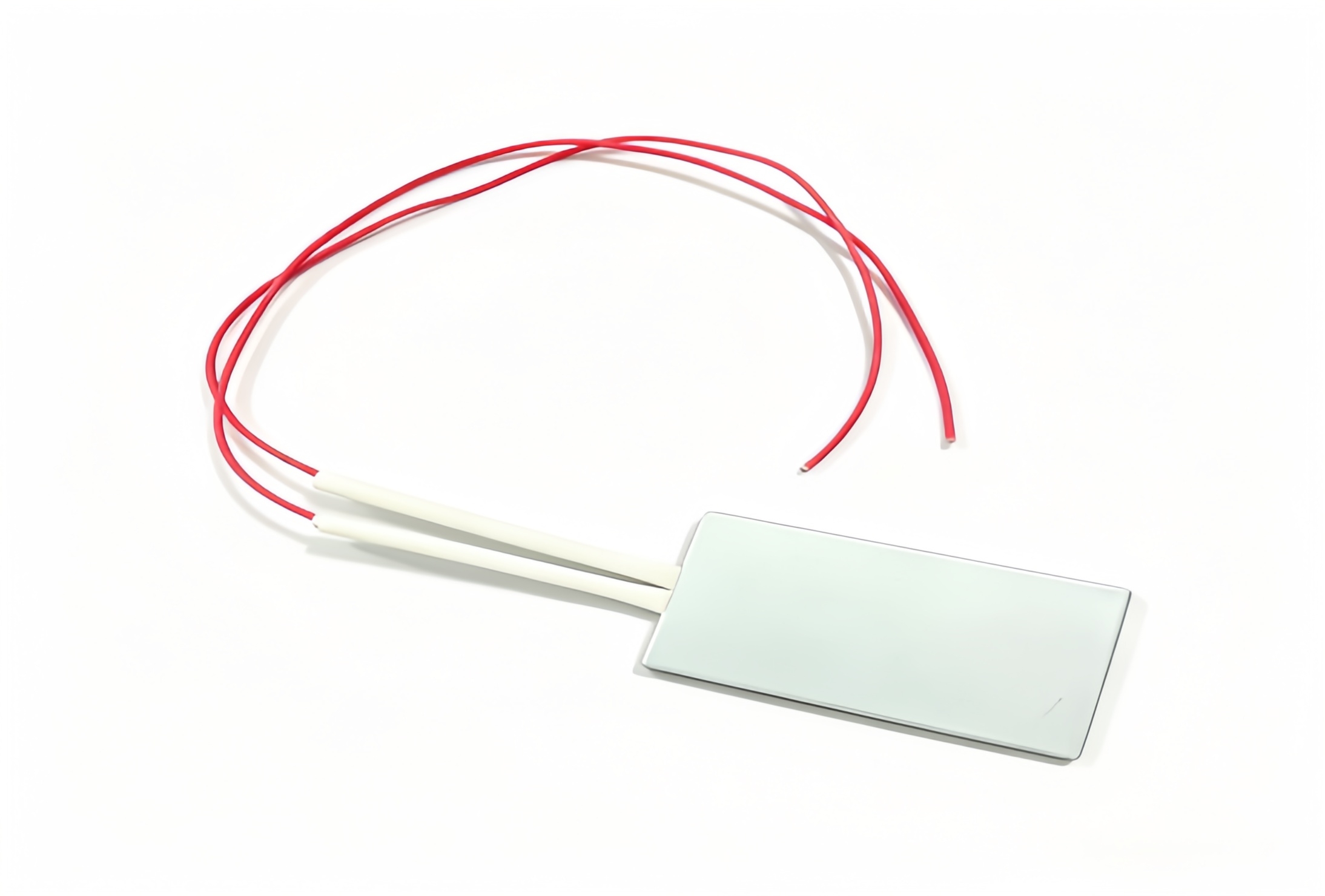

This aluminum‑cased mica heating plate is a flat‑shaped electric heating element. It features fast and uniform heating performance, excellent high‑temperature resistance and stable work. Equipped with long heat‑resistant lead wires for easy installation. Custom sizes, voltage and power are supported for various industrial heating applications.

Material: Shell: White high-temp insulating coating Base: Mica sheet Heating wire: Ni80Cr20 nickel-chromium wire Lead: Red silicone high temp wire Sleeve: Fiberglass insulation tube	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Flat single-side outlet heating plate	Specification: Shape: Flat rectangle Thickness: 1.2–2.0mm Voltage: 110V / 220V, low voltage customizable Power: 50W–600W Wire: Red high temperature wire, customizable length Max working temp: 250℃ Custom sizes available
Shape: Flat rectangle	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: Standard: 110V, 220V; Custom: 24V/36V/48V	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 10W-5000W, Customized on Demand	MGO: Mica heater uses mica insulation instead of MgO powder.
Tube Diameter: This product is flat mica heating plate, no tube diameter	Application: Heat sealers, cabinet dehumidifiers, mini ovens, lab equipment, small drying machines

Features

Fast and uniform surface heating, no local over‑heating
Aluminum shell with mica insulation, excellent high‑temperature resistance
Stable heating performance and long service life
High‑temperature resistant lead wires, simple and quick installation
Fully customizable in size, voltage, power and wire length

Package delivery

Each mica heating plate is wrapped with bubble film, then packed into separate carton box to avoid collision damage during transit. We support sea, air and express delivery.
