Square Frame Dry‑Burn Heater Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

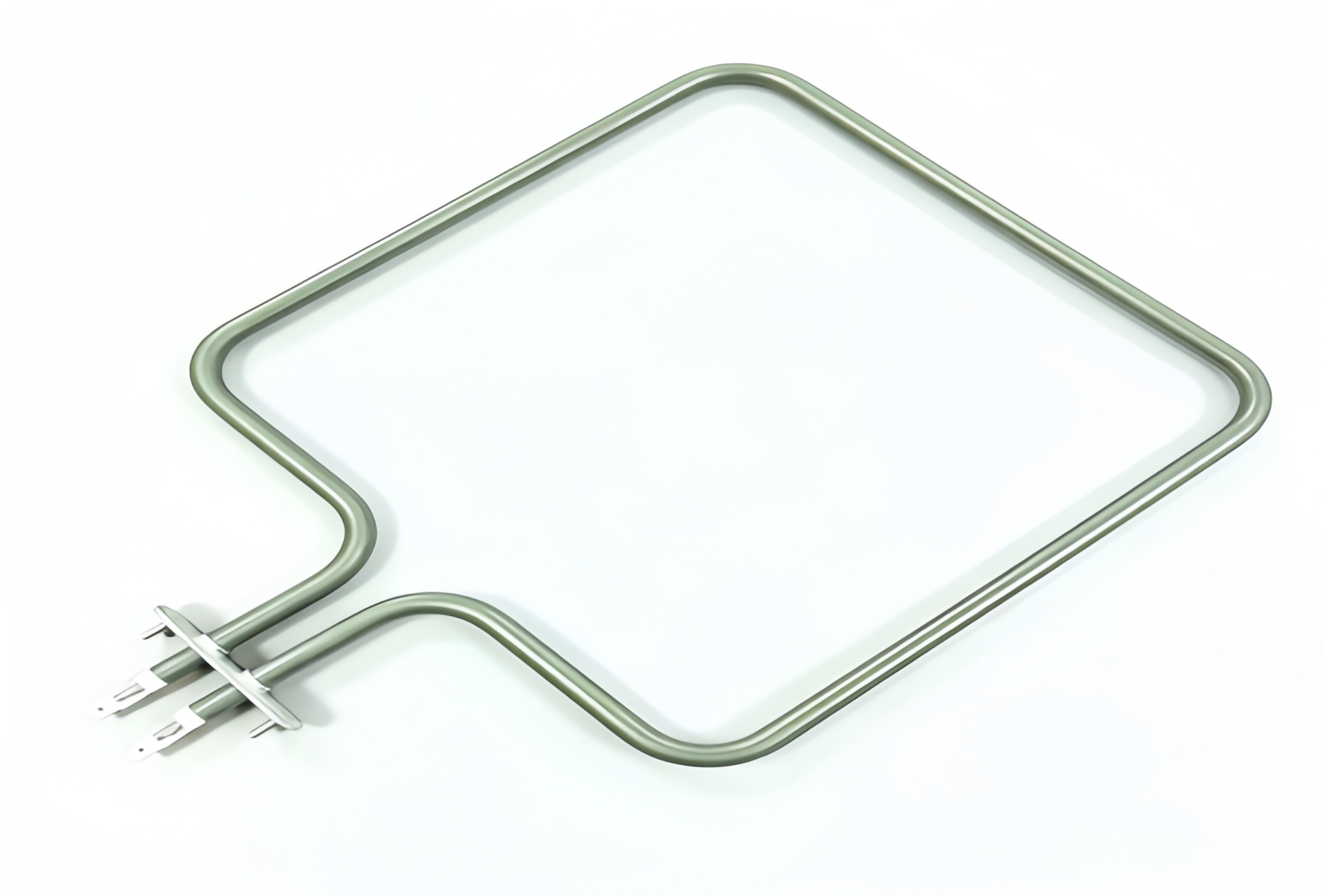

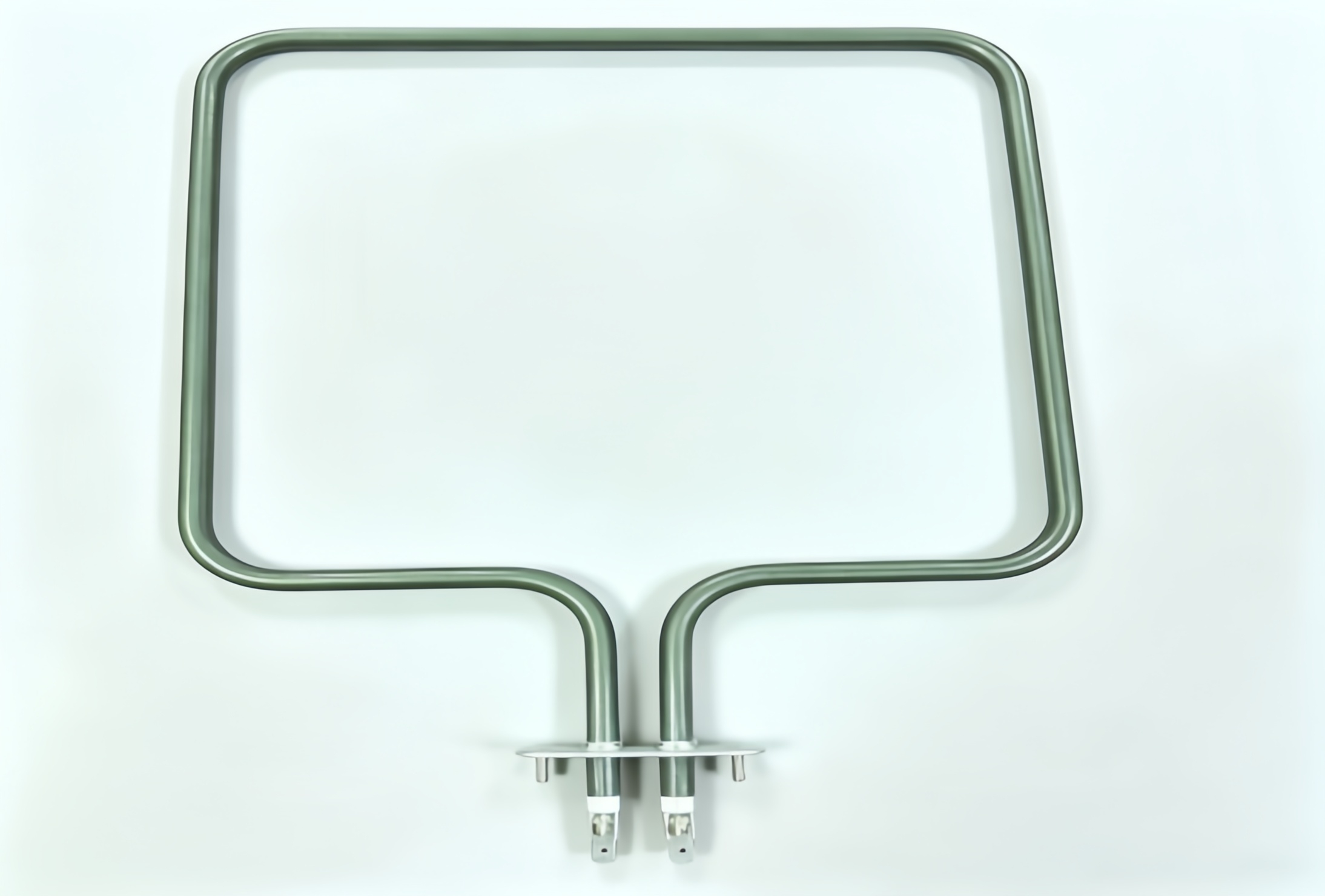

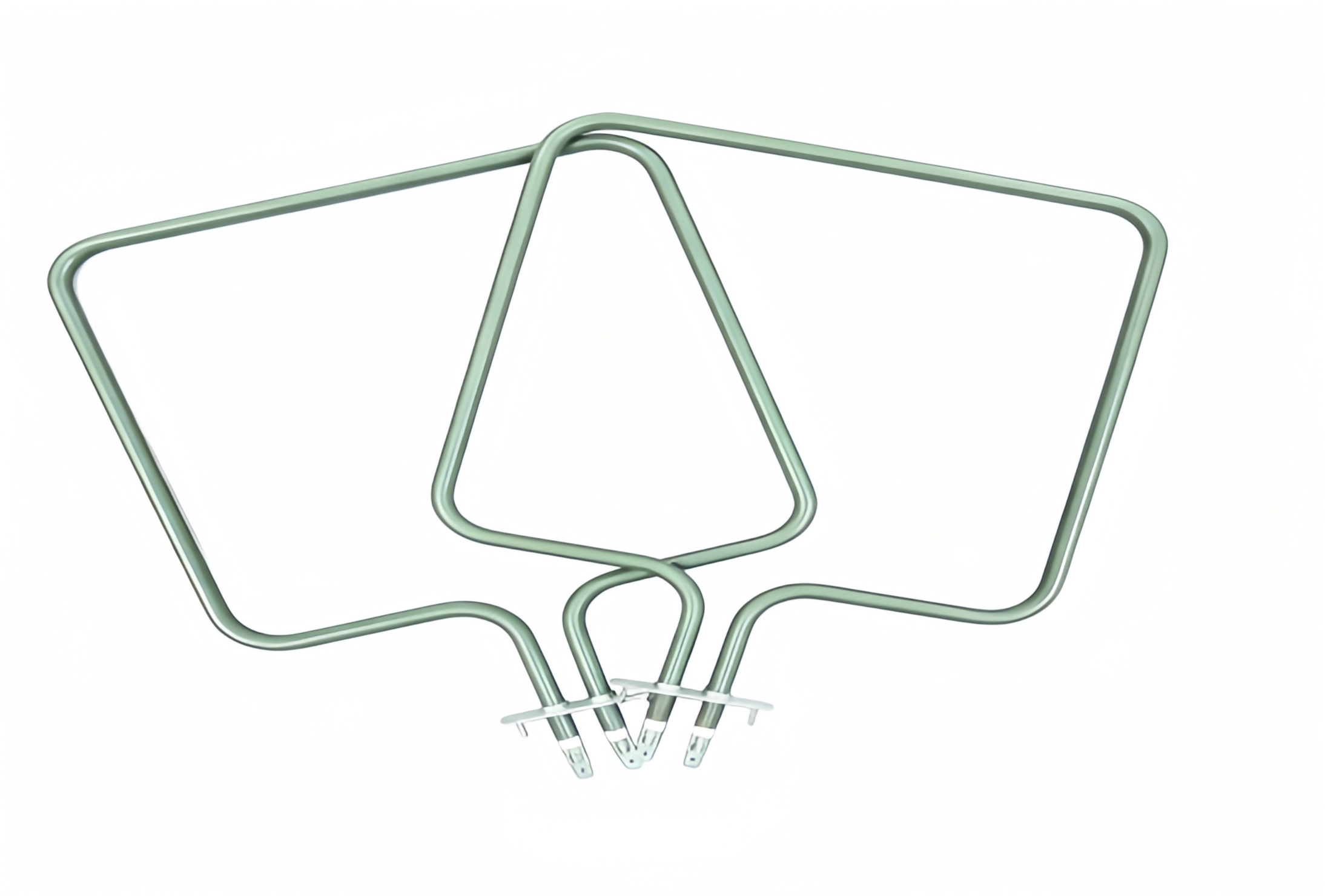

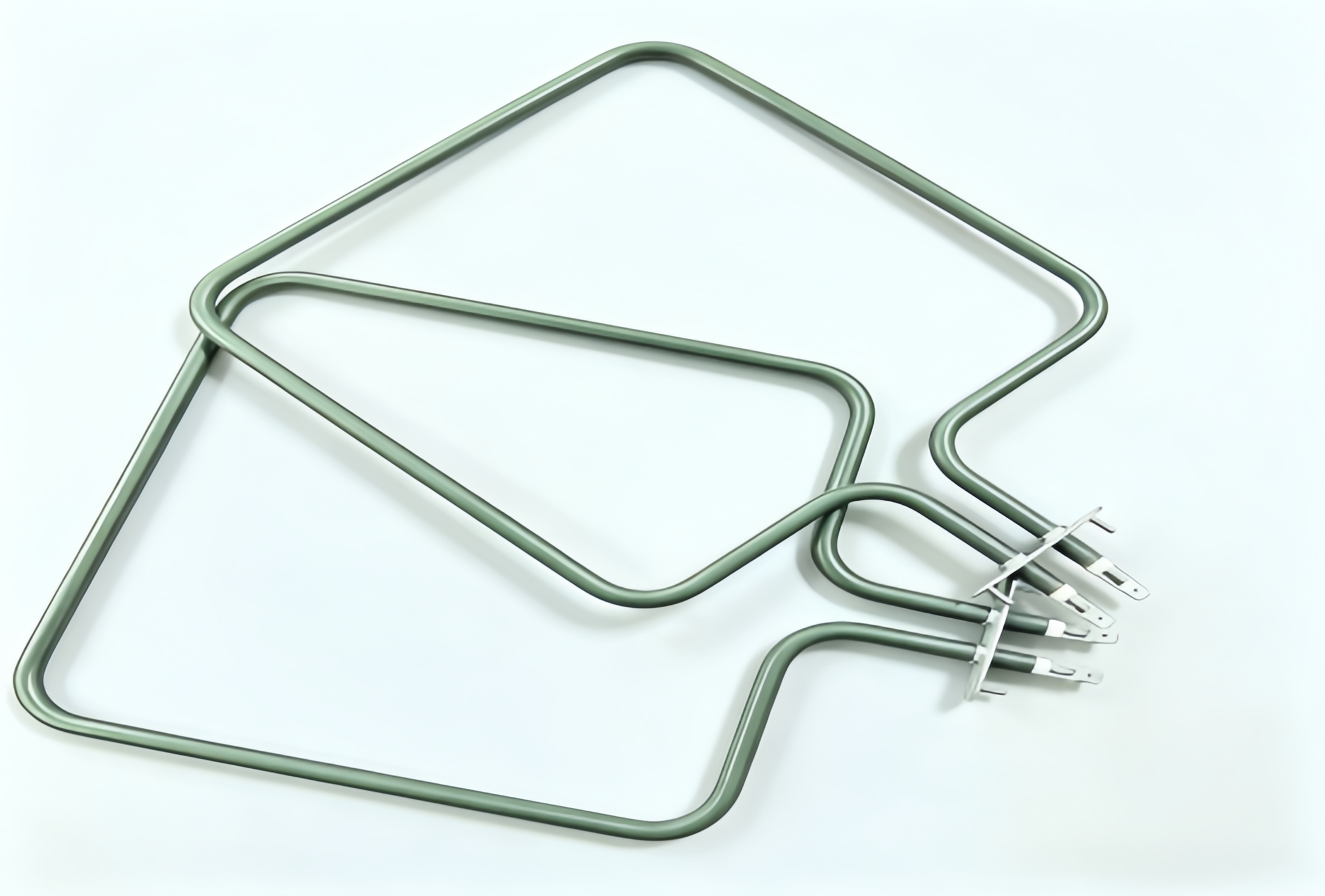

This square‑frame tubular heater is designed for air dry‑burn condition, equipped with metal mounting bracket for quick installation. Stainless steel construction, support custom voltage, wattage and size for oven and air heating equipment.

Material: Outer tube: Stainless steel Insulation filler: High purity MGO magnesium oxide powder Mount bracket & terminal sheet: Galvanized steel	Transport Package:Carton Box with Foam Shockproof Protection
Form: Single closed square frame tubular heating element	Specification: Shape: Single square frame tube Tube: Stainless steel Fitting: Galvanized bracket Cert: CE, UL, Lu-Chuan patent
Shape: Closed single square frame tubular shape	Resistance Wire: Cr20Ni80 nickel-chromium alloy wire
Voltage: Standard 110V, 220V; custom 120V/230V/240V available	MGO: High purity magnesium oxide powder, excellent thermal conductivity & insulation performance
Watt: Standard 600W–2200W, customized power is supported	Tube Diameter: 6.5mm / 8mm, custom diameters acceptable
Product Name: Square Frame Dry‑Burn Heater Element	Usage: Electric oven, toaster, baking machine, small kitchen heating equipment

Features

Specially designed for air dry‑burn working condition
Square‑frame loop structure, large heating area, uniform temperature
Integrated metal mounting bracket, easy installation and positioning
Stainless steel sheath, high temperature and oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped by bubble film, packed into individual inner box; multiple boxes loaded into export outer carton with shock‑proof protection.

Shipping

Available for sea freight, air freight and express delivery as per customer requirements.
