Multi U‑Type Dry‑Burn Heater Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

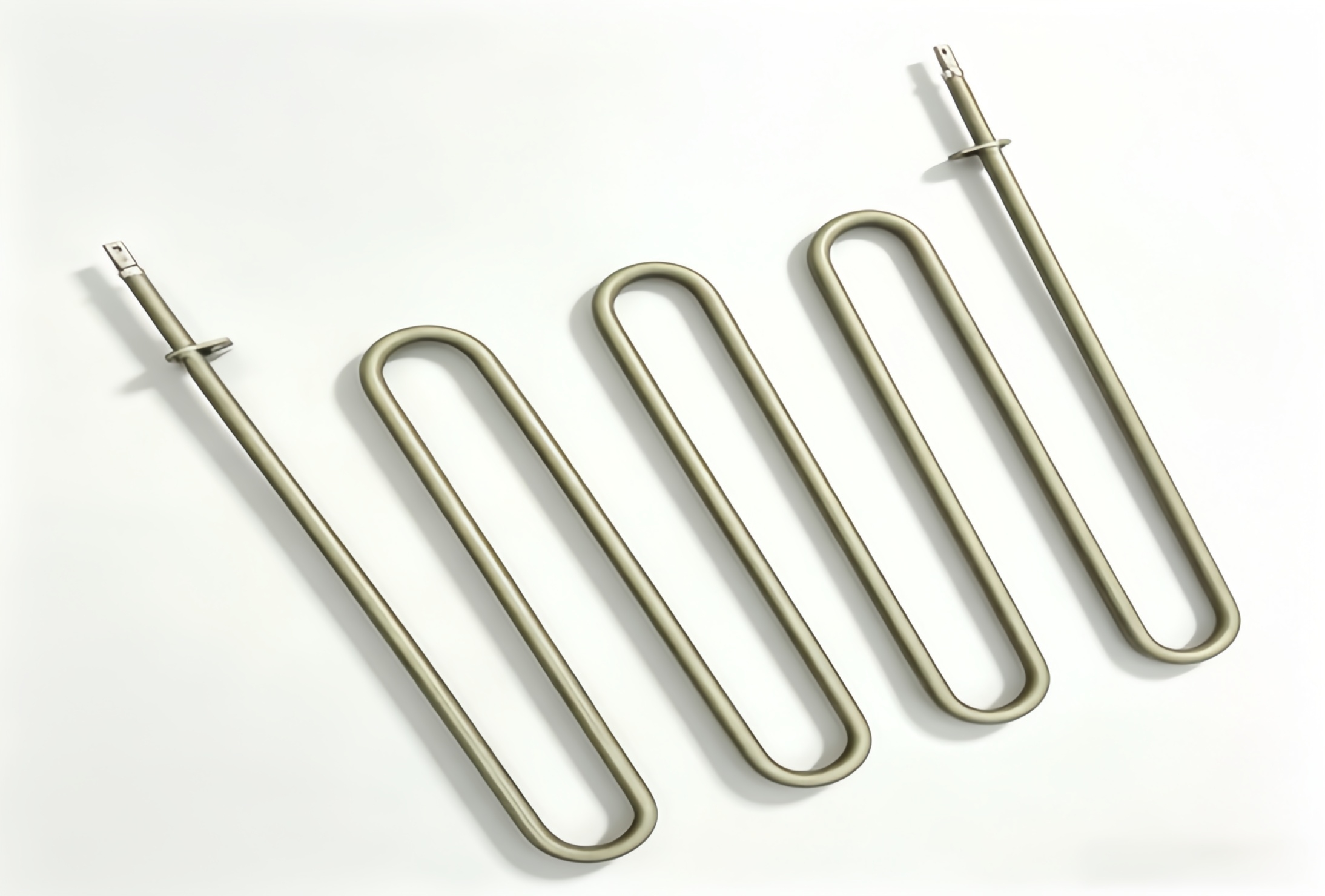

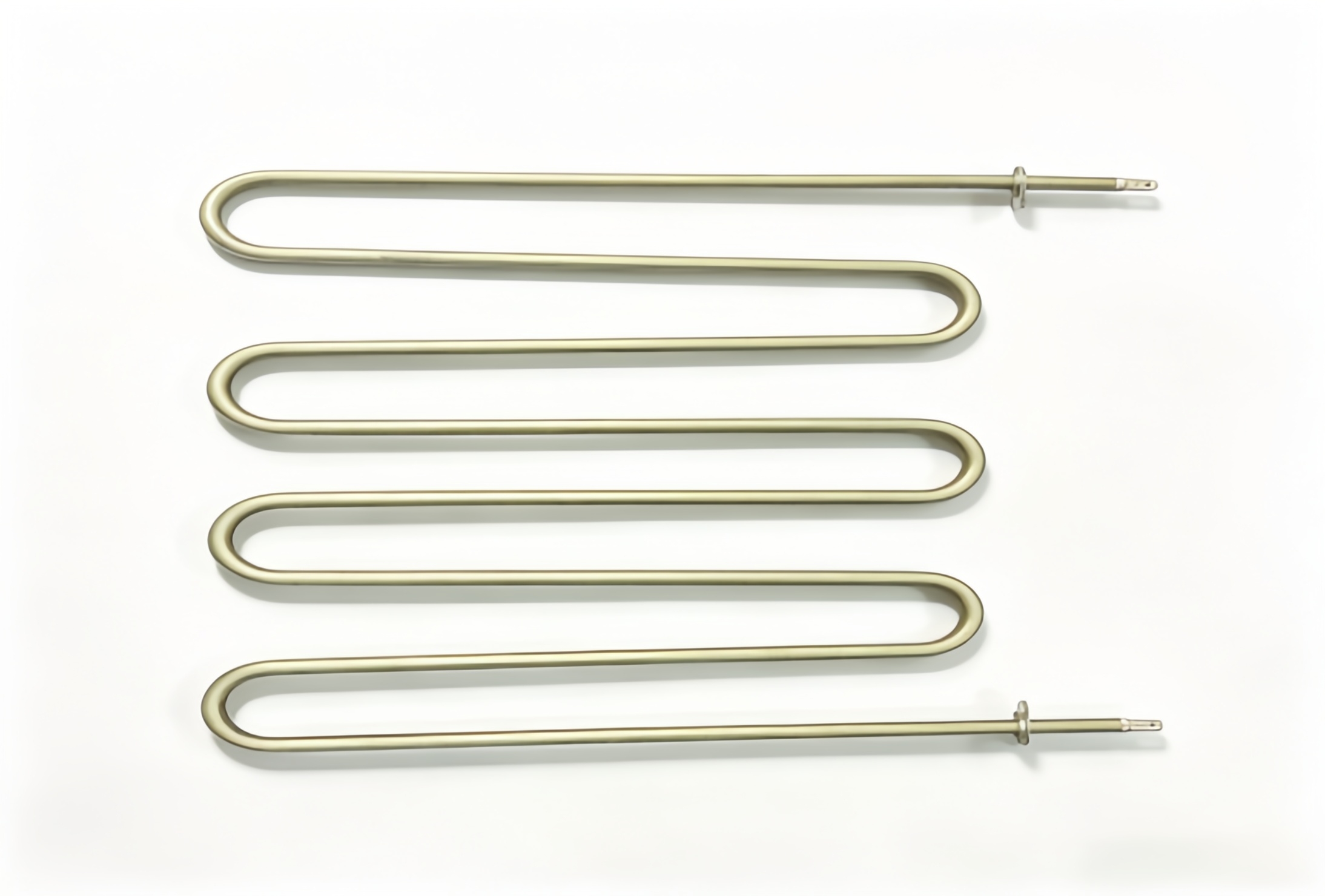

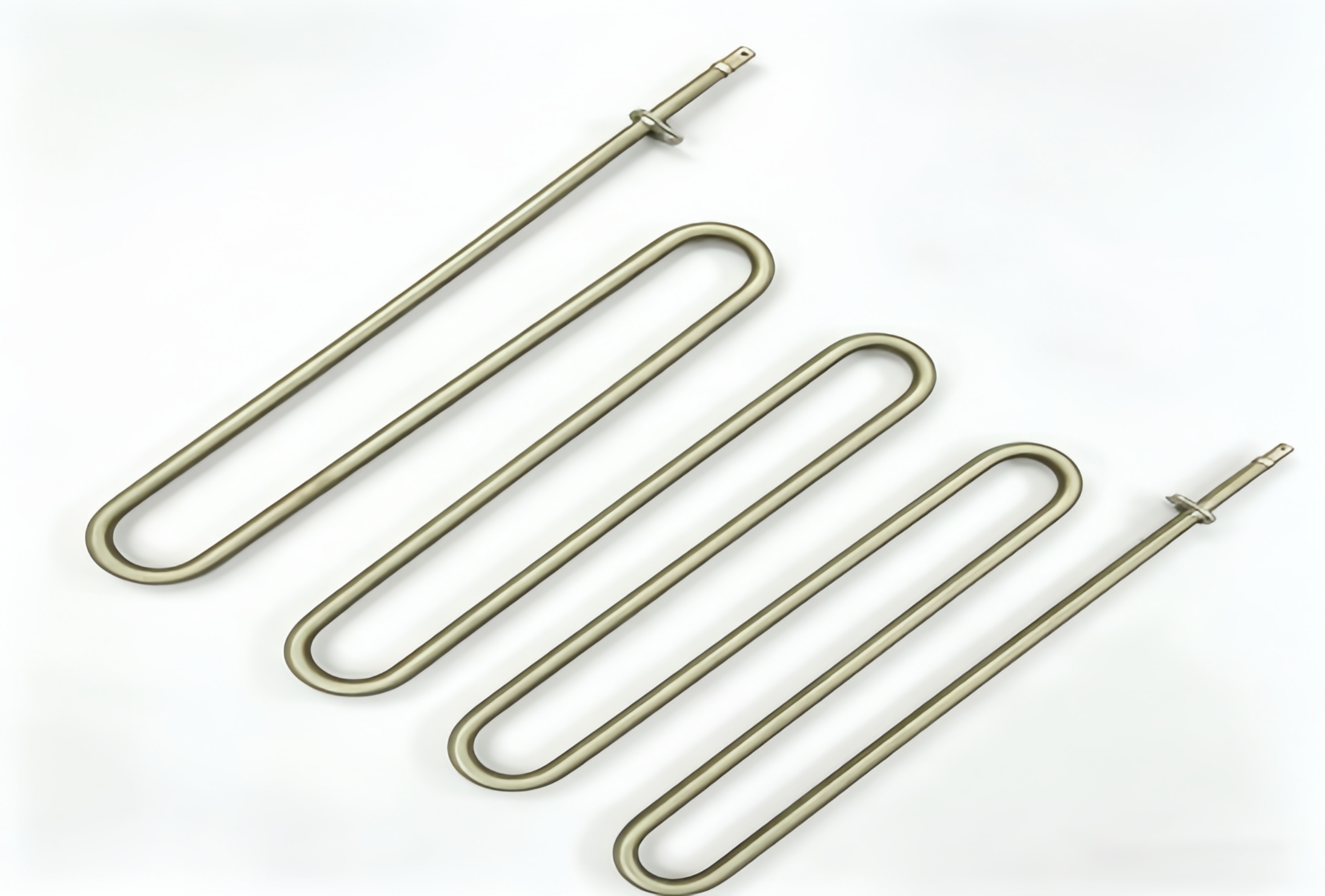

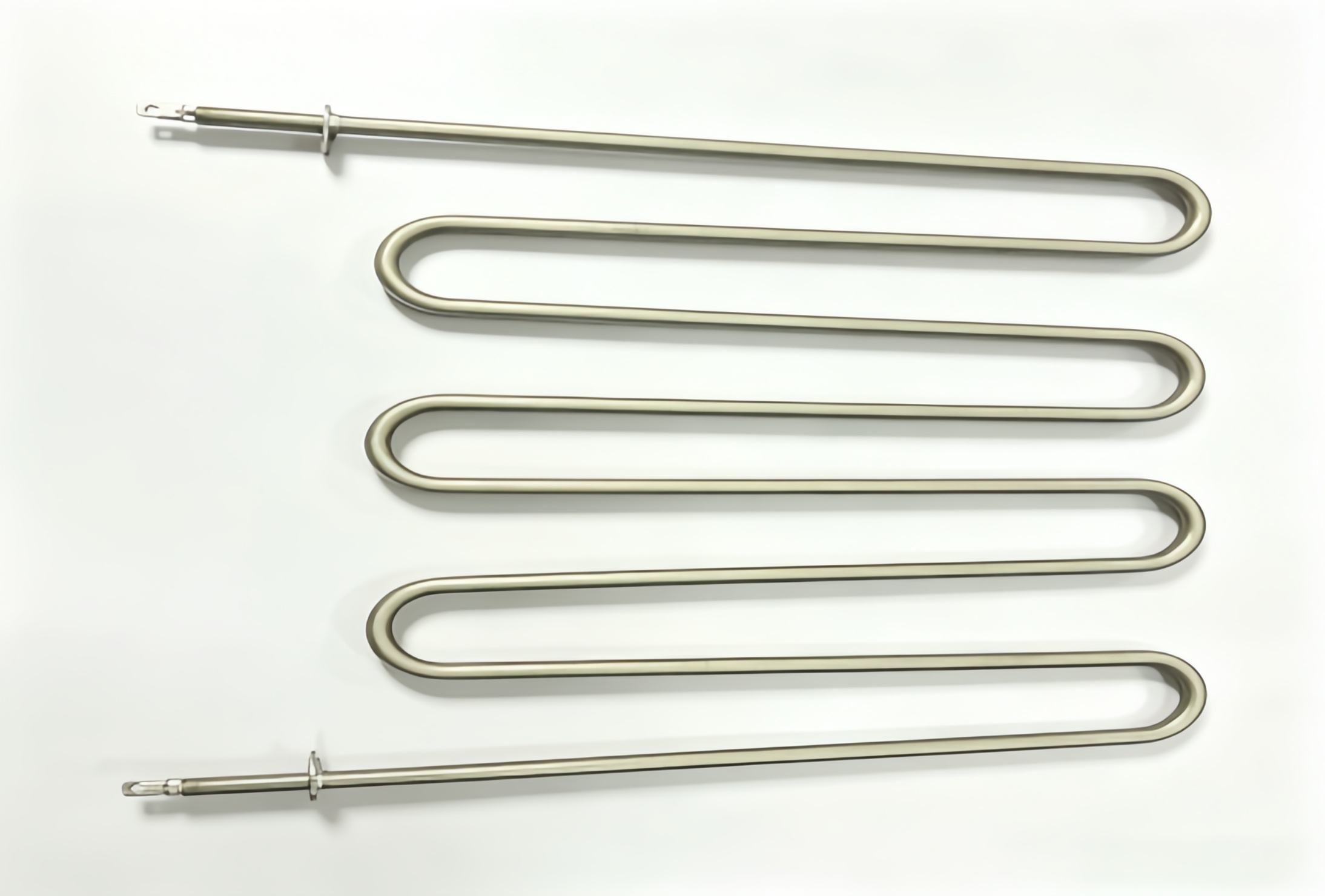

This multi‑U shape tubular heater is made for air dry‑burn working condition, fitted with fixing baffle for convenient positioning. Stainless steel material, support custom voltage, wattage and dimension for industrial oven and air heating equipment.

Material: Outer sheath: High-temperature resistant stainless-steel / Incoloy alloy tube Inner heating wire: Nichrome resistance wire Insulating filler: High-purity MGO (magnesium oxide) powder Mounting fitting: Carbon-steel metal terminal stud	Transport Package:Carton and Wooden Box
Form: Single-end U-bent tubular form with fixed mounting stud	Specification:Customized
Shape: Single-loop U-shaped bent tubular shap	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110V/220V/230V Single Phase, 380V Three Phase, Custom Voltage Available.	MGO: High-purity compact magnesium oxide powder
Watt: Customized
Product Name: Multi U‑Type Dry‑Burn Heater Element	Usage: Suitable for household electric ovens, commercial baking ovens, barbecue grills, food-drying machines and other heating-required kitchen equipment.

Features

Designed for air dry‑burn working condition
Multi‑U bending structure, large heating area, even heating
Metal baffle tab, easy positioning & installation
Stainless steel sheath, high temperature and oxidation resistance
Customizable voltage, power and overall dimension

Package delivery

Packaging

Each heater wrapped by bubble film, packed into individual inner box; multiple boxes loaded into export outer carton with shock‑proof protection.

Shipping

Available for sea freight, air freight and express delivery as per customer requirements.
