3‑Loop Oven Tubular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

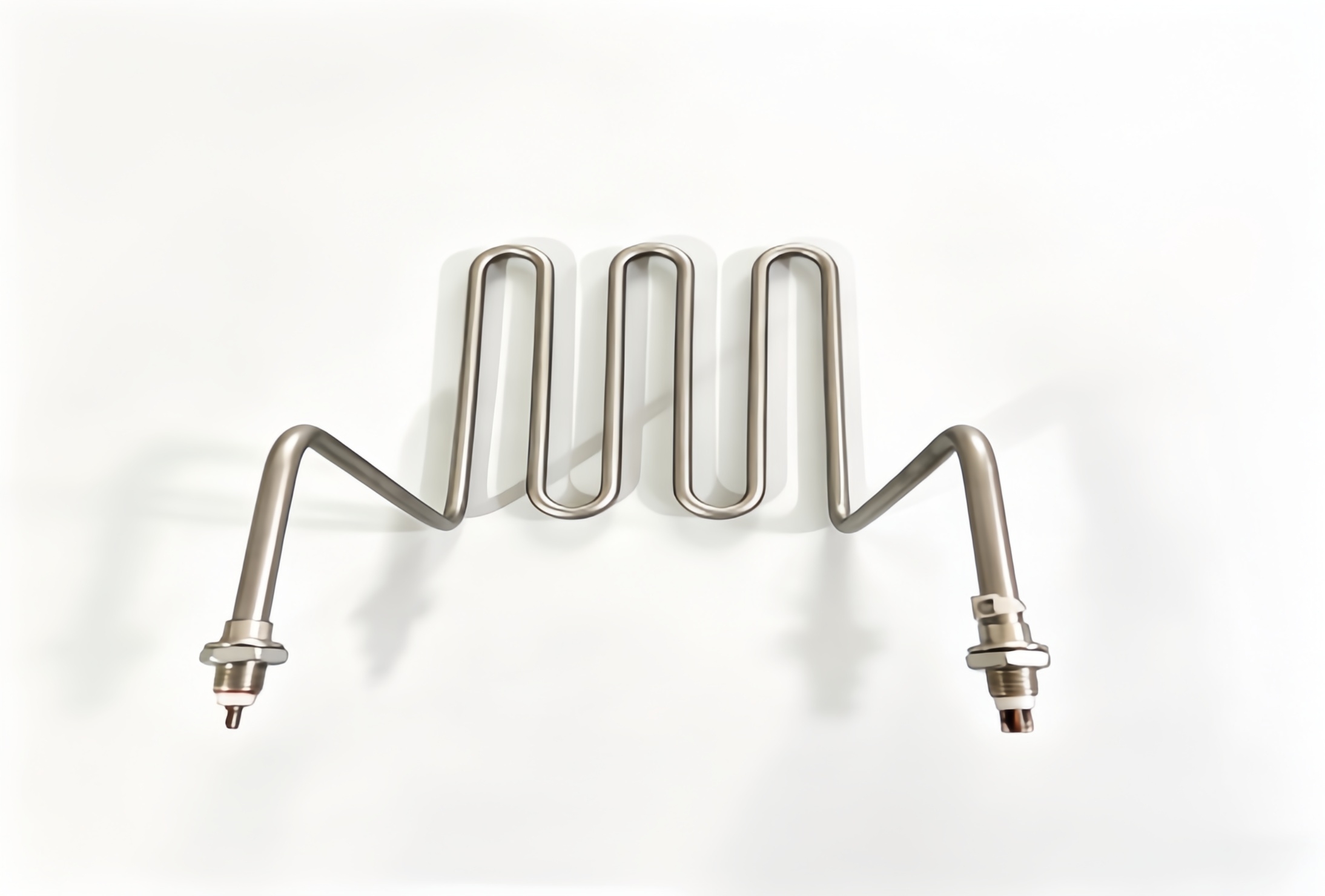

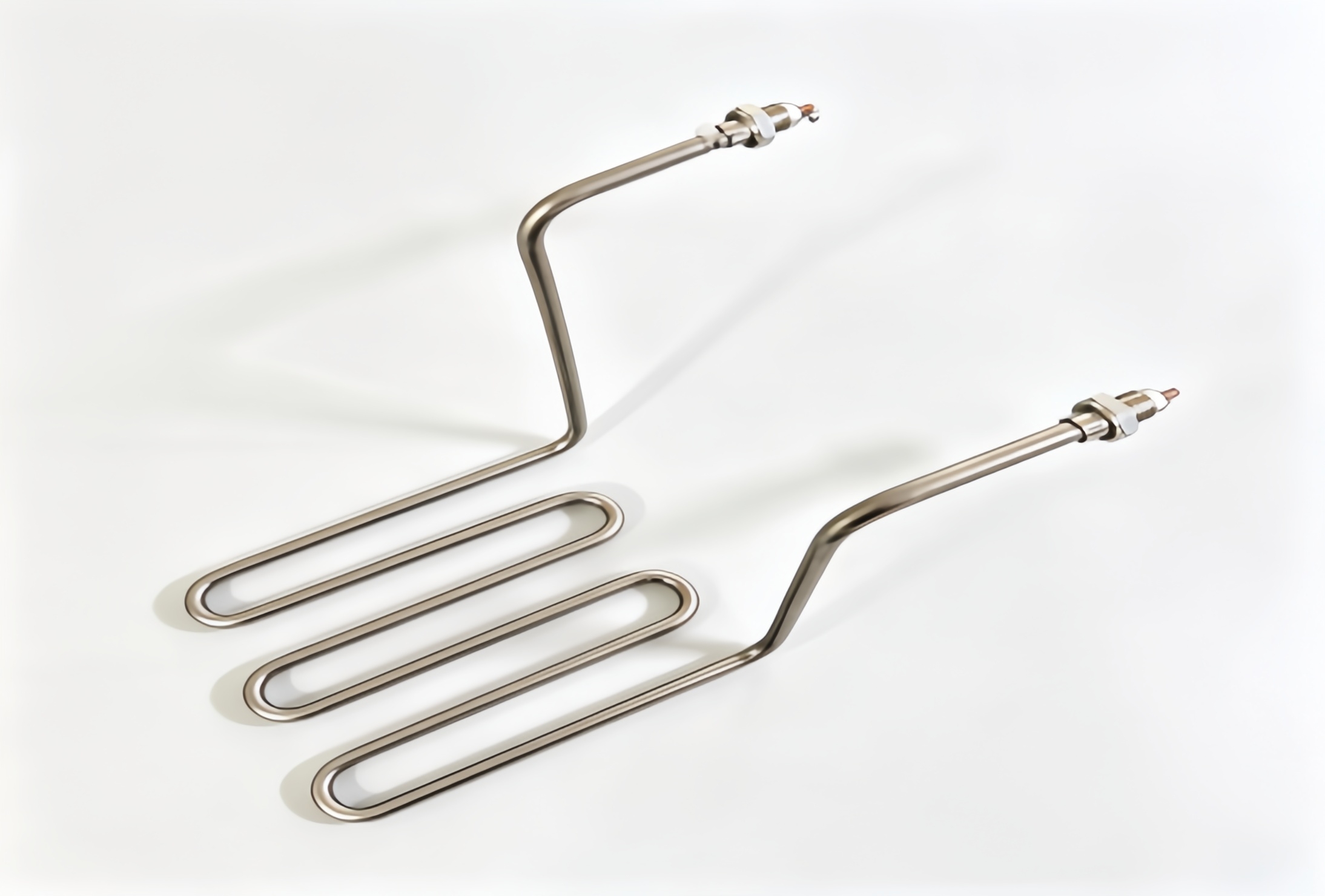

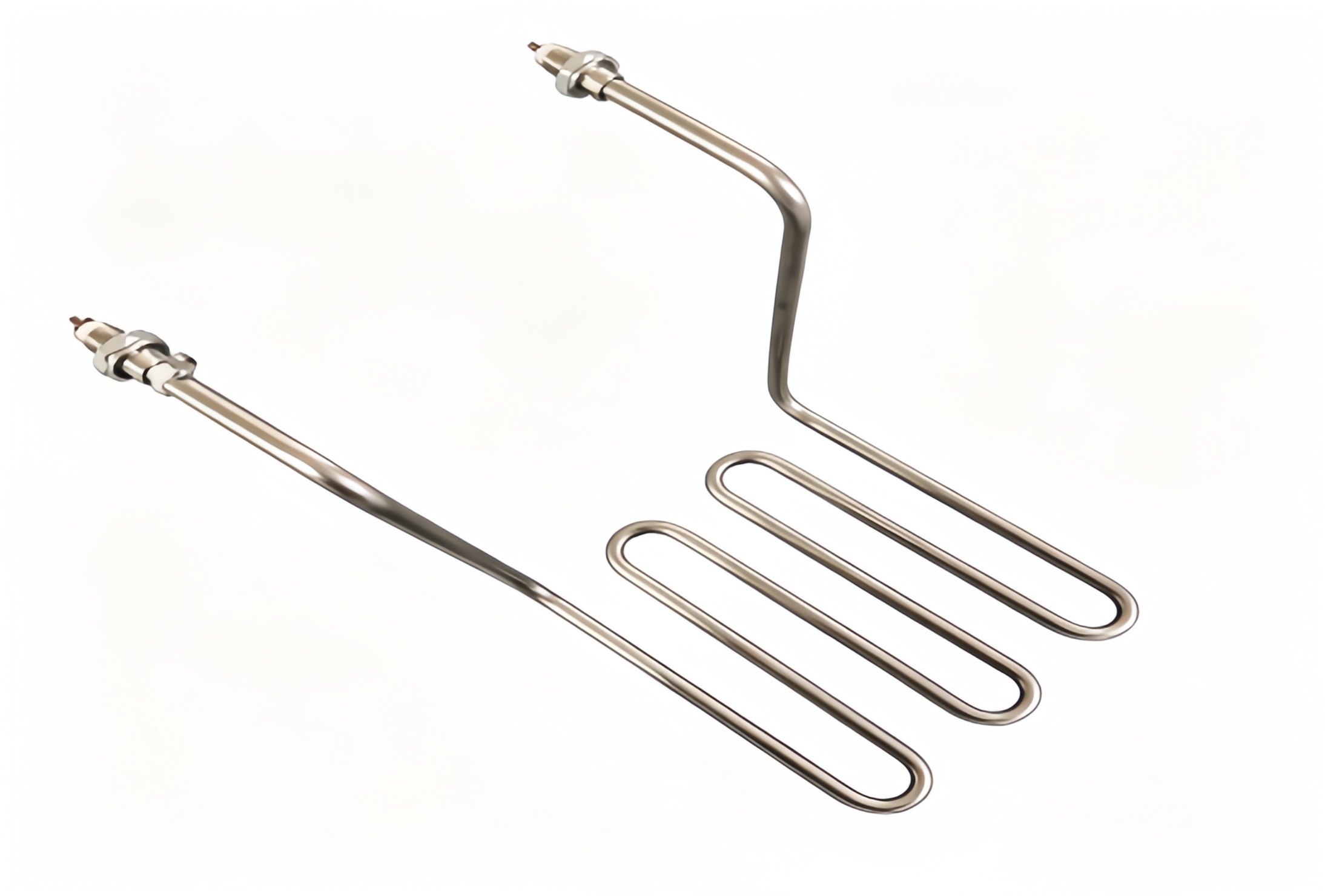

This 3‑loop multi‑bend tubular heater is designed for oven air dry‑burn heating. It comes with threaded terminals for quick installation and delivers large‑area, even heating. Custom specifications are available.

Material: Stainless-steel sheath; Insulation filler: High-purity magnesium oxide; Heating wire: Nickel-chromium alloy	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Bent tubular heating element with multi-U loops and threaded terminals	Specification: Custom-made specifications
Shape: Multi-U bent shape with two extended straight terminal ends	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: Custom Voltage	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 800W–4000W, customizable single power per unit	MGO: High purity magnesium oxide insulating powder
Tube Diameter: Multiple tube diameters are optional, sizes can be customized as requested.	Application: Suitable for oven, drying cabinet and other industrial dry-burn air heating equipment

Features

Three‑loop design, large heating area and fast warming
Threaded terminals, simple and stable installation
Excellent performance for long‑time air dry‑burn working
Stainless‑steel tube, high‑temperature oxidation resistance
Fully customizable on voltage, power, shape and size

Package delivery

Packing

Each heating element is wrapped by bubble film separately, packed in shock‑proof export cartons. Custom‑made packaging is welcomed.

Shipping

Samples delivered by DHL, FedEx, TNT. Bulk orders shipped by sea or air freight. Lead‑time depends on order quantity.
