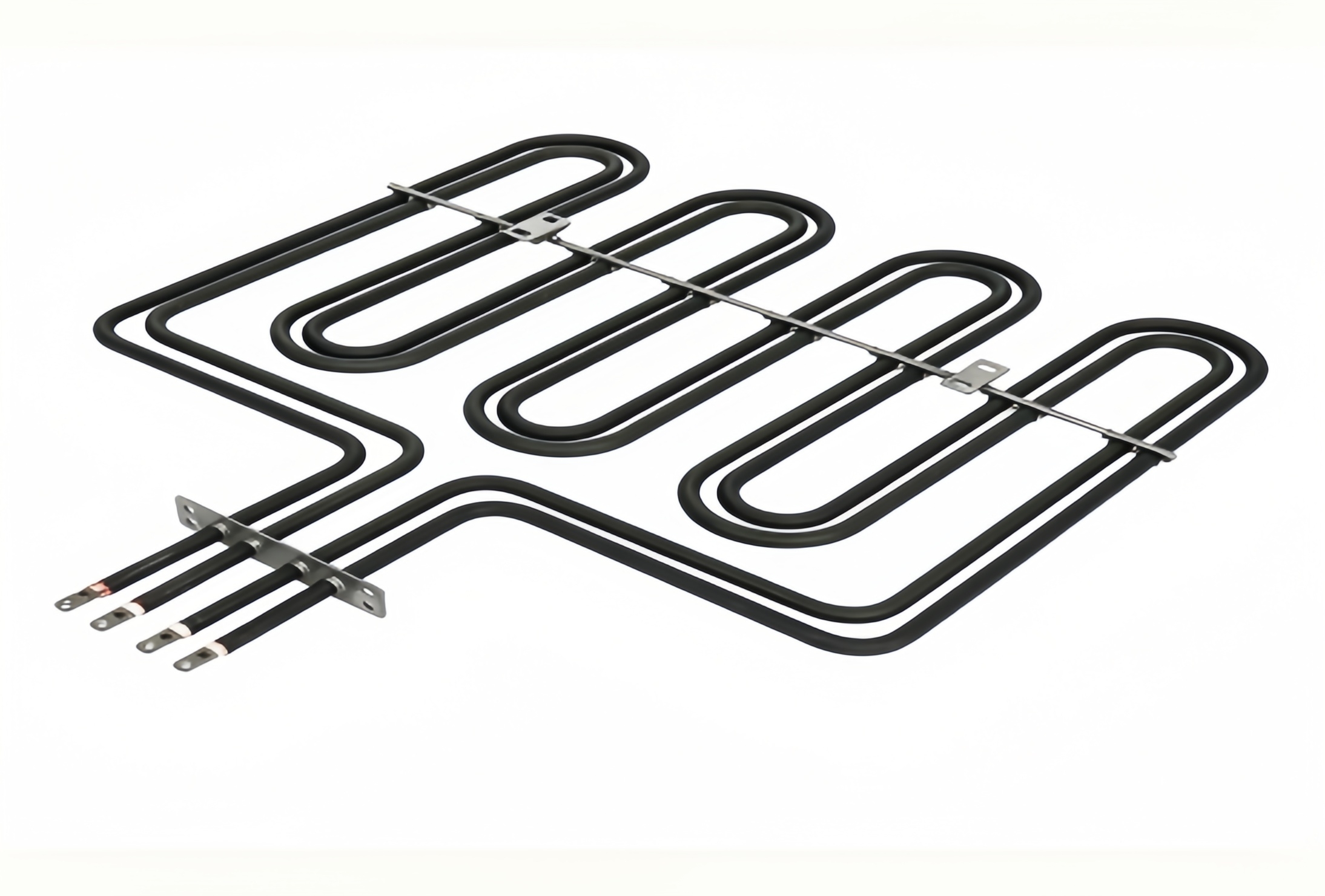

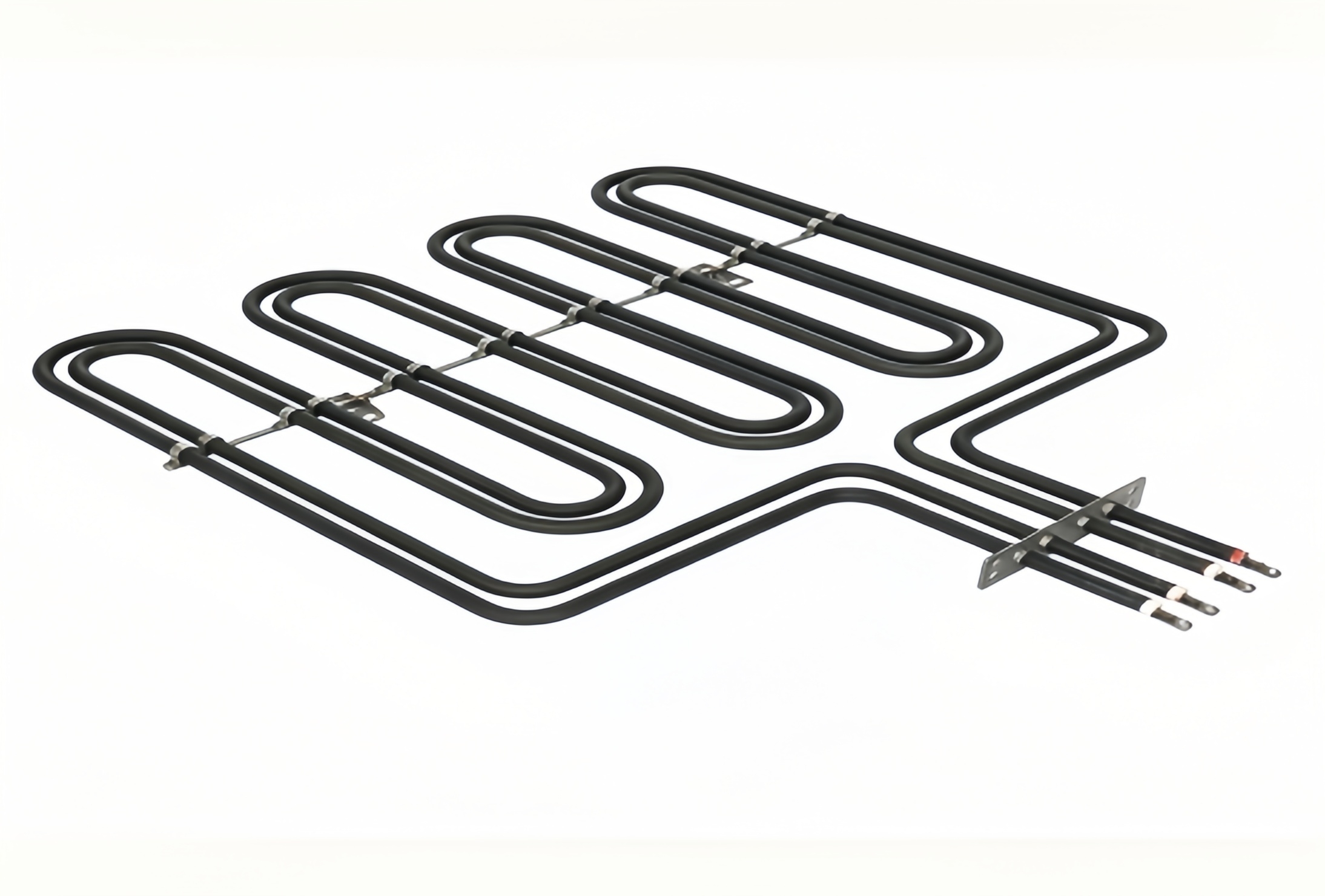

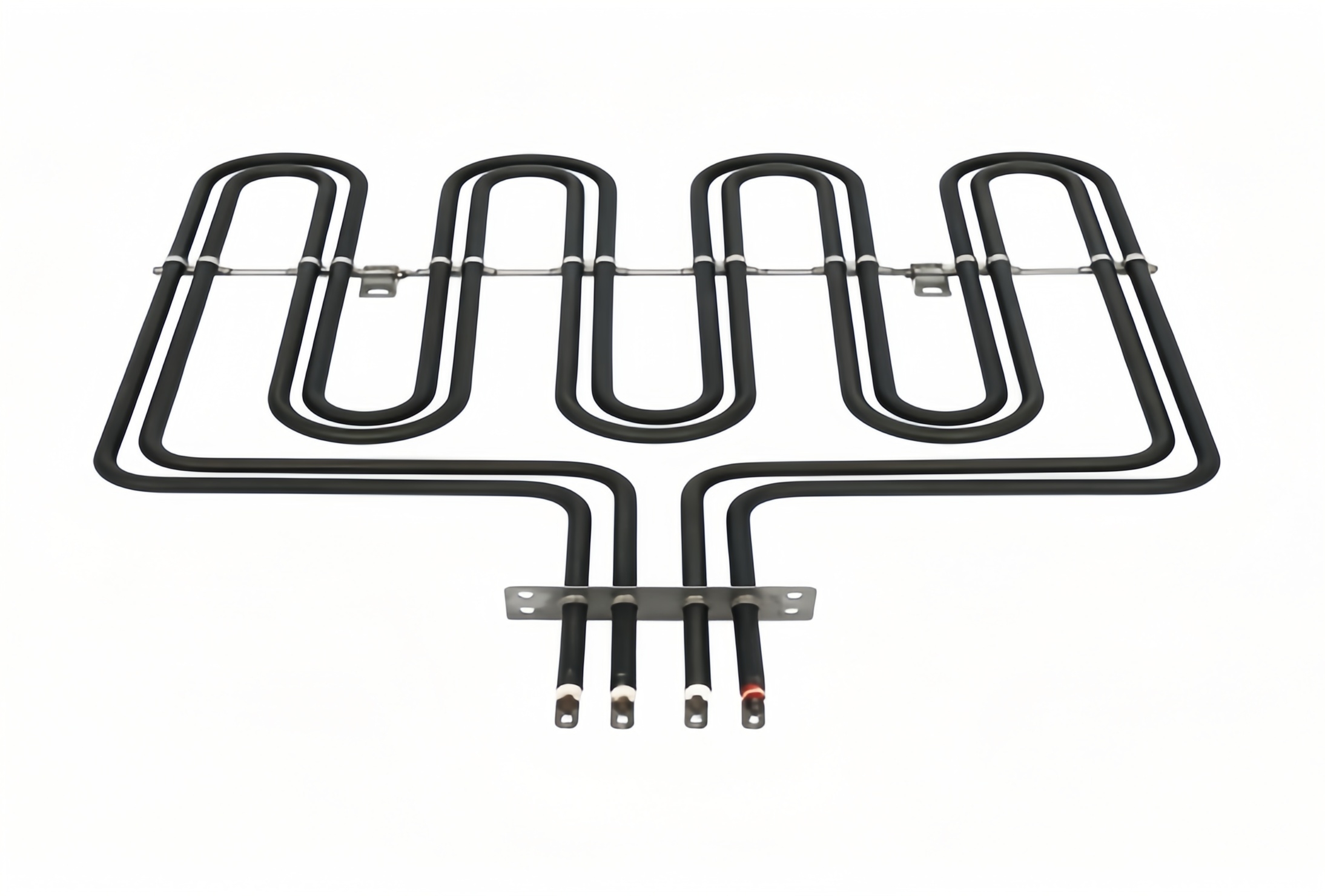

4‑Loop Dual‑circuit Air Dry‑Burn Tubular Heater With Cross Support Rod

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This 4‑loop dual‑circuit heating tube is designed for large‑capacity oven dry‑burn heating. Two independent heating circuits support separate temperature control. Cross‑support rod strengthens structure to avoid long‑time high‑temperature deformation. Stainless‑steel sheath, all specs customizable.

Material: Standard option: SUS304 stainless steel, cost-effective for regular bakery ovens Mid-high temp option: 310S stainless steel, anti-oxidation under long-time dry burning Premium high temp option: Incoloy 800 alloy, ultra-long service life for continuous high-temperature work	Transport Package:Carton and Wooden Box
Form: Multi-loop multi-U bending shape, integrated metal fixing brackets, ceramic insulated terminal ends.	Specification:Customized
Shape: Multi-section U-shaped bending structure, equipped with metal mounting supports for oven installation.	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: Support customized voltage including 110V, 220V, 380V. 220V is standard for Southeast Asian markets such as Indonesia.	MGO: High-purity fused MgO insulating filler
Watt: Customized	Tube Diameter: 10mm / 12mm customizable
Product Name: 4‑Loop Dual‑circuit Air Dry‑Burn Tubular Heater With Cross Support Rod	Usage: Commercial bakery oven, deck oven, rotary oven

Features

Dual‑circuit independent heating design, two‑stage temperature control
Four‑loop U‑shaped layout, large‑area uniform heat radiation
Cross‑support reinforcing rod, anti‑sagging & anti‑deformation
High‑quality stainless‑steel tube, long service life for dry‑burn work
Full customization on voltage, power and outer dimension

Package delivery

Packaging

Each heater wrapped with bubble film, packed into separate inner box; multiple units packed into shock‑proof export carton.

Shipping

Sea freight, air freight or express delivery are available based on your requirement.
