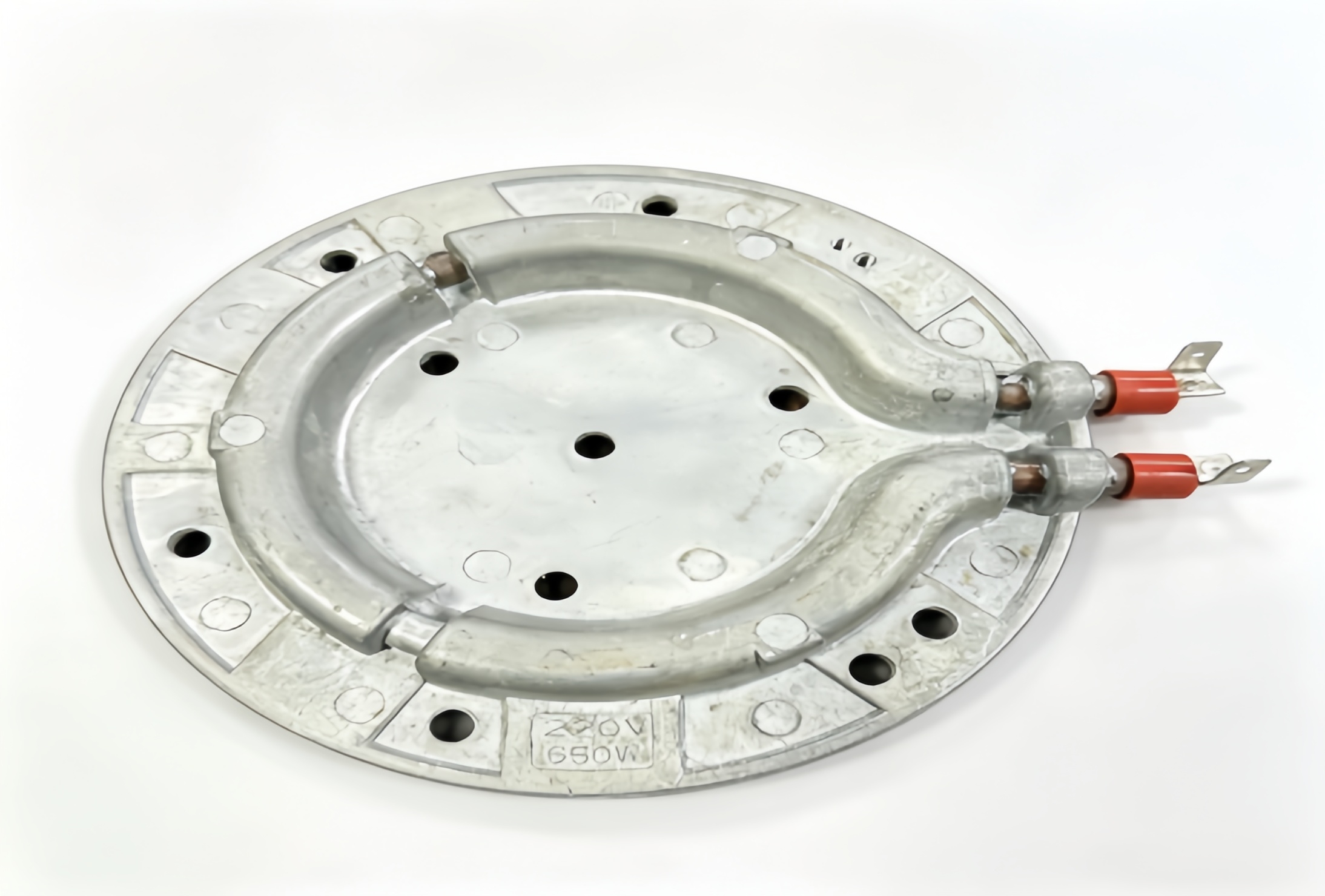

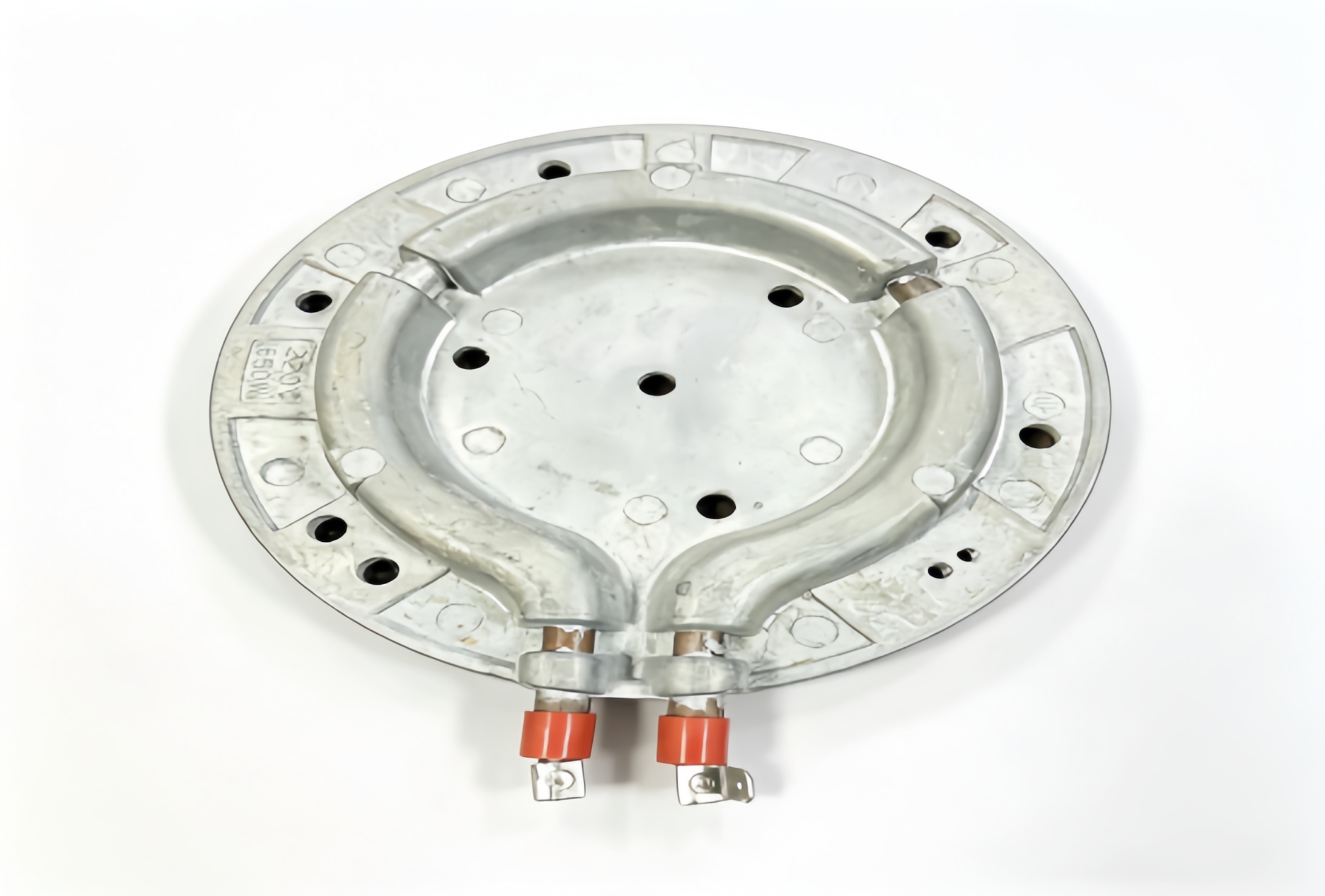

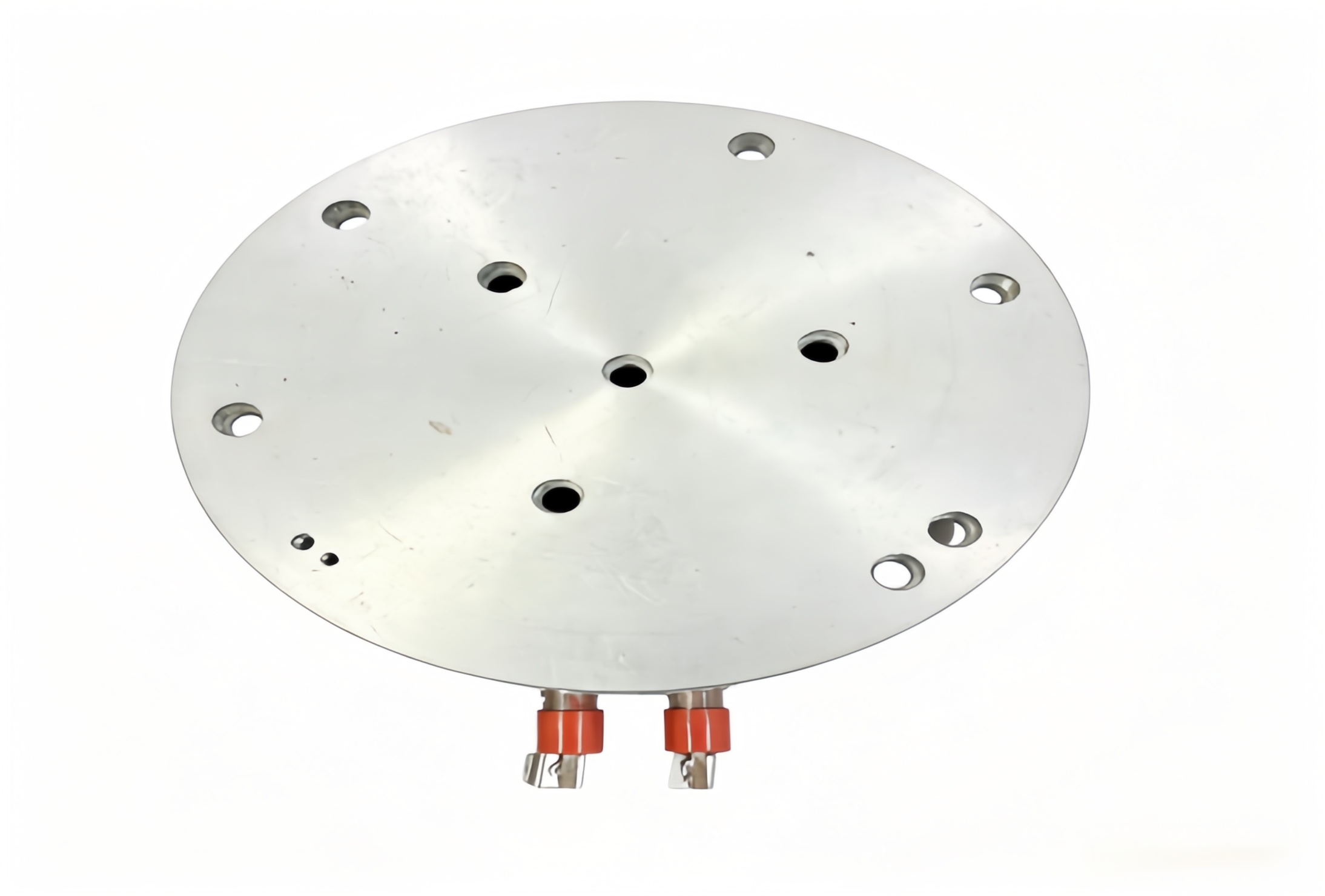

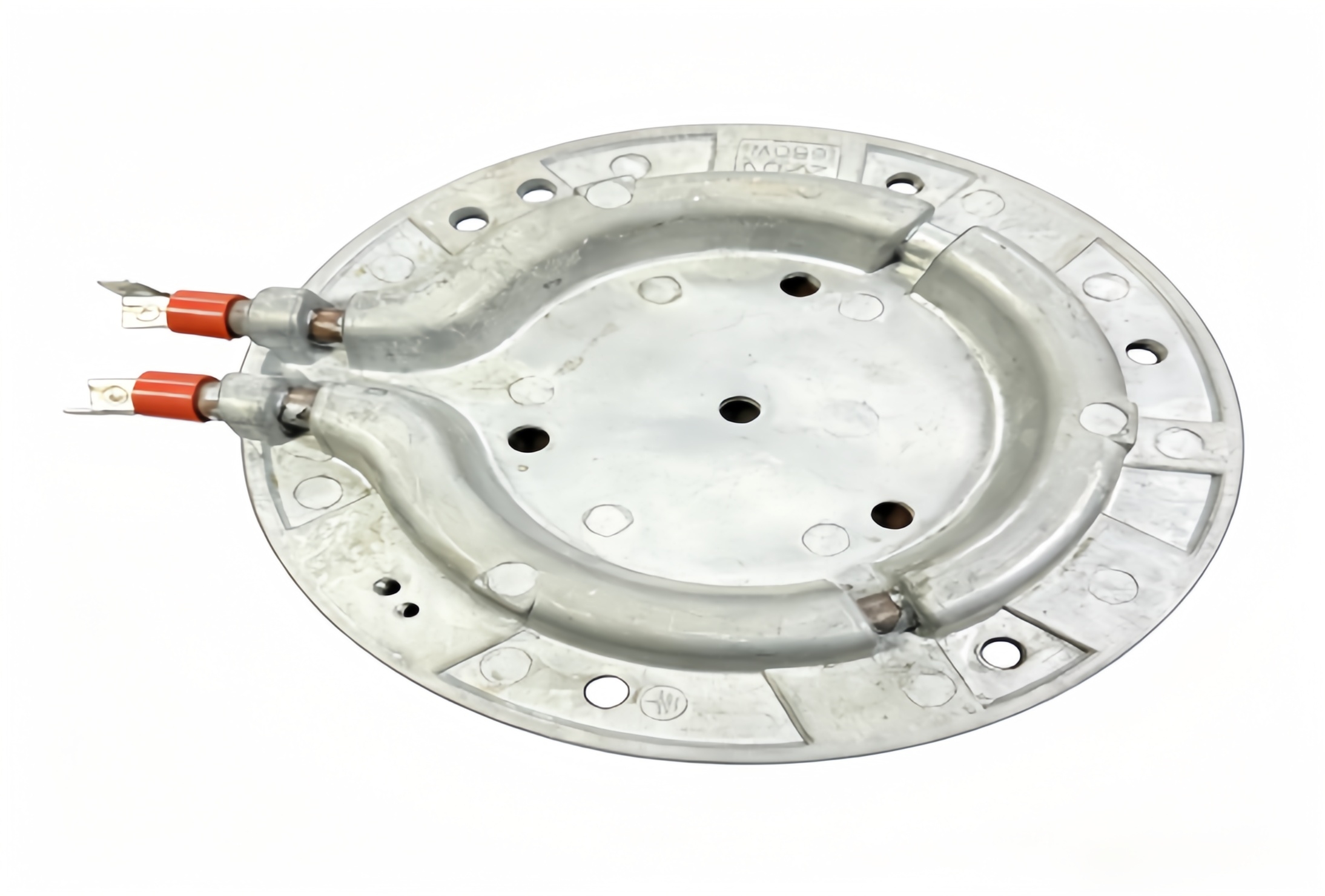

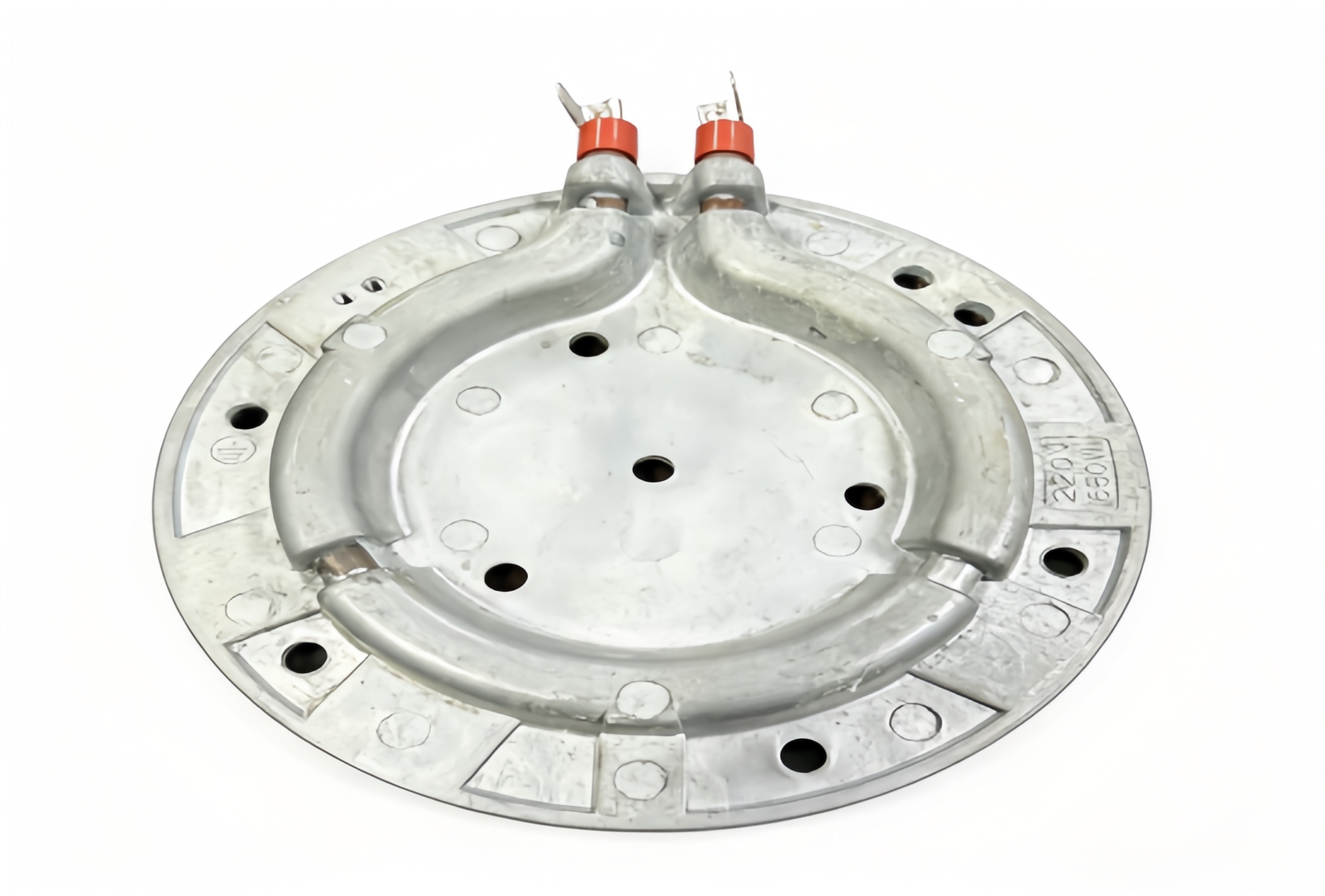

Circular Heating Plate Element

Inquire Now

Product Description Features Package delivery Download

Product Description

This rice cooker heating plate is a circular aluminum‑base tubular heating element with mounting holes. Designed as spare part for rice cookers and similar kitchen appliances. It provides fast and even heating, reliable performance, and supports OEM customization of voltage, power and diameter.

Material: Cast aluminum alloy base, stainless steel heating tube, Cr20Ni80 nichrome wire, high purity MGO powder, high temp plastic terminal cap	Transport Package: Carton and Wooden Box, with shockproof protection
Form: Round flat disc integrated die-cast form with embedded U-shaped tubular heating loop	Specification: Round cast aluminum heating disc, 220V 650W standard, 6.5mm stainless steel tube with MGO filling. Custom voltage, wattage and size available, CE & UL certified, Lu-Chiuan patented.
Shape: Round flat disc shape with embedded U-shaped heating loop	MGO:High Grade (internal insulation filler)
Voltage: Standard AC220V, AC110V customizable	Resistance Wire: Cr20Ni80 nichrome resistance wire
Watt: Standard 650W, customizable 300W–1500W	Tube Diameter: Standard 6.5mm, customized tube diameter available
Product Name: Circular Heating Plate Element	Usage: For rice cookers, electric steamers, water boilers and food warmers

Features

Circular aluminum base with multiple mounting holes for easy installation
Integrated tubular heating tube, excellent thermal conductivity
Uniform heat distribution, fast heating‑up speed
Stable insulation property, safe for kitchen appliance use
Durable structure, long service life
Support OEM: voltage, power, outer diameter
100% electrical performance tested before shipment

Package delivery

Each heating plate foam‑wrapped, packed in export carton with divider. Support express, air and sea shipment, custom packing available.
