Cast‑in Aluminum Heater Plate

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

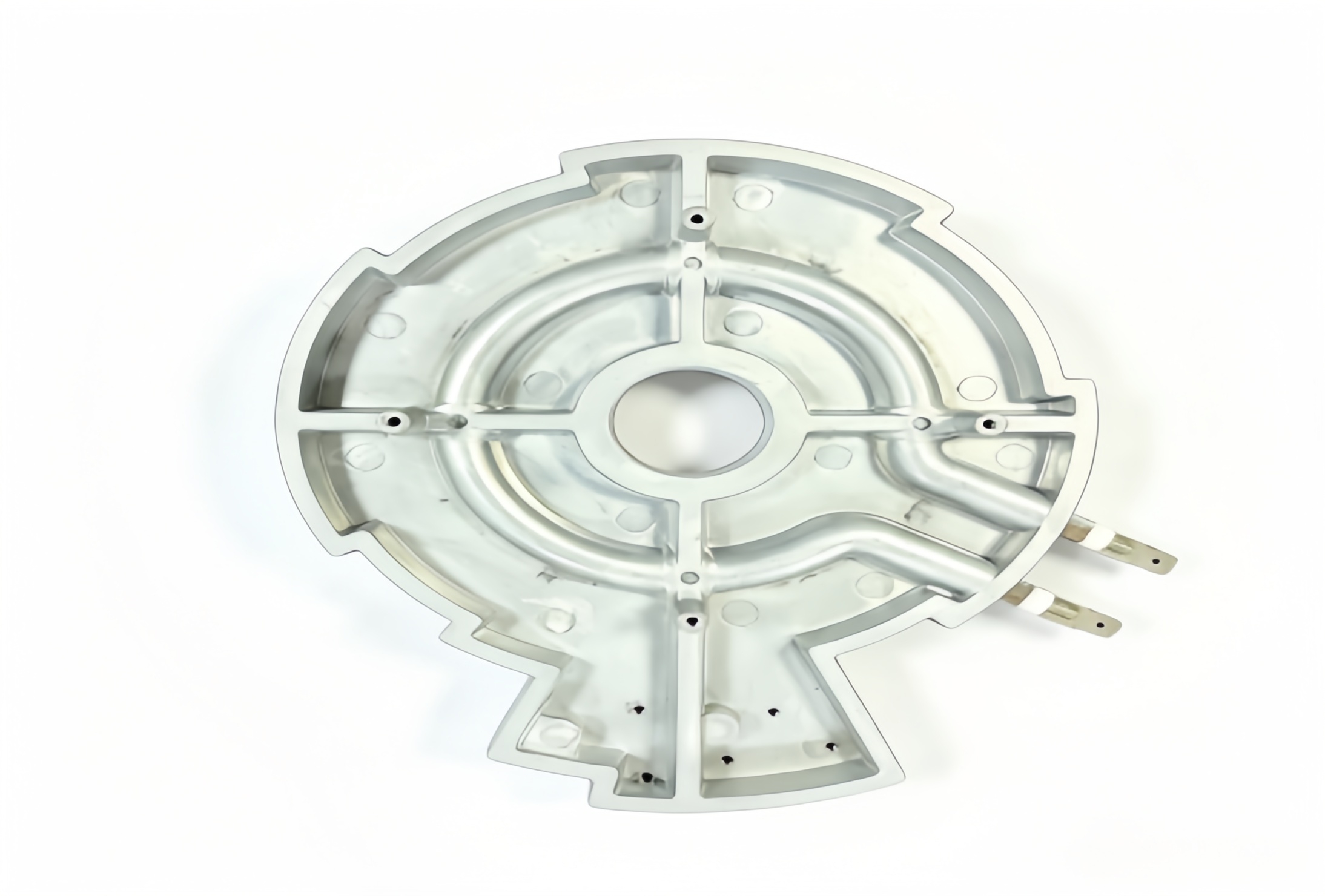

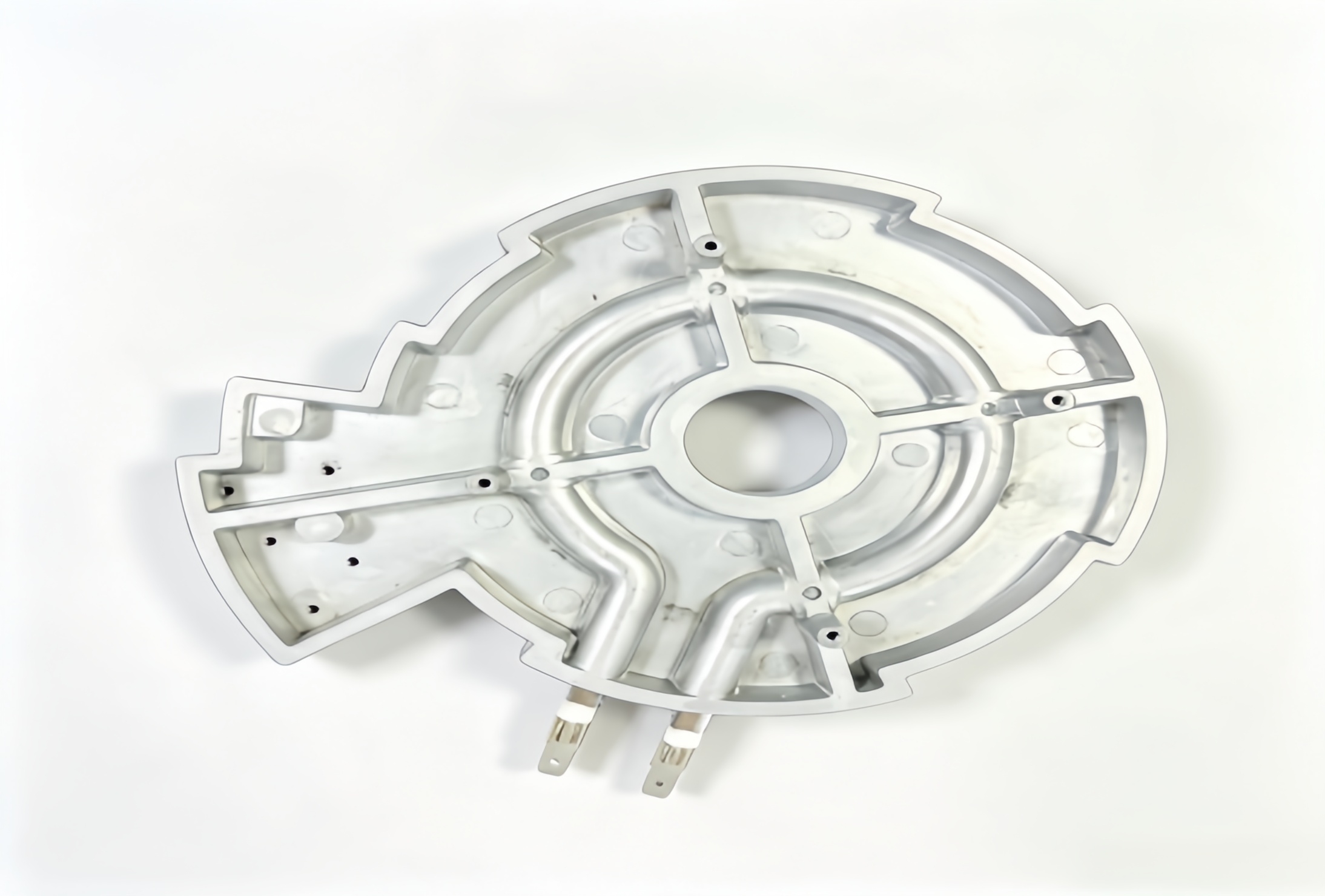

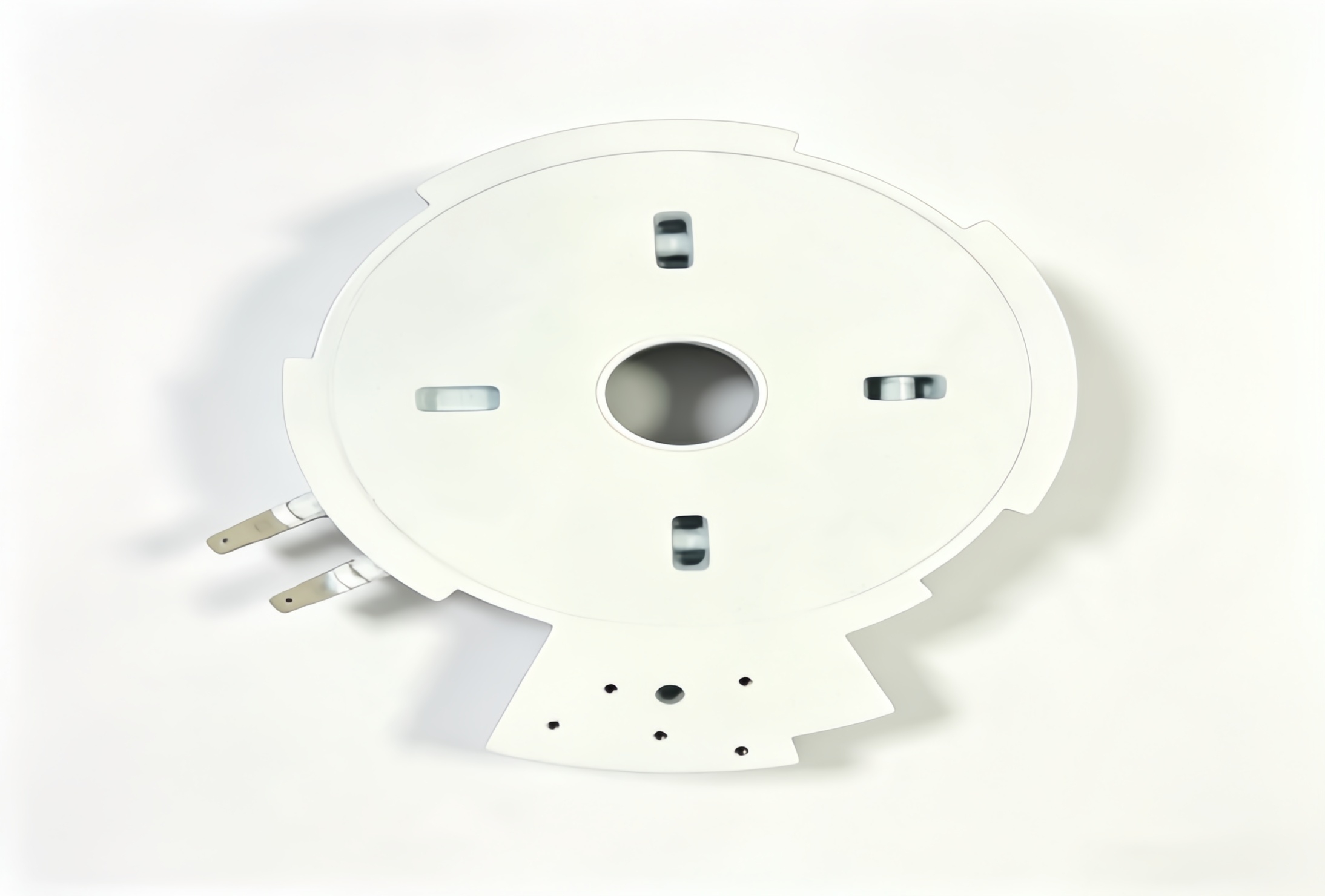

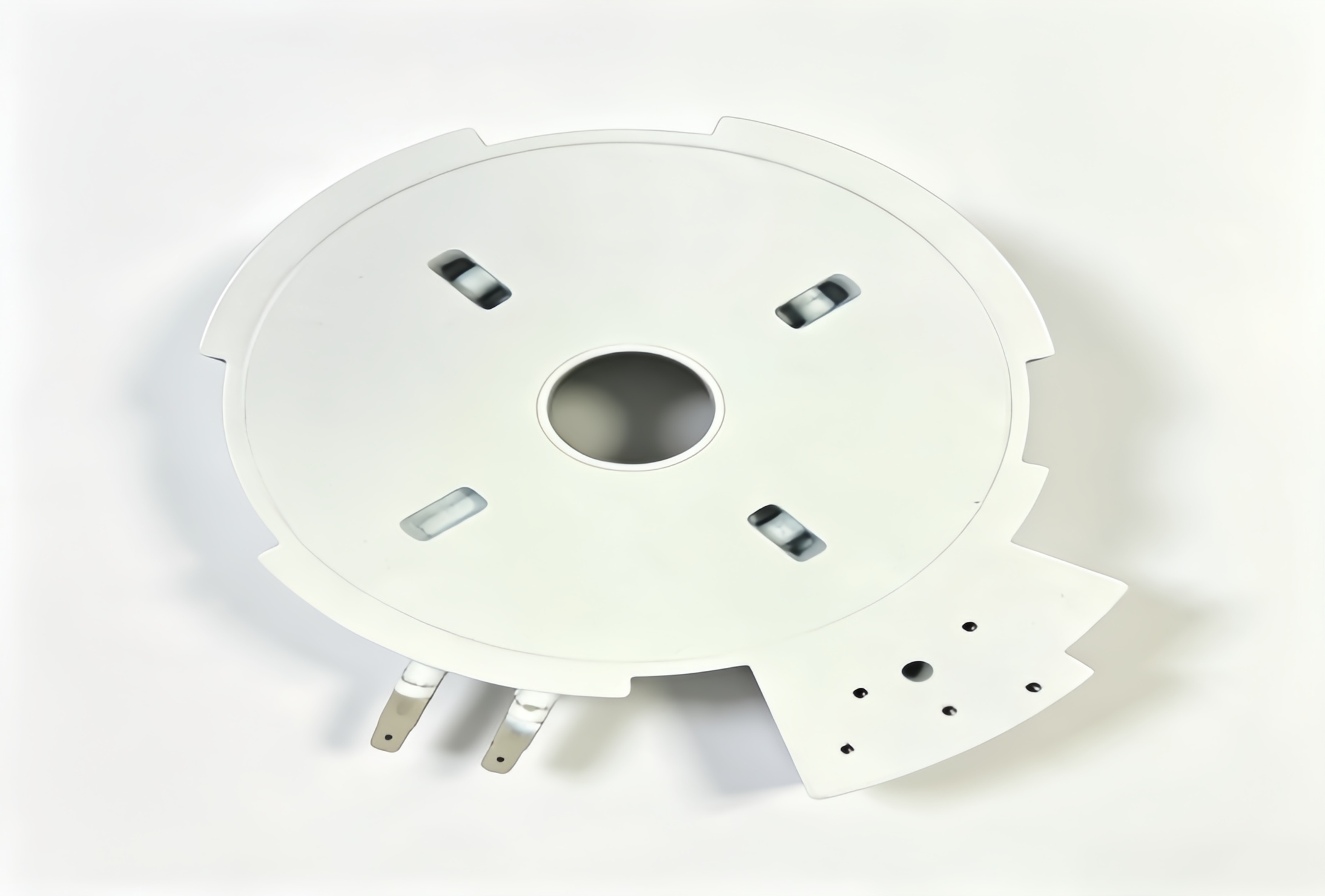

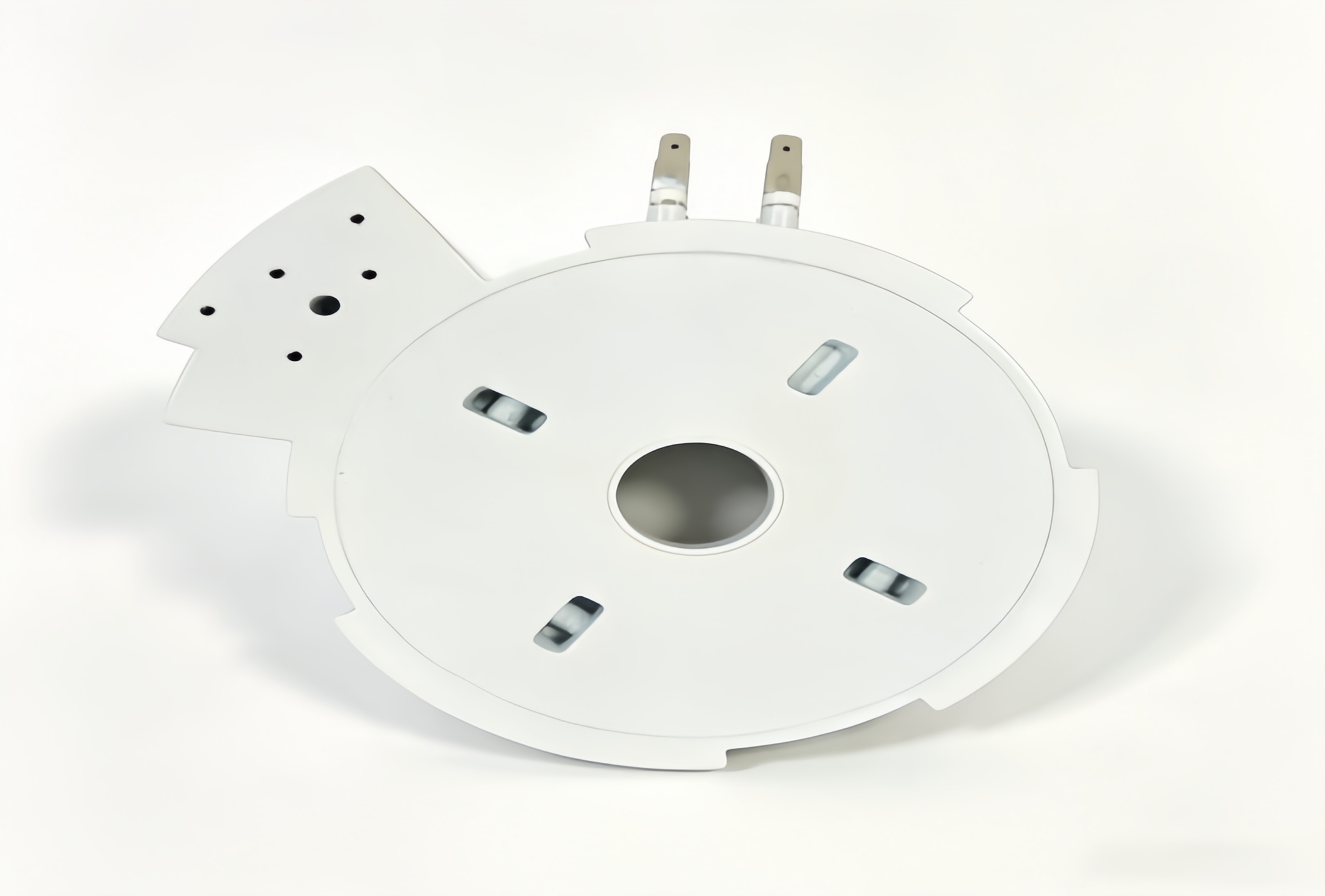

This special‑shape cast‑in aluminum heater plate adopts embedded tubular heating element. It features fast heat conduction and uniform temperature distribution. Pre‑drilled mounting holes support quick installation. Custom dimension, voltage and power are available for household kitchen appliances.

Material: Main shell: Die-cast aluminum Inner heating tube: Stainless-steel tube Insulated terminal: High-temperature-resistant ceramic Heating wire: Nickel-chromium alloy	Transport Package: Carton and Wooden Box, with shockproof protection
Form: Integrated die-cast aluminum disc heating assembly with ceramic insulated terminals	Specification: Round die-cast aluminium heater, 8-12mm heating tube, customizable 110-380V voltage and 800-3500W power, equipped with ceramic insulated terminals and mounting holes
Shape: Round disc-shaped with protruding installation tabs	MGO:High Grade (internal insulation filler)
Voltage: Custom-made voltage from 110V to 380V	Resistance Wire: Cr20Ni80 nichrome resistance wire
Watt: Customizable power 800W-3500W	Tube Diameter: Heating tube diameter 8-12mm, custom sizes acceptable
Product Name: Cast‑in Aluminum Heater Plate	Usage: Fit for electric stove, baking oven, household cooktop and industrial heating-related equipment

Features

Embedded tubular heater inside cast‑in aluminum base, long service life
Excellent thermal conductivity, fast and uniform heating performance
Pre‑drilled mounting holes & positioning slots for easy assembly
Firm terminal lugs connection, stable electrical performance
Support custom outline, dimension, voltage, power and terminal position

Package delivery

Packaging

Each cast‑in aluminum heater plate wrapped with foam to avoid collision and scratch, packed into separate inner carton. Bulk orders packed in export carton with shock‑proof filling for safe transit.

Shipping

Sea freight, air freight and express delivery are optional. We can arrange shipment according to customer’s requirements.
