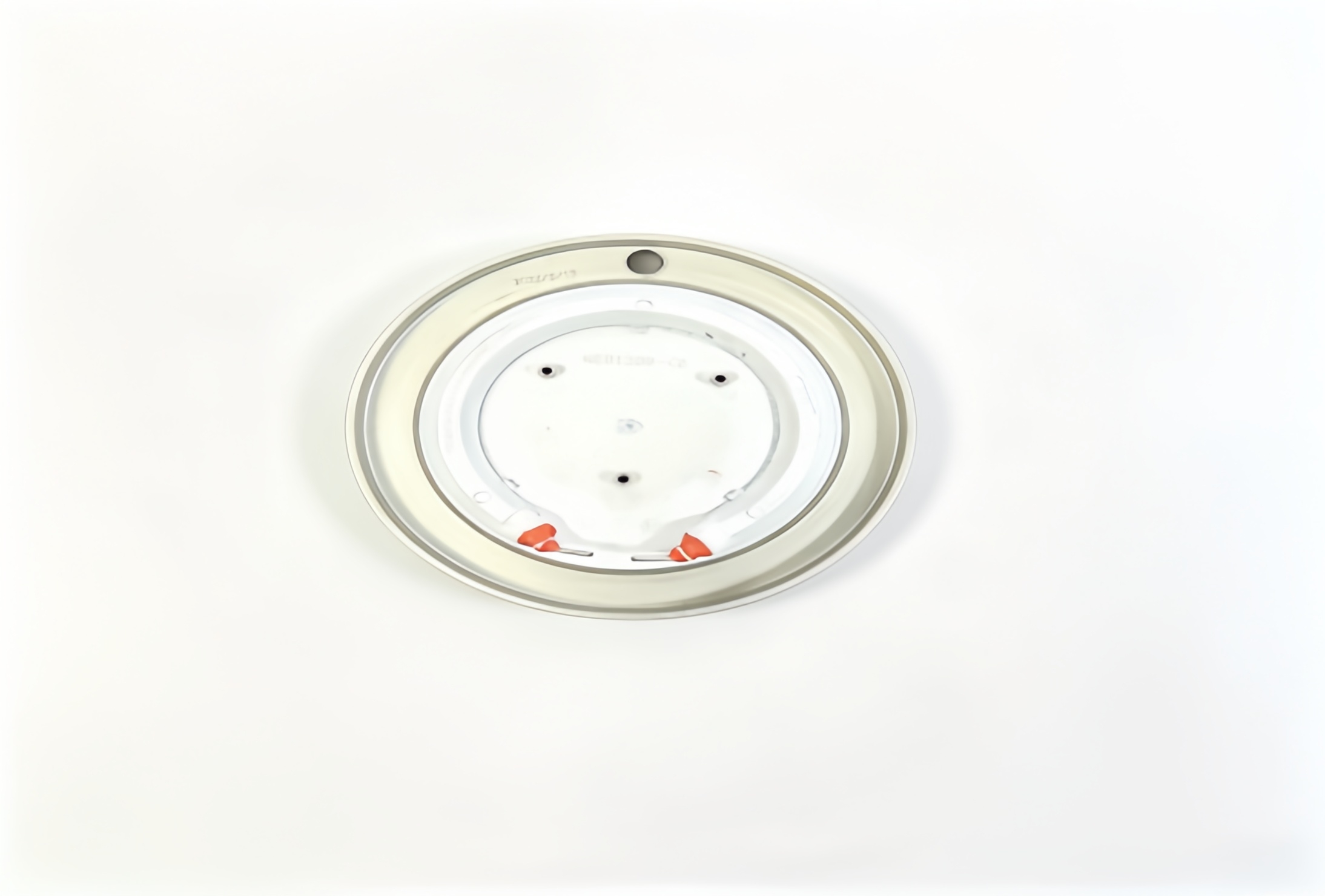

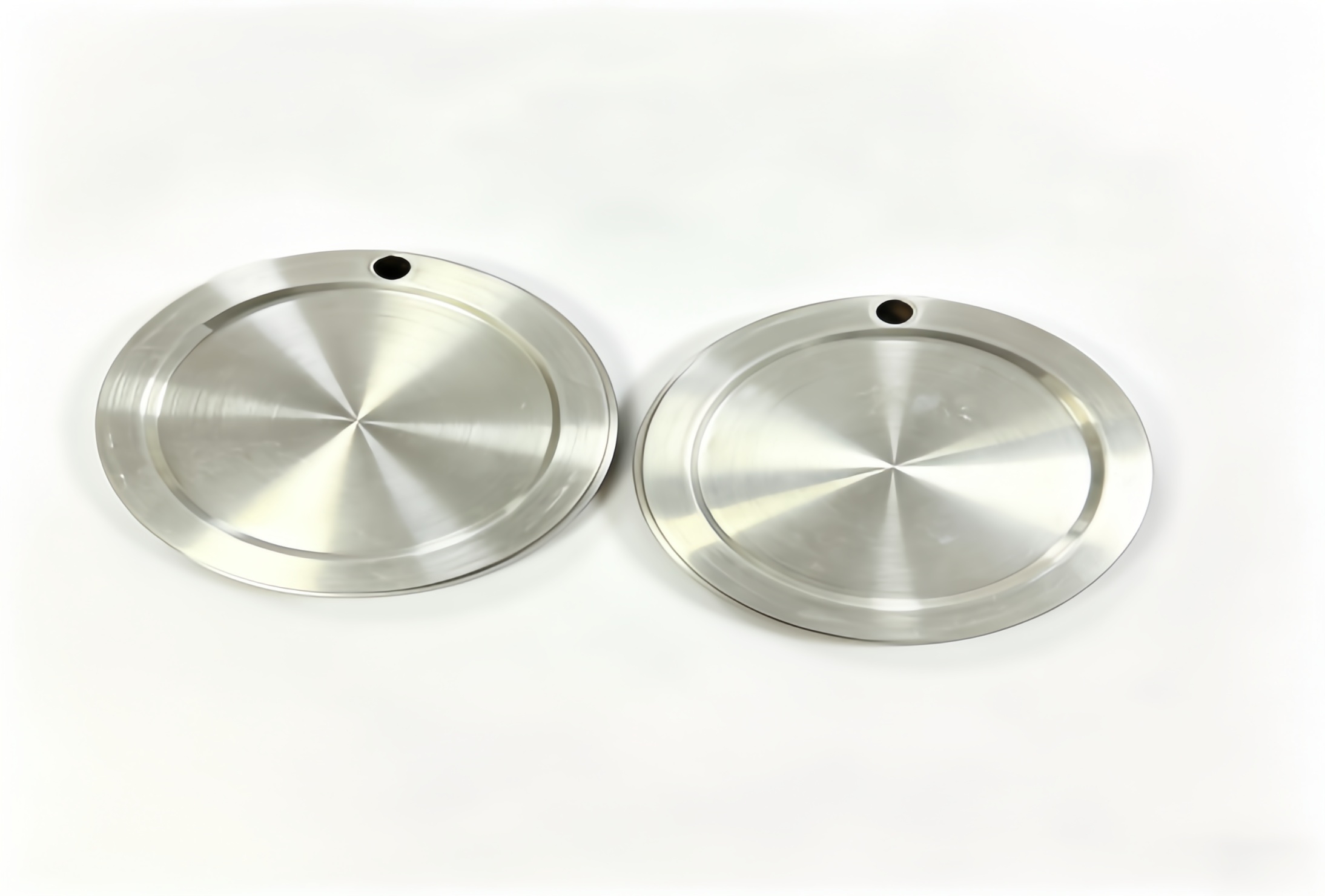

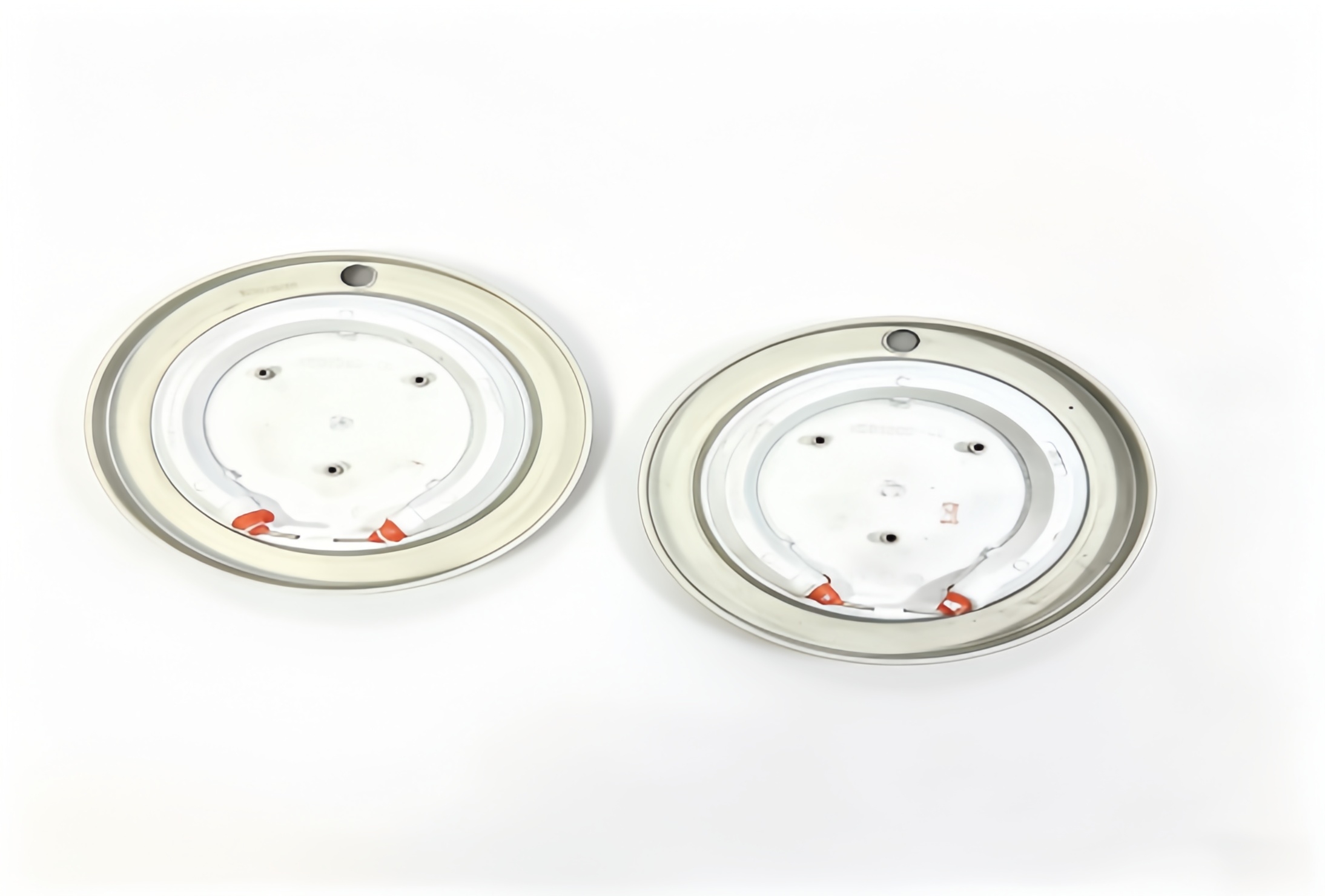

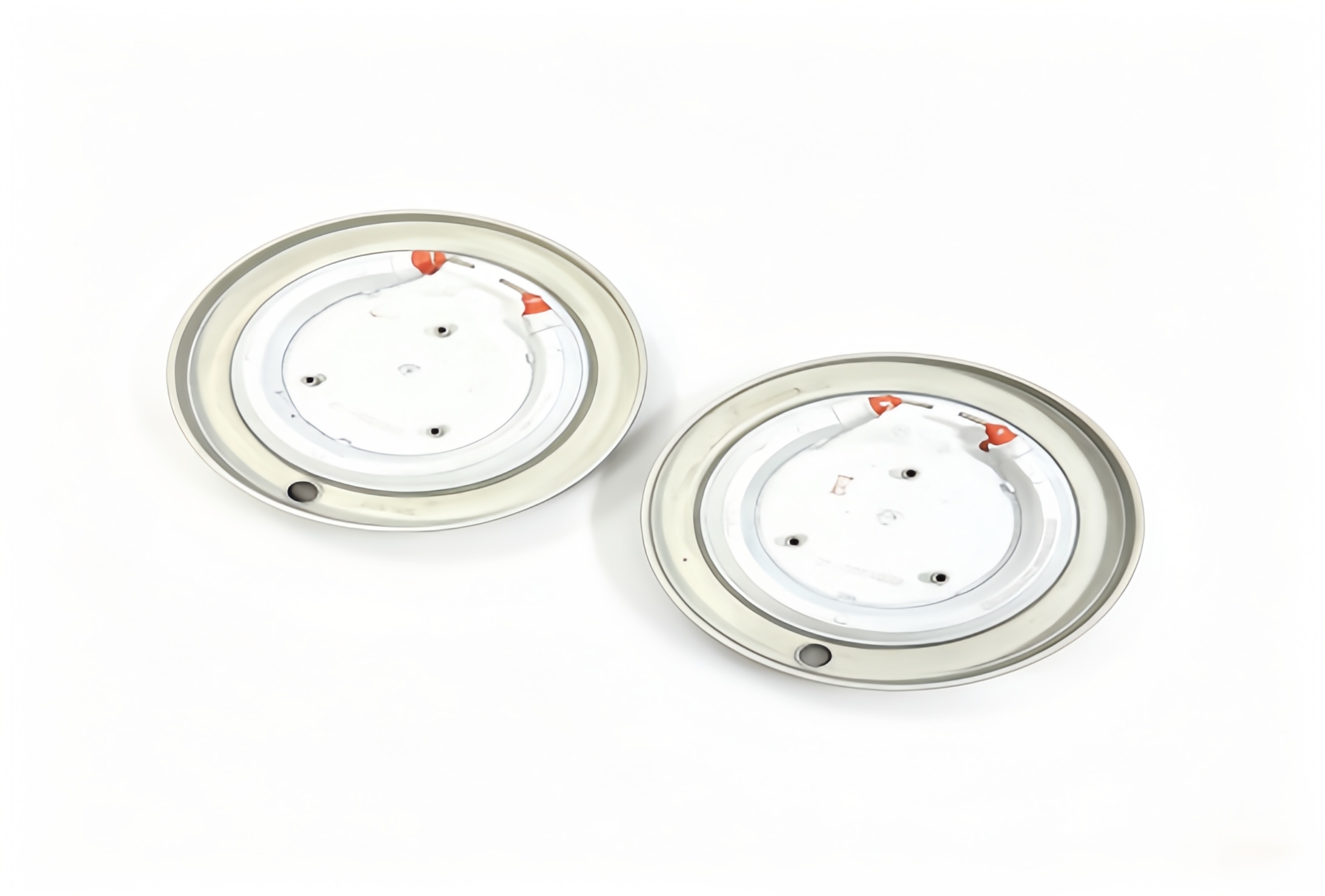

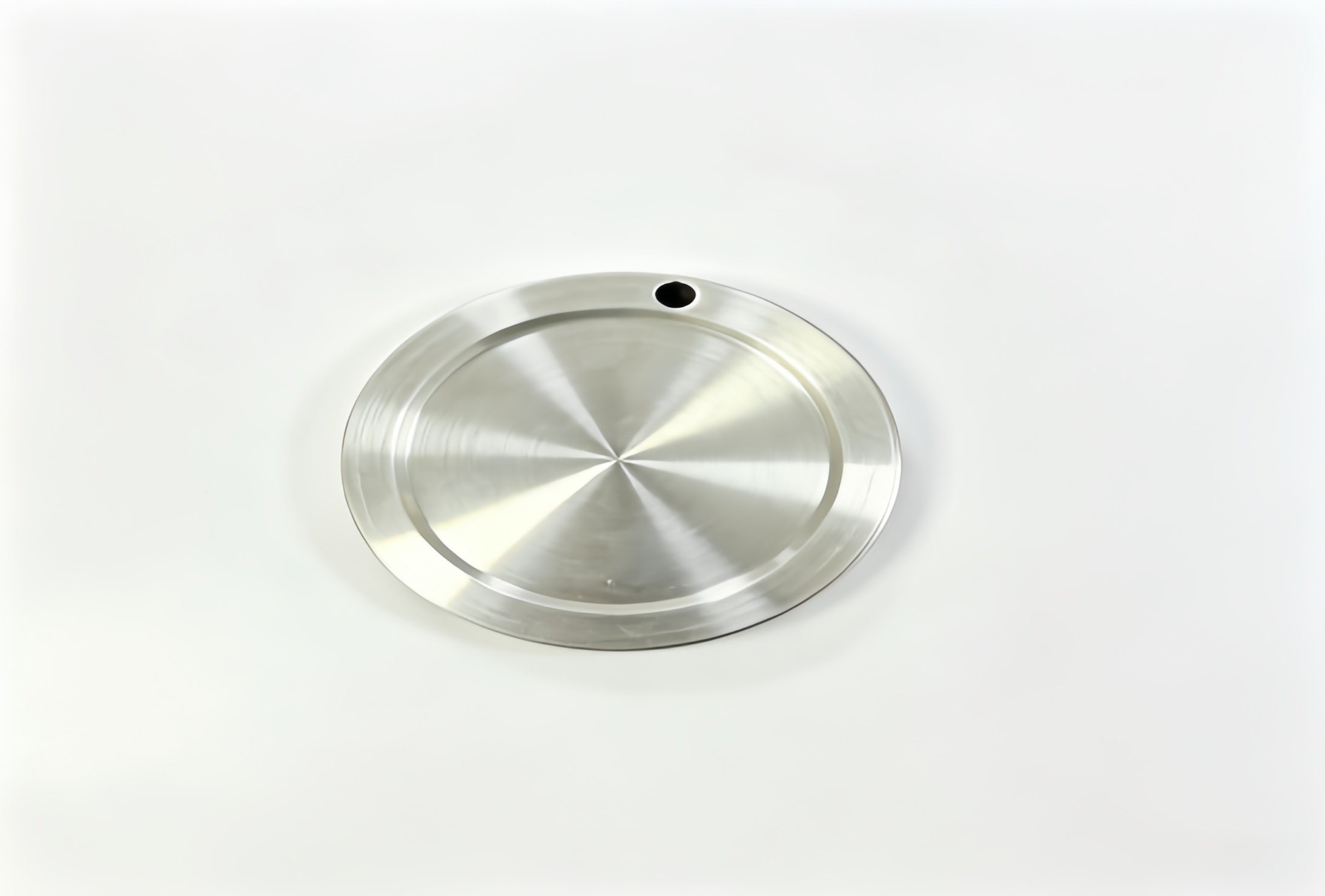

Round Mica Heating Plate With Stainless‑Steel Cover

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This round mica heating plate is assembled with durable stainless‑steel cover, protecting the internal mica heating element. Mica core provides excellent insulation and even heating across the whole surface.

Reserved mounting holes and wiring terminals enable simple installation. Anti‑rust stainless‑steel surface is easy to clean.

Mainly applied for household kitchen heating appliances. Custom diameter, voltage, power and terminal position are acceptable. Every piece will pass electrical safety test before shipment.

Material: Surface panel: Aluminum Heating core: Mica sheet with resistance wire Insulation: High-quality mica	Transport Package: Carton and Wooden Box, with shockproof protection
Form: Round flat assembled heating plate	Specification: Round cast aluminum heating disc, 220V 650W standard, 6.5mm stainless steel tube with MGO filling. Custom voltage, wattage and size available, CE & UL certified, Lu-Chiuan patented.
Shape: Circular flat disc with one mounting hole	Resistance Wire: Cr20Ni80 nichrome resistance wire
Voltage: 110V-240V, customizable upon request	MGO:High Grade (internal insulation filler)
Watt: Custom power range 300W-1200W, support customer-specified wattage	Tube Diameter: Standard 6.5mm, customized tube diameter available
Product Name: Round Mica Heating Plate With Stainless‑Steel Cover	Usage: For rice cookers, electric steamers, water boilers and food warmers

Features

Stainless‑steel outer cover, anti‑rust and easy to clean
Mica heating core, good insulation & even heat distribution
Round integrated structure with reserved mounting holes
Stable working performance, long service life
Support custom diameter, voltage, power and terminal position

Package delivery

Packaging

Each mica heating plate is wrapped by foam to prevent scratch and collision, packed in individual inner box. Bulk goods are packed in export carton with shock‑resistant filler.

Shipping

Sea freight, air freight and express are available. We can arrange shipment according to customer requirements.
