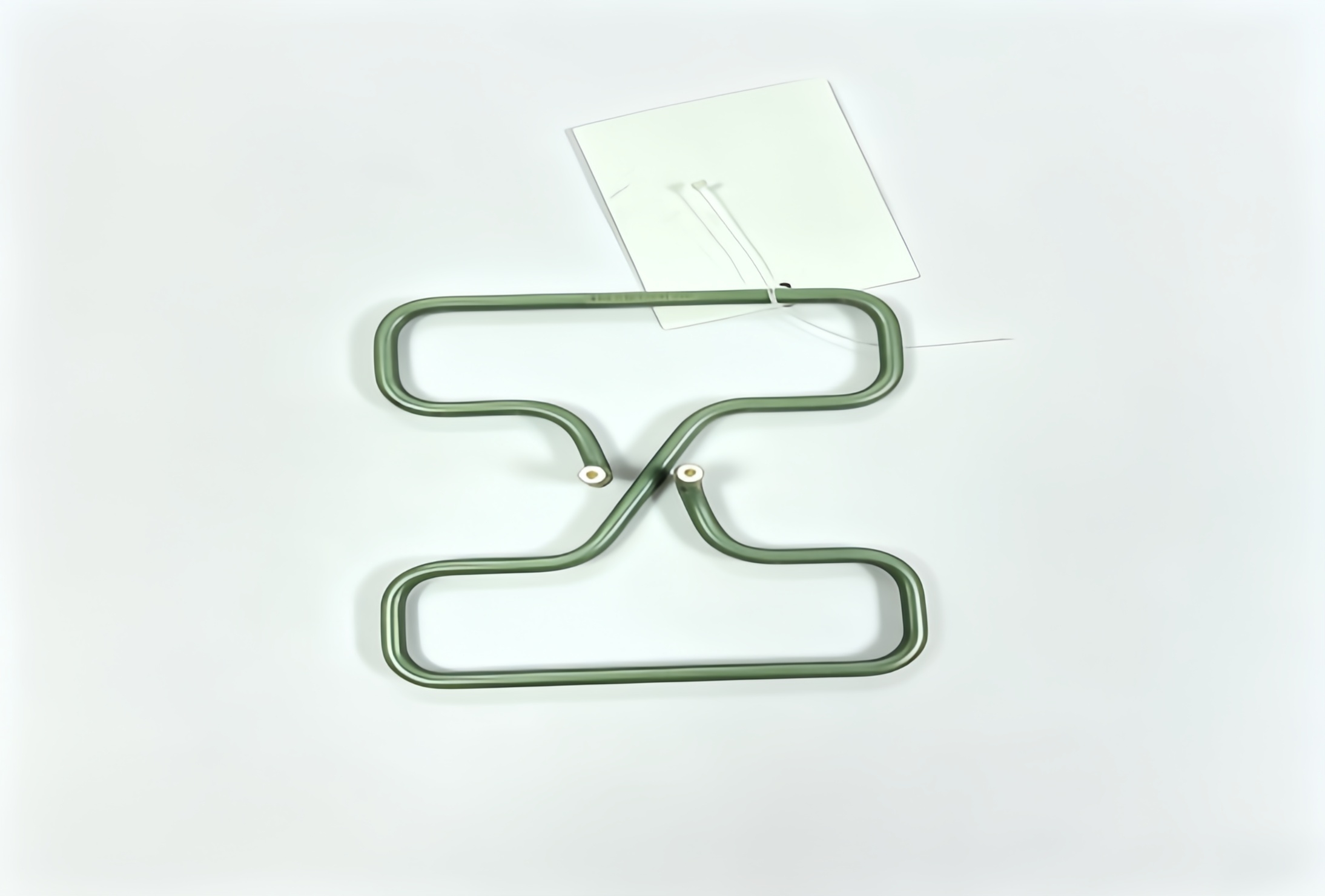

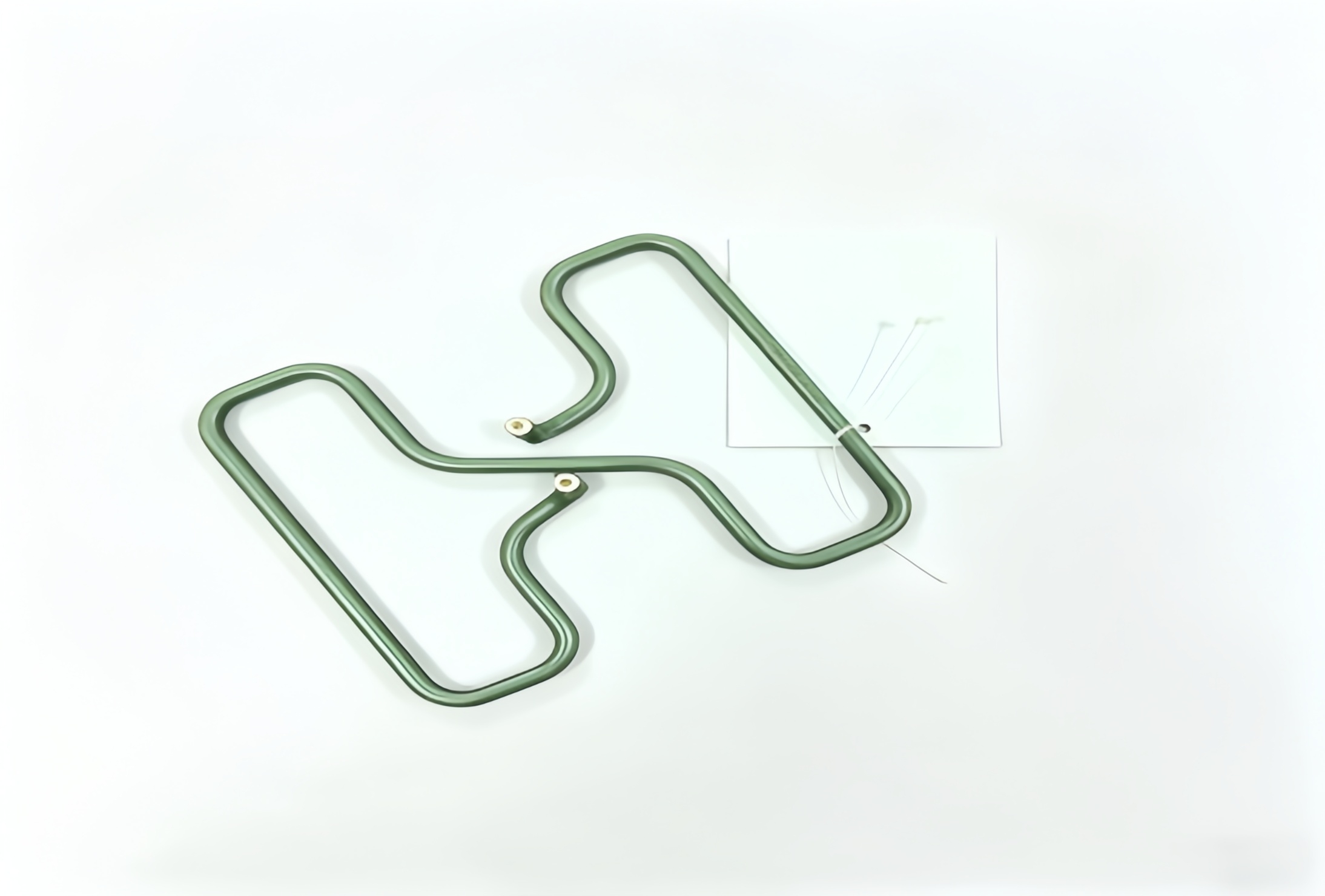

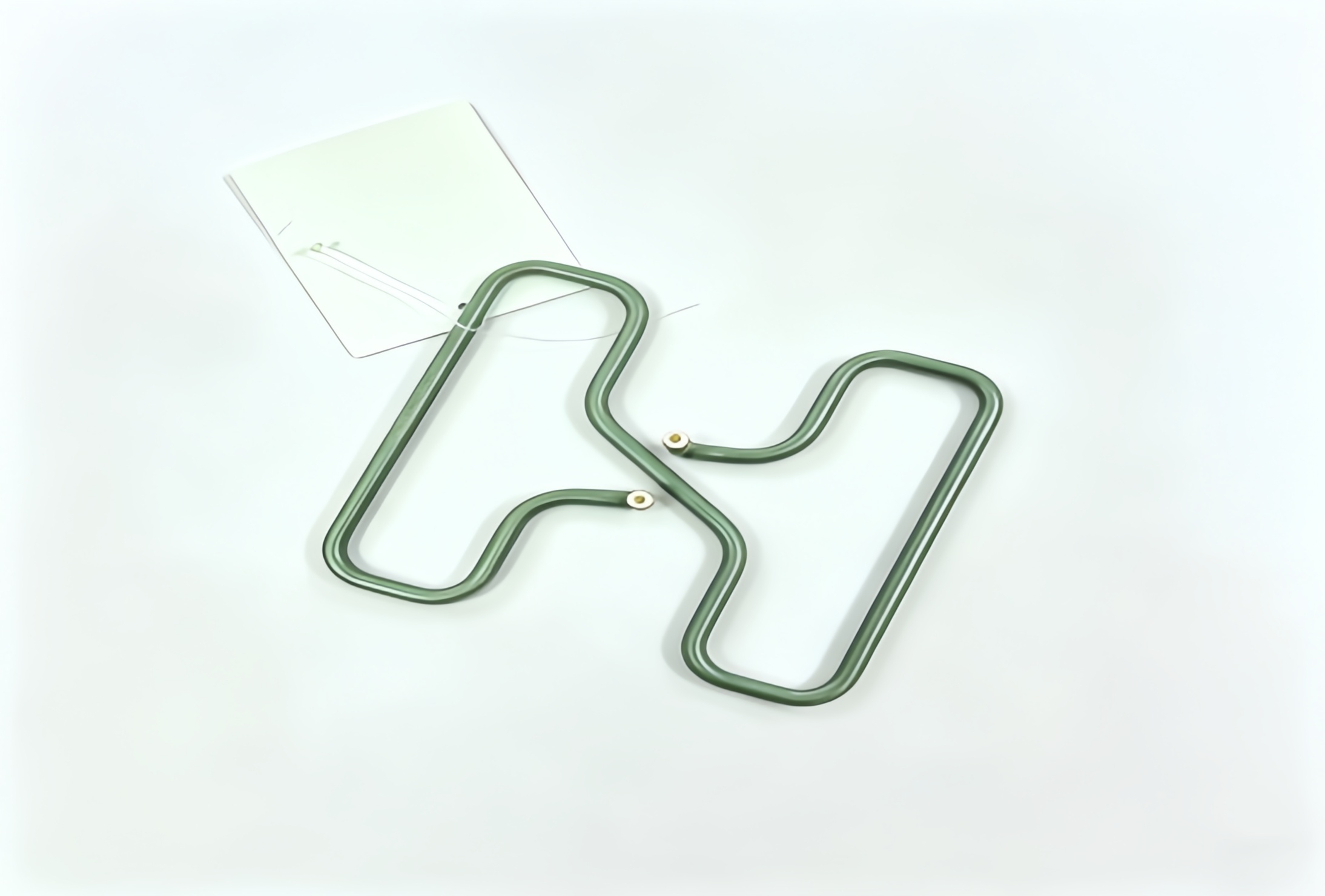

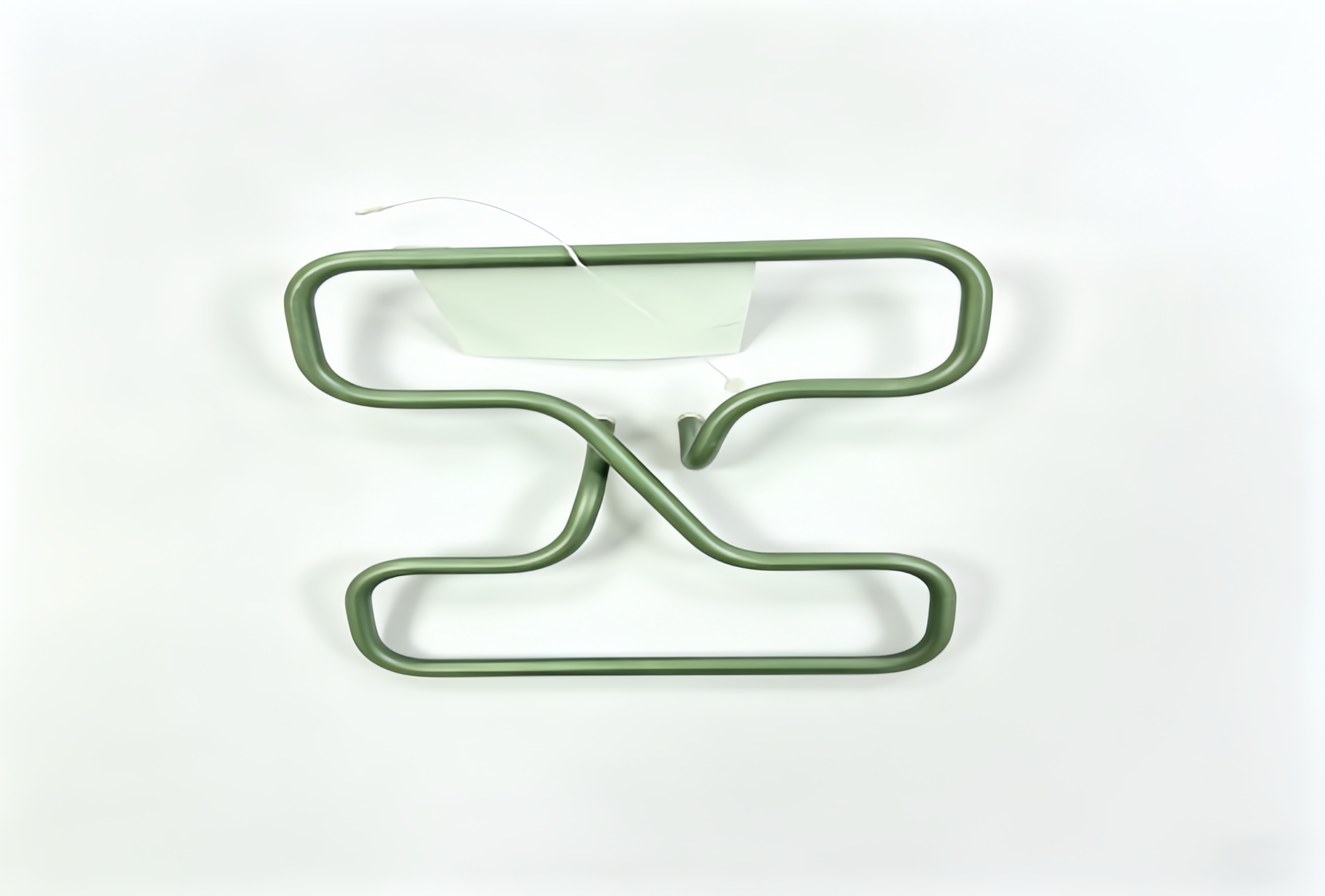

Special‑Shaped Bent Tubular Heater With Screw Terminals

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This custom special‑shaped bent tubular heater is a green anti‑oxidation dry‑burn heating element for air heating. It adopts stainless‑steel sheath, nickel‑chromium resistance wire and high‑purity magnesium oxide filler. Screw‑in terminal studs ensure stable wiring connection. Ideal for ovens, drying cabinets and industrial heating machines. Voltage, power and bending shape can be fully customized.

Material: Stainless steel tube, Ni-Cr alloy wire, high-purity MGO powder, brass terminal pin	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: Custom bent tubular heater with brass terminal pins	Certification: CE, ISO9001, RoHS, CB, CCC
Shape: Special multi-loop irregular bent tubular shape	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Voltage: 110V-380V, custom voltage is acceptable	MGO: High-purity electrical grade MGO insulation powder
Power: Custom wattage according to drawing and requirements	Tube Diameter: Standard sizes available, custom diameter acceptable
Product Name: Special‑Shaped Bent Tubular Heater With Screw Terminals	Application: Oven, baking machine, toaster and other dry-burn heating equipment

Features

Custom‑made special‑shaped bending, suitable for irregular installation space
Green high‑temperature anti‑oxidation coating, long‑term dry‑burn resistance
Screw‑in terminal studs at both ends, firm and convenient wiring
Nickel‑chromium resistance wire, stable and uniform heat output
Fully customizable voltage, power, tube size and bending shape

Package delivery

Each special‑shaped bent tubular heater is wrapped with bubble foam to prevent deformation and surface scratches, then packed into an individual small carton. 12 pieces are loaded into one export outer carton. The shock‑absorbing packaging protects the irregular‑shaped heating tube well during long‑distance sea, air or courier transportation. We can arrange sea freight, air freight or express delivery according to your requirements.

Download

None
