Product Description

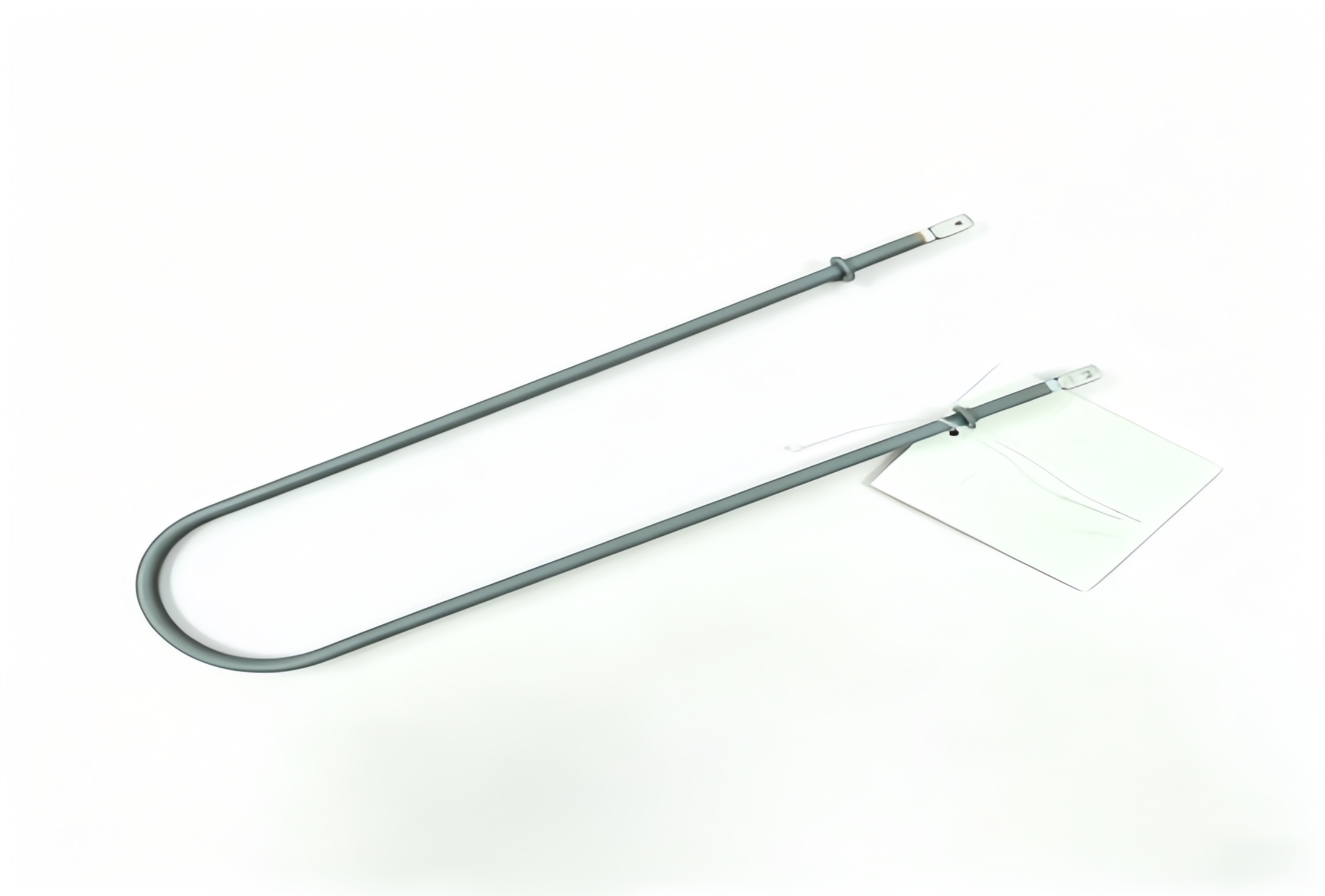

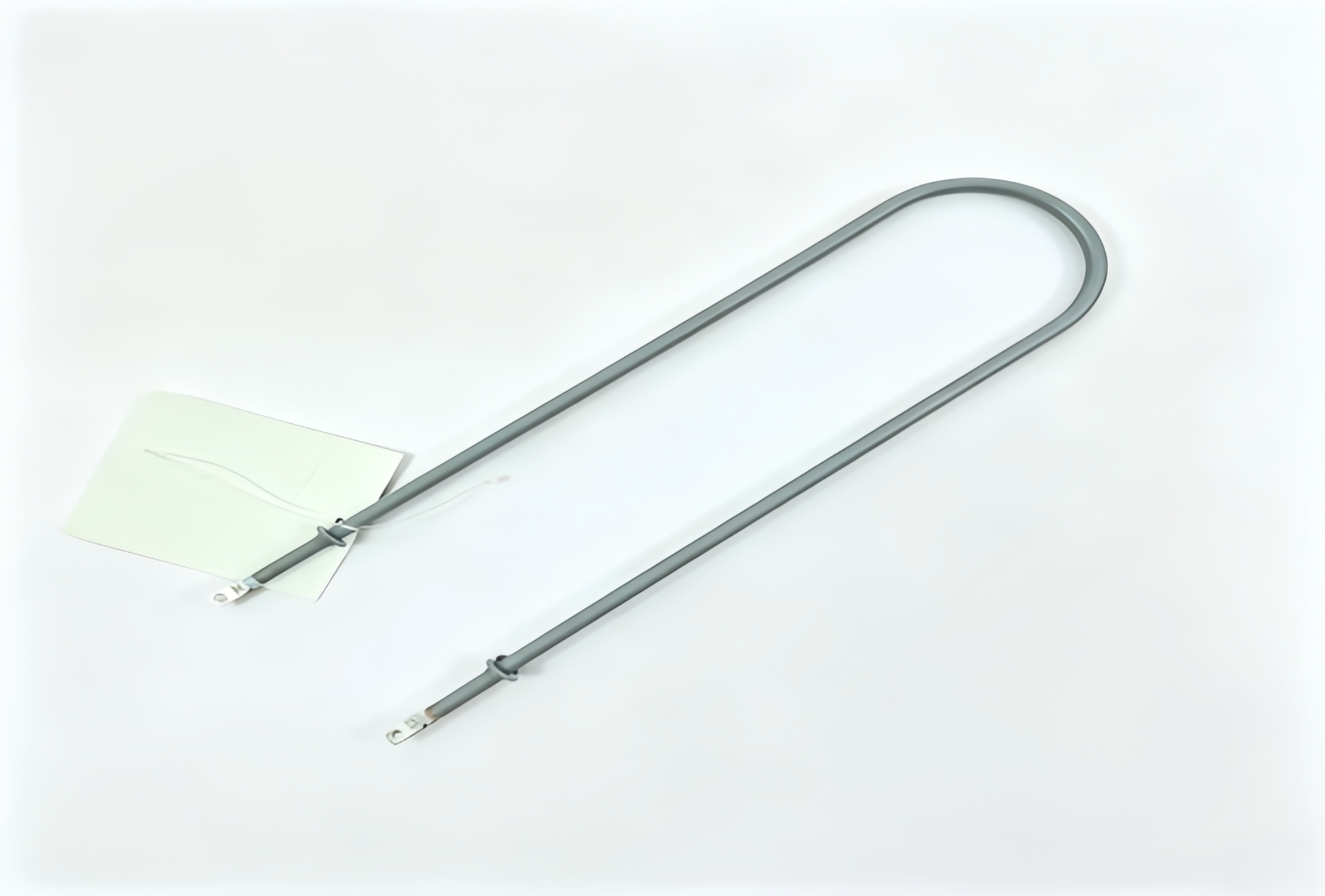

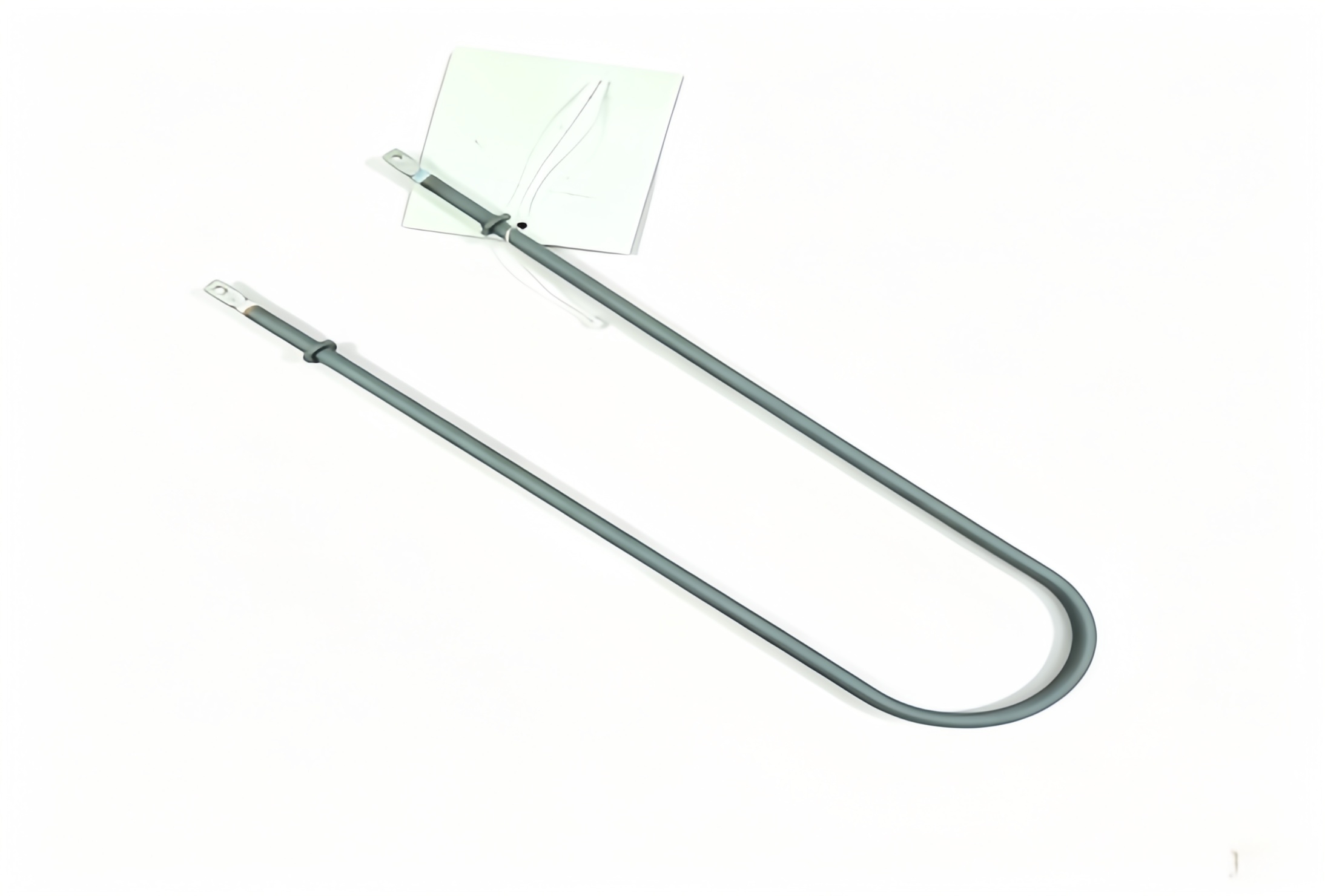

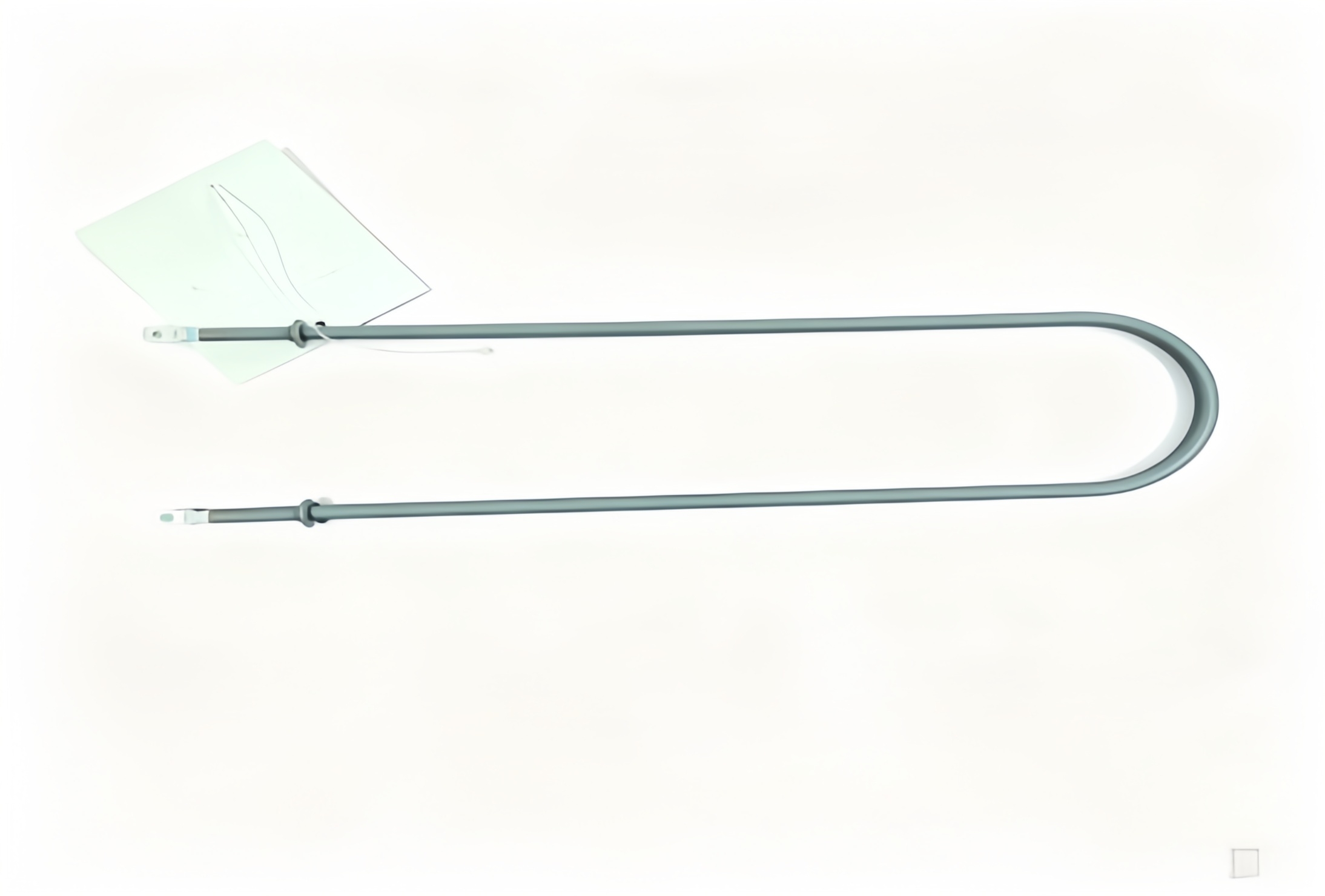

This grey‑coated U‑shape tubular heater is a dry‑burn heating element for air heating. It adopts high‑temperature anti‑oxidation grey sheath, nickel‑chromium resistance wire and high‑purity magnesium oxide filler. Flat lug terminals provide quick and reliable wiring. Widely used for ovens, drying cabinets and industrial heating equipment. Voltage, power and tube length can be fully customized.
| Material: Premium stainless-steel, Ni-Cr alloy, fused MGO, anti-oxidation coating | Transport Package: Carton Box with Foam Shockproof Protection |
| Form: Precisely bent U-loop tubular heating construction with welded terminal lugs | Specification: All technical parameters including voltage, wattage, tube size, coating and overall dimension are fully customizable to satisfy unique heating-system requirements |
| Shape: Precision-engineered U-loop bent configuration with symmetrical dual straight segments | Resistance Wire: Ni-Cr alloy wire |
| Voltage: Custom configurable | MGO: High-purity magnesium-oxide(MgO) powder, good thermal conductivity and electrical insulation |
| Watt: Custom wattage available | Tube Diameter: Outer tube diameter is adjustable, fabricated in accordance with your technical specifications |
| Product Name: U‑Shape Tubular Heater With Flat Lug Terminals | Usage: Designed for continuous air dry-burn heating, widely deployed in industrial ovens, drying cabinets and hot-air processing equipment |
Features
Standard U‑shaped bending, large heating area with fast and uniform heat distribution
Grey high‑temperature anti‑oxidation coating, excellent oxidation‑resistance for long‑time dry‑burn use
Flat metal lug terminals at both ends, easy and stable wiring connection
Nickel‑chromium resistance wire, steady and consistent heat output
Fully customizable voltage, power, tube size and overall dimension
Package delivery
Each grey‑coated U‑shape tubular heater is wrapped with bubble film to avoid surface scratches and bending deformation, then packed into an individual small carton. 12 pieces are packed in one export outer carton. The shock‑resistant packaging protects the heating tubes safely during long‑distance sea, air or express shipment. We can arrange sea freight, air freight or courier delivery according to your requirements
