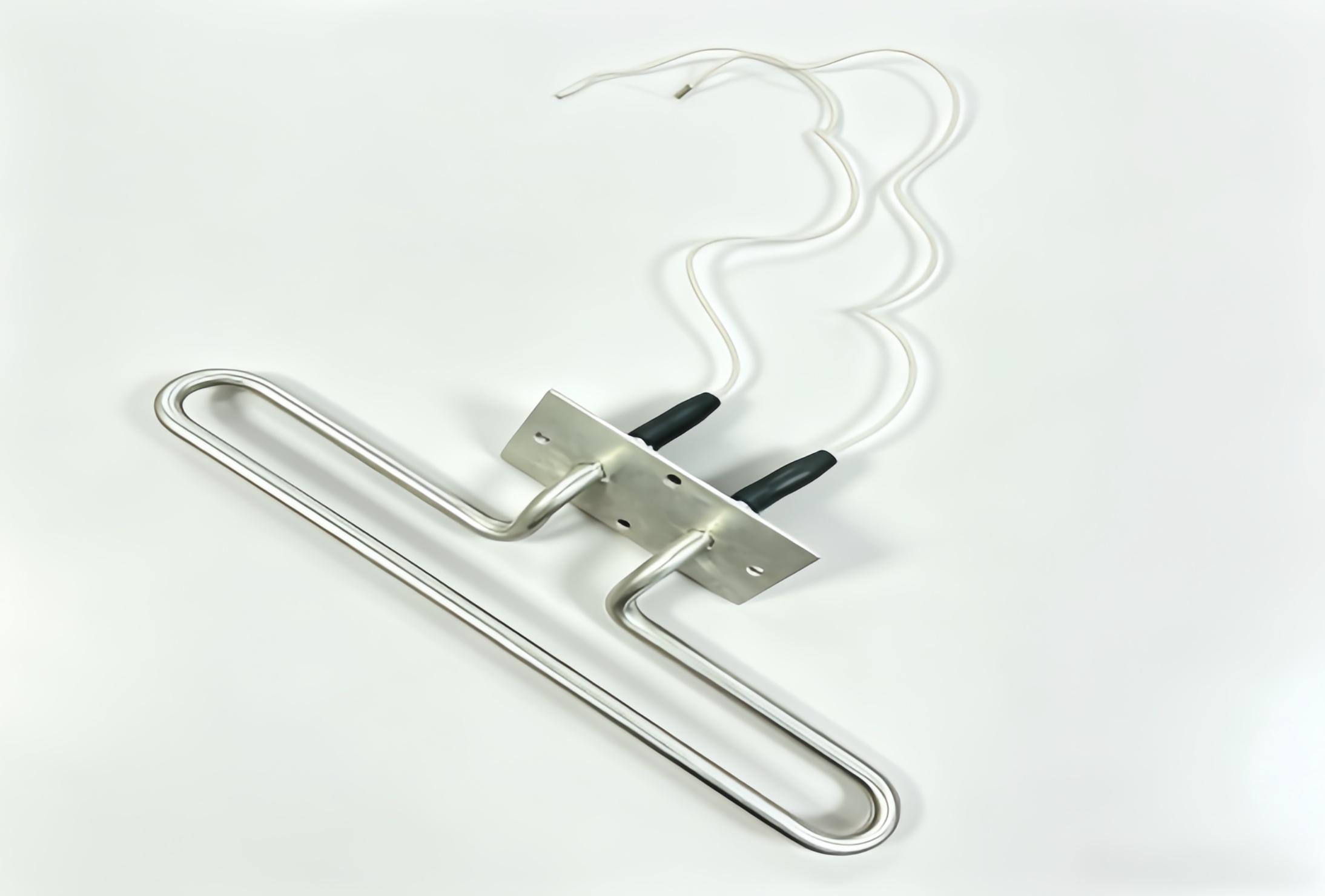

Flanged U‑Loop Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

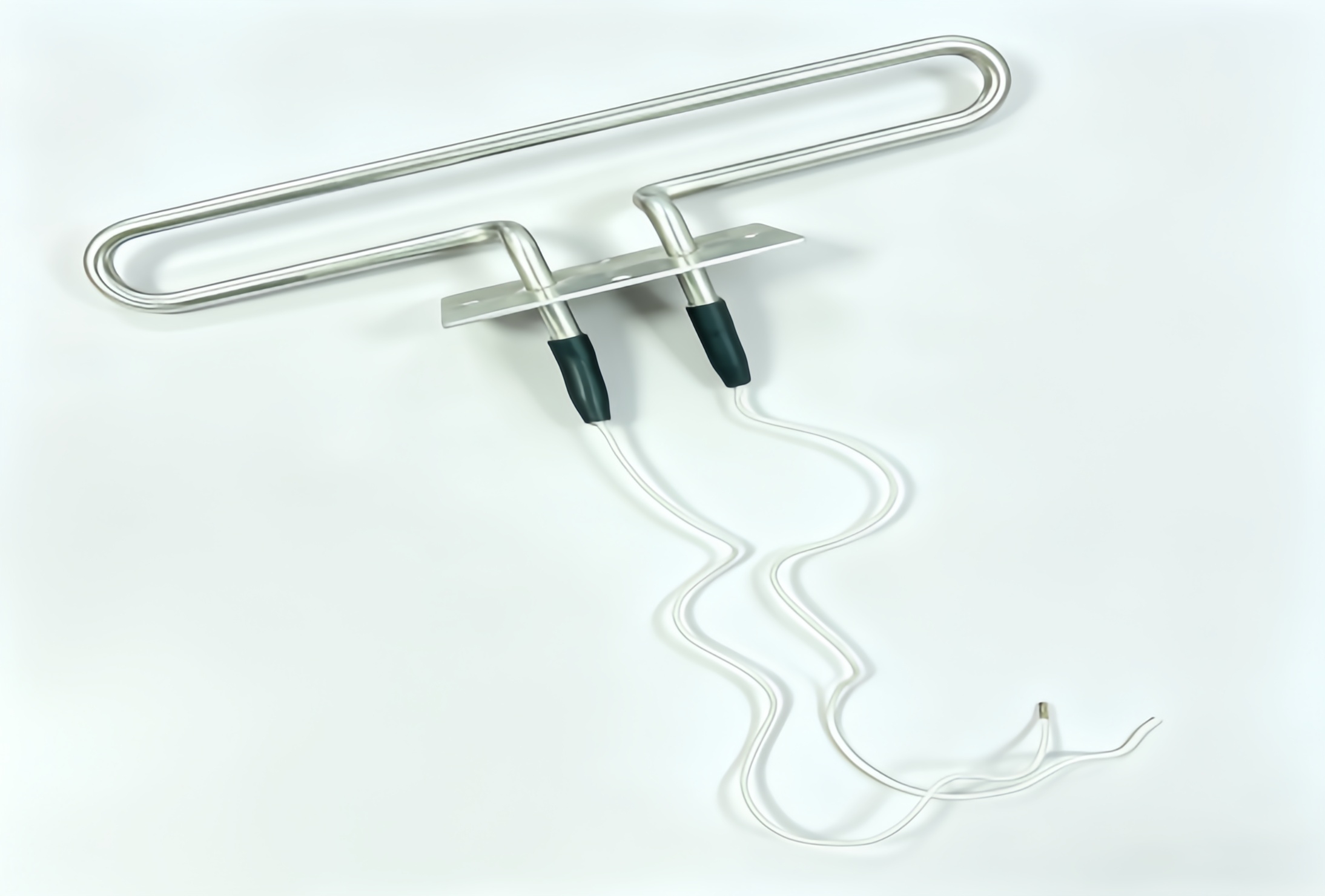

This flange‑mount U‑shaped tubular heater comes with pre‑drilled metal fixing plate and high‑temperature resistant lead wires. Made of stainless‑steel tube, it works for long‑time air dry‑burn heating inside ovens, drying cabinets and hot‑air machinery. All core parameters can be customized.

Material: 304 stainless steel tube, Ni80Cr20 heating wire, MGO powder, stainless steel flange, silicone lead wire, high temp rubber sleeve	Transport Package:Carton and Wooden Box
Form: Double U tubular heater with integrated flat flange and long silicone lead wires	Specification: Model LC-FU02, double U 304 stainless steel heating tube, Φ8/10/12mm, 500W-4000W, 110/220/230/380V, flat stainless flange, CE certified with Lu-Chiuan patent
Shape: Double U tubular shape with square flat mounting flange	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110V / 220V / 230V / 380V,custom voltage available	MGO: High-purity fused MgO insulating filler
Watt: Standard wattage: 500W–4000W, fully customizable	Tube Diameter: Standard 8mm / 10mm / 12mm, custom sizes available
Product Name: Flanged U‑Loop Tubular Heater	Usage: Dry air heating for household ovens, commercial bakery ovens, electric grills and food drying machines

Features

Metal mounting flange plate, easy bolt‑on installation
Extended high‑temperature lead‑wire, flexible wiring layout
Stainless‑steel tube body, anti‑oxidation for long dry‑burn service
Uniform heat distribution, stable heating performance
Full customization for power, voltage, flange and wire length

Package delivery

Each heater is wrapped by bubble wrap to protect the tube, flange and lead wires against scratch or deformation, then packed into strong export cartons. 12 pieces per carton. Custom‑packaging service is supported. Sea, air and courier shipments are available.
