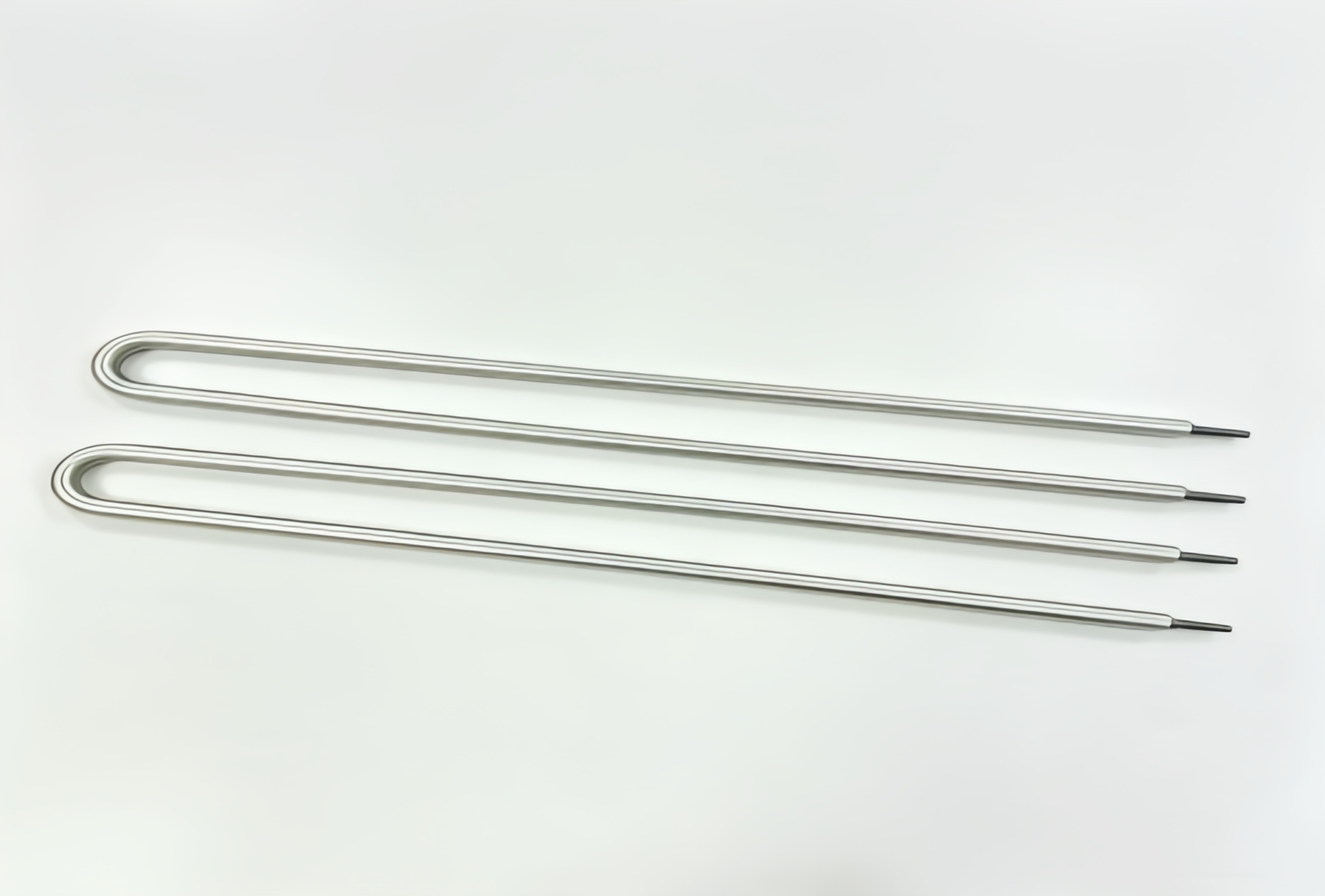

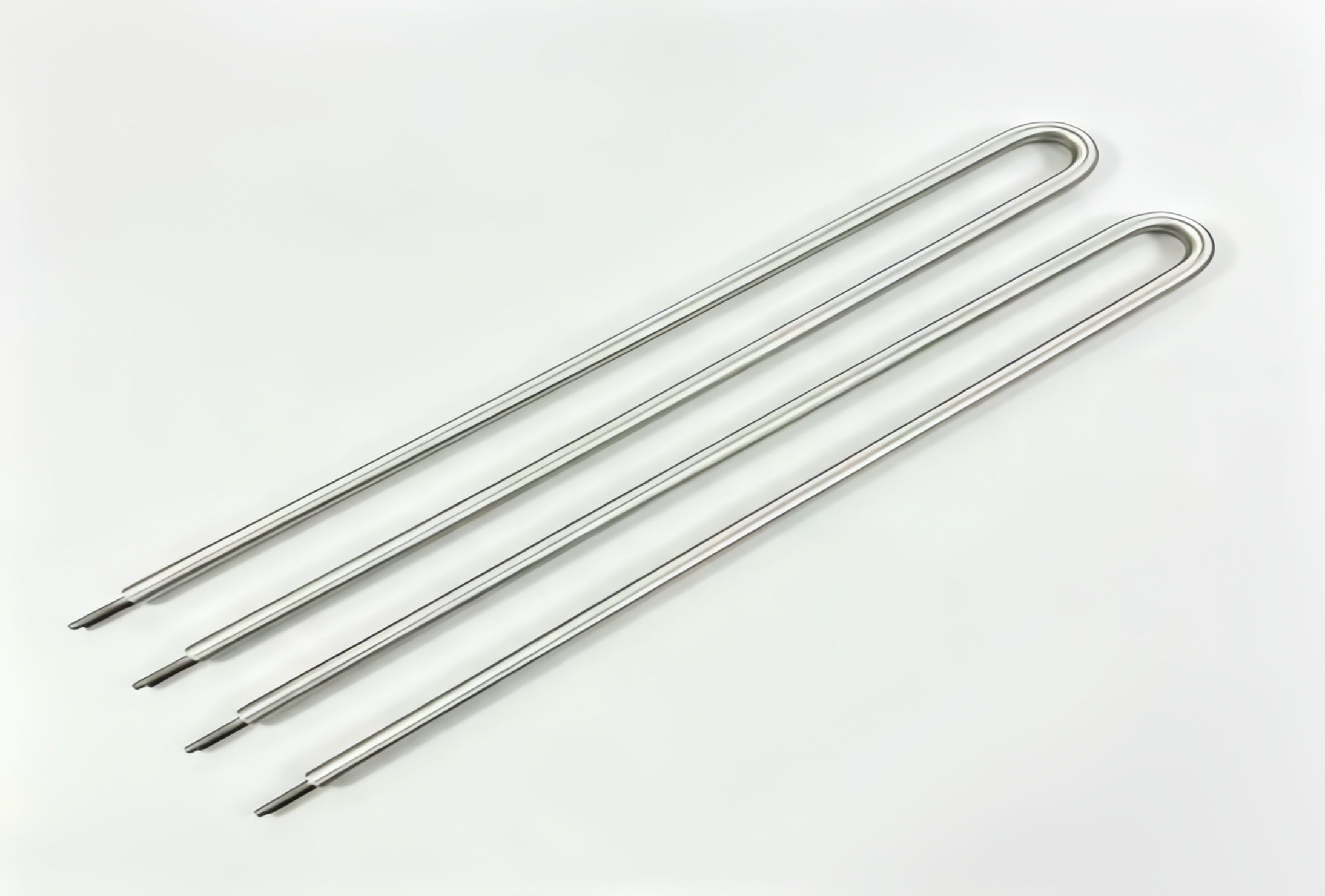

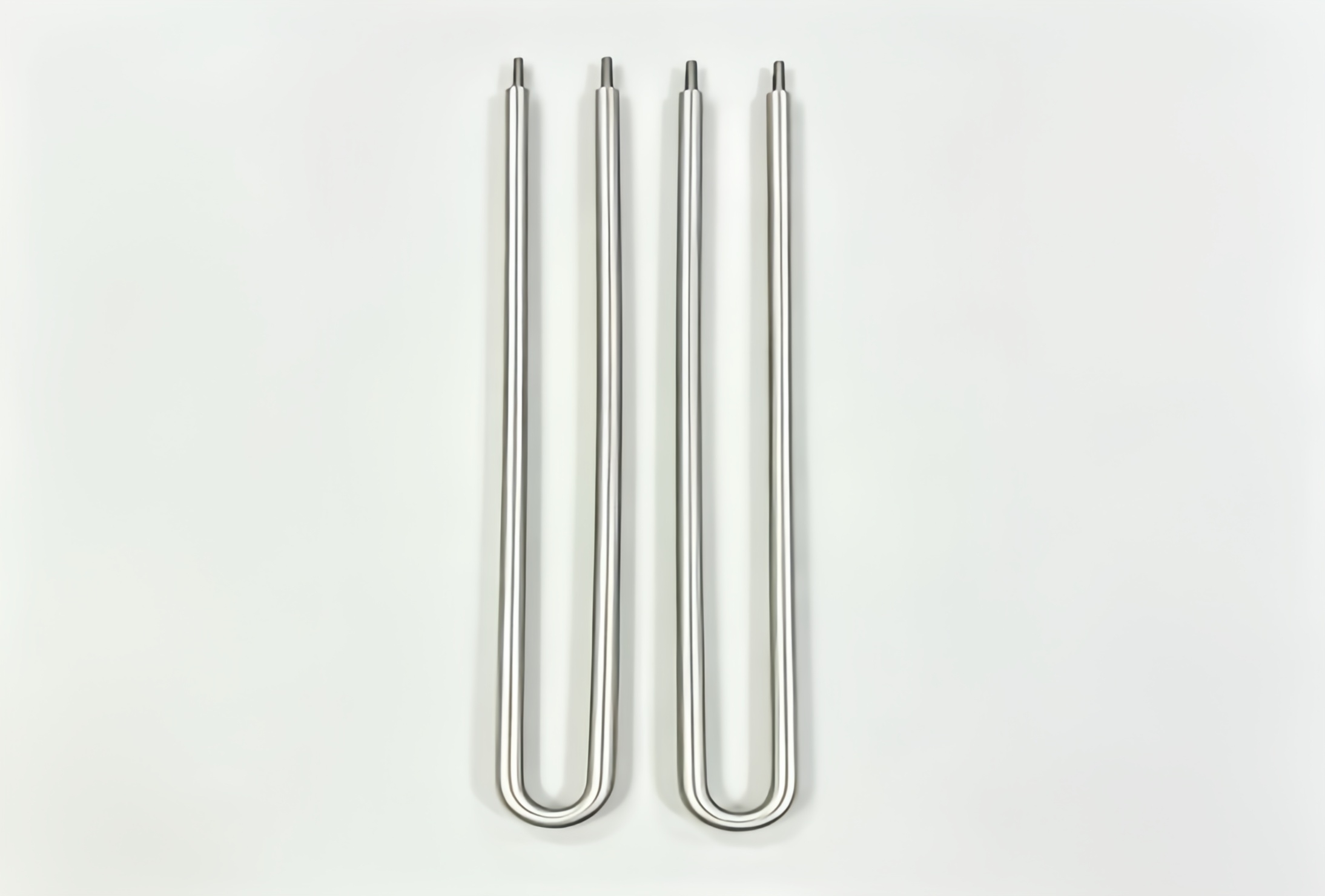

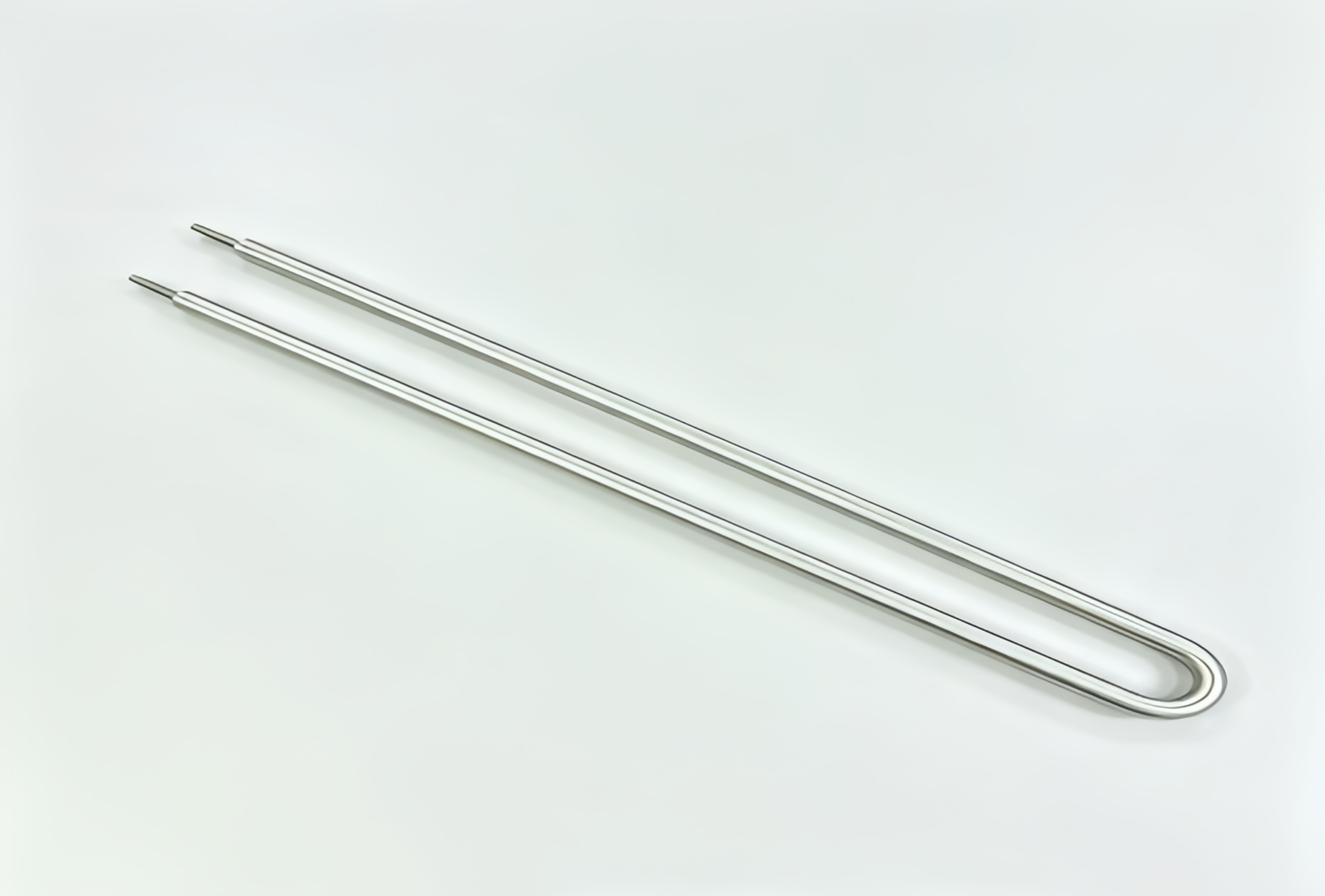

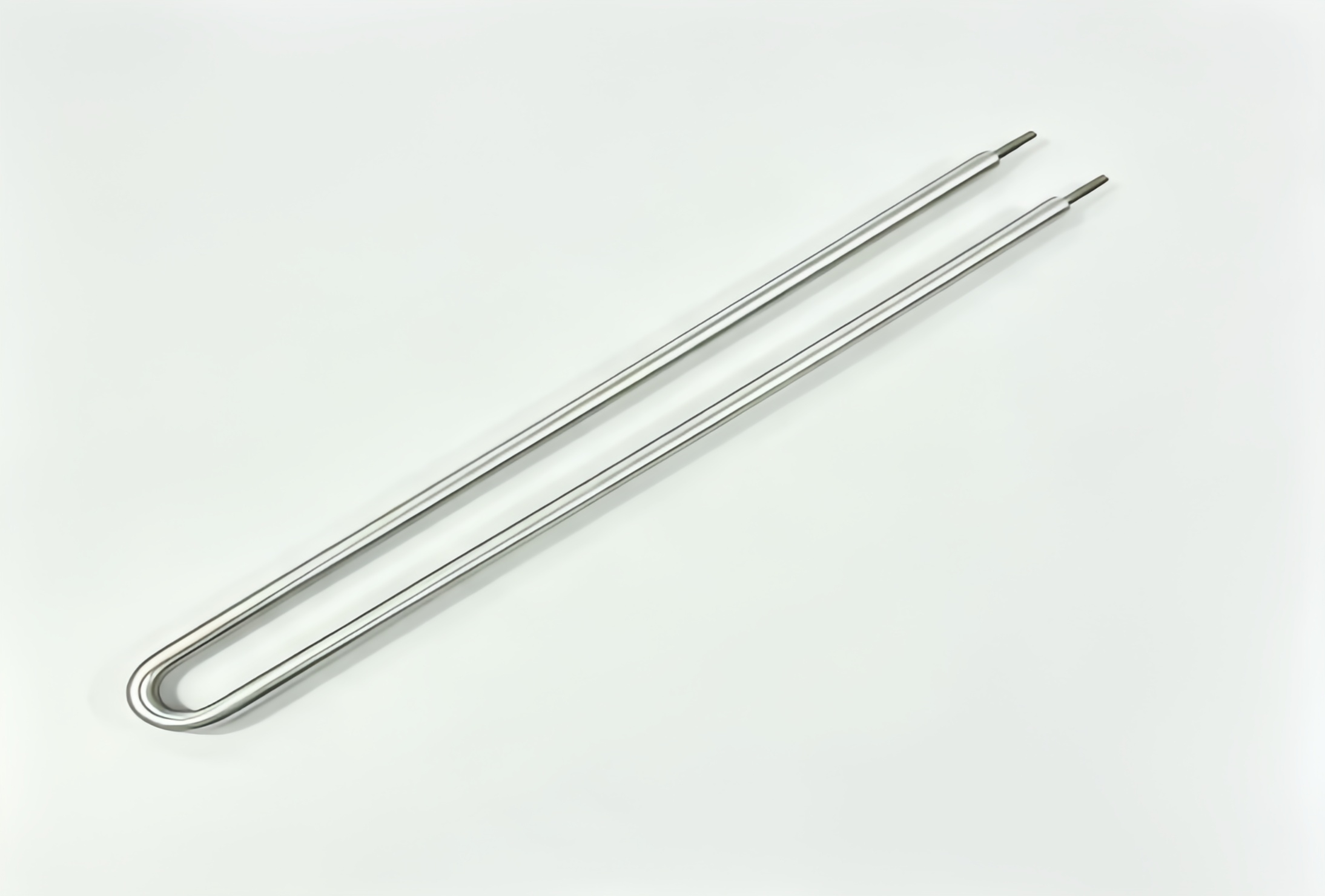

Stainless‑Steel U‑Shape Tubular Heater

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This stainless‑steel U‑shape tubular heater is a dry‑burn heating element for air heating. It is built with high‑grade stainless‑steel tube, nickel‑chromium resistance wire and high‑purity magnesium oxide inside. Suitable for ovens, drying cabinets and industrial heating machines. Voltage, power, tube diameter and overall length can be fully customized.

Material: Outer tube: 304 / 316 stainless-steel Resistance wire: Nickel-chromium alloy Insulator: High-purity magnesium oxide powder Terminal: Stainless-steel threaded stud	Transport Package: Carton Box with Foam Shockproof Protection
Form: U-shaped seamless bent tubular heating tube	Specification: 304/316 U-shaped heating tube, 6-12mm diameter, customizable voltage 110-380V, 300-3000W, filled with high-purity MgO
Shape: U-shaped seamless bent tubular shape with threaded-end terminals	Resistance Wire: Ocr25al5 or Ni80cr20
Voltage: Optional working voltage: 110V, 220V, 230V, 380V, customizable	MGO: High-purity magnesium-oxide(MgO) powder, good thermal conductivity and electrical insulation
Watt: Customizable wattage from 300W to 3000W	Tube Diameter: Available tube diameter: 6mm-12mm, custom sizes supported
Product Name: Stainless‑Steel U‑Shape Tubular Heater	Usage: For industrial ovens, drying cabinets and dry-burn heating equipment

Features

Classic U‑shaped tubular structure, simple and convenient for installation
Premium stainless‑steel sheath, outstanding high‑temperature oxidation resistance
Nickel‑chromium resistance wire ensures uniform and stable heat output
High‑purity MGO filler provides excellent insulation and thermal conductivity
Fully customizable voltage, power, tube diameter and overall dimension

Package delivery

Each stainless‑steel U‑shape heater is wrapped with bubble film for shock‑proof protection, then packed into an individual small carton. 12 pieces are packed in one export outer carton. Safe packaging avoids scratches and damage during long‑distance sea, air or courier shipment. We can arrange transportation by sea freight, air freight or express delivery as your requirements.
