Product Description

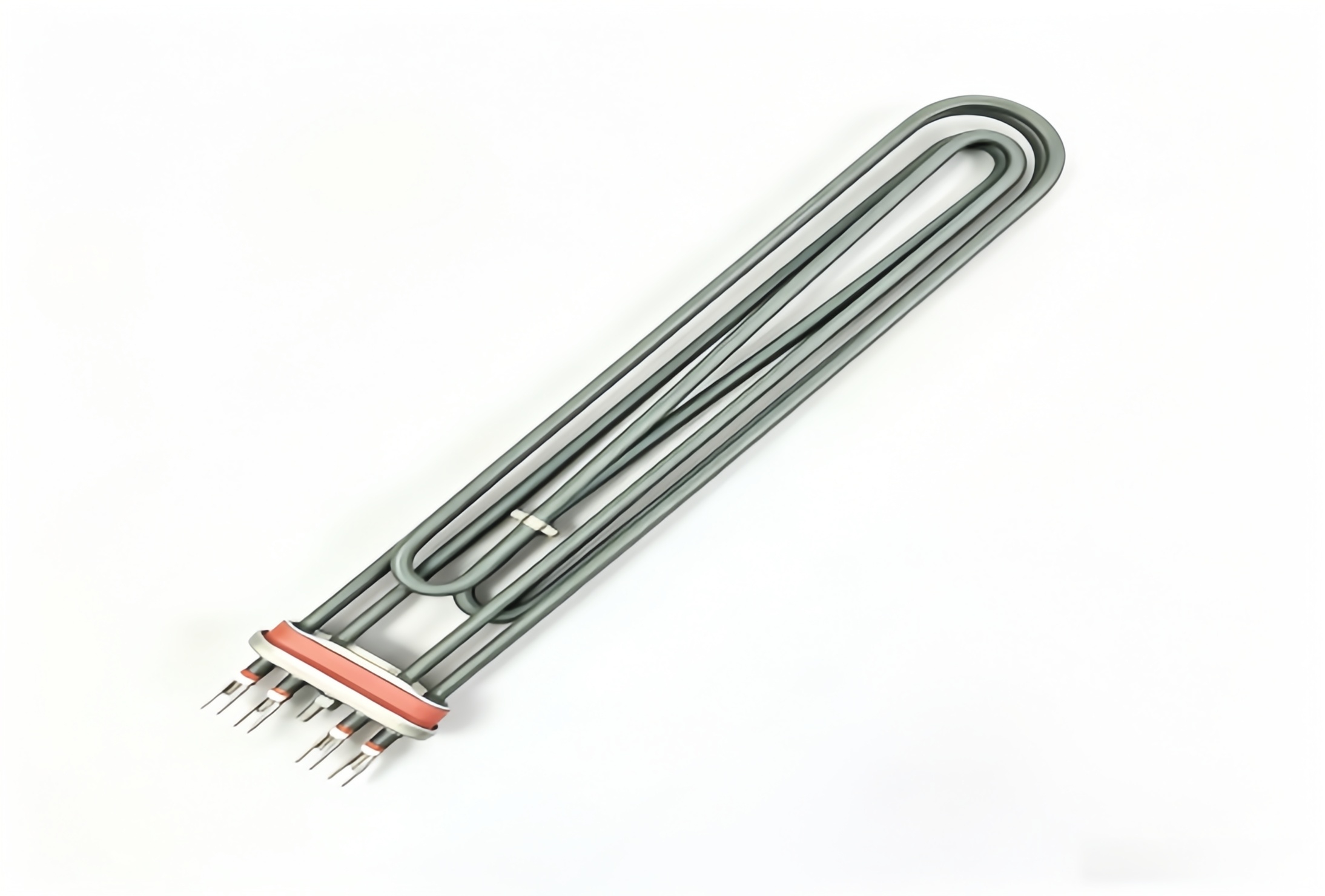

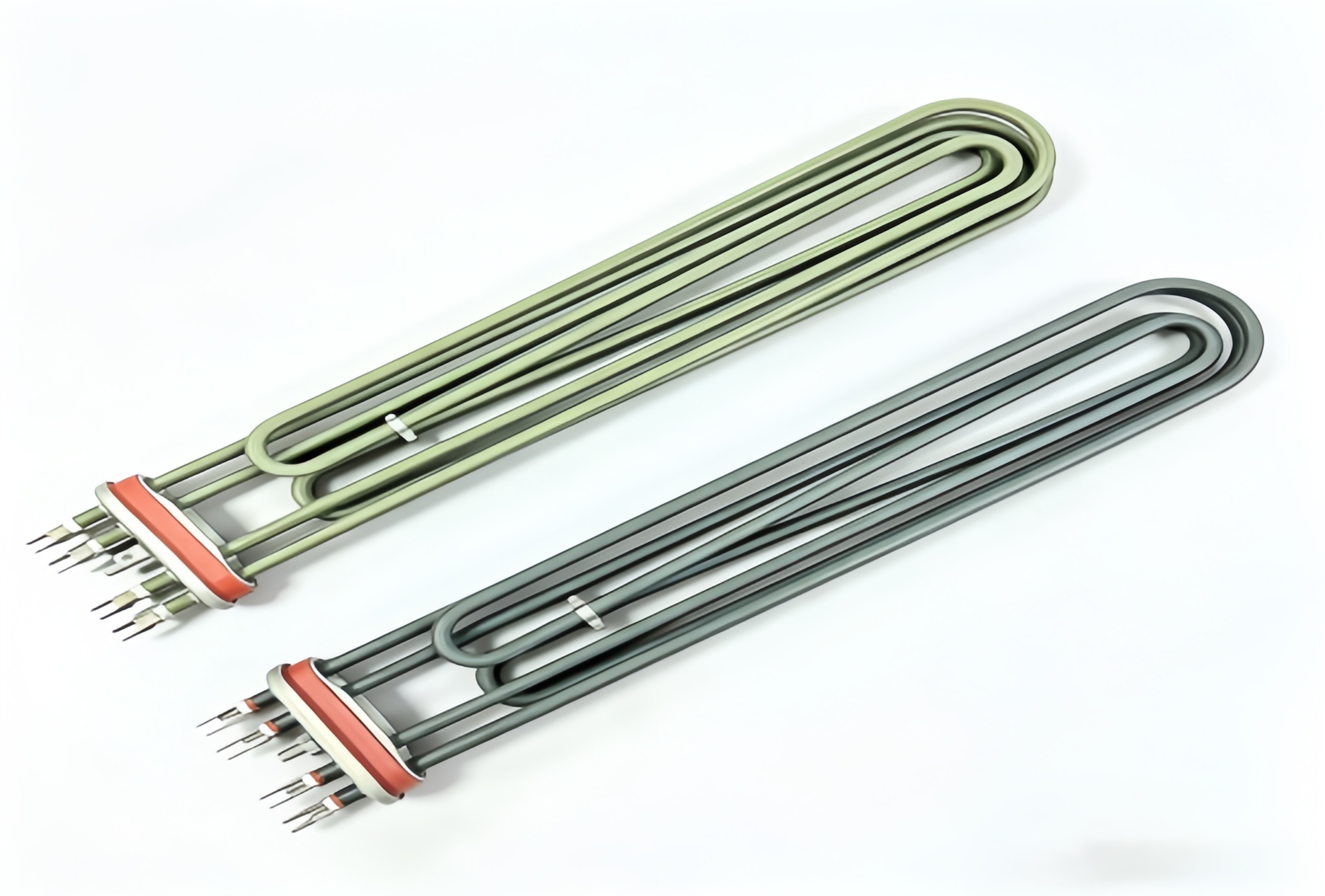

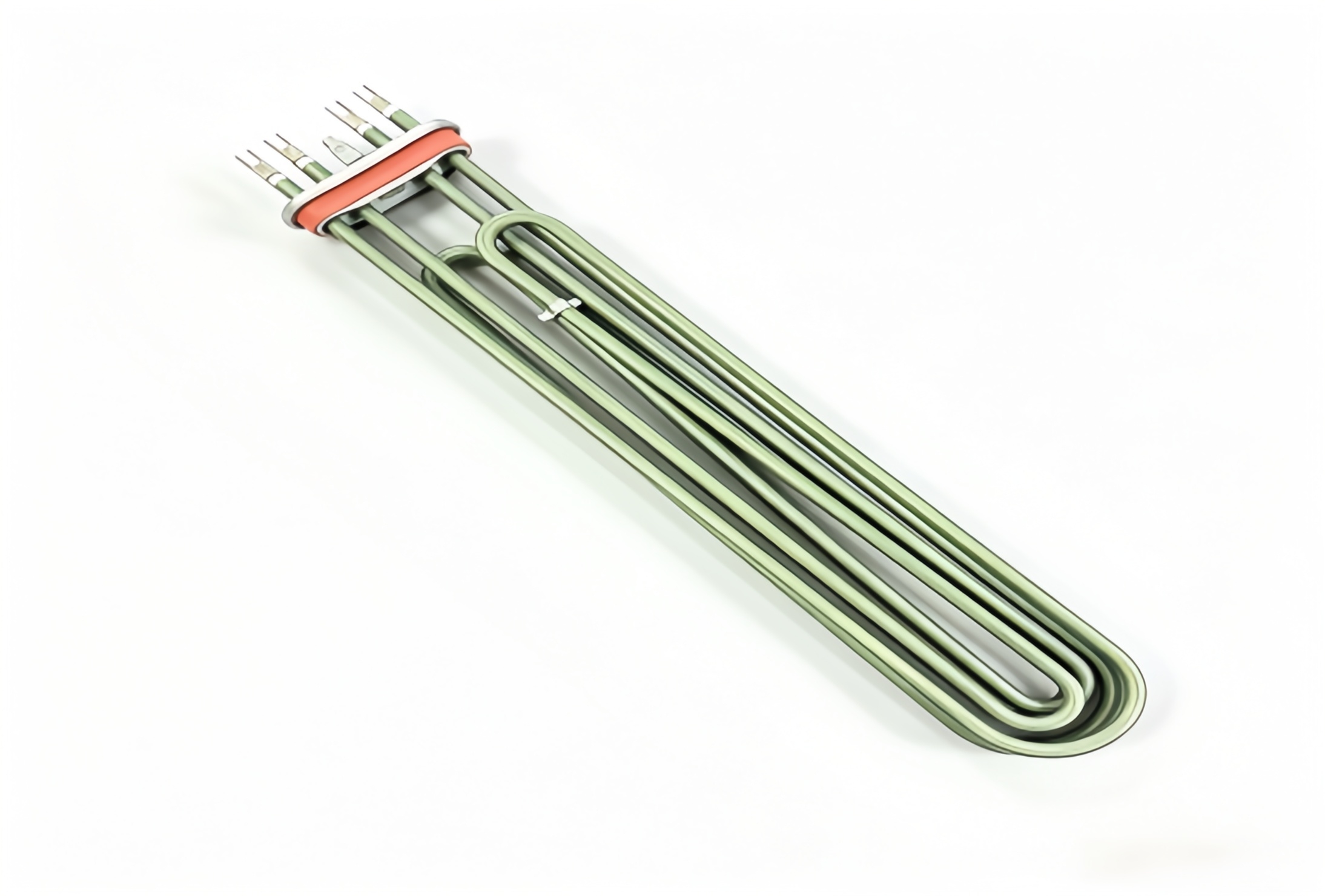

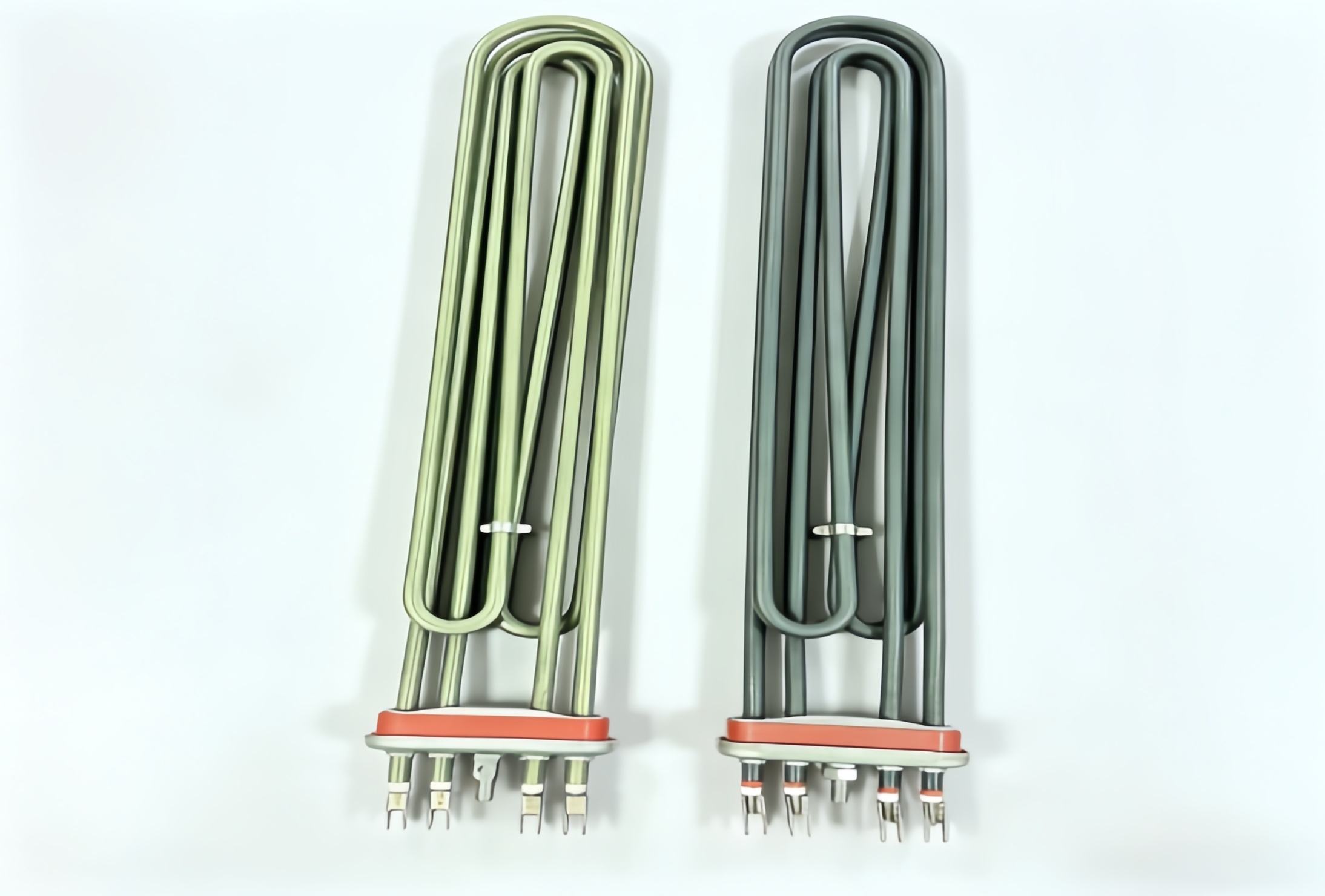

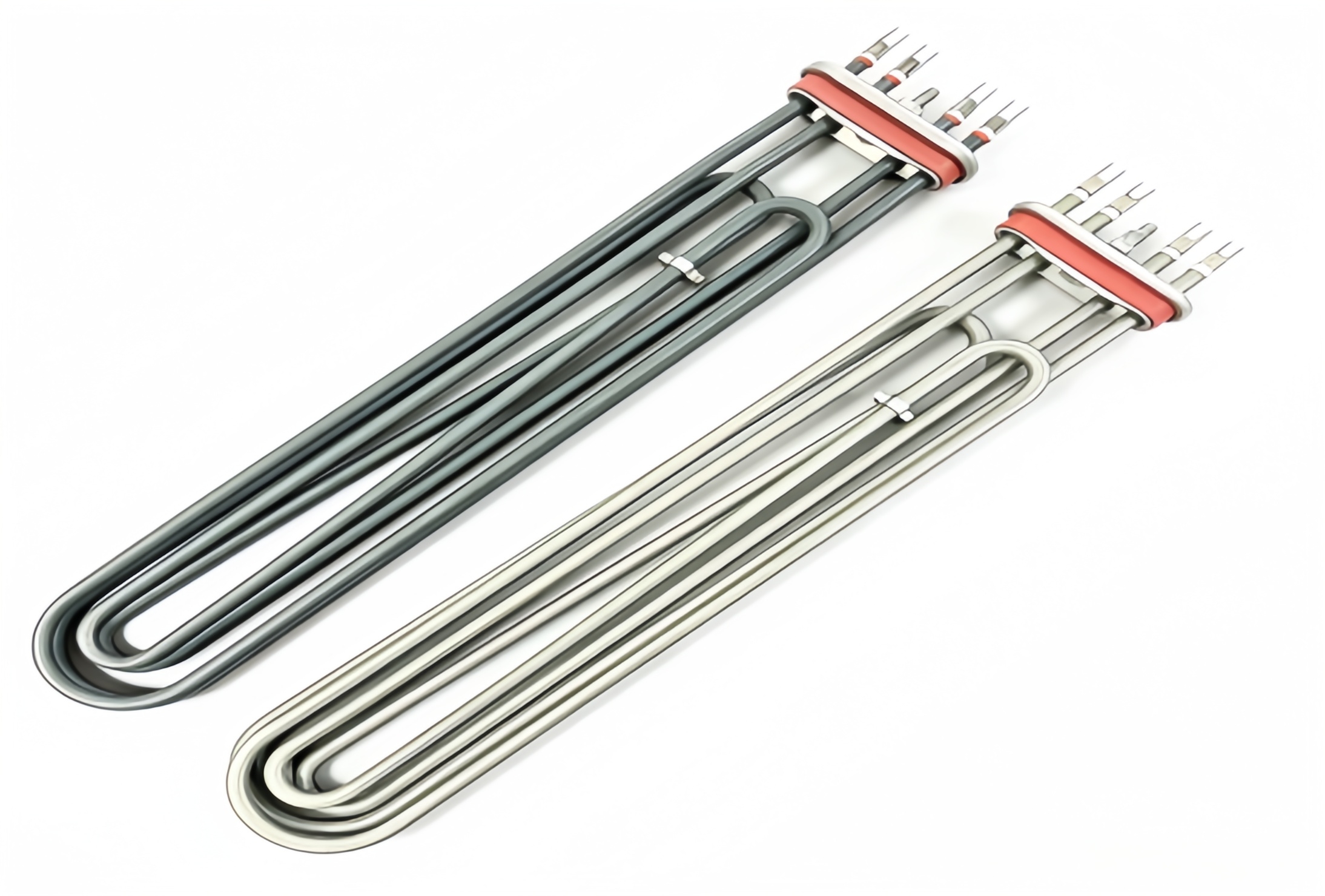

Our Multi U‑Shape Tubular Heating Element is a high‑performance air dry‑burn heating tube specially developed for industrial heating equipment. It is made of premium stainless‑steel sheath, nickel‑chromium alloy resistance wire and high‑purity fused magnesium‑oxide insulation filler, delivering even heat distribution, excellent high‑temperature resistance and long working lifespan.
| Material: SUS304 stainless steel, optional SUS316L / Incoloy 800; with green/grey high temperature anti-corrosion coating | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Multi U-shaped folded tubular dry burning heating element | Specification: Multi-U tubular heater, tube 10-16mm, length 300-1500mm Voltage:110/220/380V, Power:3000-12000W SUS304/316L/Incoloy tube with optional anti-corrosion coating High purity MGO filler, silicone aluminum flange CE, RoHS, ISO certified with Luquan patent |
| Shape: Multi U bent tubular shape | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: 110V / 220V / 380V, customized voltage available | MGO: High purity magnesium oxide insulating powder |
| Power: 3000W–12000W, customizable power support | Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5 |
| Tube Diameter: 10mm,12mm,14mm,16mm, custom sizes acceptable | Application: Industrial oven, drying duct, air dryer, heat treatment furnace |
Features
Multi‑U bent design, large heating area with compact size
High‑grade stainless‑steel tube, long‑time air dry‑burn resistant
Nickel‑chromium heating wire, uniform and stable heat output
Flat strip‑type terminal block, convenient and firm wiring
Flat strip‑type terminal block, convenient and firm wiring
Package delivery
Each heating element is wrapped individually with bubble foam to prevent scratches. Packed in sturdy export carton, 12 pieces per carton. Custom‑packaging is acceptable.
