L‑shaped heating tube

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

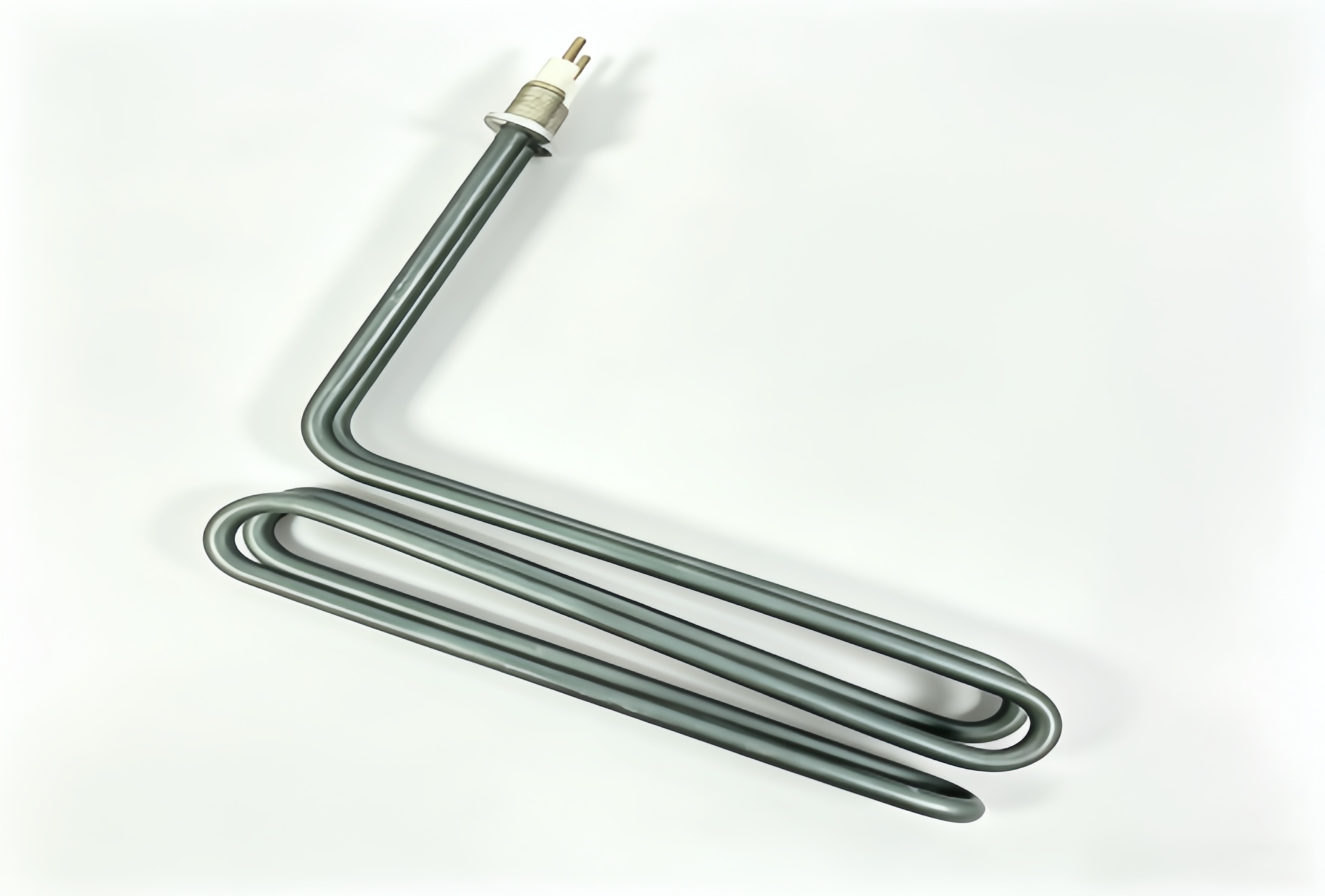

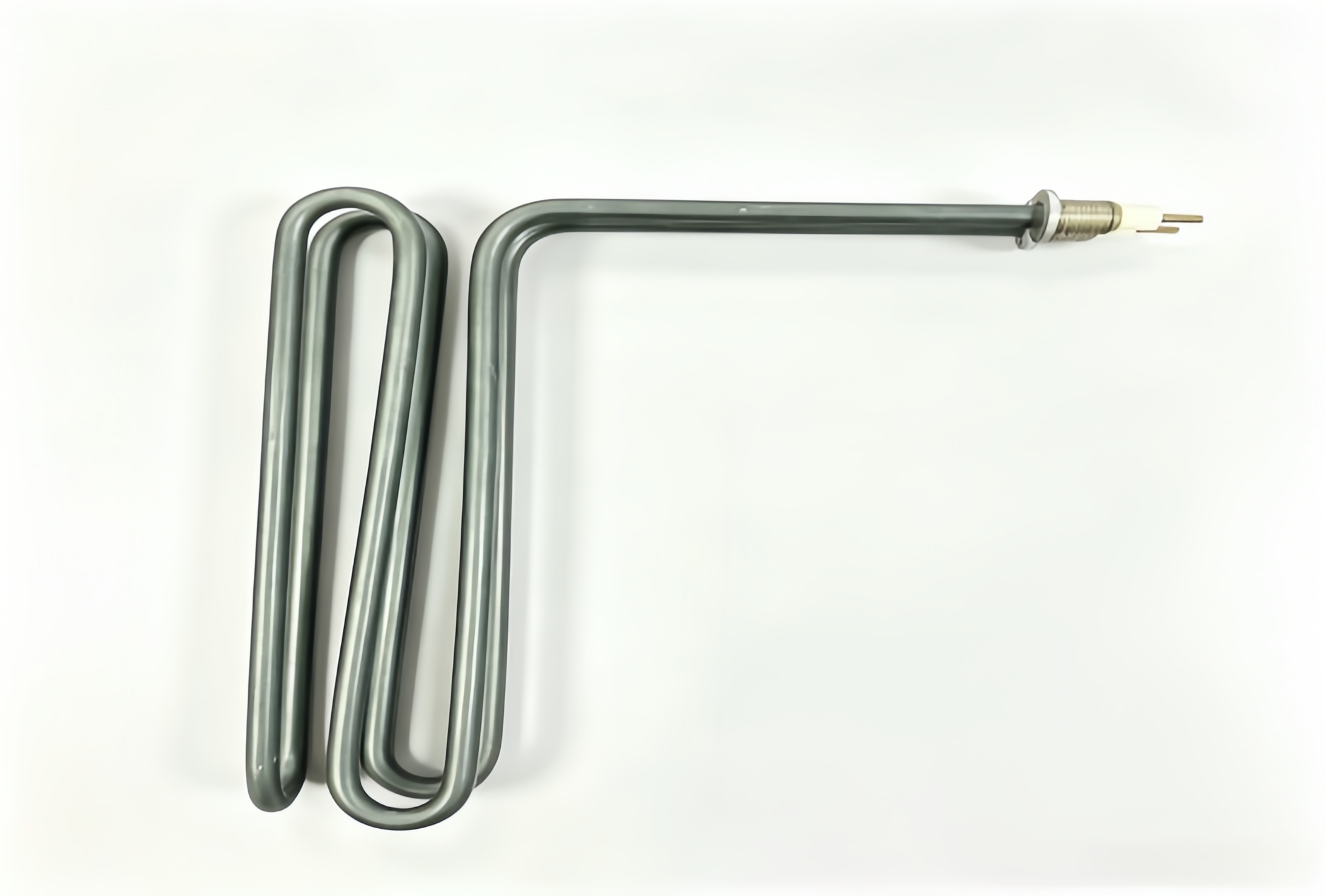

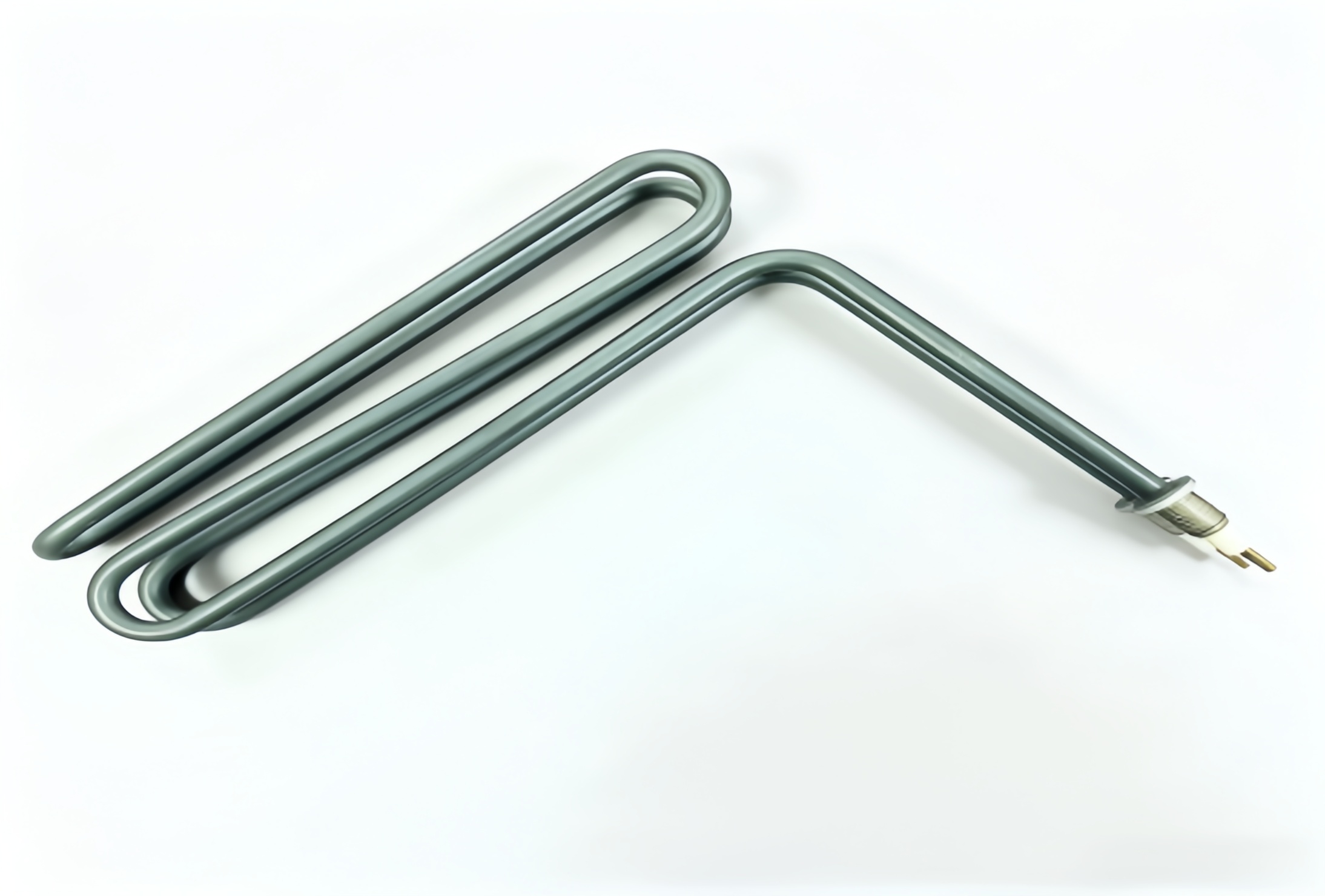

Our L‑Shape Coil Tubular Heating Element is a custom‑made air dry‑burn heating tube built for industrial high‑temperature heating environments. It is constructed with premium stainless‑steel outer sheath, nickel‑chromium alloy resistance wire and high‑purity fused magnesium‑oxide insulation filler, which guarantees stable heat output, excellent thermal conductivity and long service life.

Material: Carbon steel tube with anti-oxidation coating, Ni80Cr20 wire, MGO insulation, brass terminal, ceramic insulator	Transport Package:Carton and Wooden Box
Form: L multi-bent threaded tubular heating element	Specification: L multi-bent threaded tubular heater, Φ8/10/12mm tube, 2–6kW, 110/220/230/380V, anti-oxidation coated carbon steel, CE & Lu-Chiuan patent
Shape: L multi-bent loop shape	Resistance Wire:Ocr25al5 or Ni80cr20
Voltage: 110V / 220V / 230V / 380V Customizable	MGO: High-purity fused MgO insulating filler
Watt: 2kW, 3kW, 4kW, 6kW, customizable	Tube Diameter: Standard 8mm / 10mm / 12mm, customizable
Product Name: L‑shaped heating tube	Usage: Dry air heating for commercial oven, grill, roaster and baking equipment

Features

L‑shaped coil bent structure, saves internal installation space
Stainless‑steel outer sheath, suitable for long‑time air dry‑burn work
Nickel‑chromium heating wire, stable and uniform heat generation
Threaded fitting with ceramic terminal, quick and firm installation
Fully customizable on voltage, wattage, tube diameter and dimensions

Package delivery

Each heating tube is wrapped with bubble foam individually to avoid scratch and damage during transit. All goods are packed into sturdy export carton boxes. One carton contains 12 pieces. Custom‑made packaging and shipping solutions are available upon request.
