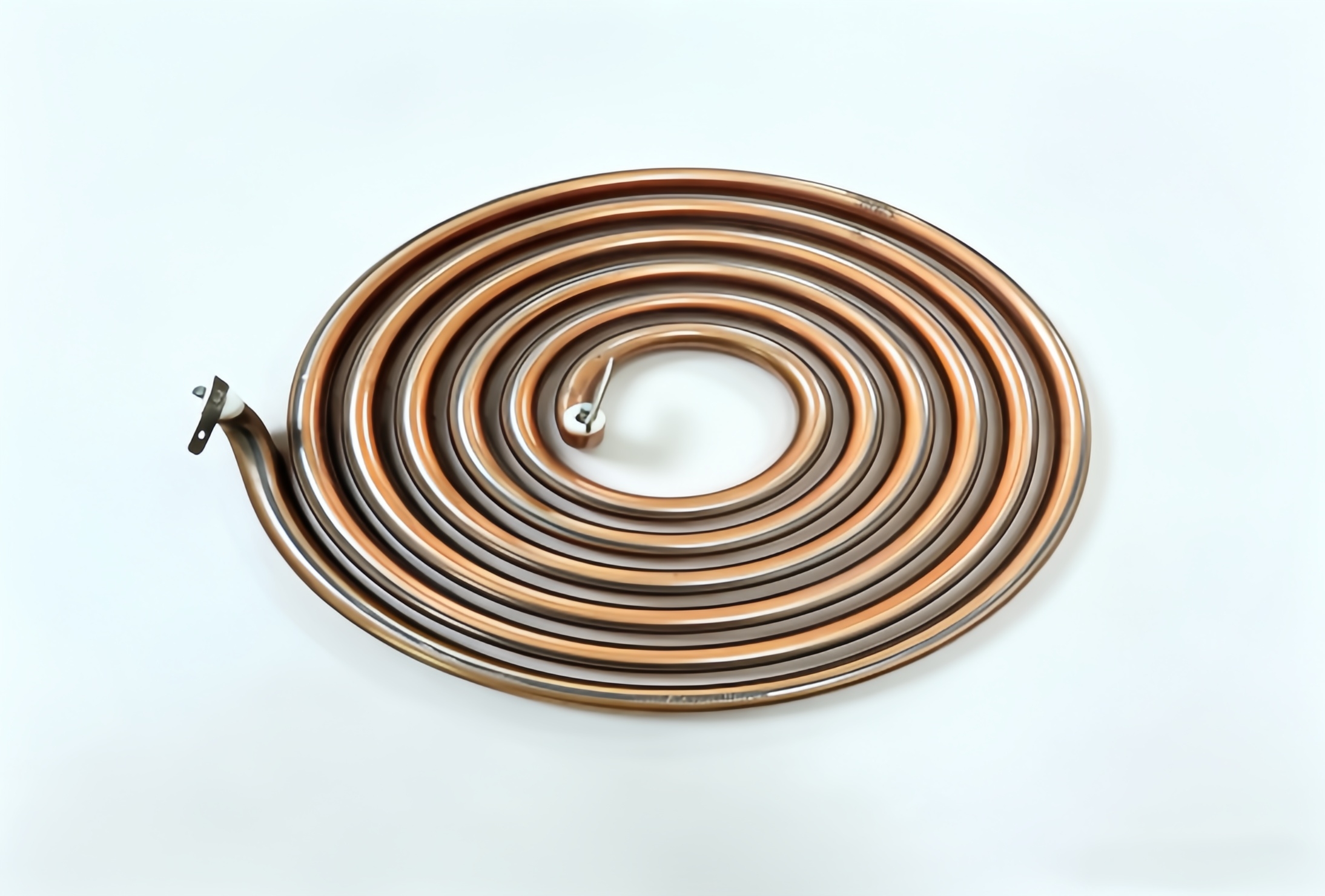

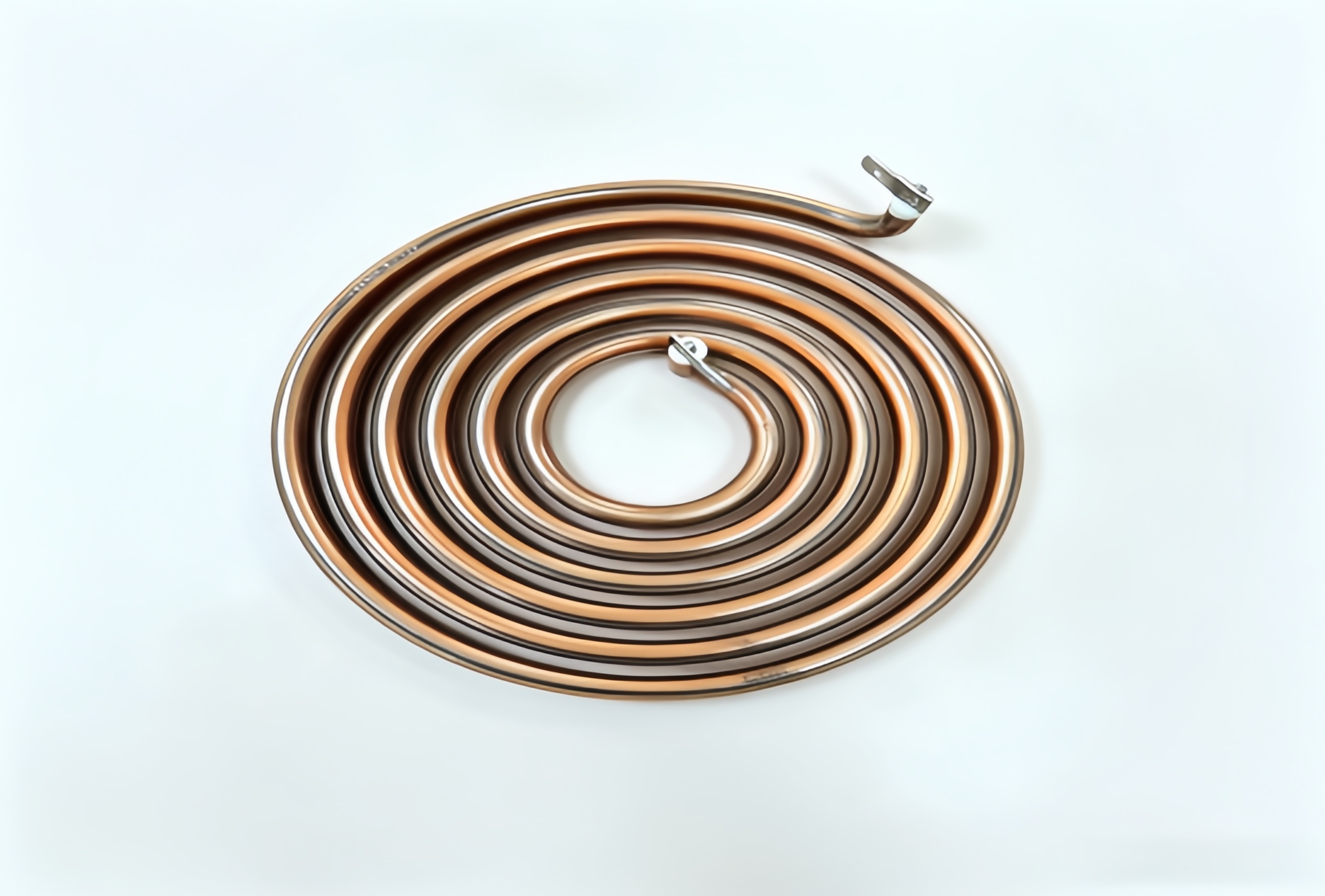

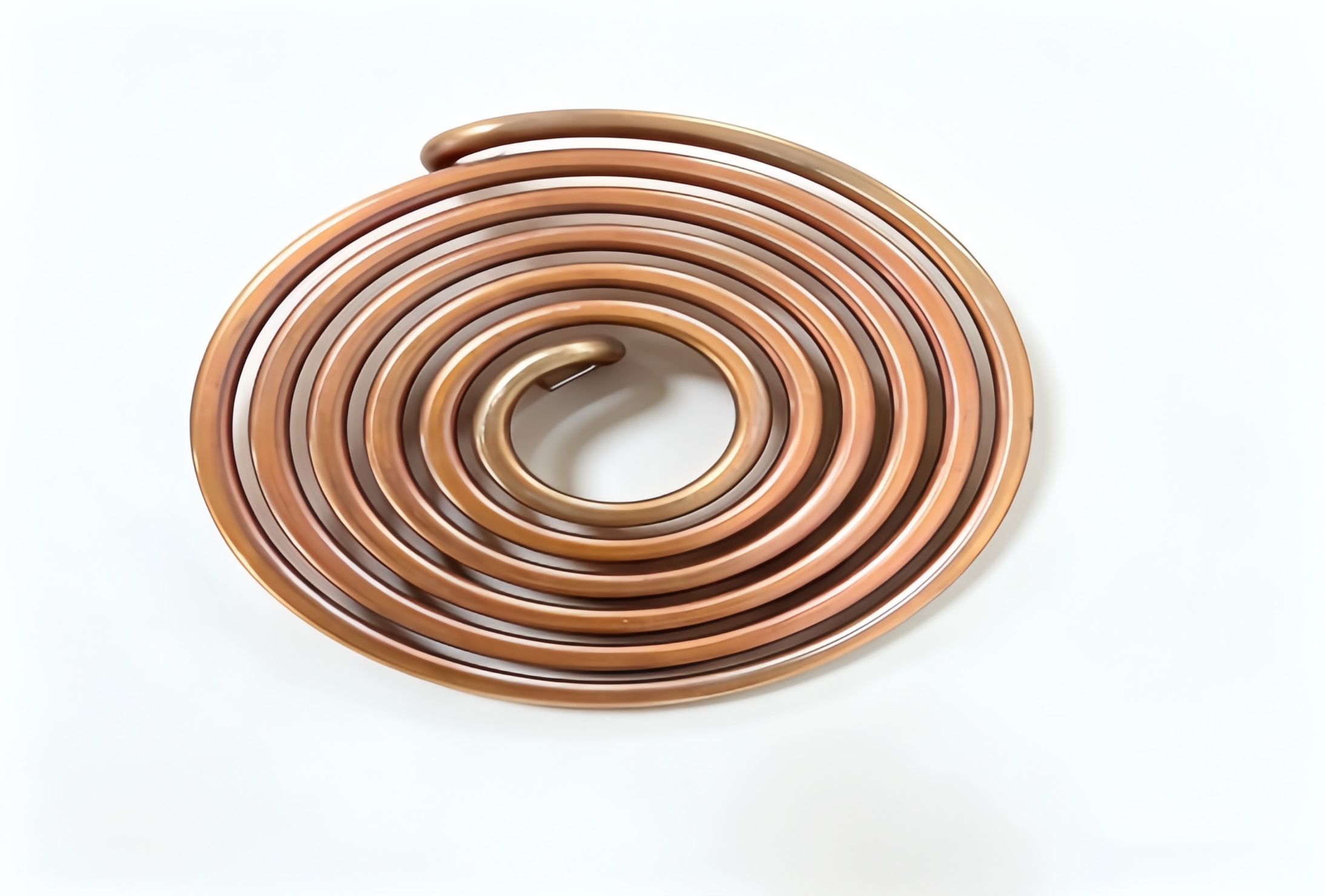

Copper Spiral Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This copper spiral heating element is a coil‑type tubular heater specially made for air heating. Made of pure copper tube, it features outstanding thermal conductivity for quick and even heat‑up. Spiral‑coiled design maximizes heating area. Voltage, wattage, coil diameter and total length can be fully customized for fryer, hot‑plate and other heating‑equipment replacement.

Material: Outer sheath: Stainless steel tube with copper plated surface Heating element: Nickel-chromium alloy resistance wire Insulation filler: High purity MGO (Magnesium Oxide) powder Terminals: Nickel-plated iron	Transport Package:Carton Box with Foam Shockproof Protection
Form: Spiral disc coiled tubular structure, mosquito coil shape	Specification: Spiral disc coil heater, Tube OD 8mm, AC220V 500W, copper plated stainless steel tube, multiple terminals optional, support customization
Shape: Disc-shaped spiral coil, concentric circular structure	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Voltage: AC220V; Support custom voltage such as 110V, 380V	MGO: High Purity MgO
Watt: 500W; Support customized wattage upon request	Tube Diameter: Tube Outer Diameter: 8mm; other sizes available on request
Product Name: Copper Spiral Heating Element	Usage: For electric cookers and commercial kitchen heating equipment, dry heating application

Features

Spiral coil‑shaped design, large heating area for fast and uniform heating
Pure copper tube material, excellent thermal conductivity & high heat‑transfer efficiency
High‑purity MGO filler, great insulation property and safe operation
Built‑in mounting lugs, simple and firm installation
Customizable specifications to match fryer, hot‑plate and other heating devices

Package delivery

Each copper spiral heating element is wrapped with bubble film for anti‑collision protection, then packed into an individual carton box. Multiple boxes are loaded into one export outer carton for bulk shipment. Sea freight and air freight are both acceptable.
