Coil‑Style Stove Top Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

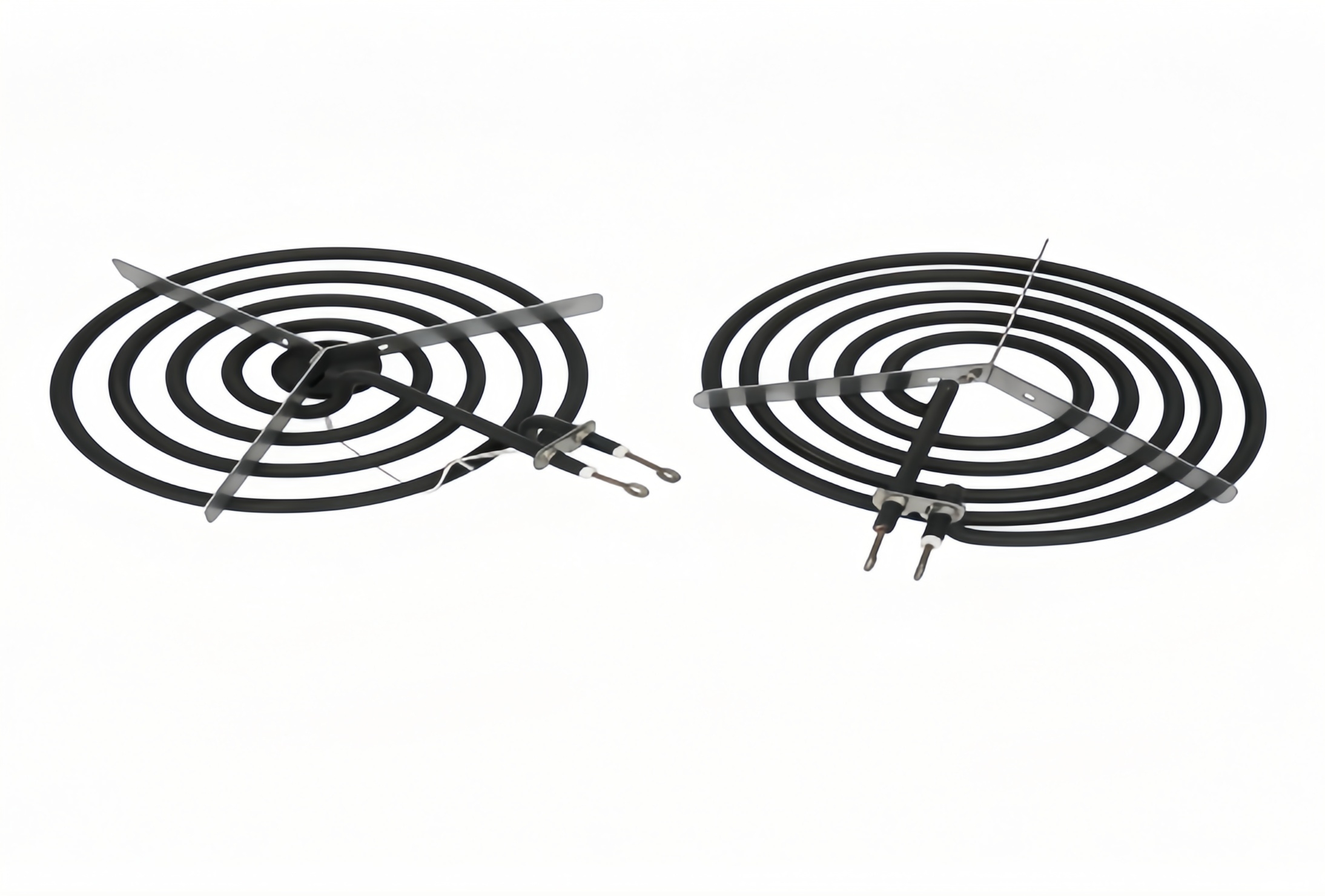

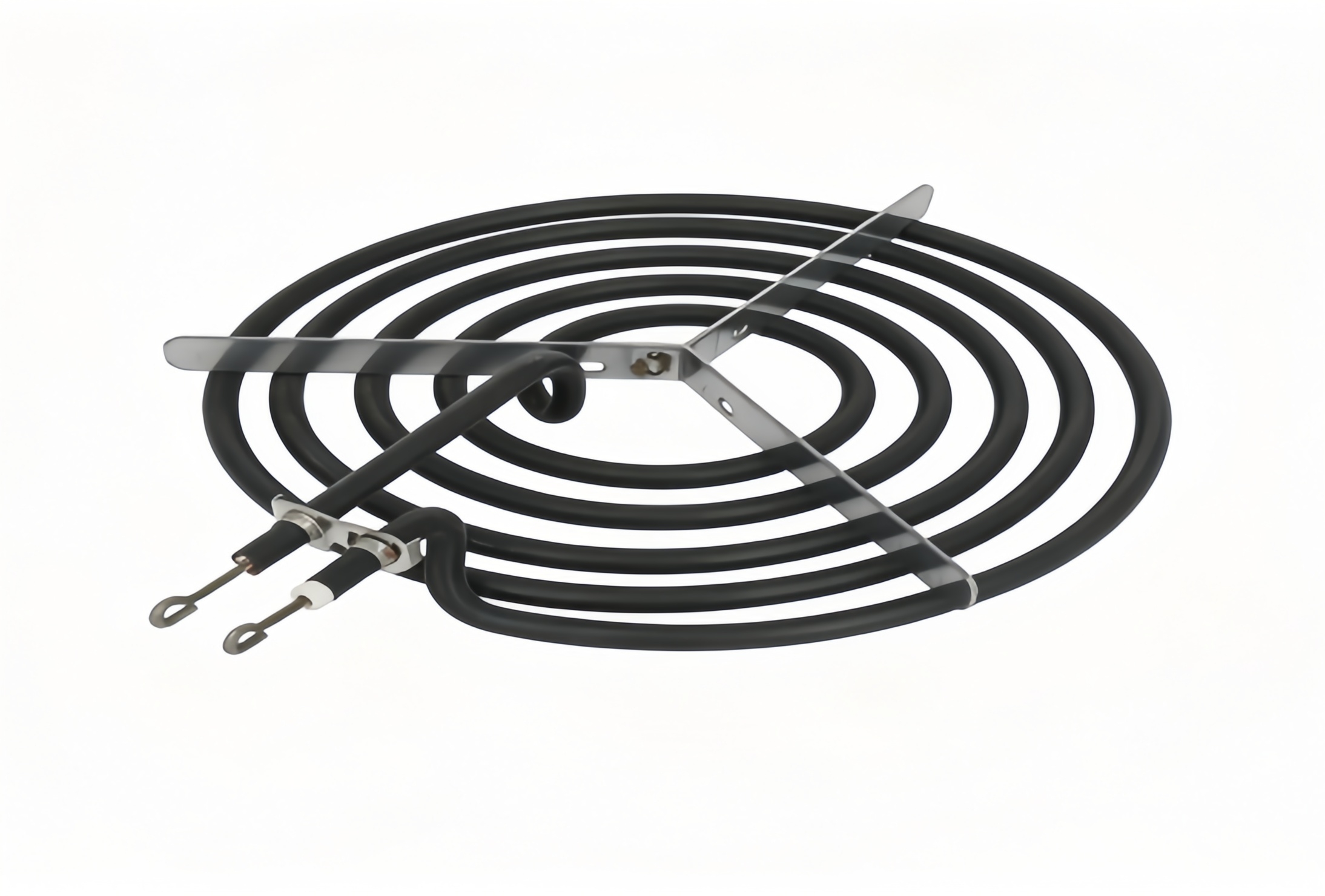

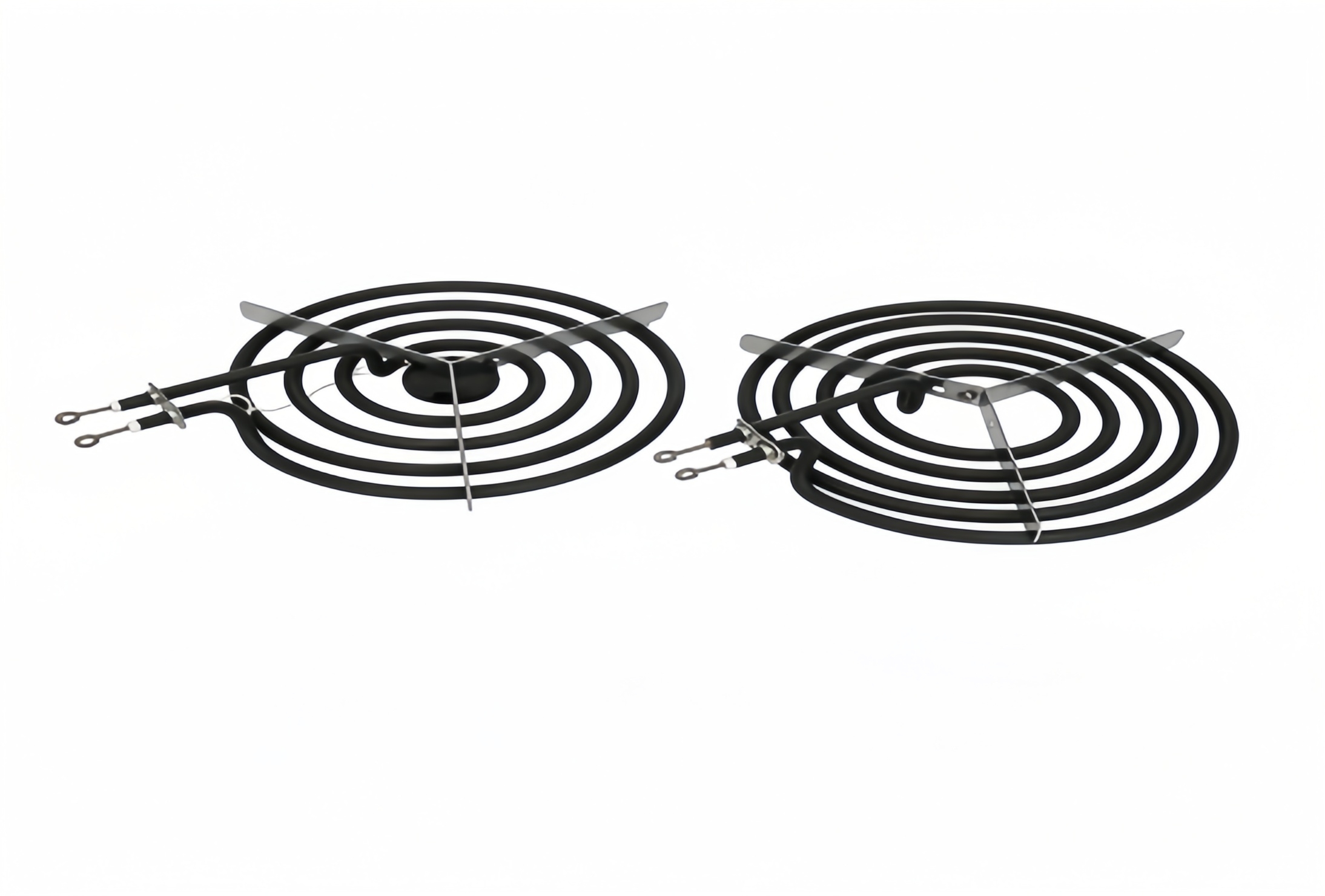

This coil‑style heating element is a classic replacement burner part for electric stoves and cooktops. The spiral circular‑coil structure provides even surface heating. Equipped with metal mounting bracket and ring‑type terminal connectors for quick installation. Voltage, wattage and coil diameter can be customized for kitchen range, household oven and other cooking‑heating equipment.

Material: Outer tube: SUS304 stainless steel Heating wire: Ni80Cr20 nichrome alloy Insulation: High-purity electrical MGO powder Bracket: Stainless steel sheet Terminal insulator: High temp ceramic	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: Heating body: One-piece seamless bent tubular structure, concentric multi-ring spiral coil shape Fixing structure: Matched triangular three-legged stainless steel support bracket for stable placement on cooktop Terminal form: Two straight extended terminal leads, convenient for quick replacement wiring Overall form: Flat disc coil design, perfectly fits standard electric stove surface cutouts	Certification: CE, ISO9001, RoHS, CB, CCC
Shape: Heating coil part: Flat concentric circular spiral multi-ring shape, disc-style outline matching electric cooktop surface Support bracket: Triangular three-foot stainless steel holder, evenly distributed to keep coil balanced Terminal leads: Two straight outward-extending tubular arms for wiring connection	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Voltage: 110V, 120V, 220V, 240V Custom voltage supported for OEM orders	MGO: High-purity electrical grade MGO insulation powder
Power: 1000W, 1500W, 2000W, 2500W Custom power available as request	Tube Diameter: 6mm, 6.5mm, 8mm; customizable
Product Name: Coil‑Style Stove Top Heating Element	Application: Electric cooktops, household stoves, range replacement parts

Features

Spiral circular coil structure, uniform heating over burner surface
High‑temperature resistant metal tube, good oxidation‑resistance for cooking use
High‑purity MGO insulation filler, safe and efficient heat conduction
Triangle metal mounting bracket & ring‑type terminals, easy installation
Customizable specifications, perfect spare part for electric stove cooktop

Package delivery

Each coil‑shaped stove heating element is wrapped by bubble film to prevent collision damage, then packed into separate carton box. Multiple pieces are packed in one export outer carton for bulk shipment. Sea freight and air freight are both available.
