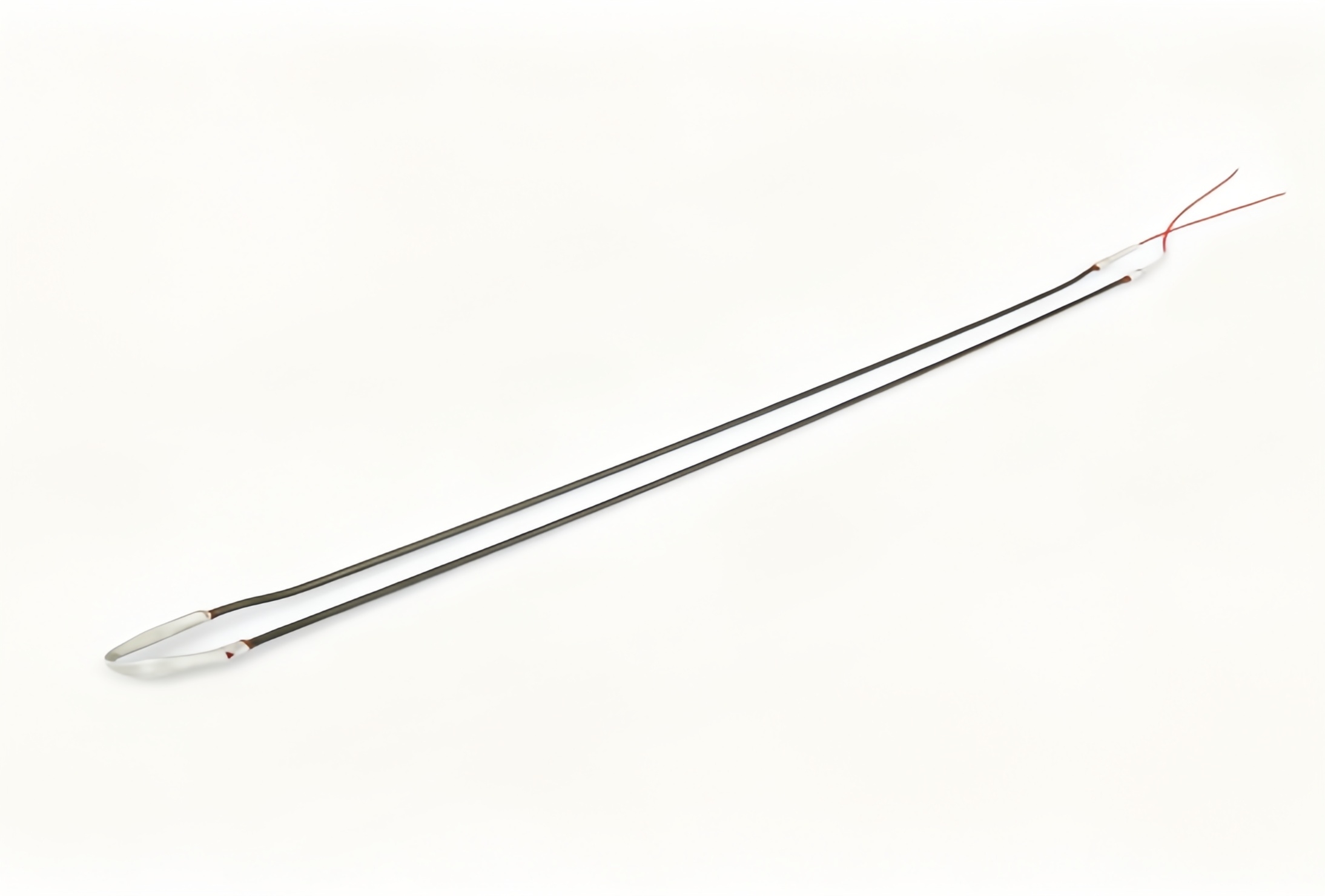

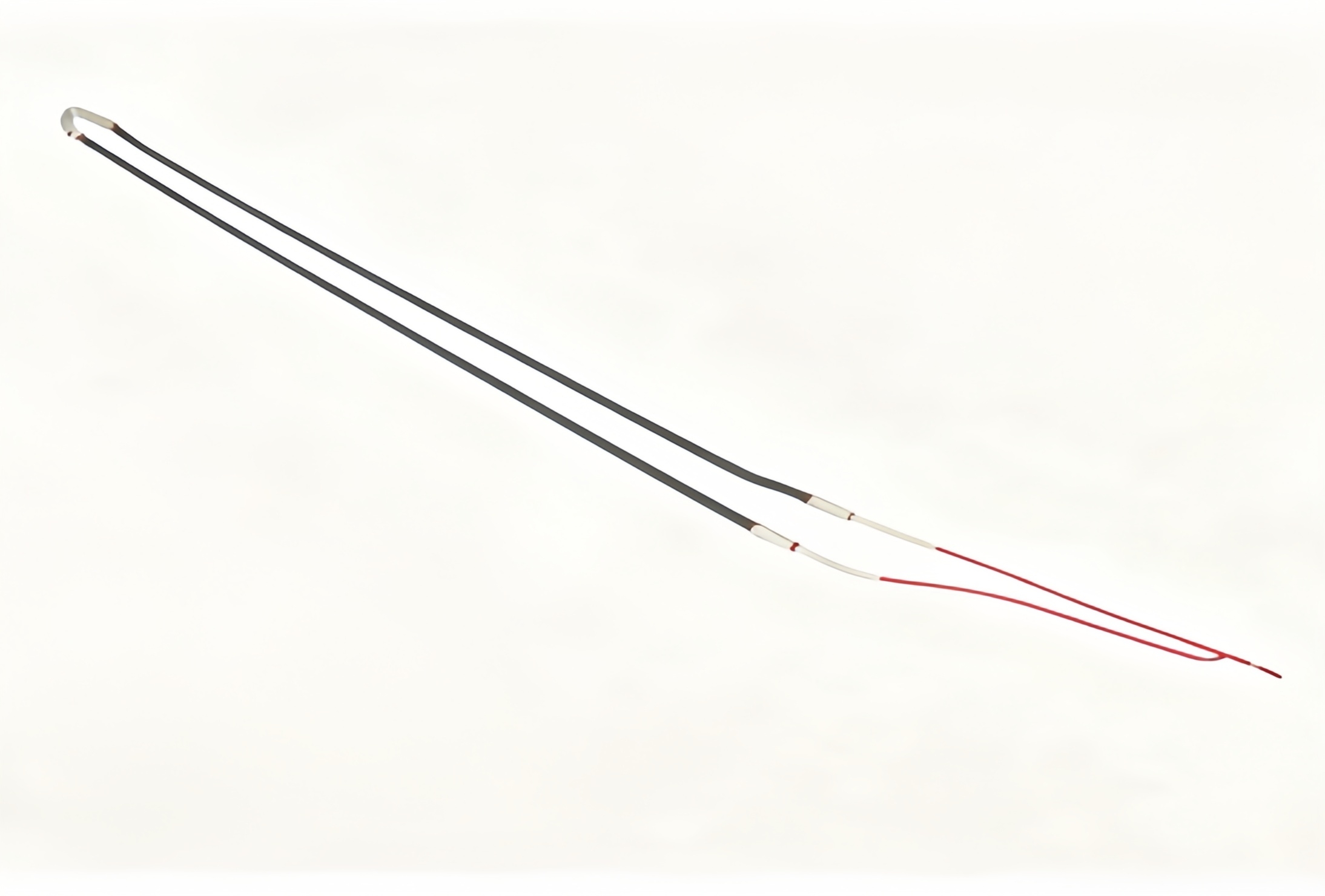

U‑Shape Lead‑Wire Tubular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

This U‑shape heating element with lead wires is a dry‑burn tubular heater designed for air heating. Made of high‑temperature resistant stainless‑steel tube, it performs well under long‑time high‑temperature working conditions. U‑shaped bending provides sufficient heating area. Flexible high‑temperature lead wires make wiring installation convenient. Voltage, wattage, tube length, bending size and lead‑wire length are fully customizable for ovens, dryers and other hot‑air heating machines.

Material: Outer sheath: SUS304 stainless steel, anti-rust, corrosion & high temperature resistant Heating core: Nickel-chromium Ni80Cr20 resistance wire, stable heat output Insulation filler: Electrical grade high-purity magnesium oxide (MGO), great thermal conductivity and insulation Lead wire: High temperature silicone insulated wire, durable for internal wiring	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.
Form: Integrated long double straight tube structure with U bend at one end Equipped with extended high-temperature lead wires for easy wiring Slim linear form, suitable for narrow drying cabinet inner space One-piece bent forming without splicing joints, higher structural strength	Certification: CE, ISO9001, RoHS, CB, CCC

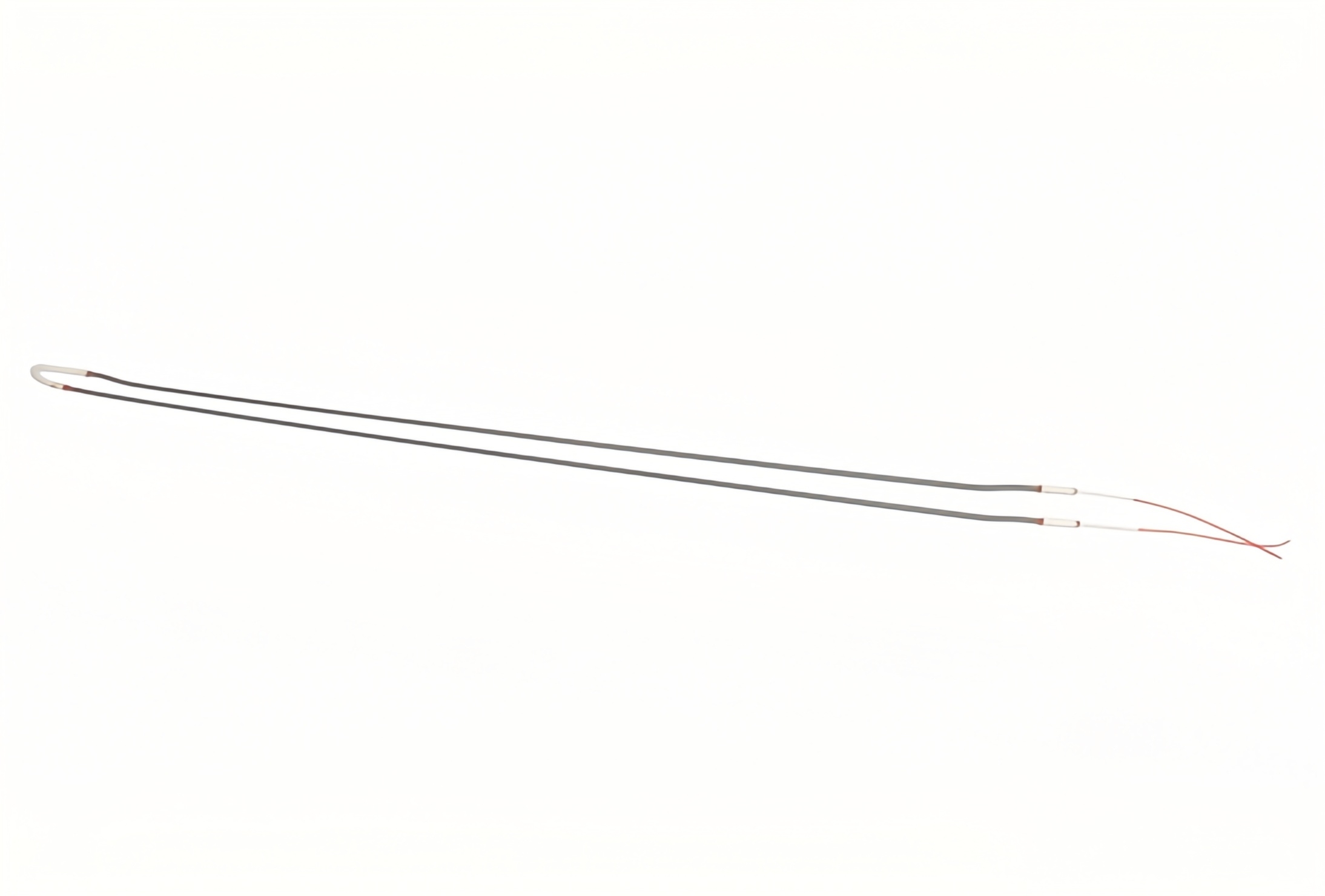

Shape: Long double parallel straight tubes connected by a U bend on one end, slender linear overall shape, the other end fitted with extended red high-temperature lead wires.	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Voltage: 110V, 220V, 380V, customizable voltage	MGO: High purity electrical grade MGO powder insulation
Power: 100W to 3000W, customizable wattage	Tube Diameter: 6mm / 8mm / 10mm, customizable tube diameter
Product Name: U‑Shape Lead‑Wire Tubular Heating Element	Application: Drying cabinets, industrial ovens, food dehydrators, machinery heating

Features

U‑bent tubular design, large heating area for even hot‑air heating
High‑temperature stainless‑steel tube, good oxidation‑resistance for dry‑burn use
High‑purity MGO insulation filler, safe operation and efficient heat transfer
Extended high‑temp lead wires, flexible and convenient wiring installation
Fully customizable specifications, fits oven, dryer and air‑heating equipment

Package delivery

Each U‑shape heating element with lead wires is wrapped with bubble film for anti‑collision protection, then packed into an individual carton box. Multiple boxes are loaded into one export outer carton for bulk shipment. Sea freight and air freight are both acceptable.
