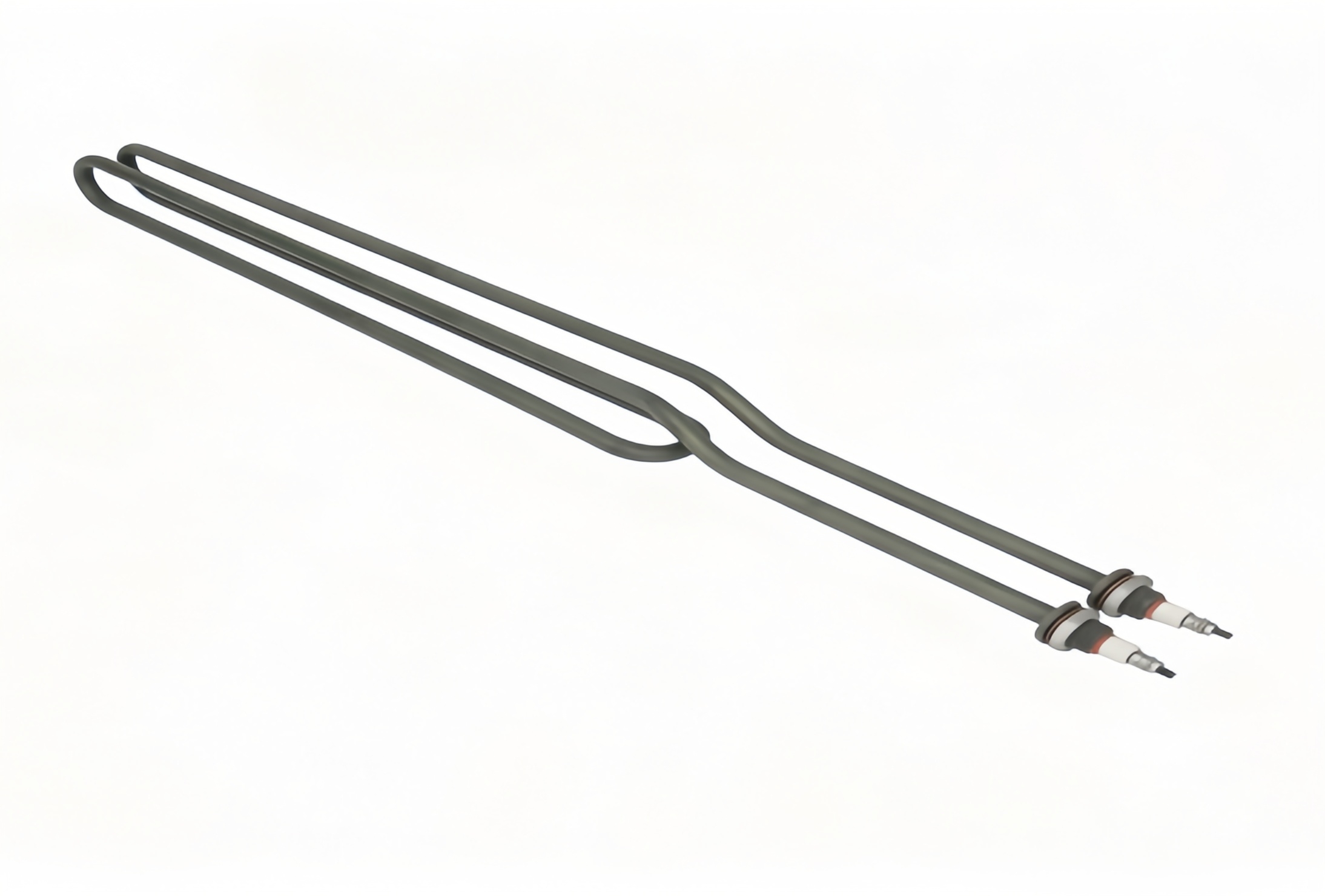

U‑Shape Double Loop Tubular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

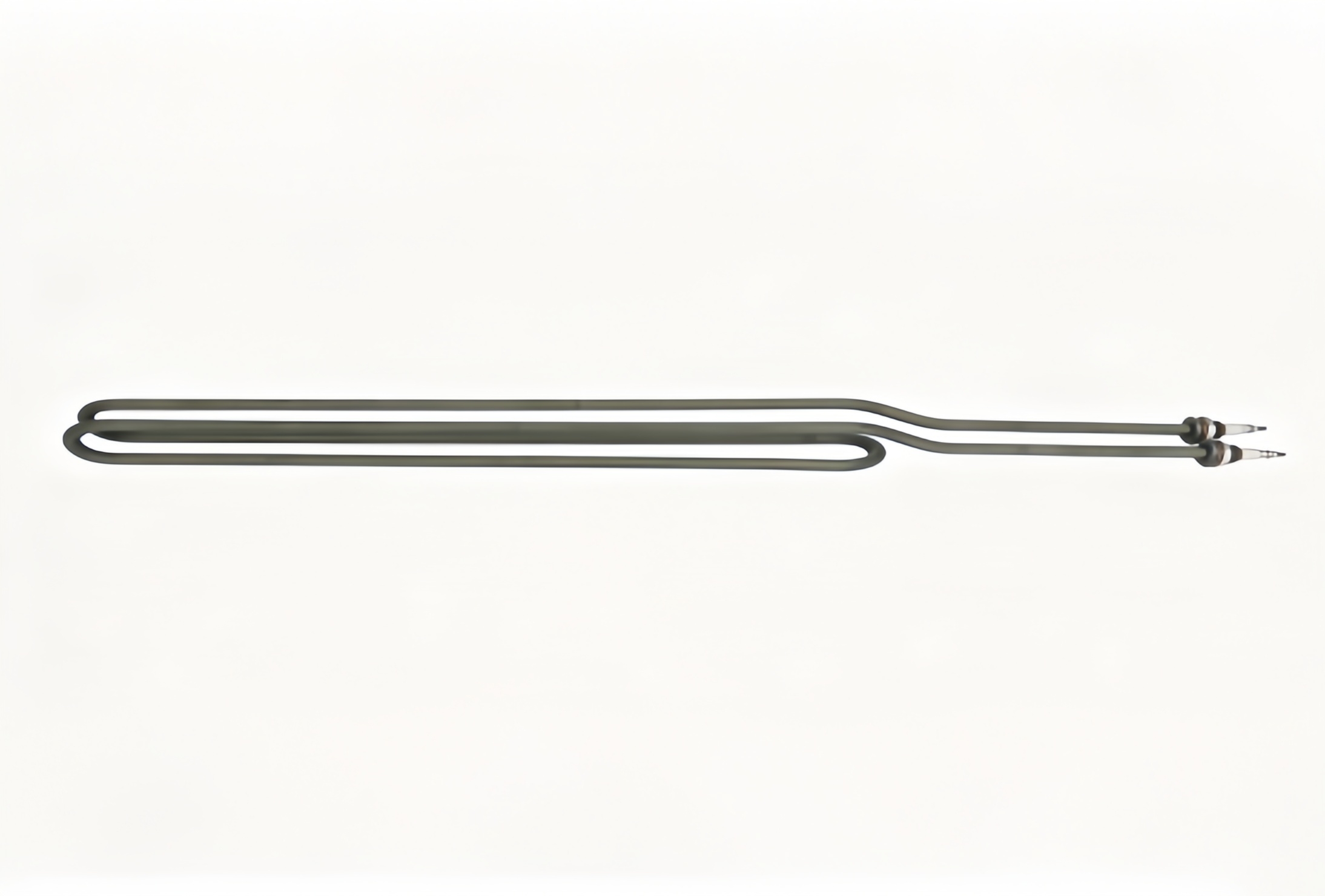

This double U‑shape heating element is a heavy‑duty tubular heater designed for high‑temperature air heating. Made of high‑temperature resistant stainless‑steel tube, it can operate continuously under high‑temperature conditions. Double‑U bent design provides larger heating surface. Thread‑type terminals allow quick installation. Voltage, wattage, tube length and bending size are fully customizable for industrial ovens, dryers and other hot‑air heating machines.

Material: Outer tube: SUS304 stainless steel Heating wire: Ni80Cr20 nichrome Filler: High-purity MGO powder Terminal: High temp ceramic + silicone gasket	Transport Package: Standard export carton with foam protection inside, each heater wrapped by plastic bag separately.

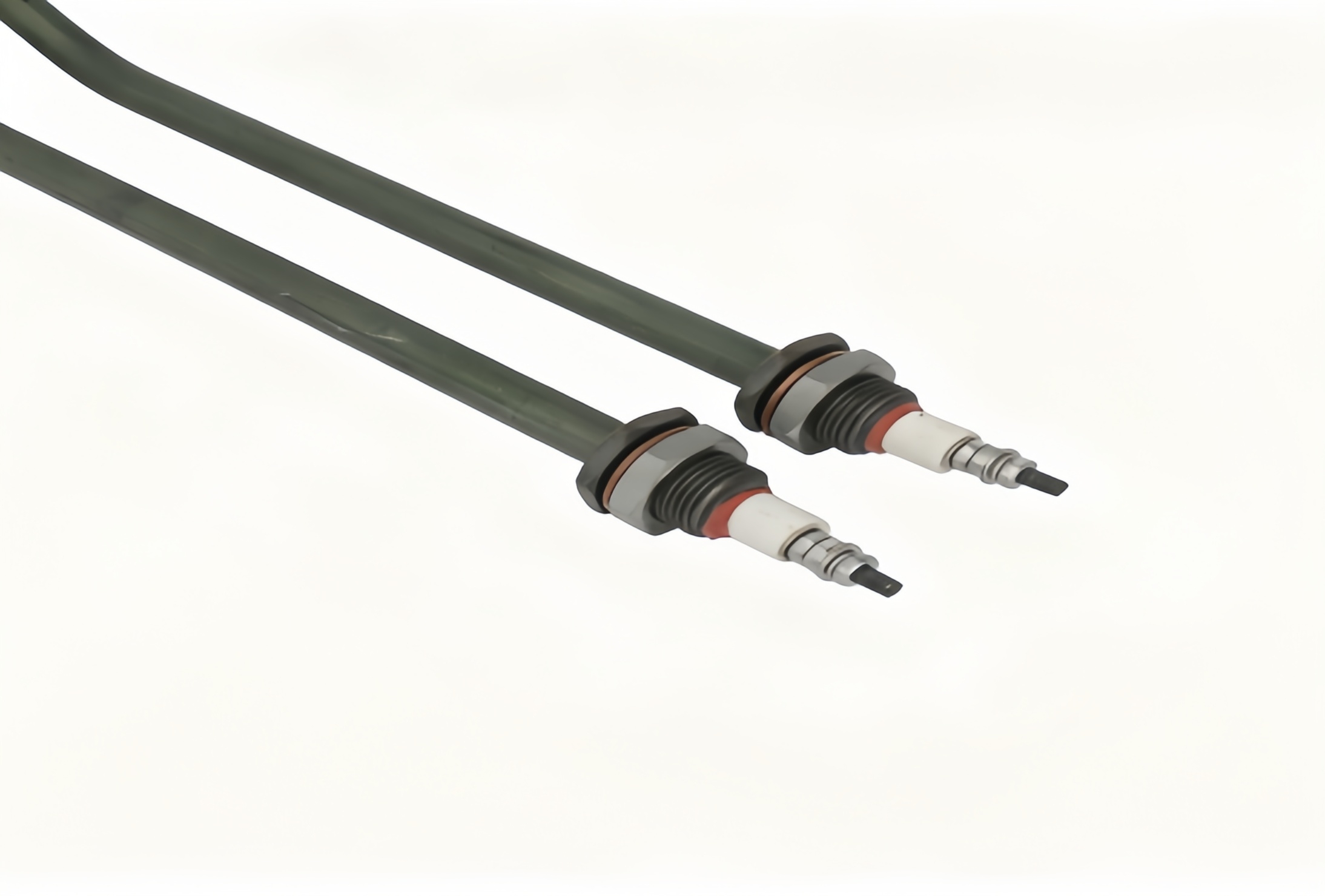

Form: Shape structure: Integral seamless multi-stack U-bend forming, split into short double U single-layer style and long multi-layer multi-bend high-power style, no welding seams on heating sections. Terminal structure: Dual independent threaded terminals with high-temperature ceramic insulation sleeves and silicone sealing gaskets, standard screw connector for quick wiring. Tube layout: Parallel stacked bent tubes to expand heating area, uniform heat radiation inside ovens.	Certification: CE, ISO9001, RoHS, CB, CCC
Shape: Main heating part: Continuous seamless bending into multiple stacked U loops, including single-layer double U small shape and multi-row long U-bend large shape. Terminal section: Two straight tube segments extend outwards separately, fitted with threaded mounting heads for installation. Smooth arc bends without sharp corners, uniform heat emission inside ovens.	Resistance Wire: Ni80Cr20 nichrome alloy resistance wire
Voltage: Standard 110V, 220V, 240V, 380V; custom voltage acceptable	MGO: High-purity electrical grade magnesium oxide powder, high insulation & thermal conductivity
Power: 1000W–5000W standard, customizable wattage	Tube Diameter: Standard 8mm, 10mm, 12mm; customized tube size available
Product Name: U‑Shape Double Loop Tubular Heating Element	Application: Commercial bakery ovens, roasting machines, industrial drying ovens, food baking equipment

Features

Double U‑bent tubular structure, large heating area for even hot‑air heating
High‑temperature resistant stainless‑steel shell, good high‑temp oxidation resistance
High‑purity MGO insulation filler, safe operation and efficient heat conduction
Thread‑in terminal fittings, quick and firm installation
Custom‑made specifications, suitable for oven, dryer and other air‑heating equipment

Package delivery

Each double U‑shape heating element is wrapped with bubble film to avoid collision damage, then packed into an individual carton. Multiple units are packed in one export outer carton for bulk shipment. Sea freight and air freight are both available.
