Oven Circular Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

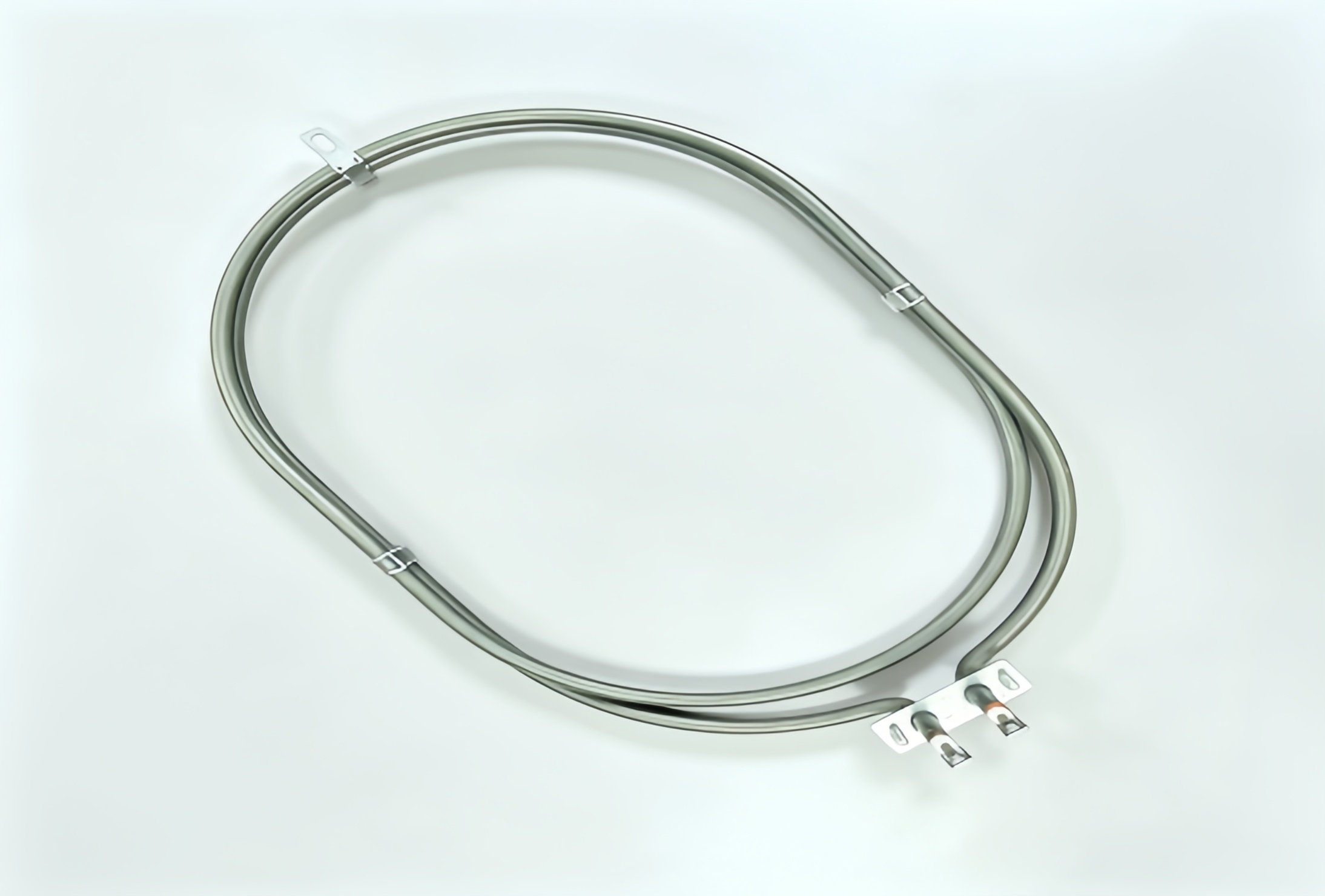

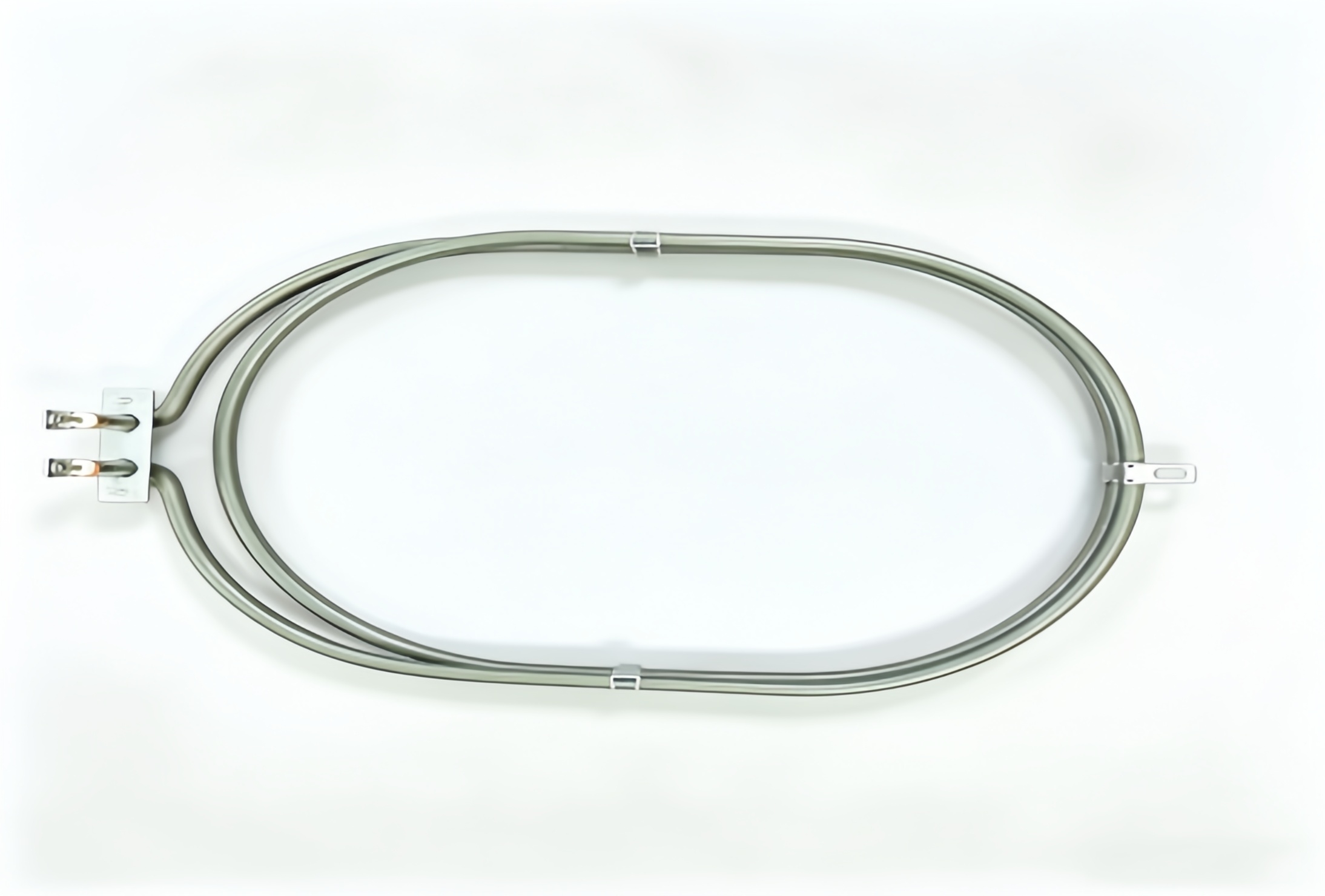

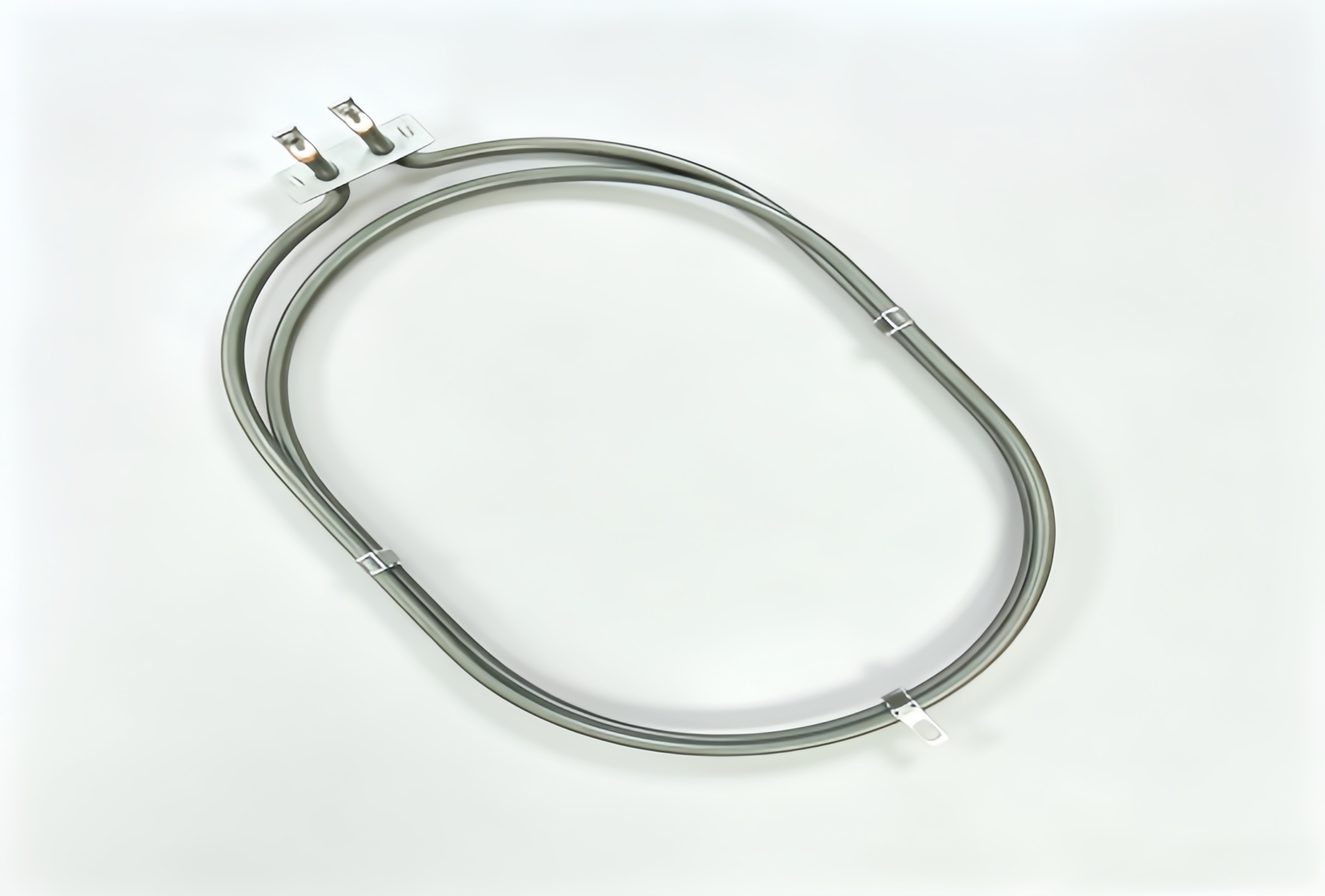

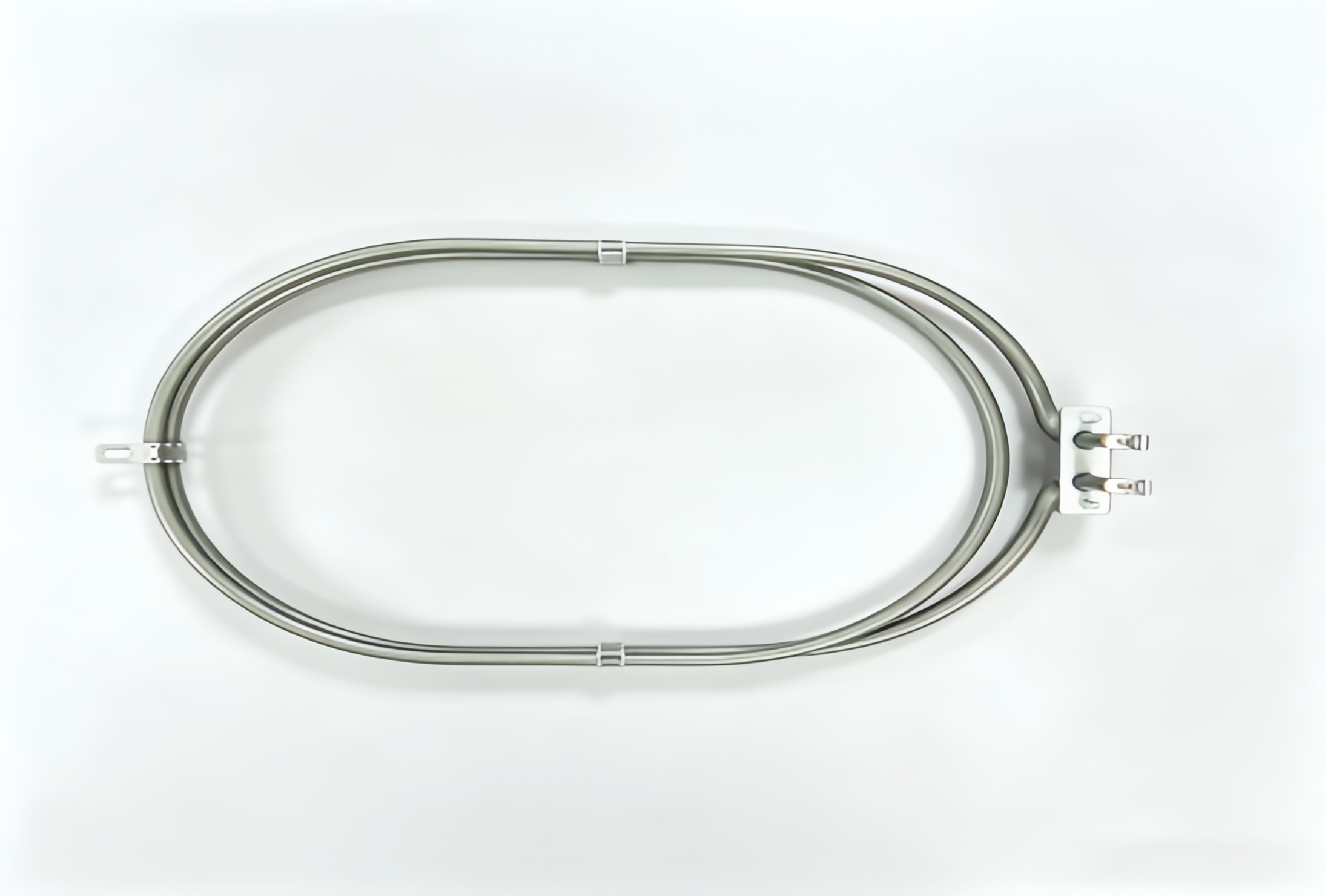

This circular oven heating element is a high‑quality replacement part for electric ovens. Made of durable stainless‑steel tube, it delivers fast and uniform heating. Built‑in mounting brackets allow quick and easy installation. Voltage, wattage and overall size can be customized to fit different oven models.

Material: Heating Tube: SUS304, SUS310S, Incoloy 800 Internal Wire: Ni80Cr20 Insulation: High Purity MgO Mounting Parts: Stainless Steel	Transport Package:Carton Box with Foam Shockproof Protection
Form: Oval double loop tubular bent form, with integrated mounting lugs & fixing clips	Specification: Shape: Oval double loop tube Diameter: 6/8/10mm customizable Voltage: 110V/230V/400V Power: 1000W-3500W Material: SUS304/310S, Incoloy 800 Max Temp: 600℃ With mounting lugs & clips, OEM supported
Shape: Oval double loop tubular shape	Resistance Wire: Cr20Ni80 nickel-chromium alloy wire
Voltage: Standard 110V, 220V; custom 120V/230V/240V available	MGO: High purity magnesium oxide powder, excellent thermal conductivity & insulation performance
Watt: 1000W - 3500W Customizable	Tube Diameter: 6mm / 8mm / 10mm Customizable
Product Name: Oven Circular Heating Element	Usage: For convection oven, bakery oven, electric cooker

Features

Oval‑circular ring shape with large heating area for even oven heating
High‑grade stainless‑steel tube, high temperature‑resistant & durable
Built‑in metal mounting brackets for quick and firm installation
High‑purity MGO filler inside for good insulation and heat conduction
Fully customizable voltage, wattage and ring size for different ovens

Package delivery

Each heating element is wrapped with bubble film for anti‑collision protection, then packed into individual carton box. Multiple boxes are loaded into outer export carton. Safe sea or air shipping is available.
