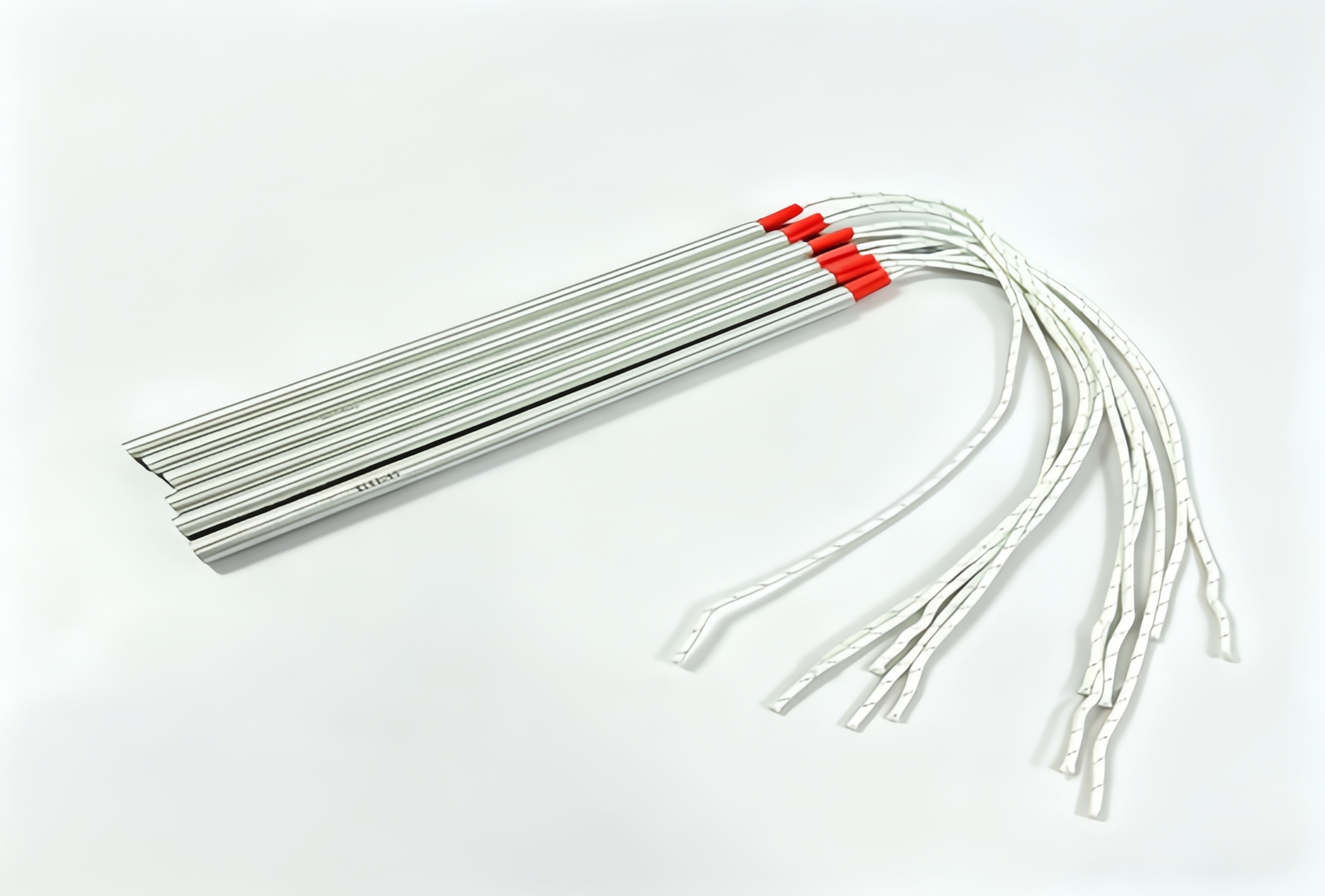

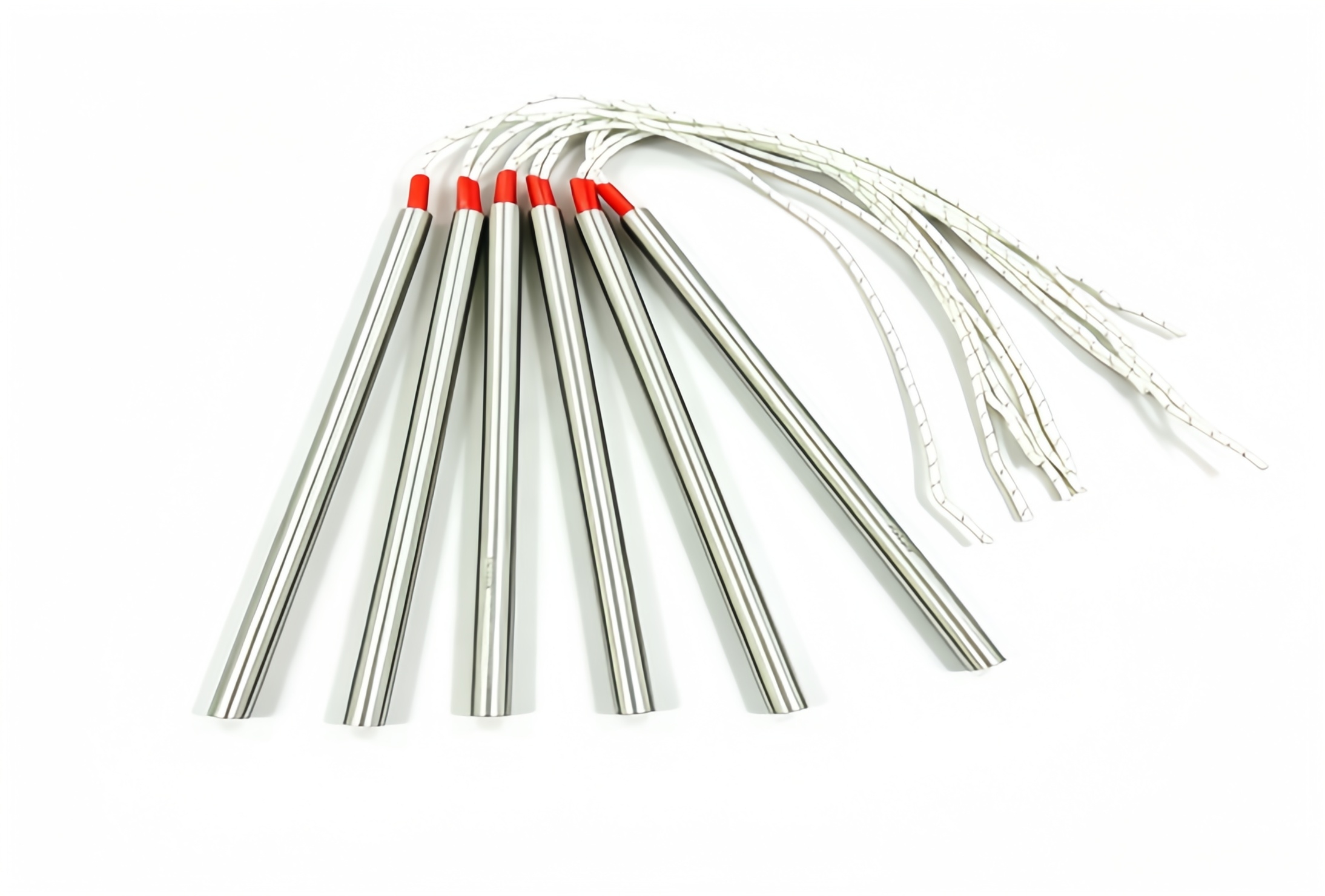

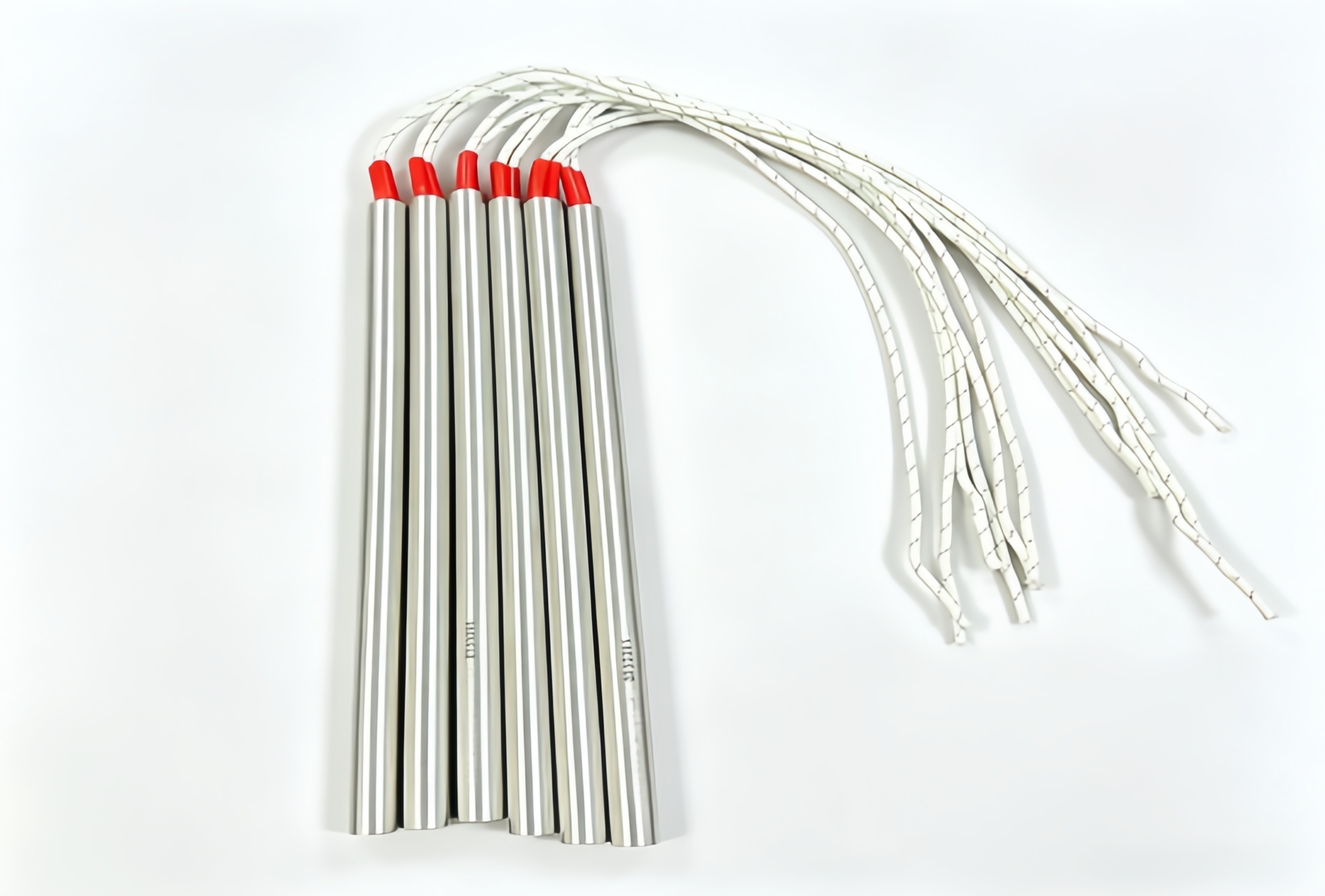

Single‑End Cartridge Heater with Lead Wire

Inquire Now

Product Description Features Package delivery Download

Product Description

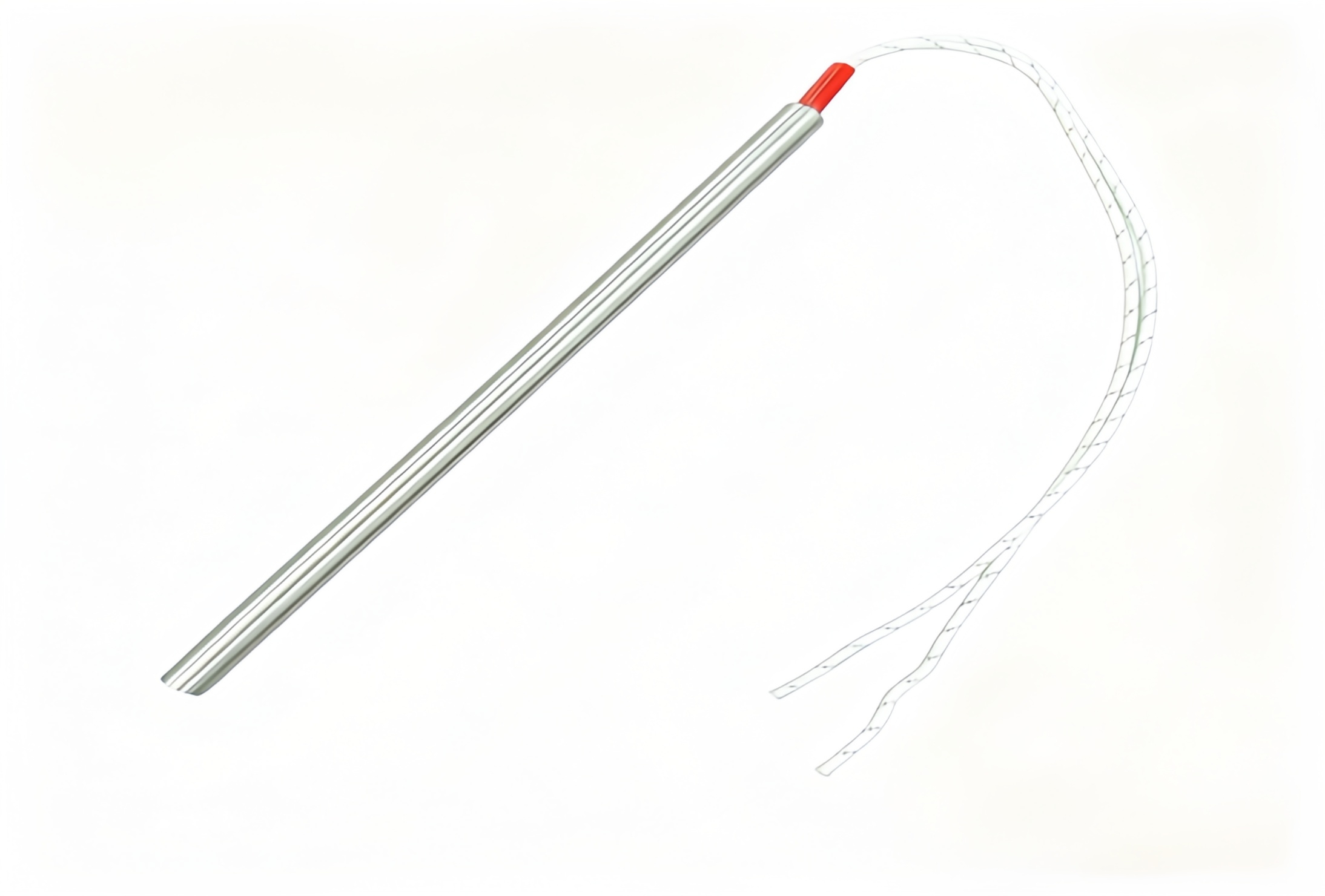

This single‑end cartridge heater is designed with external lead wire, made of high‑quality stainless steel sheath. All dimensions, voltage and power can be fully customized. It is widely used for mold heating, plastic machinery and other industrial heating equipment. Features fast heating, high thermal efficiency and long service life, OEM & ODM orders are acceptable.

Material: Standard: SUS304 stainless steel Optional upgrade: SUS316 / Incoloy 800 alloy	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Single-ended straight cylindrical cartridge heater	Specification: Fully Customizable per Drawings & Samples
Shape: Straight smooth cylindrical shape	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Voltage: 12V-380V, 110V/220V/240V/380V or Customized	MGO: High-purity magnesium oxide powder, inorganic thermal conductive insulation filler filled inside the cartridge heater.
Power: 10W-5000W, Customized on Demand	Tube Diameter: Φ6.6mm / Φ8.0mm / Φ8.5mm / Φ10.0mm, 3-30mm Customizable
Product Name: Stainless Cartridge Heater for Molds with Lu-chiuan CE Patent	Application: Plastic injection molds Hot runner systems Die casting molds Thermoforming molds

Features

Single‑end outlet structure with external lead wire, simple and convenient wiring
High‑strength stainless steel sheath, good pressure‑resistant and anti‑oxidation performance
Filled with high‑purity MGO powder, excellent thermal conductivity and electrical insulation
Compact internal heating coil, fast heating speed and high thermal efficiency
Fully customizable: diameter, length, voltage, wattage are available
Fully customizable: diameter, length, voltage, wattage are available
Support OEM & ODM, can be produced per customer samples or drawings

Package delivery

Packing

Each cartridge heater is individually protected to avoid scratch and collision. Put into standard export carton. Custom packing is acceptable for bulk orders.

Shipping

Small quantity by DHL, FedEx and other international courier. Bulk goods by sea or air freight. We support FOB, CIF and other international trade terms.
