Product Description

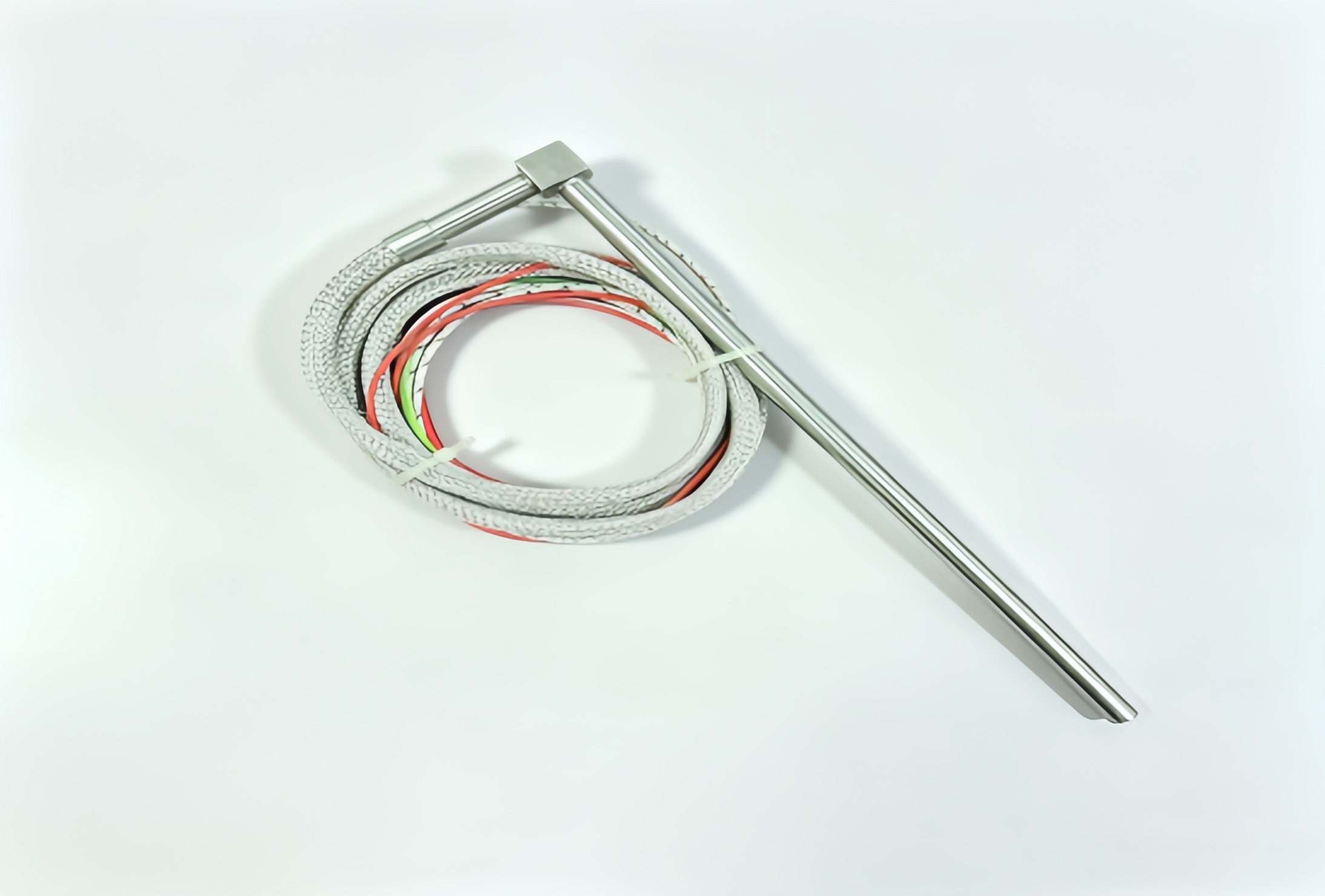

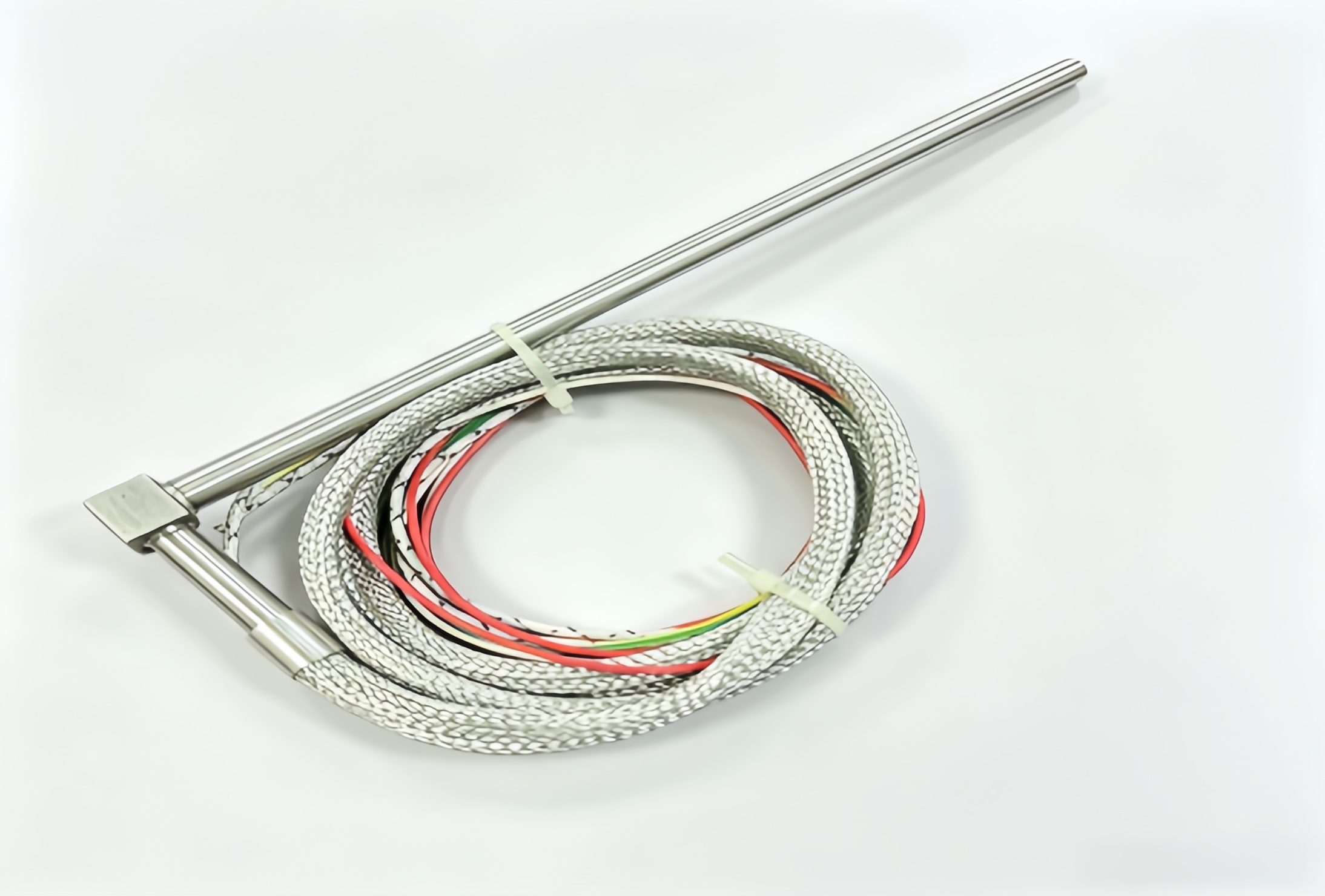

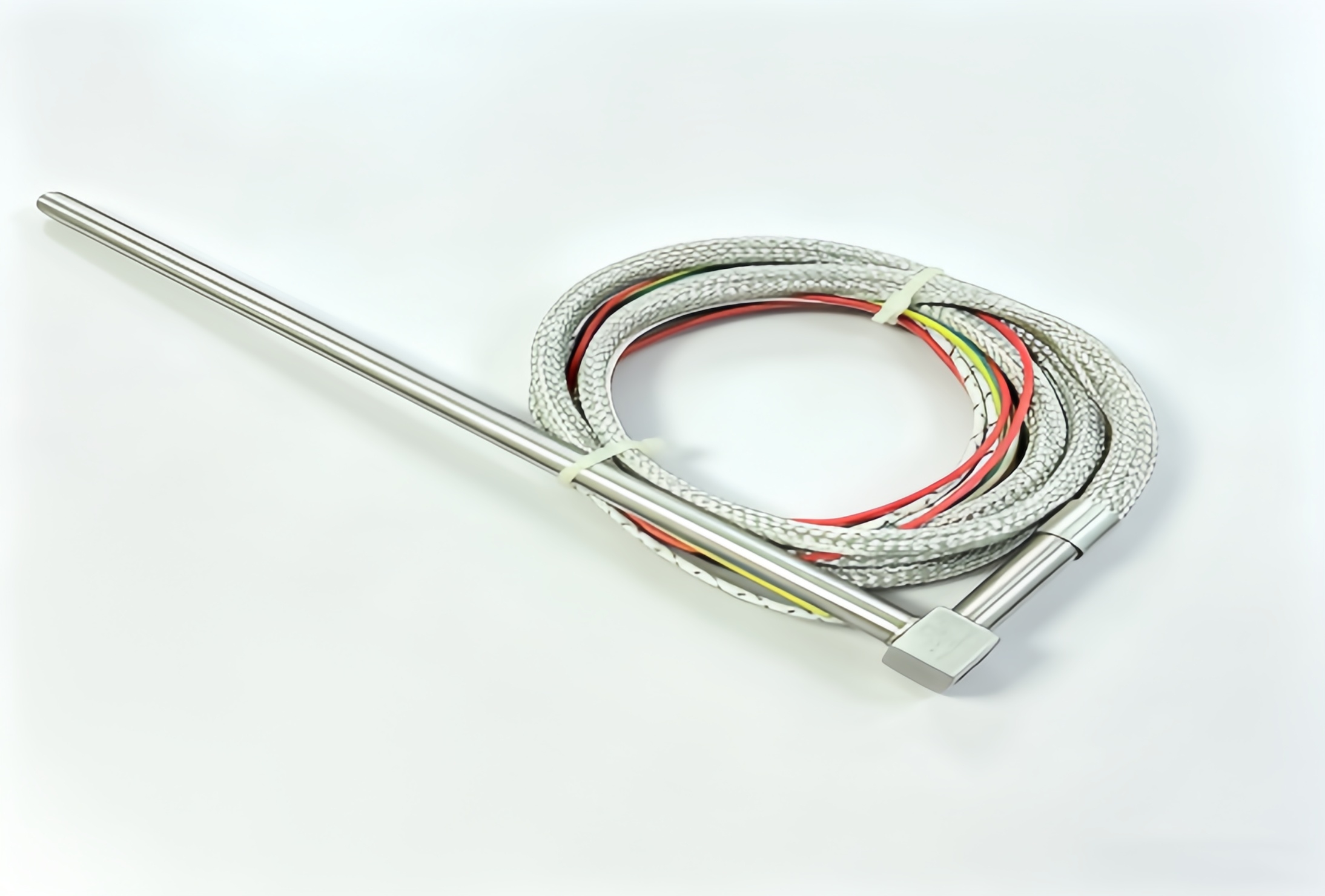

L‑shape cartridge heater adopts stainless steel sheath and high‑temperature fiberglass braided lead wire. Filled with high‑purity MGO powder, it features good thermal conductivity and insulation. Custom size, voltage and wattage are offered, widely used for mold and industrial equipment heating.
| Material: 304 stainless steel sheath; high purity MgO; high temperature alloy resistance wire | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: 90° Right Angle Cartridge Heater / L-shaped single end heating tube | Specification: Fully Customizable per Drawings & Samples |
| Shape: Straight heating tube with 90° bent connector | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: AC110V / 220V / 380V, customizable | Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5 |
| Power: Customizable, high density wattage | Tube Diameter: Φ6.6mm / Φ8.0mm / Φ8.5mm / Φ10.0mm, 3-30mm Customizable |
| Product Name: High Density Right Angle Heater for Automation Machinery with Patent | Application: Mold heating, hot runner, packaging machinery, die casting, industrial drying equipment |
Features
L‑shaped right‑angle structure, suitable for narrow installation space
High‑temperature fiberglass braided lead wire, anti‑scald and anti‑burn
Stainless steel sheath, high strength, oxidation‑resistant
Filled with high‑purity MGO powder, good insulation & thermal conductivity
Fast heat‑up, stable heating performance, long service life
Full customization on diameter, length, voltage and wattage
100% tested before delivery, support OEM & ODM
Package delivery
Packing
Each L‑shape cartridge heater is individually protected to avoid collision damage. Packed into standard export cartons. Custom‑made packing is acceptable for bulk orders.
