Straight Cartridge Heating Element

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

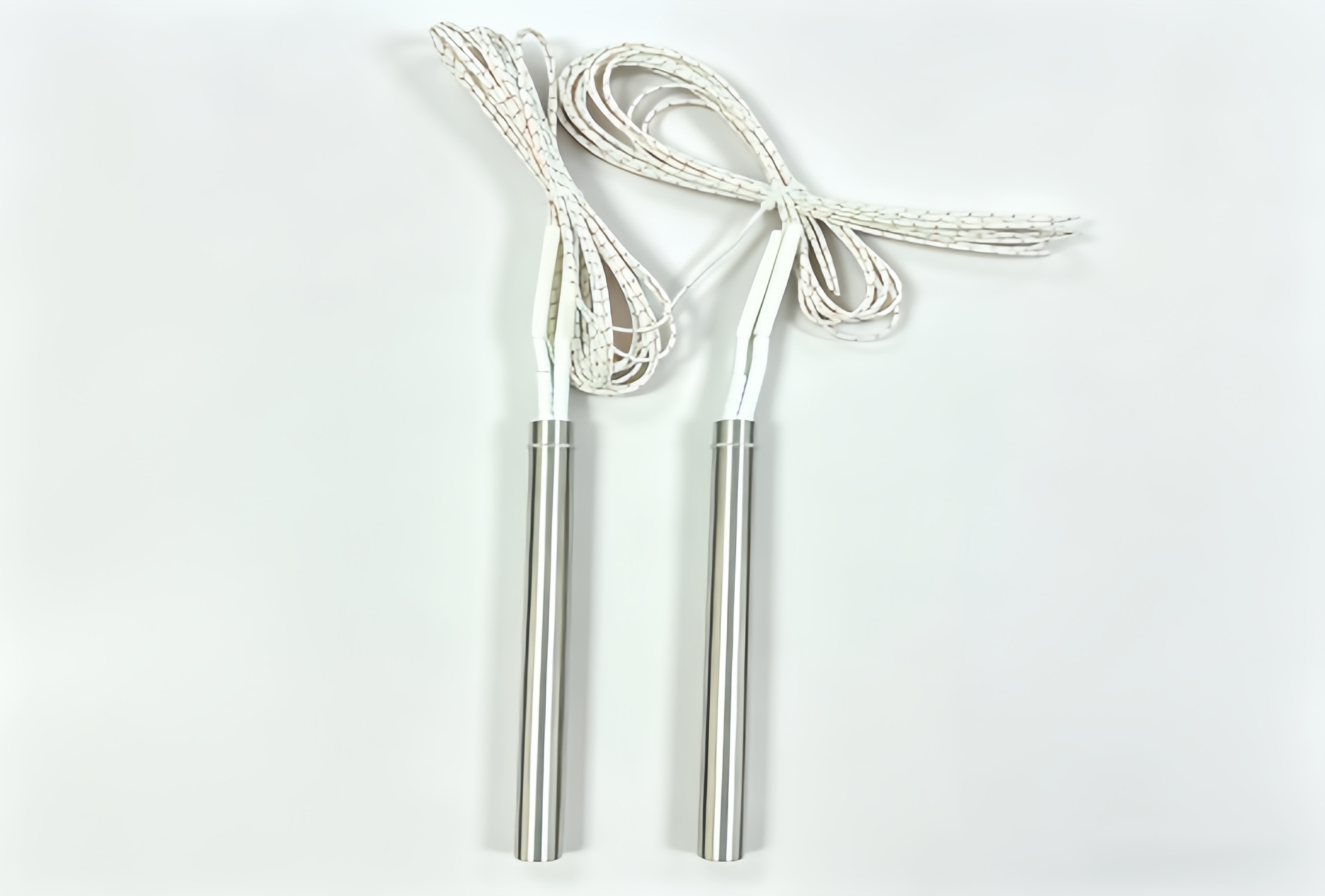

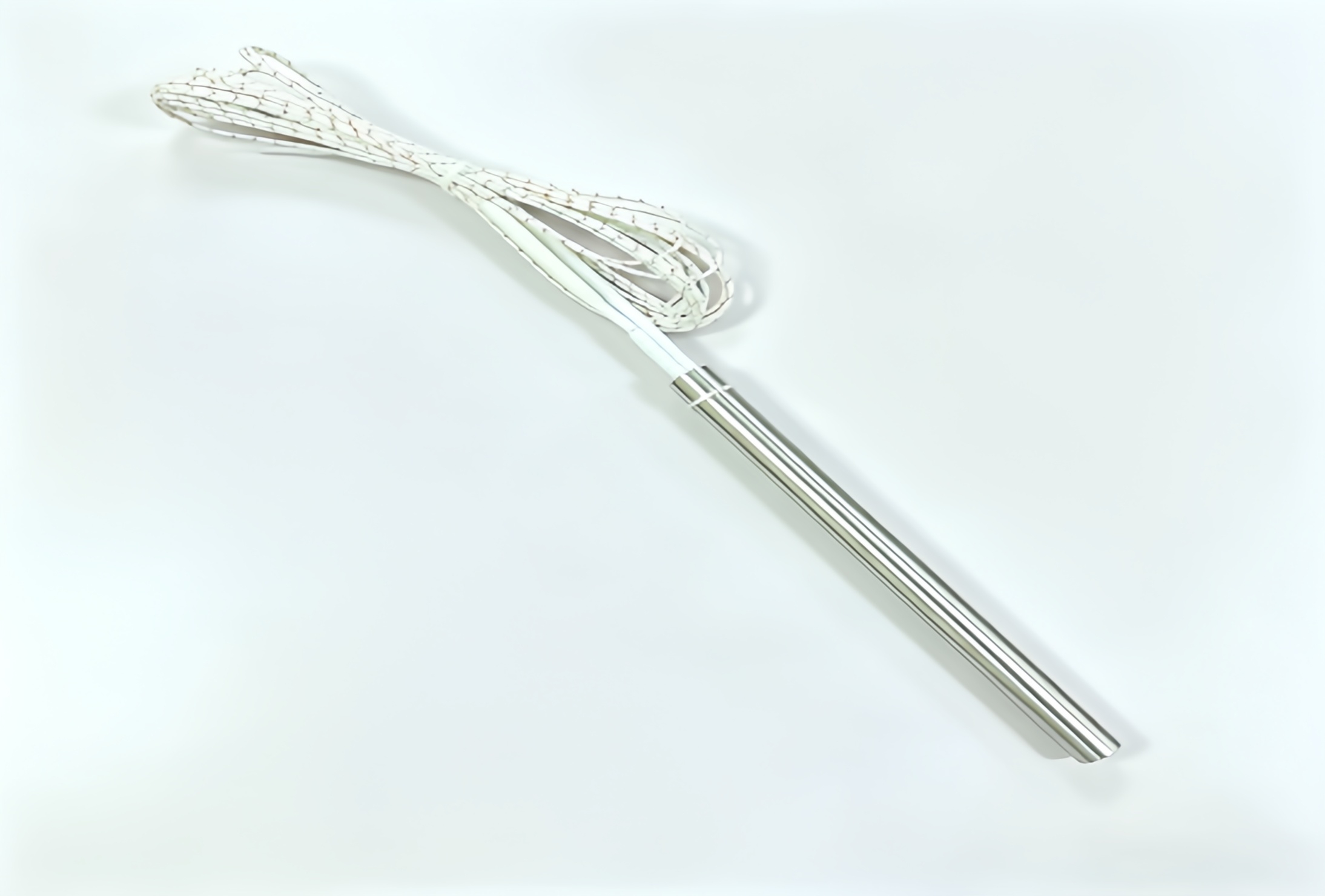

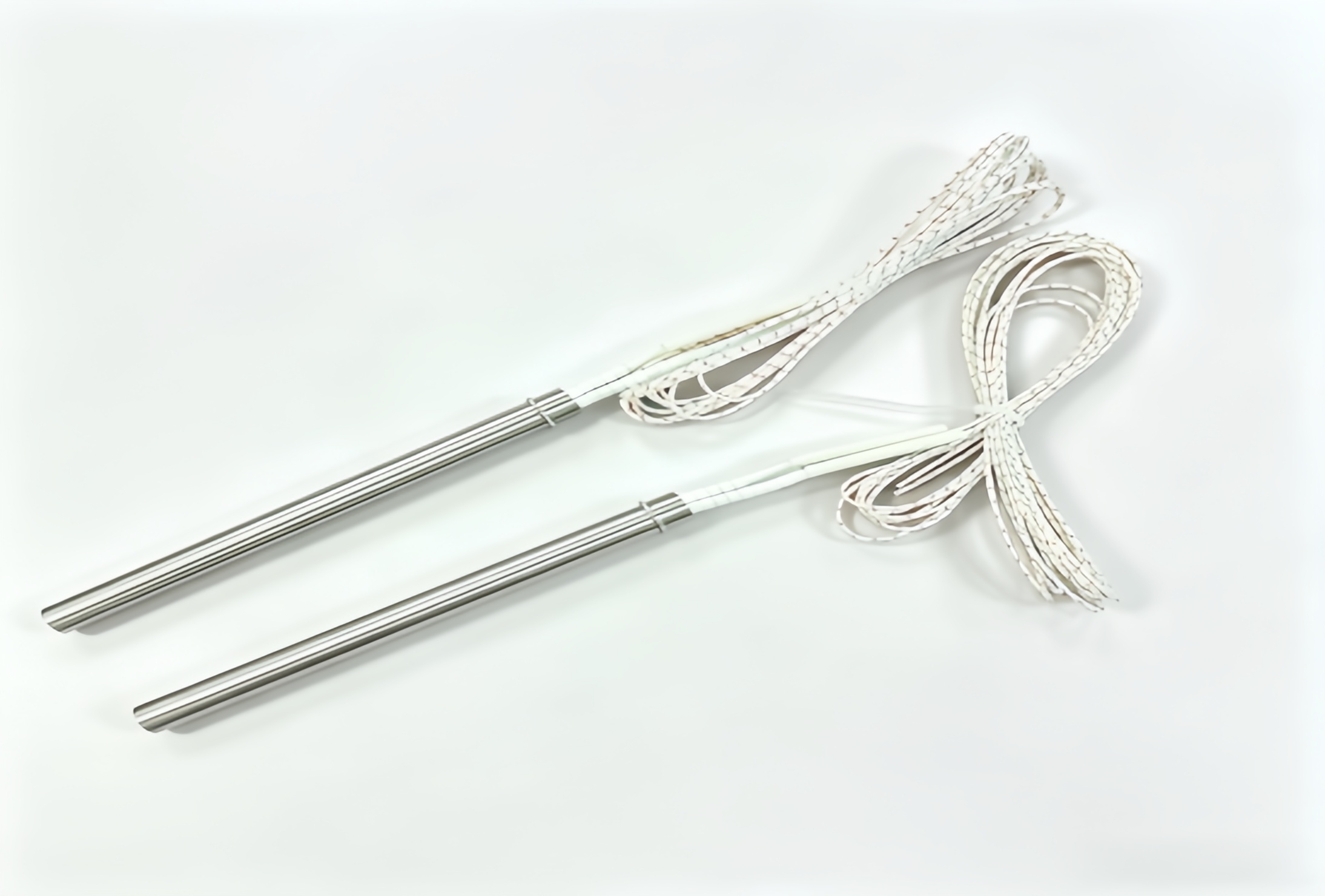

Straight lead cartridge heater adopts stainless steel sheath and high‑temperature fiberglass braided lead wire. Filled with high‑purity MGO powder, it delivers good thermal conductivity and insulation. All sizes, voltage and wattage can be customized, widely applied in mold and other industrial heating equipment.

Material: 304 / 316L Stainless Steel Tube, Ni-Cr Heating Wire, High Purity MgO Insulation	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: Rod Type Cartridge Heating Element	Specification: Fully Customizable per Drawings & Samples
Shape: Cylindrical Tubular	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 12V-380V, 110V/220V/240V/380V or Customized	Resistance Wire: Ni80Cr20 (Nichrome), Optional OCr25Al5
Power: 10W-5000W, Customized on Demand	MGO: High Grade Electric Grade Magnesium Oxide

Features

Straight outlet structure, easy for regular installation

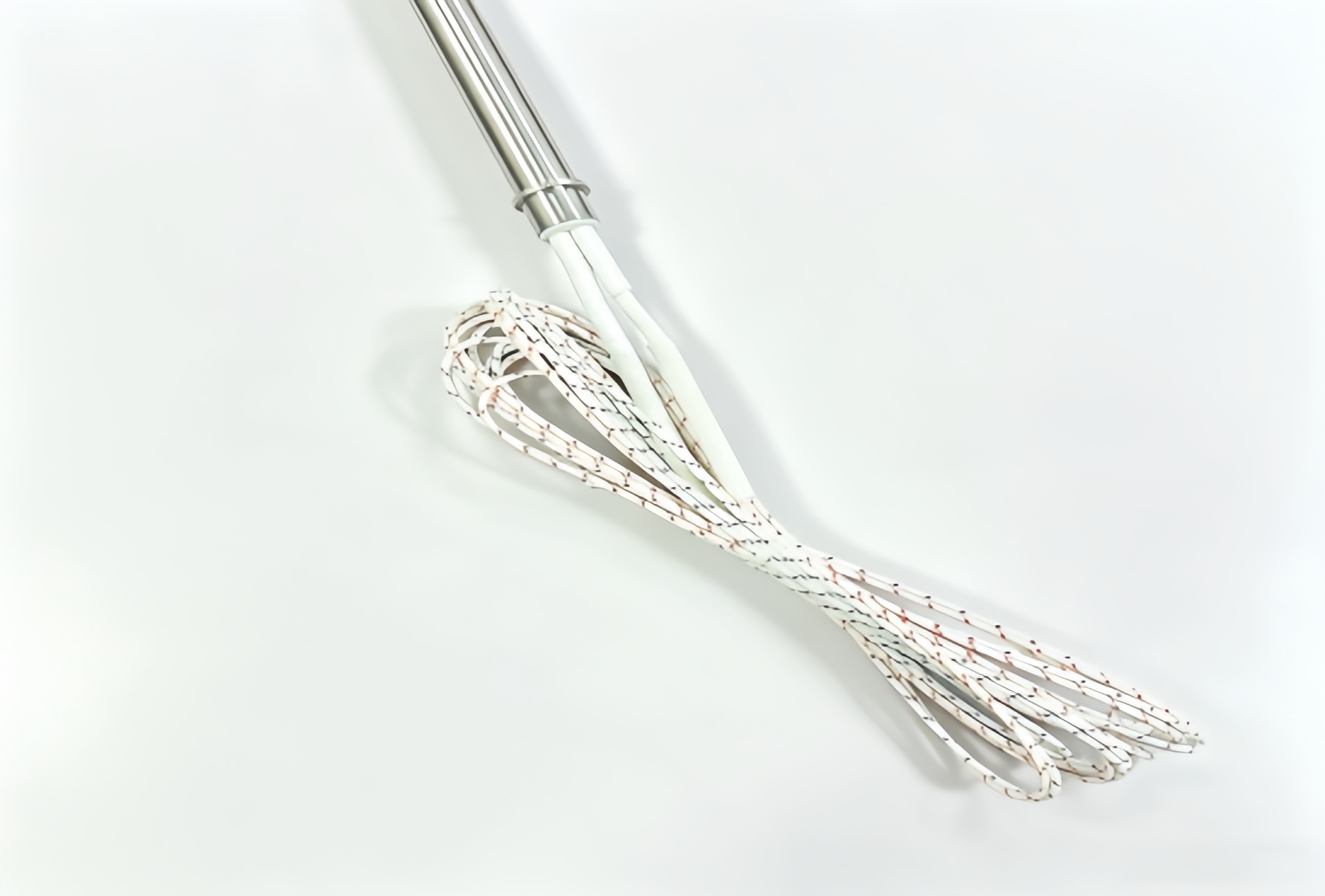

High‑temperature fiberglass braided lead wire, anti‑aging and heat‑resistant
Stainless steel sheath, high strength and oxidation resistance
Filled with high‑purity MGO powder, excellent insulation and heat conduction
Fast heat‑up speed, stable working performance, long service life
Customizable tube diameter, length, voltage and wattage
Full‑function test before delivery, support OEM & ODM

Package delivery

Packing

Each straight lead cartridge heater is individually wrapped for anti‑collision protection, then packed into standard export cartons. Custom packing is acceptable for bulk orders.

Shipping

Small orders shipped by international courier such as DHL, FedEx. Large volume goods go by air or sea freight. We support FOB, CIF and other international trade terms.
