Product Description

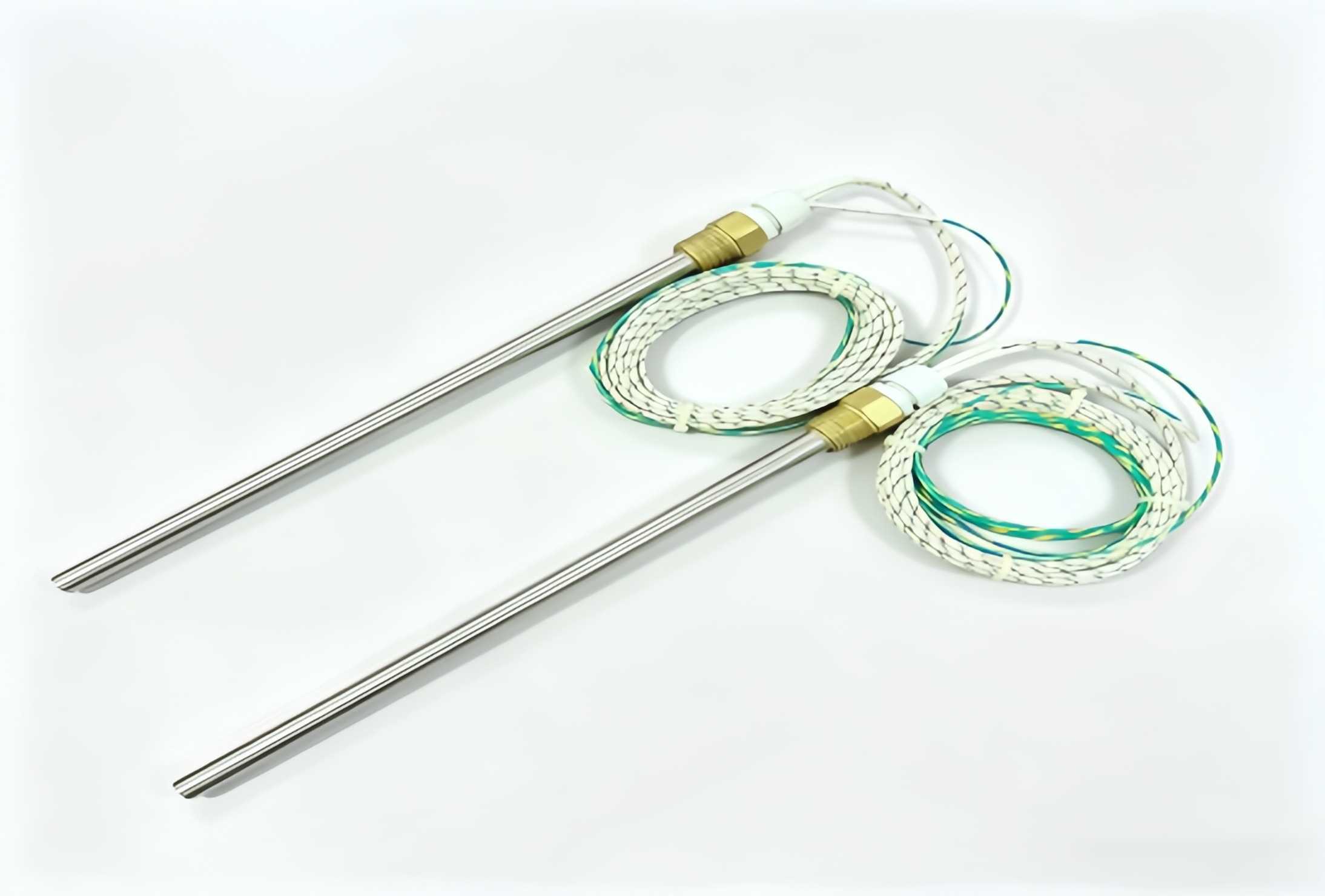

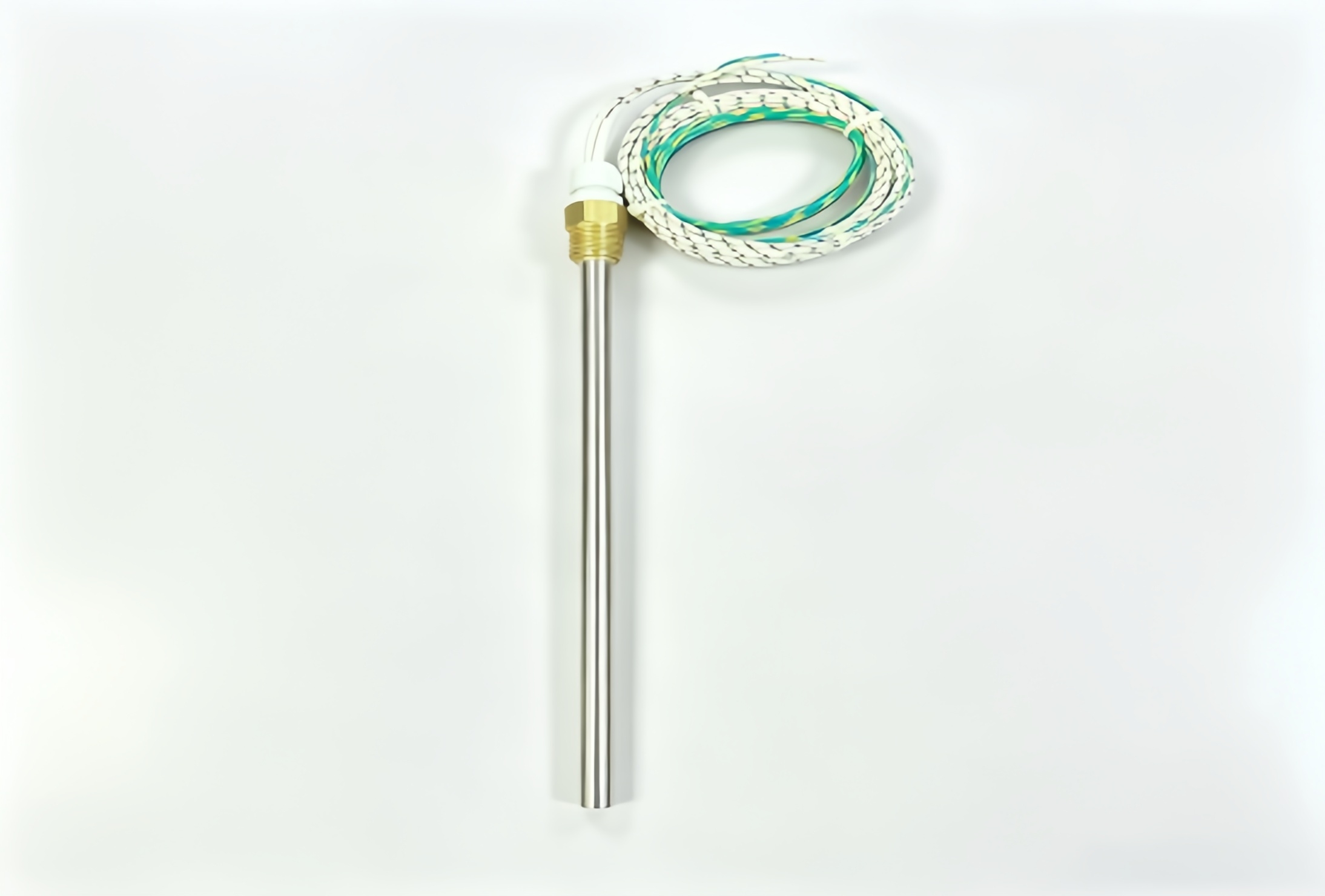

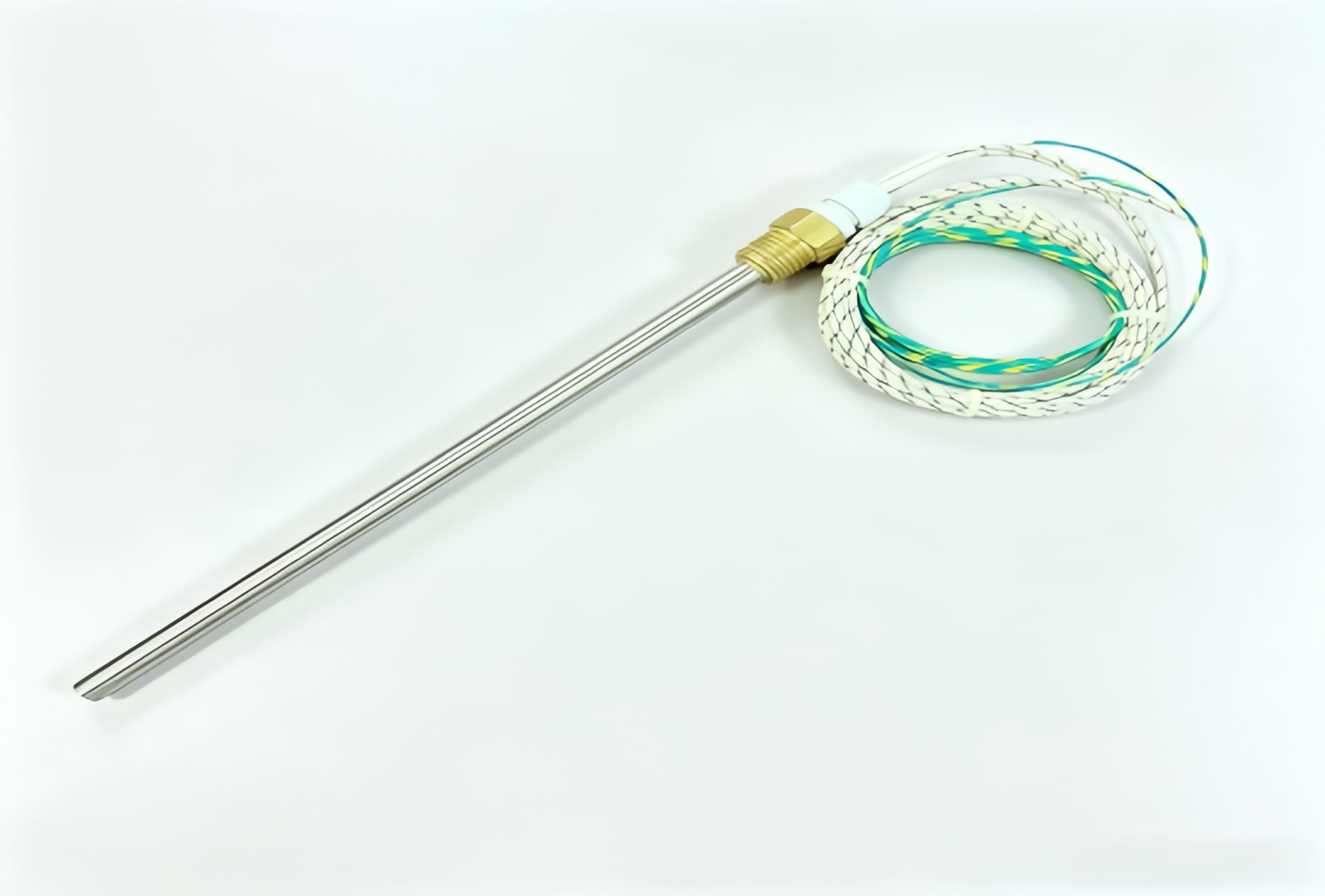

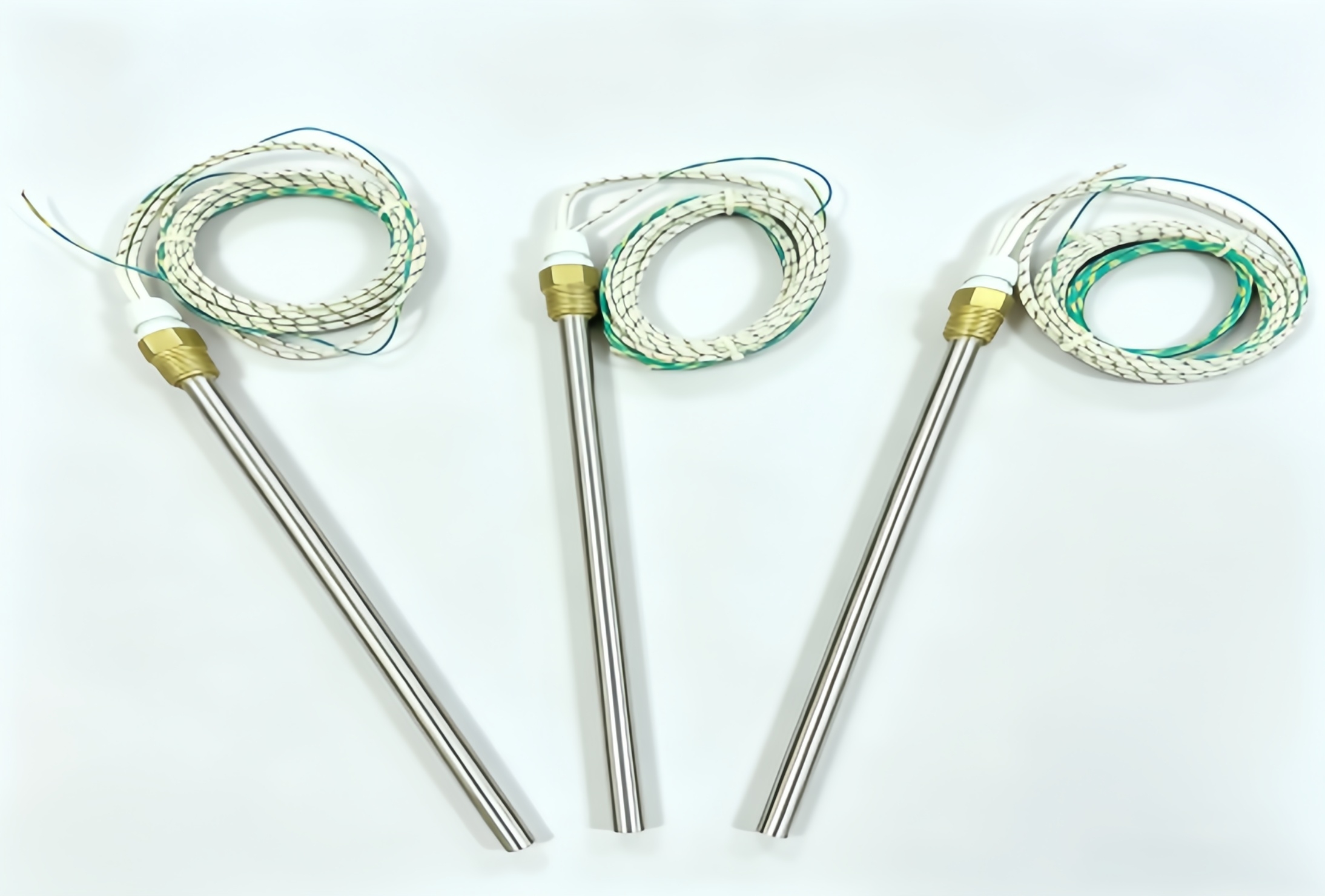

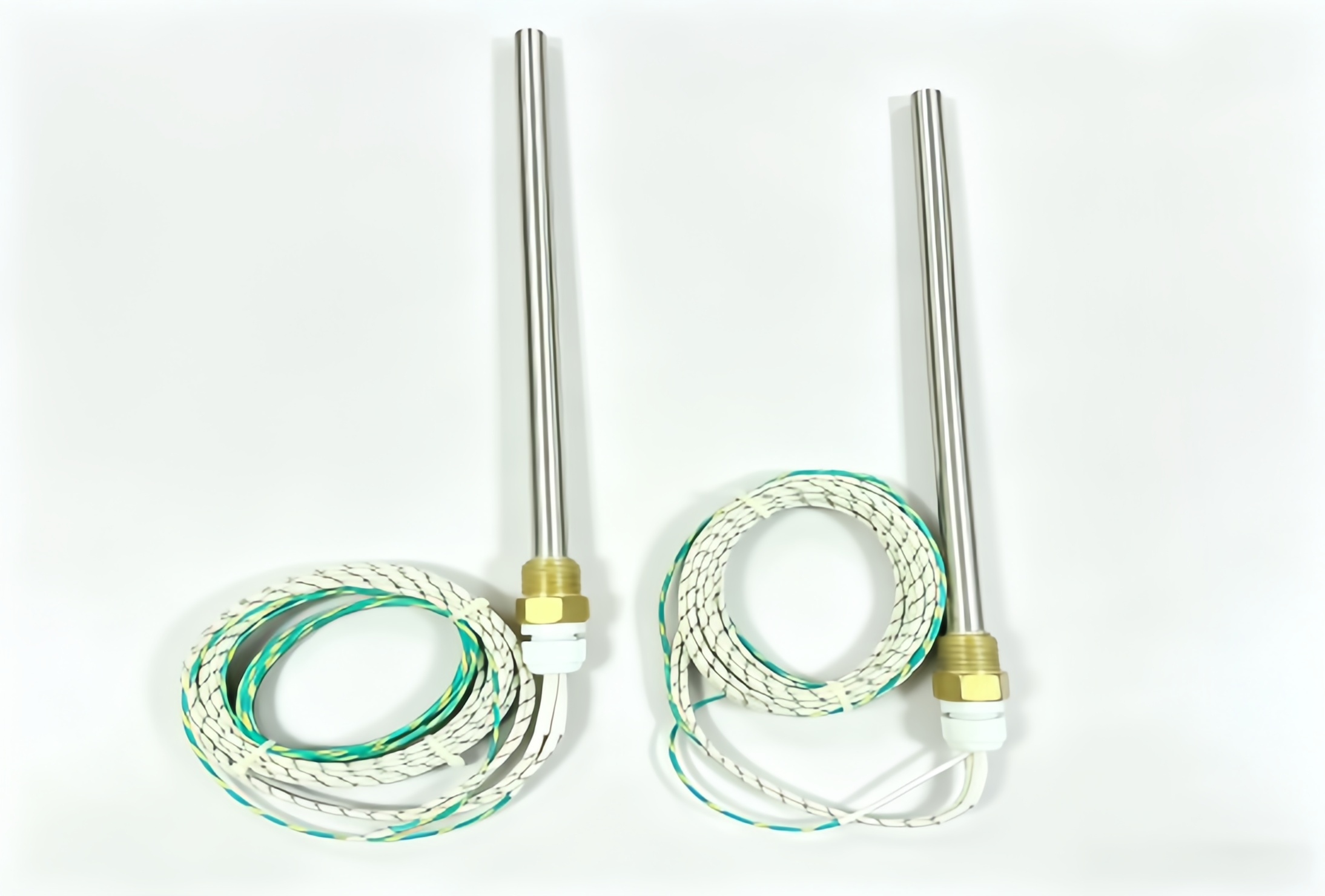

This threaded cartridge heater is equipped with brass thread fitting and braided high‑temperature lead wire. Stainless steel sheath ensures good corrosion resistance. Voltage, power, tube length and wire length can be fully customized. Suitable for mold heating, liquid immersion heating and various industrial heating systems.
| Material: SUS304 Stainless Steel SUS316L Stainless Steel Incoloy 800 Alloy | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Straight single-end tubular with brass thread | Specification: Tube Shape: Straight cylindrical Tube Diameter: 6mm,8mm,10mm,12mm,14mm,16mm (customizable) Total Tube Length: Customized Heating Section Length: Customized |
| Shape: Straight cylindrical tube | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: 110V, 120V, 220V, 230V, 240V, 380V, 415V Custom voltage available according to customer requirements | Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire |
| Power: Custom wattage supported, adjust power based on tube size and working temperature | MGO: High Grade Electric Grade Magnesium Oxide |
| Tube Diameter: 6–16mm, customizable | Application: Water tank, boiler, oil tank, liquid heating equipment, mold temperature machine |
Features
Brass threaded fitting, simple screw‑in installation
Stainless steel sheath, good corrosion & high temperature resistance
Braided high‑temperature lead wire, long service life
High‑purity MGO filling, outstanding insulation & thermal conductivity
Full custom for diameter, length, voltage and power
Strict electrical inspection for every unit before delivery
Package delivery
Each item bubble wrapped, packed in export carton. Support express, air and sea shipment. Custom packing acceptable.
