Right Angle Cartridge Heater L‑Type

Inquire Now Next Product

Product Description Features Package delivery Download

Product Description

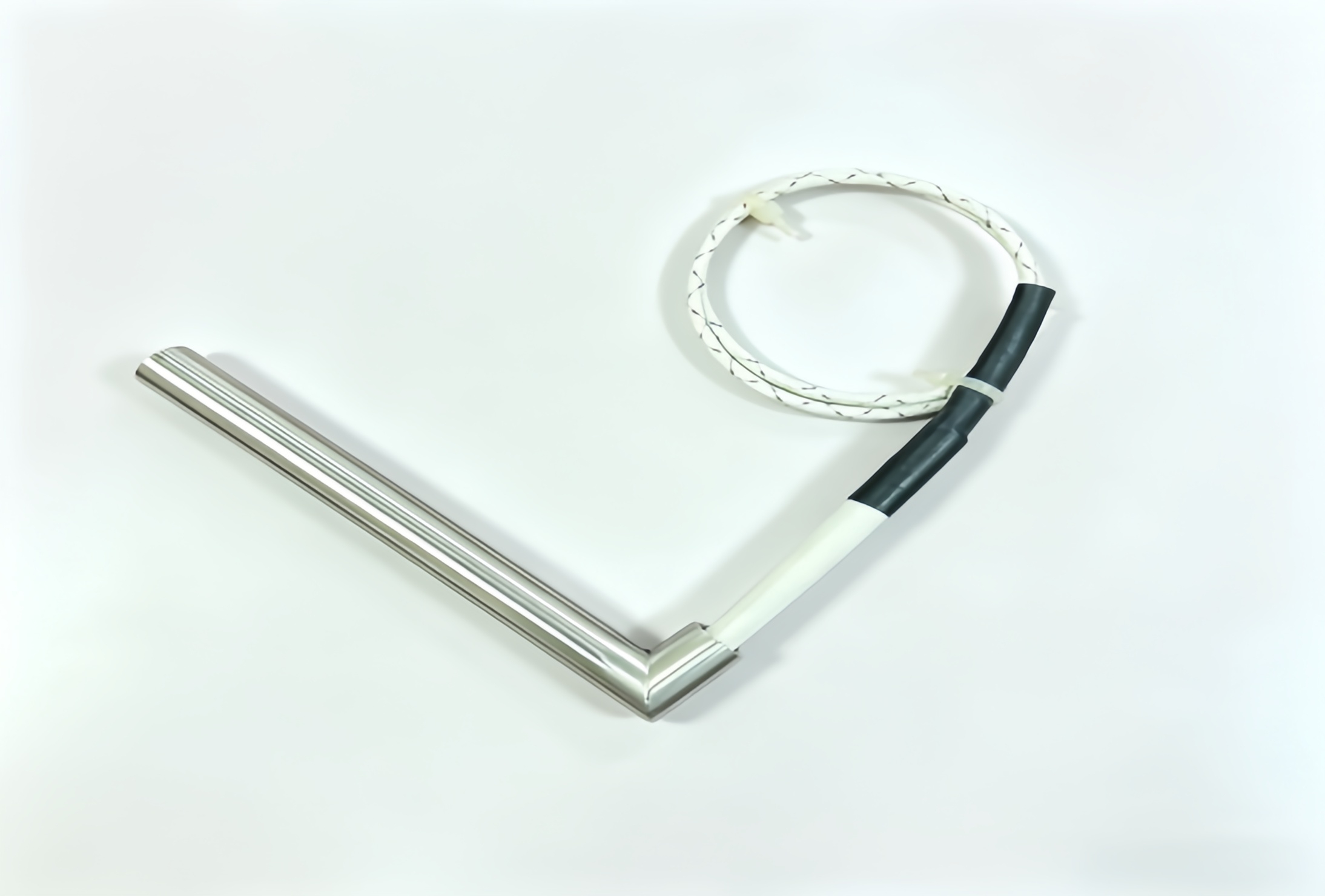

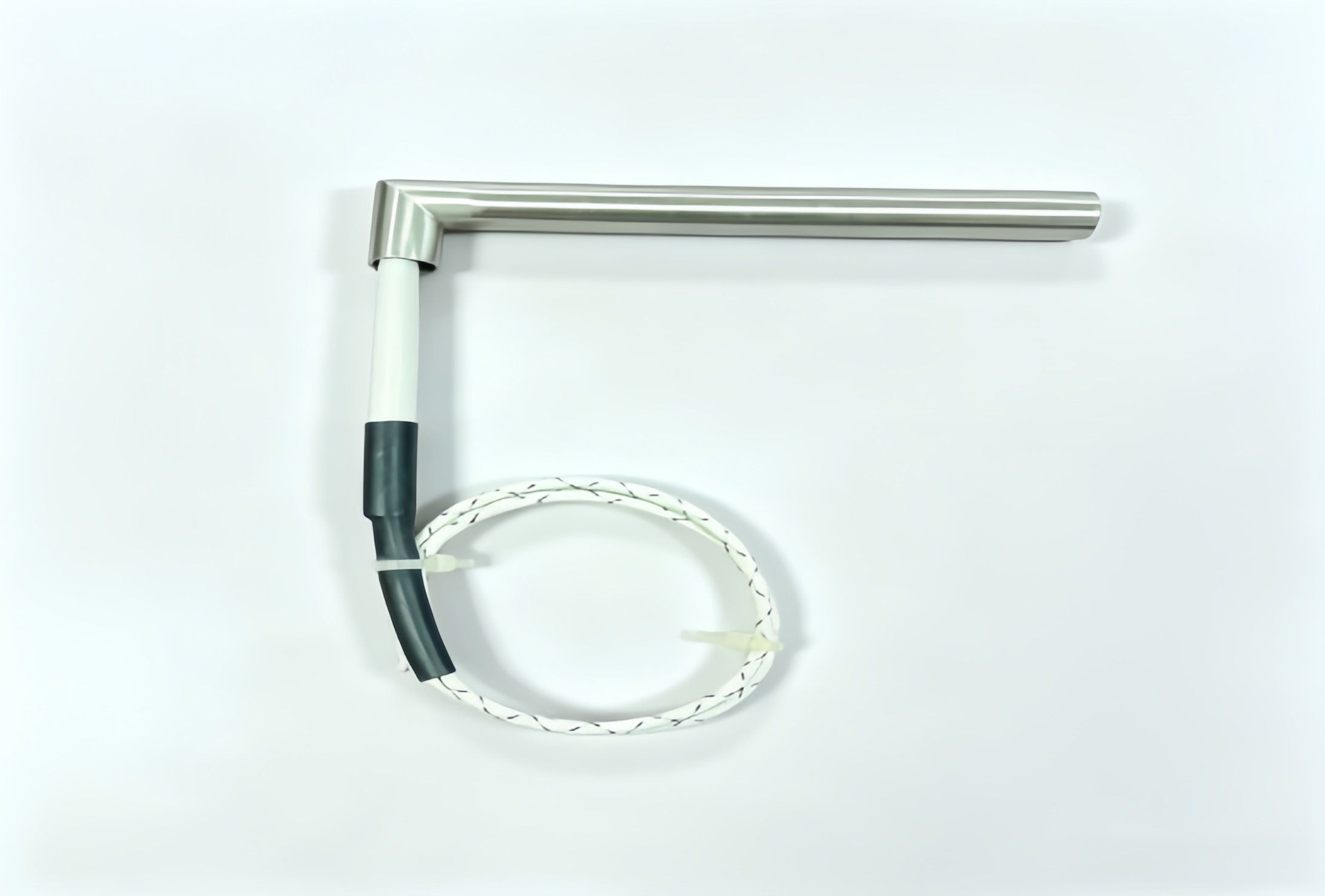

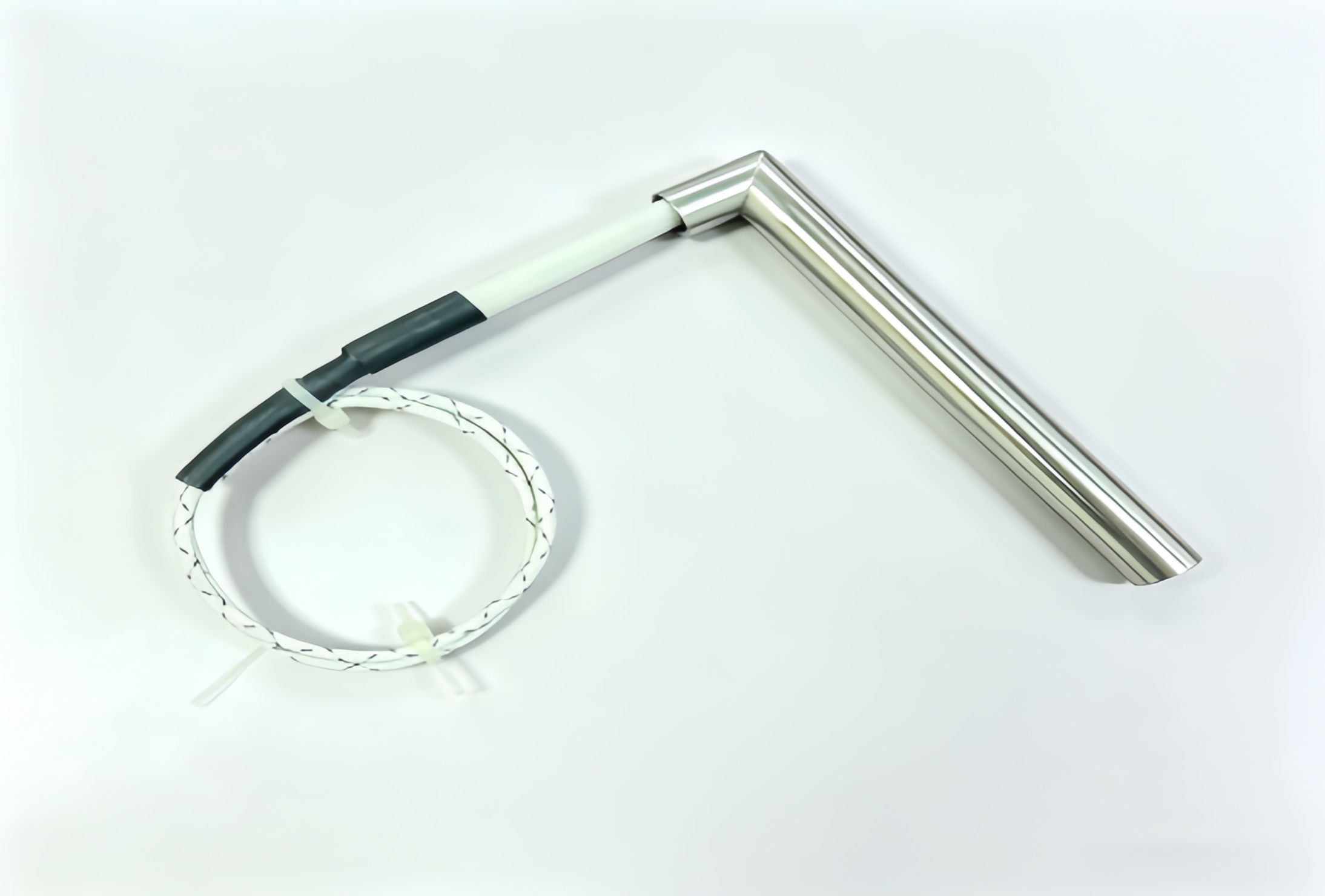

This L‑shape right angle cartridge heater features 90‑degree bent design with braided high‑temperature lead wire. Stainless steel sheath provides reliable high‑temperature and corrosion resistance. All dimensions, voltage and power can be customized. Ideal for mould heating where installation space is limited.

Material: 304 stainless steel tube, Ni80Cr20 resistance wire, MgO insulation, fiberglass high temp wire	Transport Package: Standard Export Carton, Plywood Wooden Case
Form: L-shaped 90° bent single head cartridge heater	Specification: 90° L bent cartridge heater, Φ6–20mm tube, 50W–1200W, 12V–380V, 304 stainless steel tube, custom size & power supported
Shape: 90° L bent / Right angle L shape cartridge heater	Certification: CE, ISO9001, RoHS, CB, CCC
Voltage: 12V, 24V, 36V, 48V, 110V, 220V, 380V Custom voltage available on request	Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire
Power: 50W – 1200W Custom power support according to customer requirements	Tube Diameter: Standard sizes Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ16mm, Φ20mm; custom diameters supported
MGO: High Grade Electric Grade Magnesium Oxide	Application: Molds, injection machines, packaging equipment, die casting machinery, automation heating devices

Features

1.90‑degree L‑shape bent structure, fit for limited installation space

2.Stainless steel sheath, high temperature and corrosion resistant

3.Braided high‑temperature lead wire, avoid high‑heat damage

4.High‑purity MGO filler, good insulation and thermal conductivity

5.Fully customizable: diameter, length, voltage and power

6.Strict electrical performance test for each unit before shipment

Package delivery

Each heater bubble‑wrapped, bent position well‑protected, packed in export carton. Support express, air and sea shipping. Custom packing available.
