Product Description

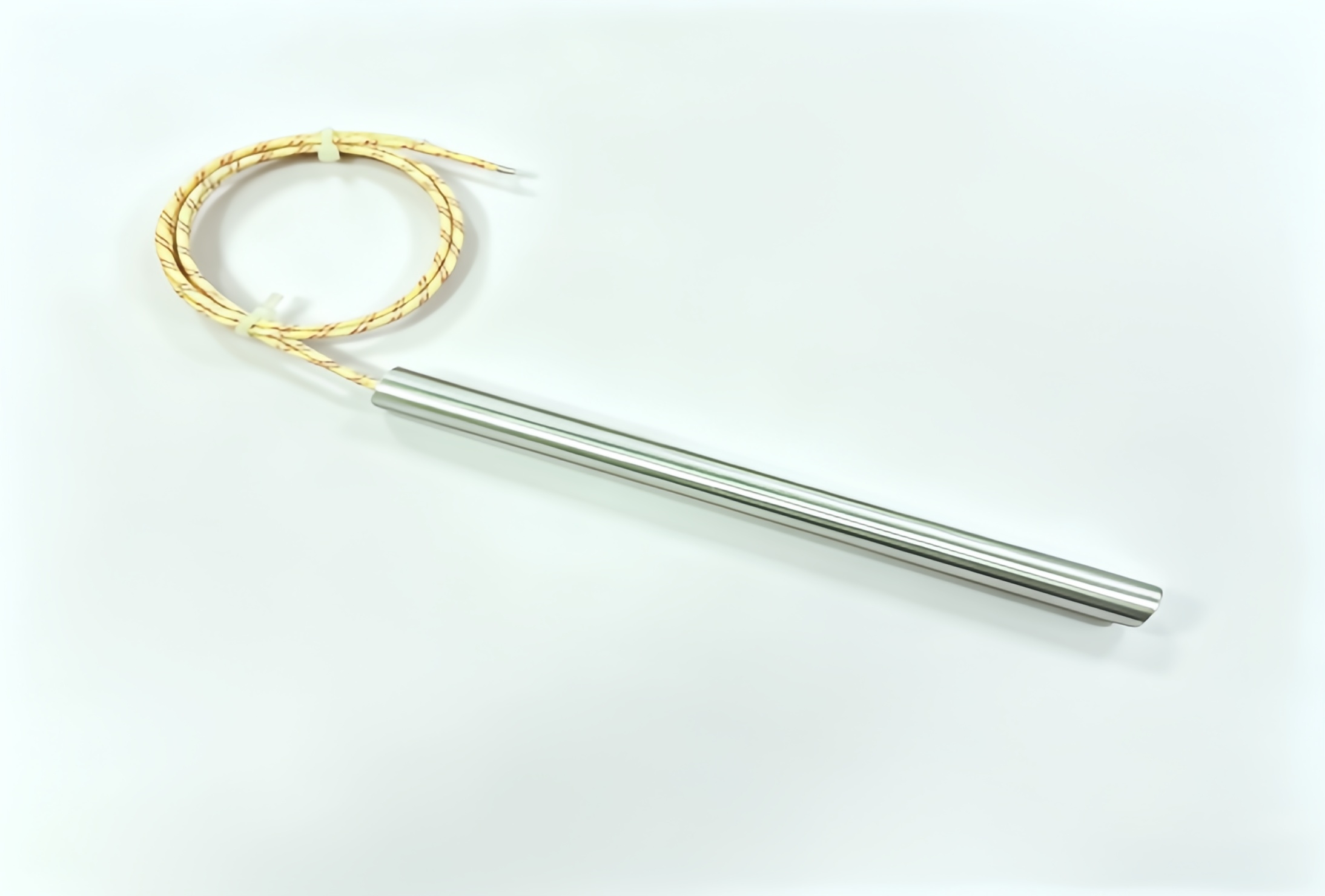

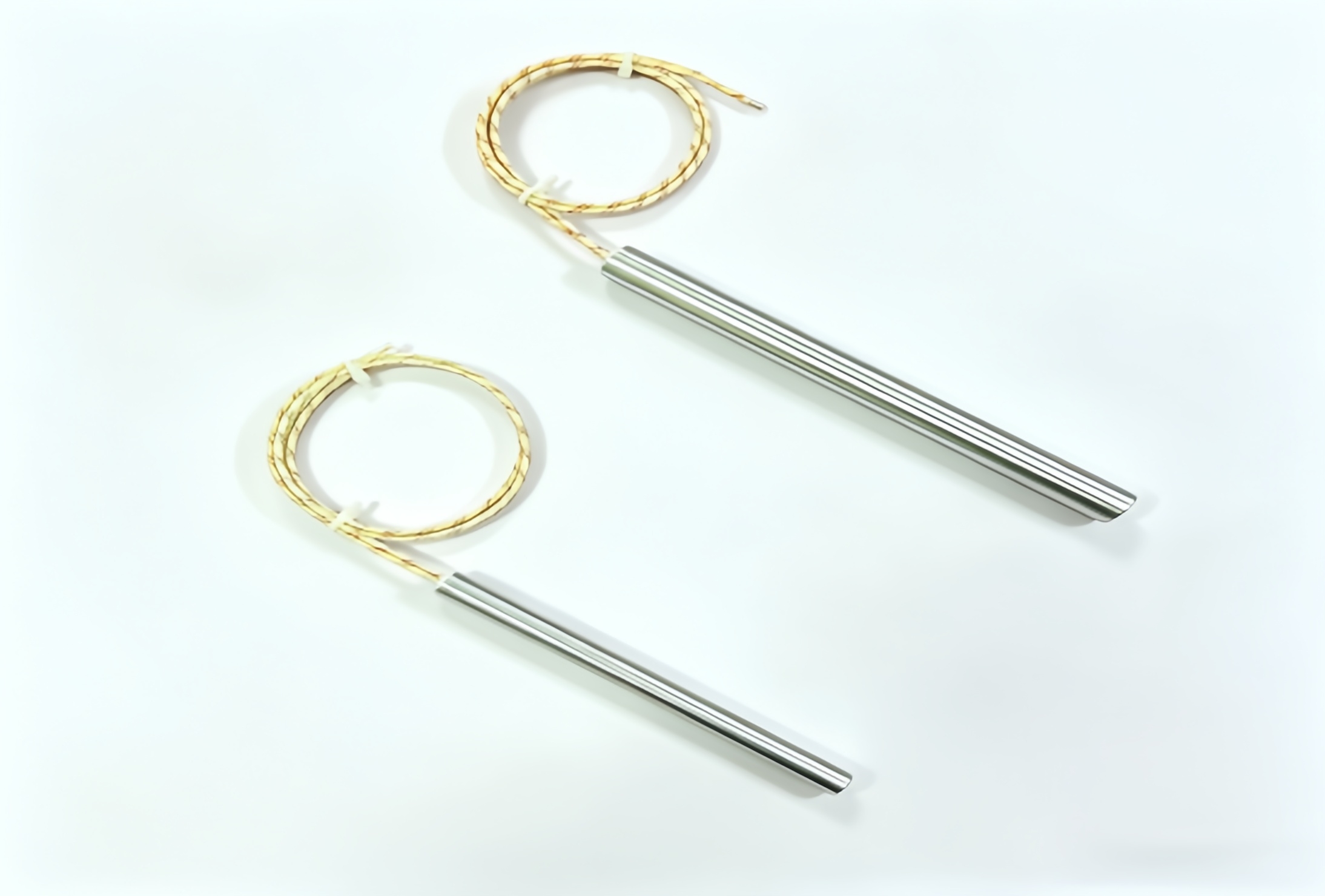

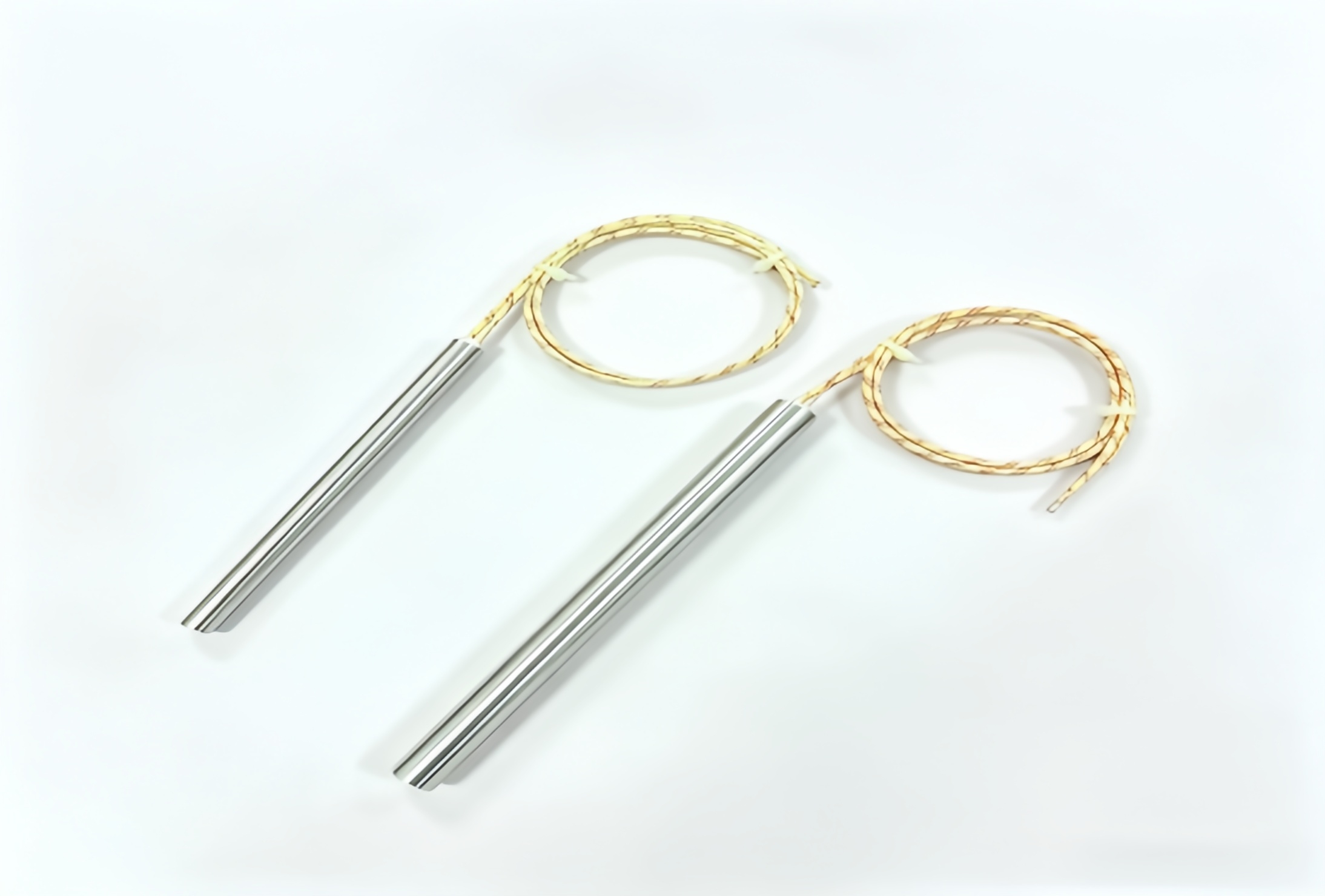

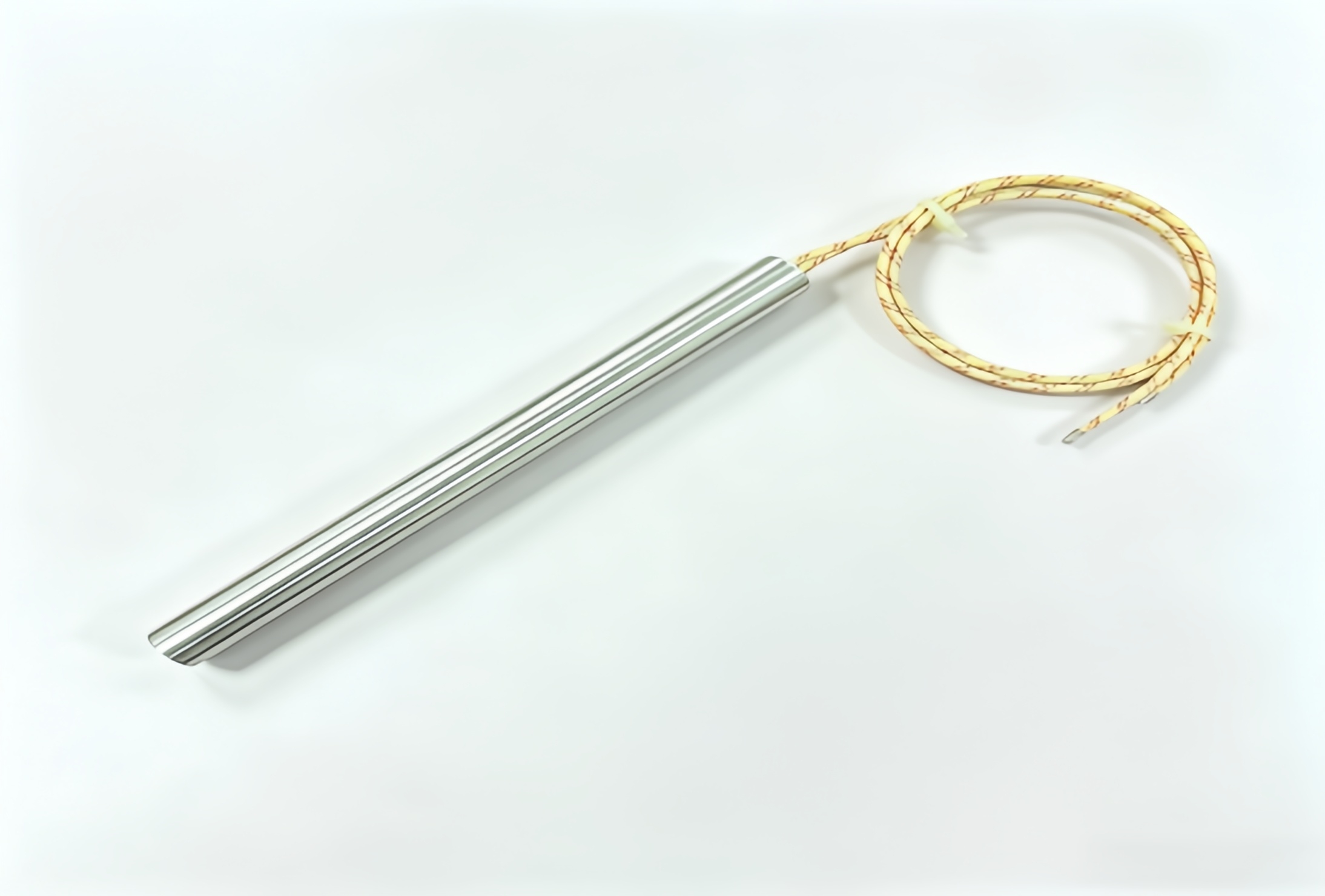

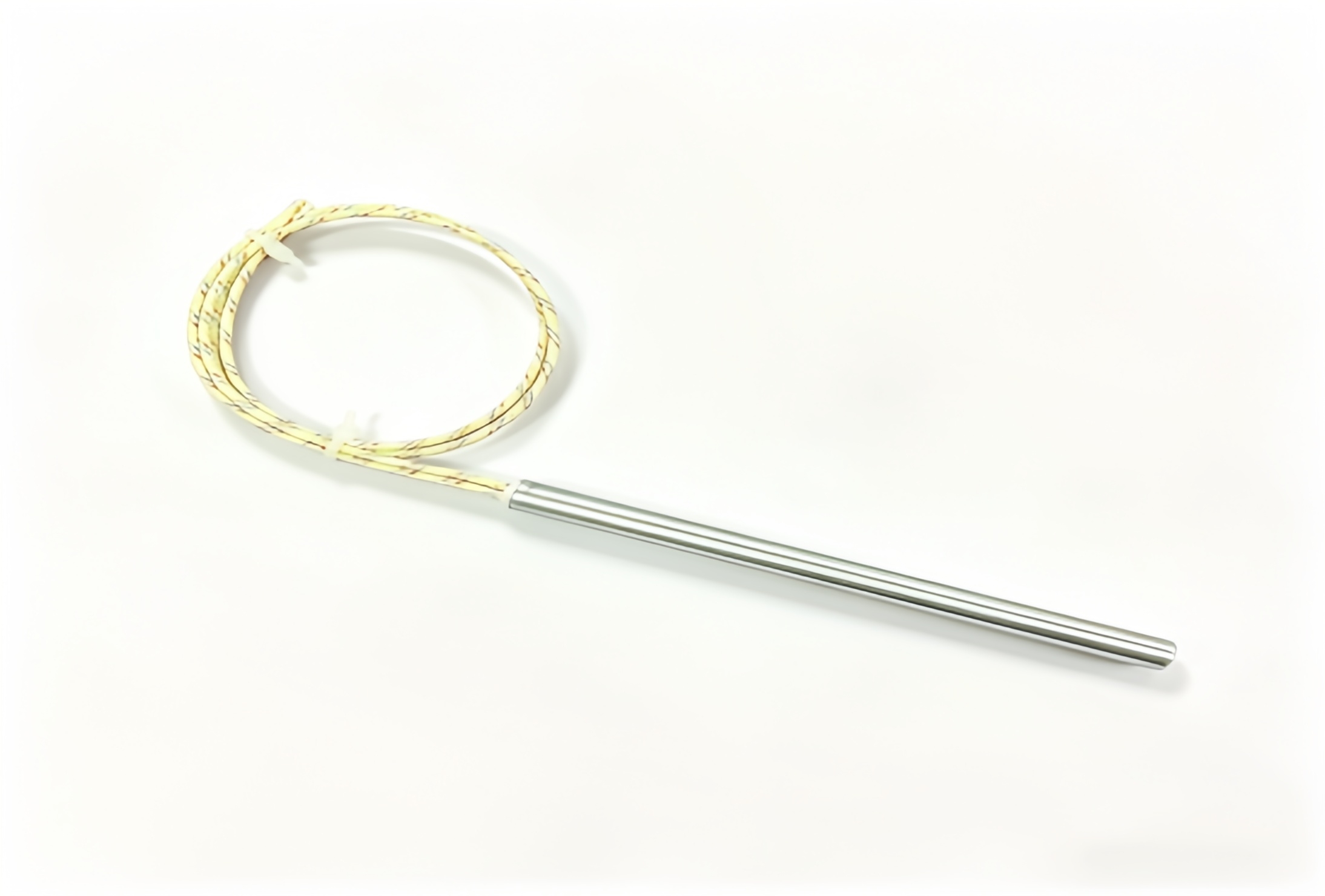

This straight cartridge heater adopts stainless steel sheath with fiberglass braided high‑temperature lead wire. Featuring fast heat‑up and stable performance. Voltage, power and size are fully customizable, widely used for industrial mold heating.
| Material: Stainless Steel Sheath, Nichrome Wire, High Purity MGO Powder, Fiberglass Braided Lead Wire | Transport Package: Standard Export Carton, Plywood Wooden Case |
| Form: Single End Cartridge Tubular | Specification: Plastic Mold, Packaging Machine, Die Casting Equipment |
| Shape: Straight solid cylindrical shape | Certification: CE, ISO9001, RoHS, CB, CCC |
| Voltage: Customized (110V, 220V, 230V, 380V optional) | Resistance Wire: Ni80Cr20 Nickel-Chromium Alloy Wire |
| Power: Customized (50W - 3500W) | Tube Diameter: Customized (6mm,8mm,10mm,12mm,16mm optional) |
| MGO: High Grade Electric Grade Magnesium Oxide | Application: Injection Mold, Packaging Machine, Industrial Heating Equipment |
Features
Straight single‑end structure, easy for hole‑insert installation
Stainless steel sheath, high temperature resistant & anti‑corrosion
Fiberglass braided high‑temp lead wire, strong heat resistance
High‑purity MGO filling, good insulation and thermal conductivity
Fast heating, uniform heat output, stable working performance
Full OEM customization for diameter, length, voltage and power
Package delivery
Each heater bubble‑wrapped, individual box, packed in reinforced export carton. Support express, air and sea shipment. Custom packing is acceptable.
